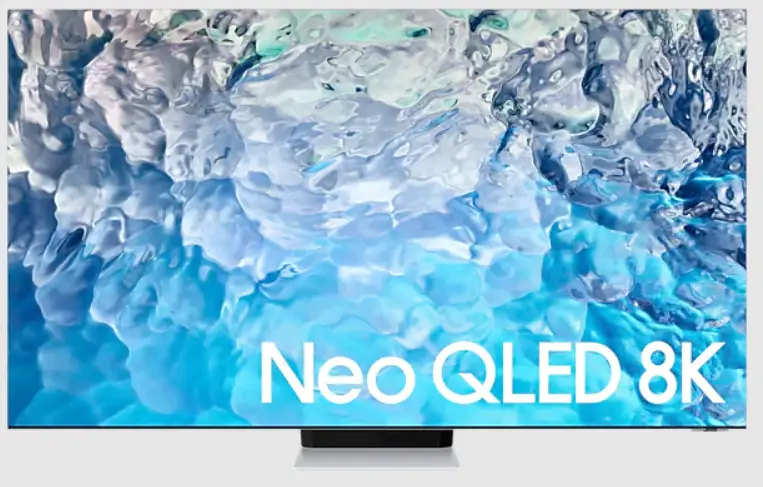

SAMSUNG QN65QN900BFXZC 65 Inch Neo QLED 8K Smart TV

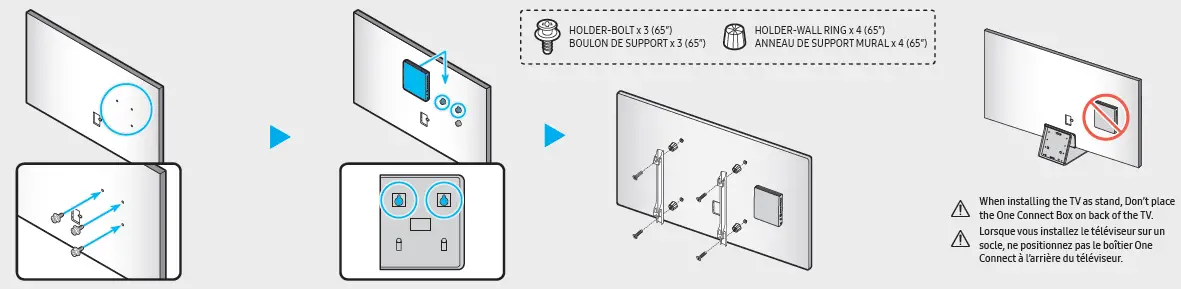

* When installing the TV as wall mount, You can place the One Connect Box as shown below. (65″)
* To install using a wall mount, be sure to use the supplied HOLDER-WALL RING. (65″)

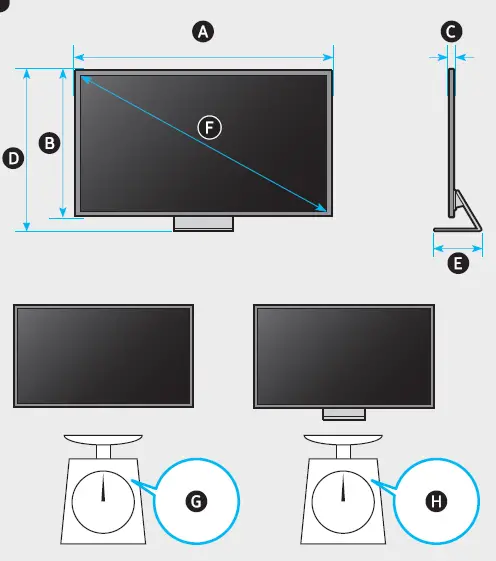

| QN55QN95B | 48.3 inches (1228.0 mm) | 27.8 inches (707.3 mm) | 0.7 inches (17.4 mm) | 30.6 inches (777.3 mm) | 11.7 inches (298.4 mm) | 54.6 inches | 35.5 lbs (16.1 kg) | 53.4 lbs (24.2 kg) |
| QN65QN95B | 57.0 inches (1446.9 mm) | 32.7 inches (829.7 mm) | 0.7 inches (17.4 mm) | 35.4 inches (900.2 mm) | 11.7 inches (298.4 mm) | 64.5 inches | 49.2 lbs (22.3 kg) | 67.0 lbs (30.4 kg) |
| QN55QN7**B | 48.2 inches (1224.8 mm) | 27.8 inches (705.3 mm) | 0.7 inches (17.8 mm) | 30.5 inches (775.8 mm) | 12.7 inches (298.4 mm) | 54.6 inches | 36.6 lbs (16.6 kg) | 53.8 lbs (24.4 kg) |
| QN65QN8**B | 56.8 inches (1443.7 mm) | 32.6 inches (828.4 mm) | 0.7 inches (16.9 mm) | 35.3 inches (897.7 mm) | 11.7 inches (298.4 mm) | 64.5 inches | 51.4 lbs (23.3 kg) | 68.8 lbs (31.2 kg) |
| QN65QN9**B | 56.4 inches (1433.1 mm) | 32.3 inches (819.9 mm) | 0.6 inches (15.2 mm) | 35.2 inches (893.4 mm) | 11.7 inches (298.4 mm) | 64.5 inches | 49.8 lbs (22.6 kg) | 67.2 lbs (30.5 kg) |
* : 0~9, A~Z

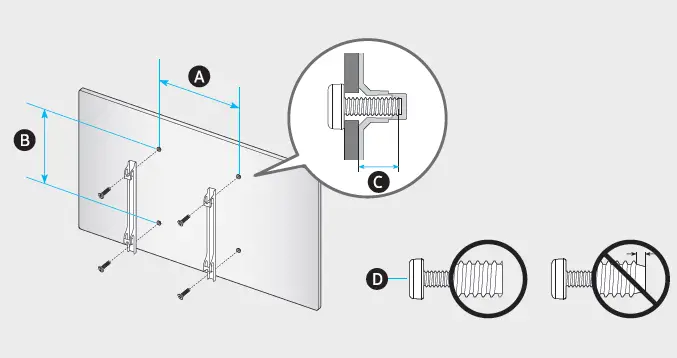

| VESA x (mm) | (mm) | ||
| QN55QN95B | 400 x 300 | 5-6 | M8 |
| QN65QN95B | |||
| QN55QN7**B | |||
| QN65QN8**B | |||
| QN65QN9**B |
* : 0~9, A~Z
QUICK SETUP GUIDE
