QUICK SETUP GUIDE
BN68-11636A
Scan this QR code with your smartphone to see helpful videos.

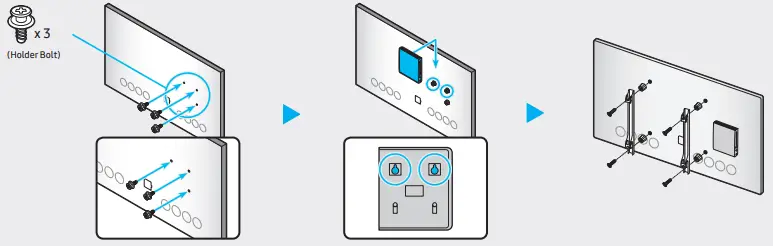

* When installing the TV as a wall mount, You can place the One Connect Box as shown below.
* To install using a wall mount, be sure to use the supplied HOLDER-WALL RING.
 | HOLDER-BOLT x 3 |
 | HOLDER-WALL RING x 4 |

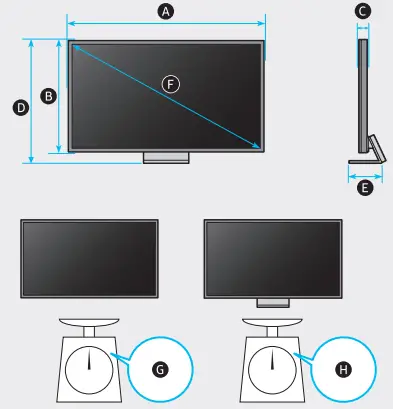

| A | B | C | D | E | F | G | H | |
| QN65QN8**A | 56.8 inches (1443.7 mm) | 32.6 inches (828.4 mm) | 0.7 inches (169 mm) | 35.3 inches (897.4 mm) | 11.8 inches (300.6 mm) | 64.5 inches | 50.0 lbs (22.7 kg) | 67.9 lips (30.8 kg) |
| QN65QN9**A | 56.4 inches (14331 mm) | 32.3 inches (819.9 mm) | 0.6 inches (15.2 mm) | 351 inches (892.0 mm) | 11.8 inches (300.5 mm) | 64 5 inches. | 48.7 Ws (221 kg) | 66.4 (bs (301 kg) |
*: 0~9, A~Z

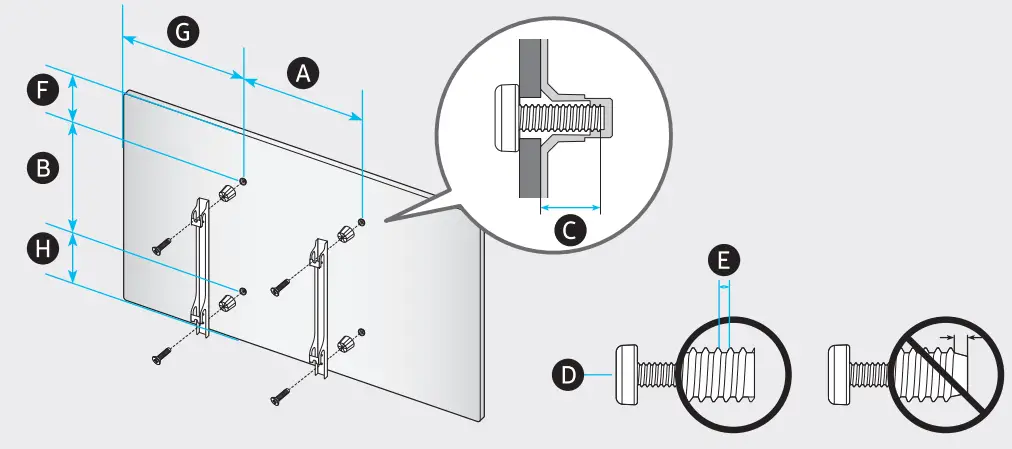

| VESA A x B(mm) | C(mm) | D x4 | E(mm) | F(inches) | G (inches) | H(inches) | |
| QN65QN8**A | 400 x 300 | 5-6 | M8 | 1.25 | 9. | 20.2 | 12.9 |
| QN65QN9**A | 8. | 20.3 | 12.8 |
*: 0~9, A~Z
