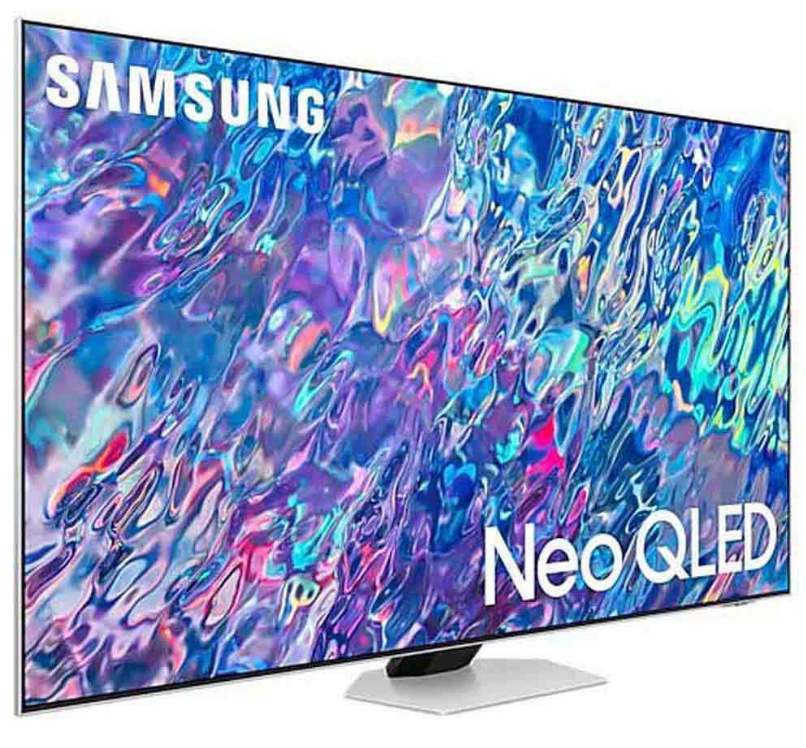

SAMSUNG QE65QN85BATXXH QLED TV

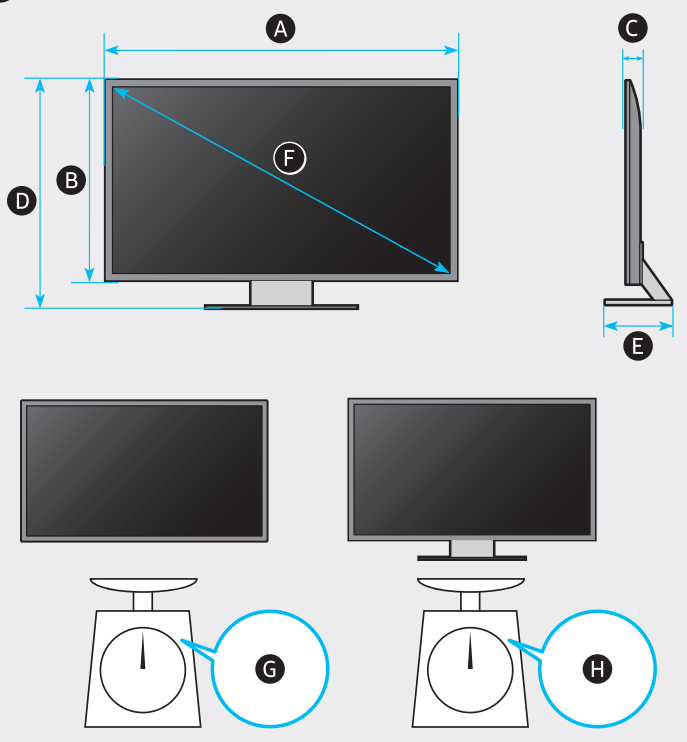

Dimension
|
|
|
|
|
|
|
| |
| 55QN8*B 55QNB8* | 48.3 inches (1227.4 mm) (122.74 cm) | 27.8 inches (705.6 mm) (70.56 cm) | 1.1 inches (26.9 mm) (2.69 cm) | 30.2 inches (767.9 mm) (76.79 cm) | 10.0 inches (253.0 mm) (25.30 cm) | 54.6 inches (138 cm) | 37.9 lbs (17.2 kg) | 44.5 lbs (20.2 kg) |
| 65QN8*B 65QNB8* | 56.9 inches (1446.3 mm) (144.63 cm) | 32.6 inches (828.7 mm) (82.87 cm) | 1.1 inches (26.9 mm) (2.69 cm) | 35.1 inches (891.1 mm) (89.11 cm) | 11.2 inches (285.7 mm) (28.57 cm) | 64.5 inches (163 cm) | 52.2 lbs (23.7 kg) | 60.2 lbs (27.3 kg) |
| 75QN8*B | 65.7 inches (1670.0 mm) (167.00 cm) | 37.7 inches (957.4 mm) (95.74 cm) | 1.1 inches (27.7 mm) (2.77 cm) | 40.1 inches (1019.8 mm) (101.98 cm) | 12.3 inches (313.5 mm) (31.35 cm) | 74.5 inches (189 cm) | 75.0 lbs (34.0 kg) | 88.0 lbs (39.9 kg) |
| 85QN8*B | 74.5 inches (1892.2 mm) (189.22 cm) | 42.6 inches (1081.9 mm) (108.19 cm) | 1.1 inches (27.2 mm) (2.72 cm) | 45.1 inches (1144.8 mm) (114.48 cm) | 12.9 inches (326.6 mm) (32.66 cm) | 84.5 inches (214 cm) | 94.1 lbs (42.7 kg) | 108.7 lbs (49.3 kg) |
* : 0~9, A~Z

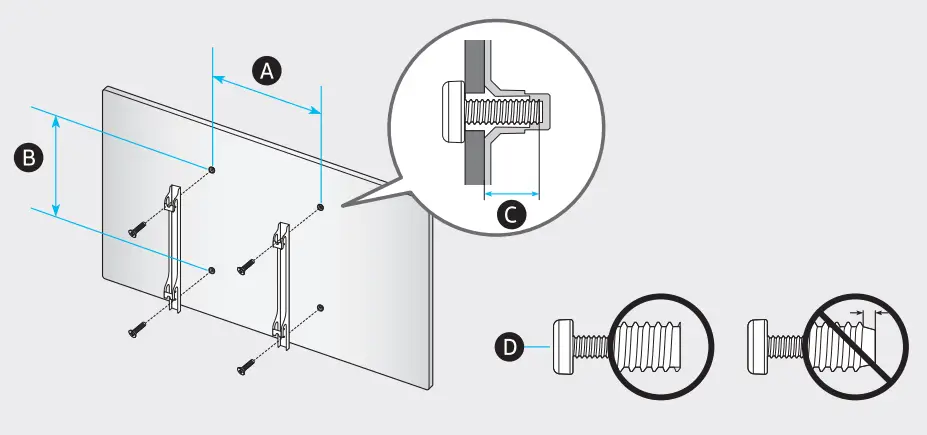

VESA A x B (mm) | C (mm) |
| |
55QN8*B 55QNB8* | 200 x 200 | 11-13 | M8 |
65QN8*B 65QNB8* | 400 x 300 | ||
75QN8*B | 400 x 400 | ||
85QN8*B | 600 x 400 |

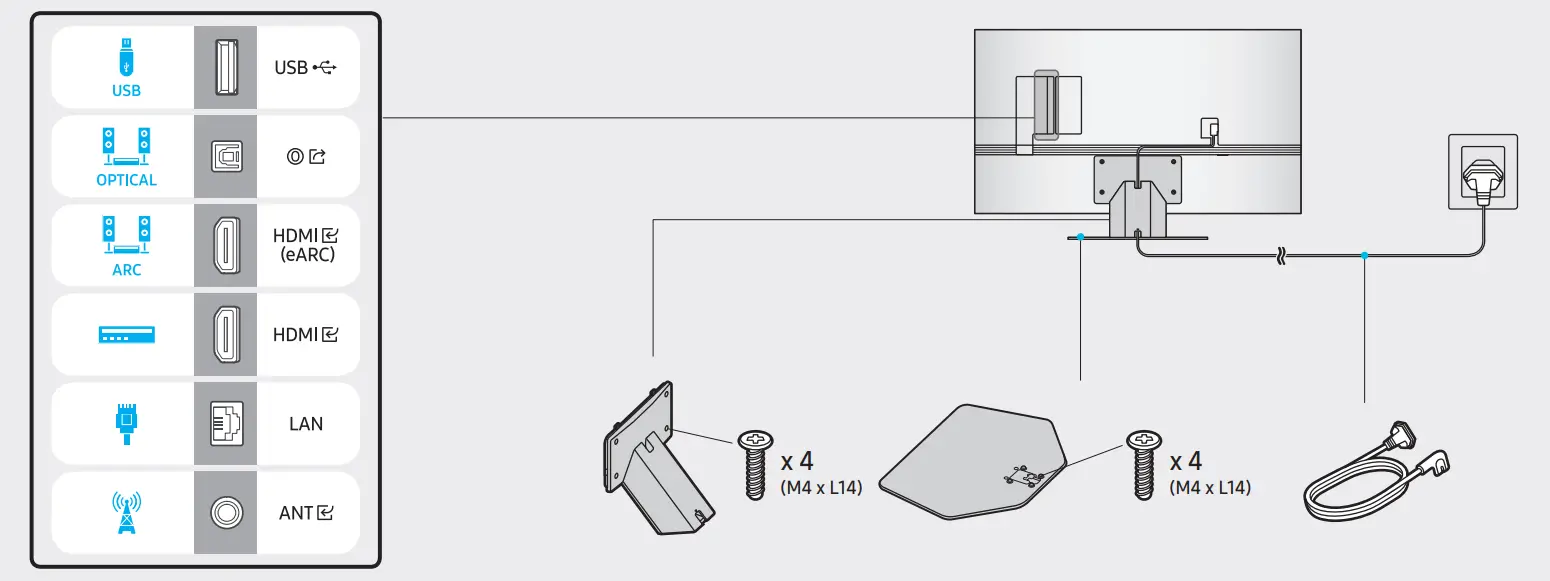

Package Content

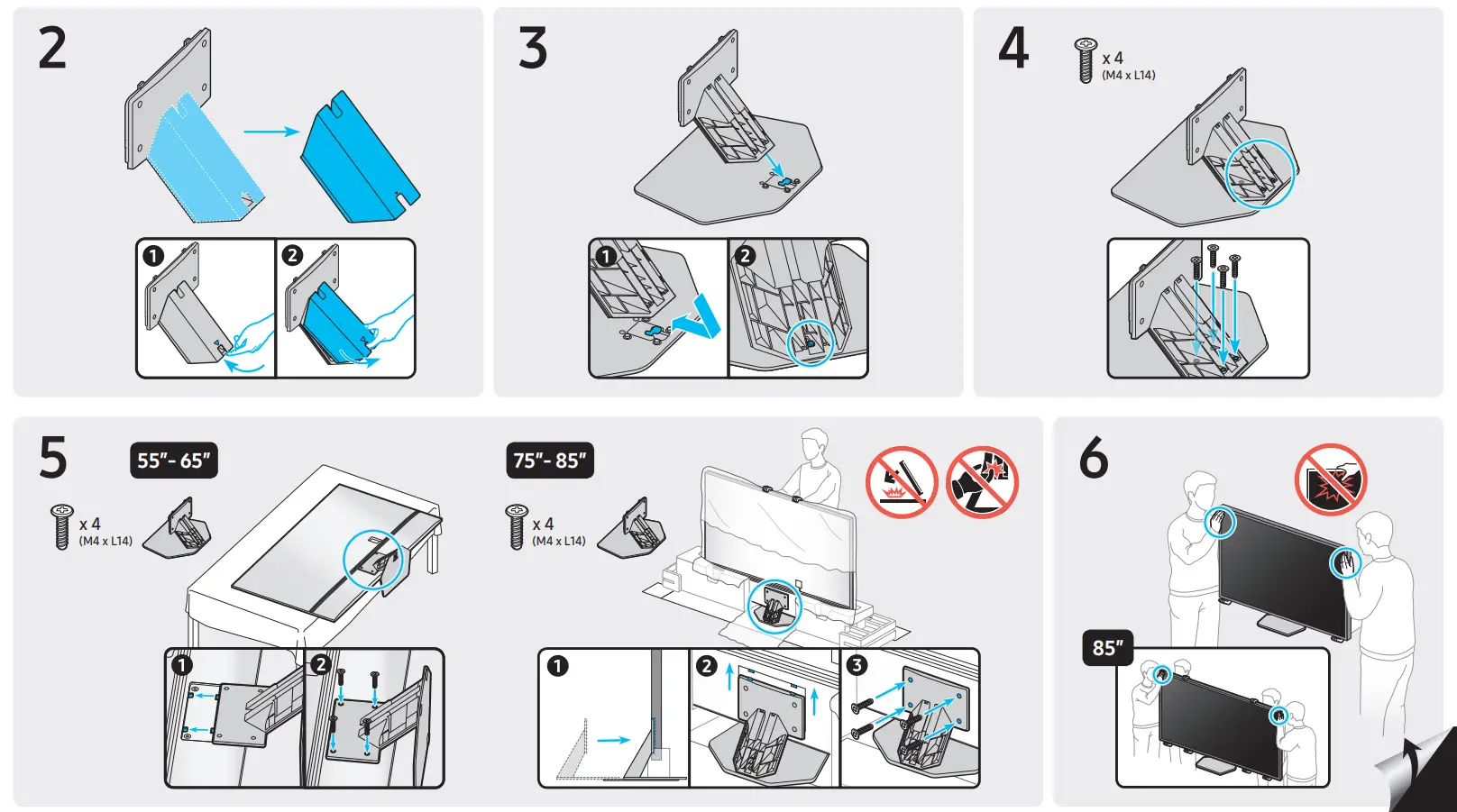

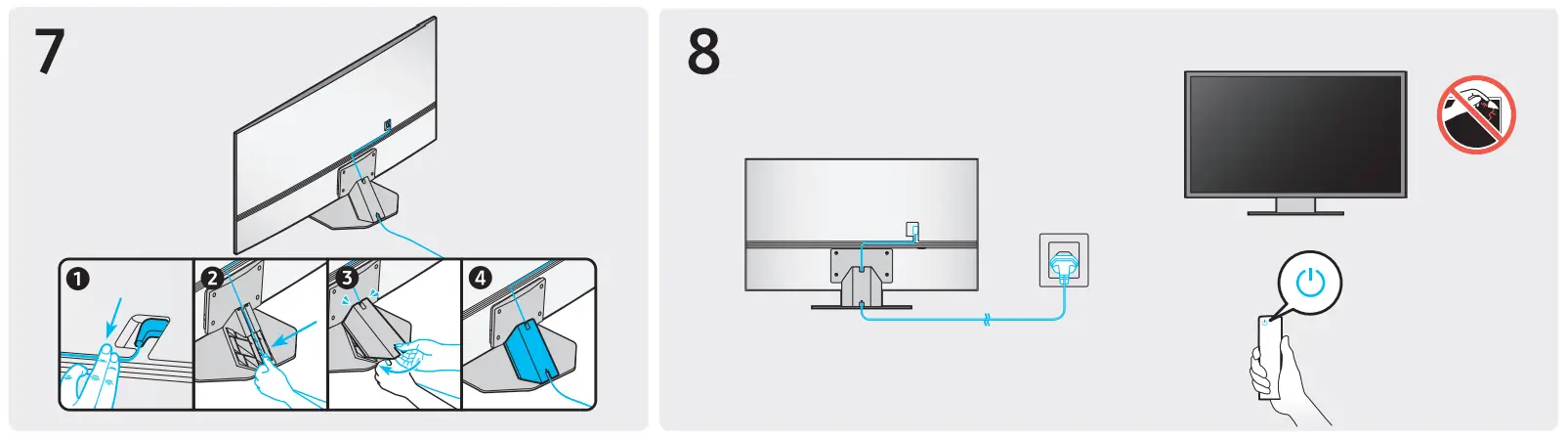

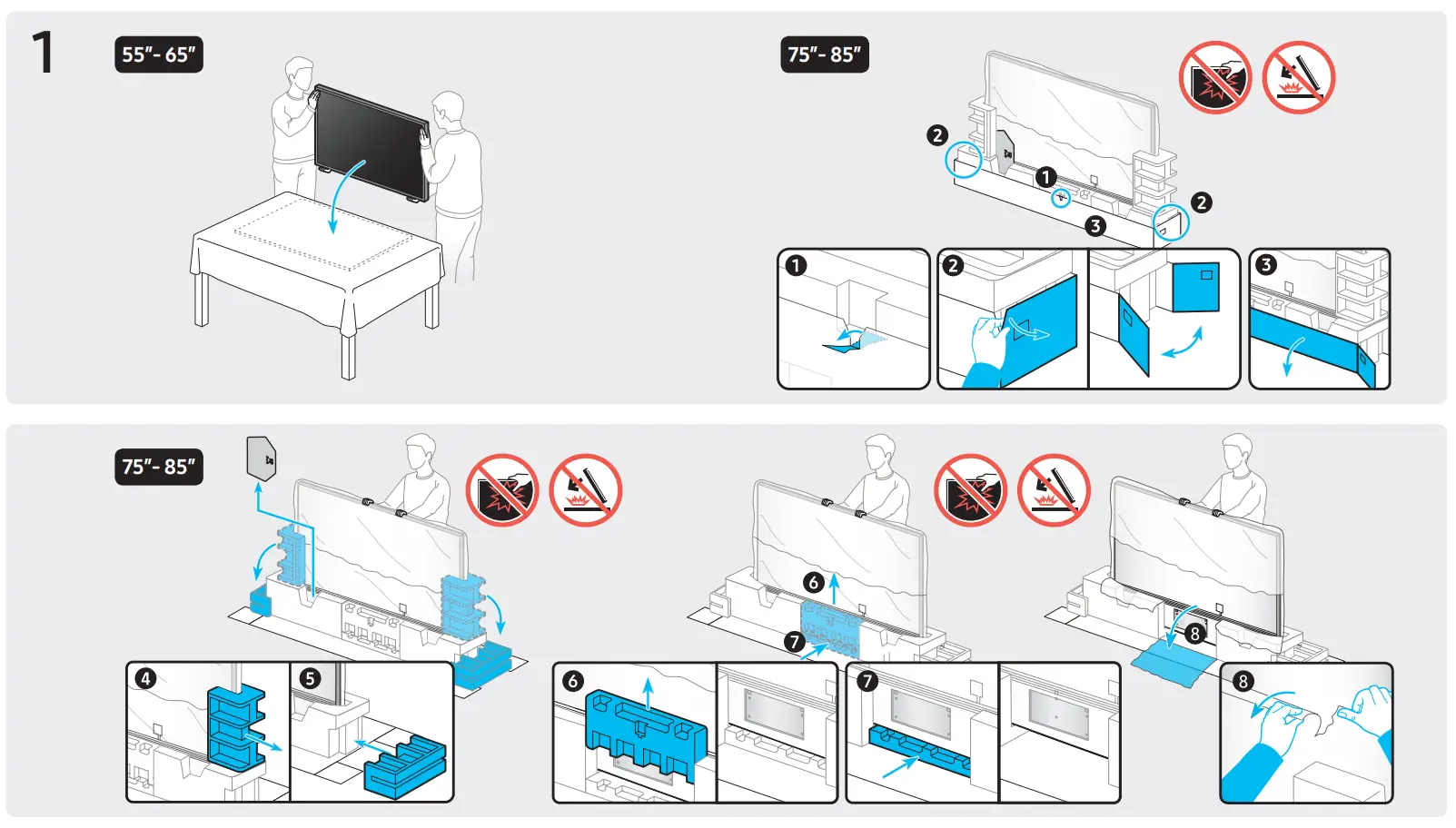

Operation Instructions
