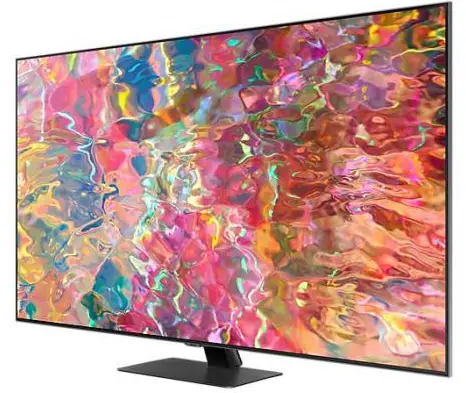

SAMSUNG QE50Q80BATXXH QLED TV
Product Information
The product model number is 50Q8*B 50QB8*. The dimensions of the product are:
- Width: 43.9 inches (1114.2 mm) (111.42 cm)
- Height: 25.4 inches (644.6 mm) (64.46 cm)
- Depth: 2.1 inches (53.9 mm) (5.39 cm)
- Height with Stand: 28.5 inches (723.0 mm) (72.30 cm)
- Depth with Stand: 9.4 inches (239.8 mm) (23.98 cm)
- Screen Size: 49.5 inches (125 cm)
- Weight without Stand: 30.2 lbs (13.7 kg)
- Weight with Stand: 39.9 lbs (18.1 kg)
The product is compatible with a VESA mount with dimensions of 200 x 200 mm and comes with M8 screws.
Product Usage Instructions
To mount the product using VESA mount:
- Ensure that the VESA mount is compatible with the product’s dimensions and weight.
- Remove the stand from the product.
- Align the VESA mount with the mounting holes on the product’s back panel.
- Insert the M8 screws into the mounting holes on the back panel.
- Tighten the screws using a screwdriver until they are securely fastened.
- If necessary, attach any additional brackets or arms to the VESA mount.
- Attach the VESA mount to the wall or other mounting surface using the appropriate hardware.
- Ensure that the product is securely attached to the VESA mount and the mounting surface before use.
QUICK SETUP GUIDE

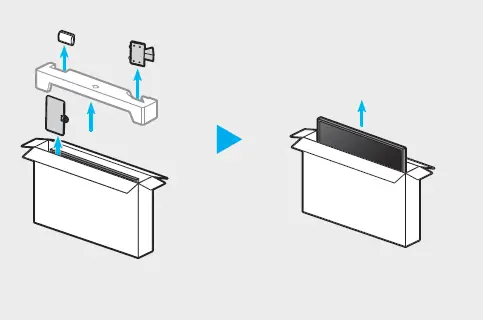

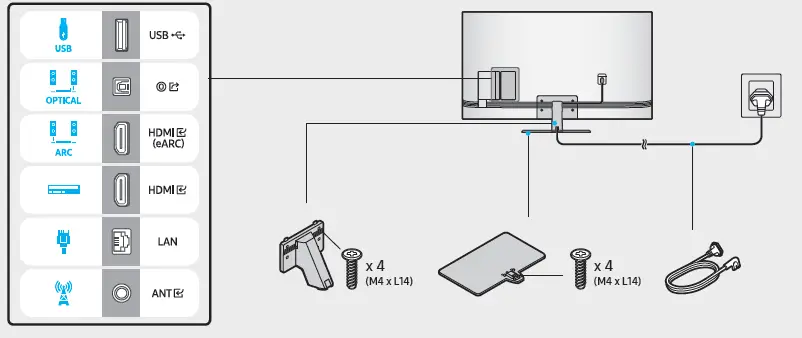

WHAT IN THE BOX

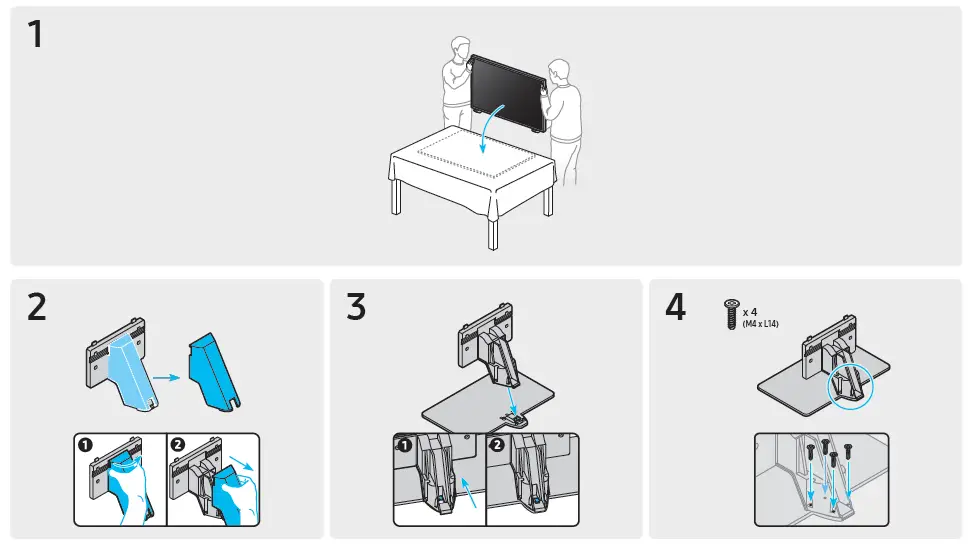

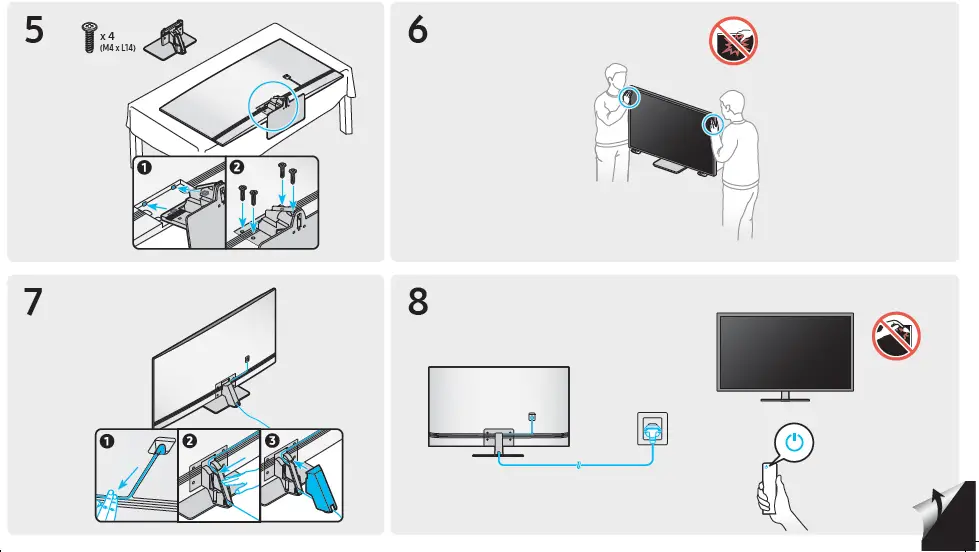

INSTALLATION INSTRUCTIONS

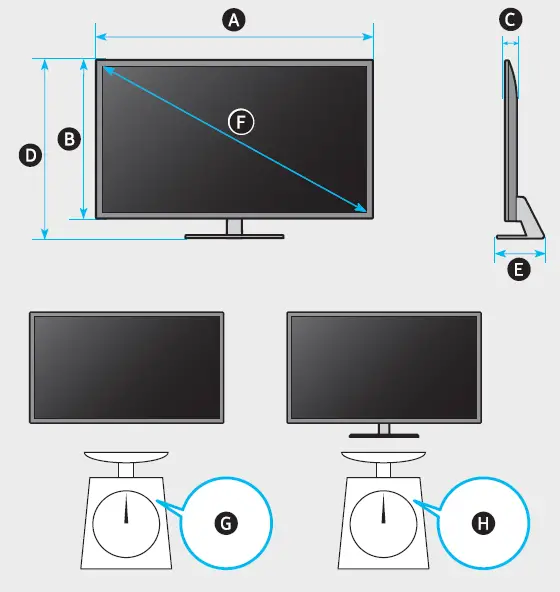

DIMENSION
| (A) | (B) | (C) | (D) | (E) | (F) | (G) | (H) | |
| 50Q8*B 50QB8* | 43.9 inches (1114.2 mm) (111.42 cm) | 25.4 inches (644.6 mm) (64.46 cm) | 2.1 inches (53.9 mm) (5.39 cm) | 28.5 inches (723.0 mm) (72.30 cm) | 9.4 inches (239.8 mm) (23.98 cm) | 49.5 inches (125 cm) | 30.2 lbs (13.7 kg) | 39.9 lbs (18.1 kg) |

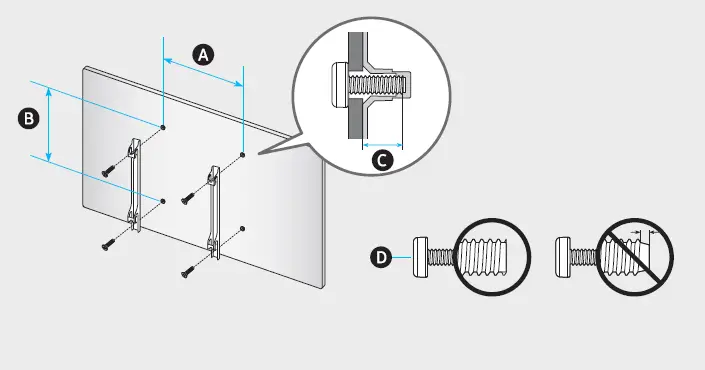

MOUNTING
| VESA(A) x(B) (mm) | (C)(mm) | (D)x 4 | |
| 50Q8*B 50QB8* | 200 x 200 | 26-28 | M8 |
