QUICK SETUP GUIDE
BN68-11640A
 |  |
 |  |
 |  |
 |  |
A | B | C | D | E | F | G |
| |
| QN55QN8*A | 48.3 inches (1227.4 mm) (122.74 cm) | 27.8 inches (706.2 mm) (70.62 cm) | 1.1 inches (26.9 mm) (2.69 cm) | 30.2 inches (767.8 mm)(76.78 cm) | 10.1 inches (257.5 mm) (25.75 cm) | 54.6 inches (138 cm) | 39.0 lbs (17.7 kg) | 45.9 lbs (20.8 kg) |
| QN65QN8*A | 56.9 inches (1446.3 mm) (144.63 cm) | 32.6 inches (829.3 mm) (82.93 cm) | 1.1 inches (26.9 mm) (2.69 cm) | 35.1 inches (891.1 mm) (89.11 cm) | 11.4 inches (290.0 mm) (29.00 cm) | 64.5 inches (163 cm) | 53.4 lbs (24.2 kg) | 62.0 lbs (28.1 kg) |

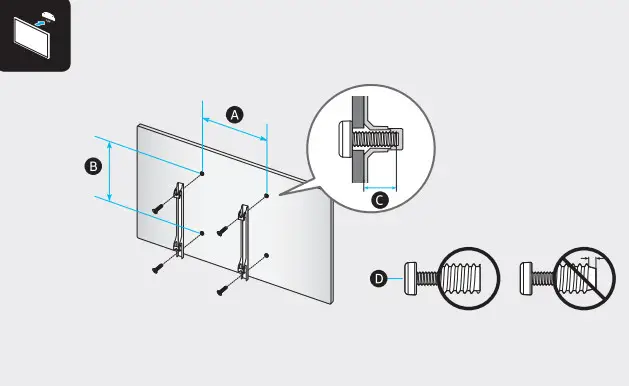

VESA | C(mm) |
| |
| QN55QN8*A | 200 x 200 | 11-13 | M8 |
| QN65QN8*A | 400 x 300 |
