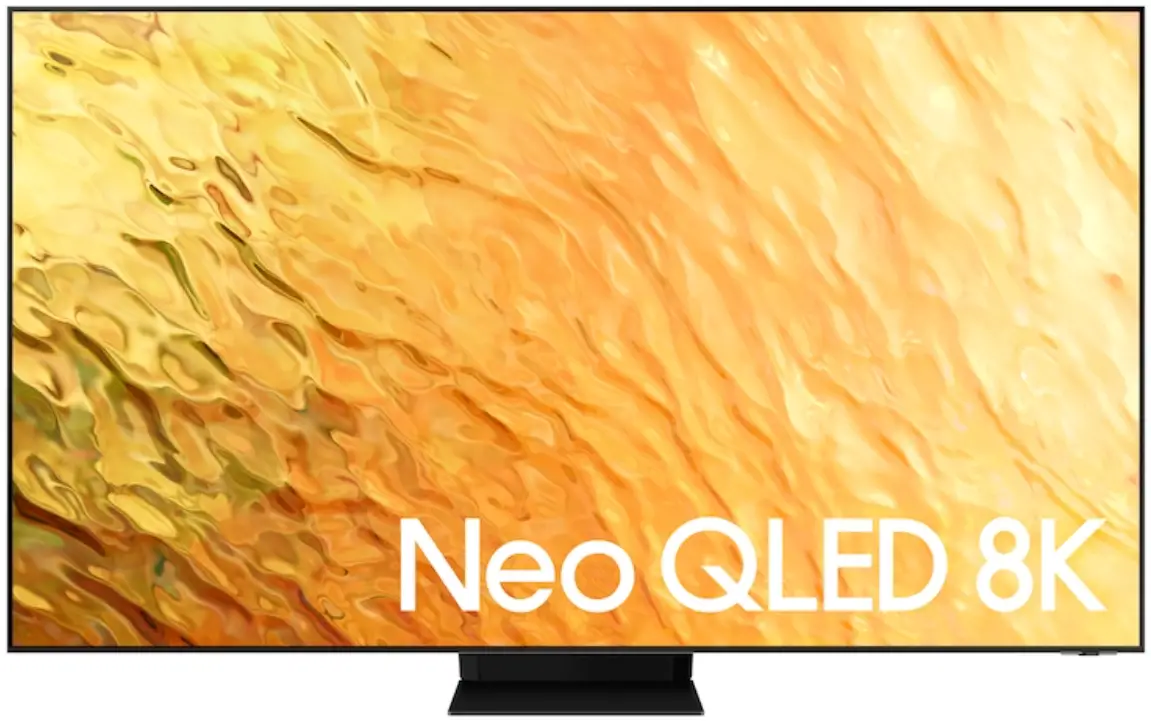

SAMSUNG QN75QN8B 75 Inch Class 8K Smart TV

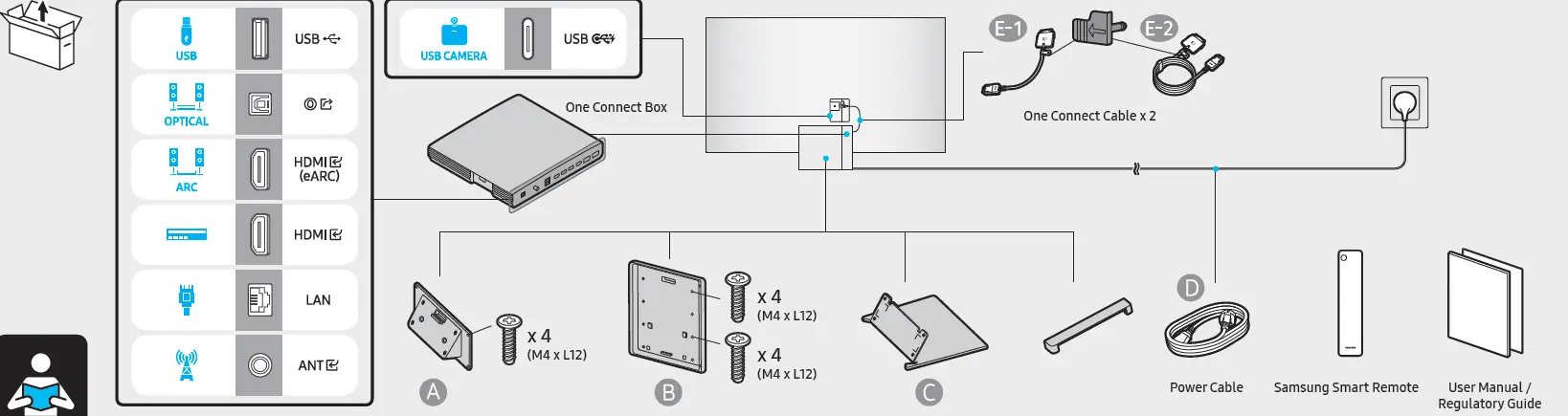

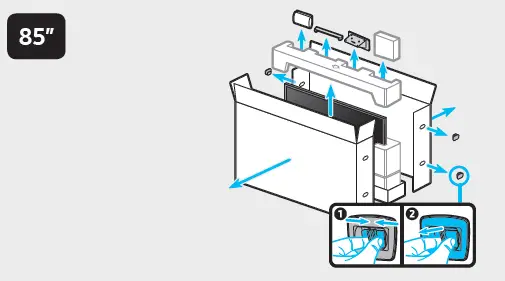

Box Content

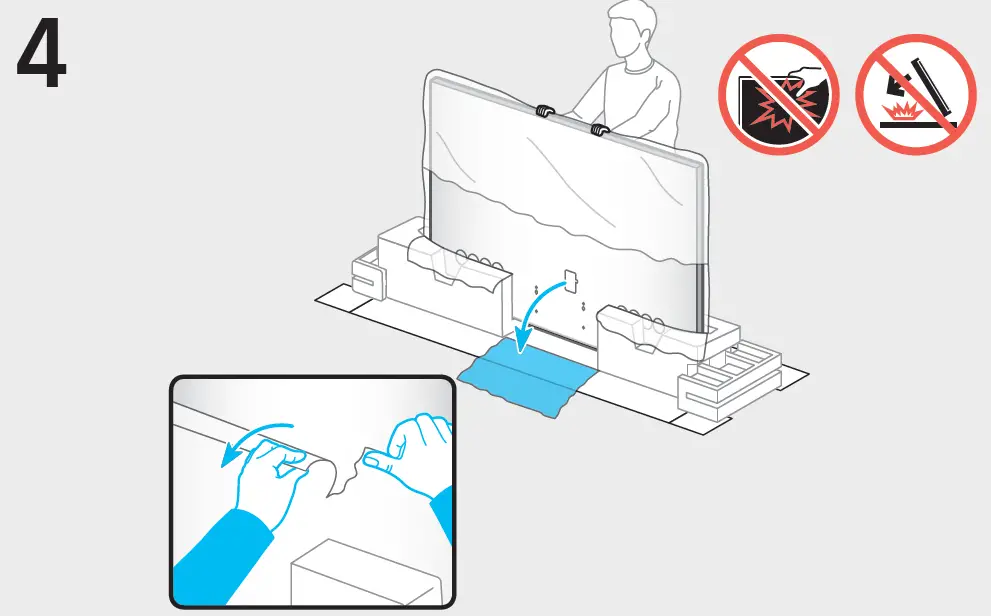

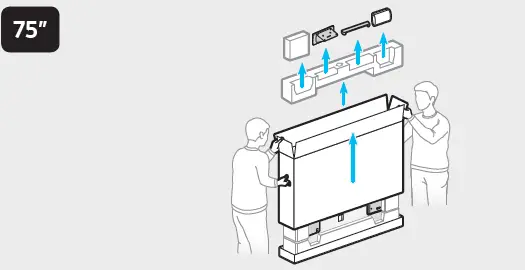

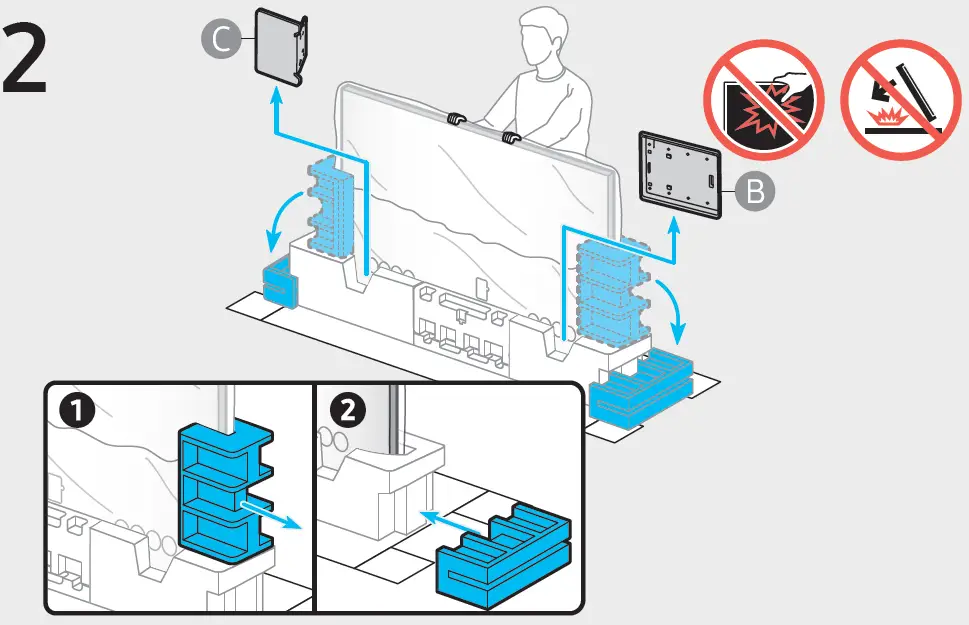

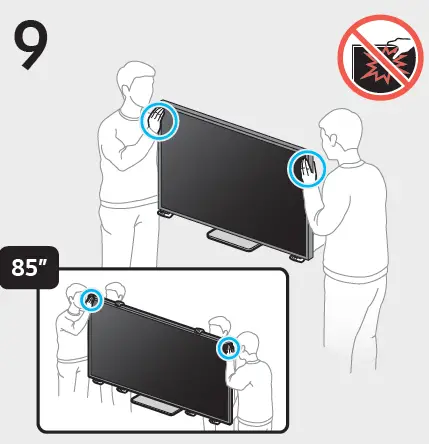

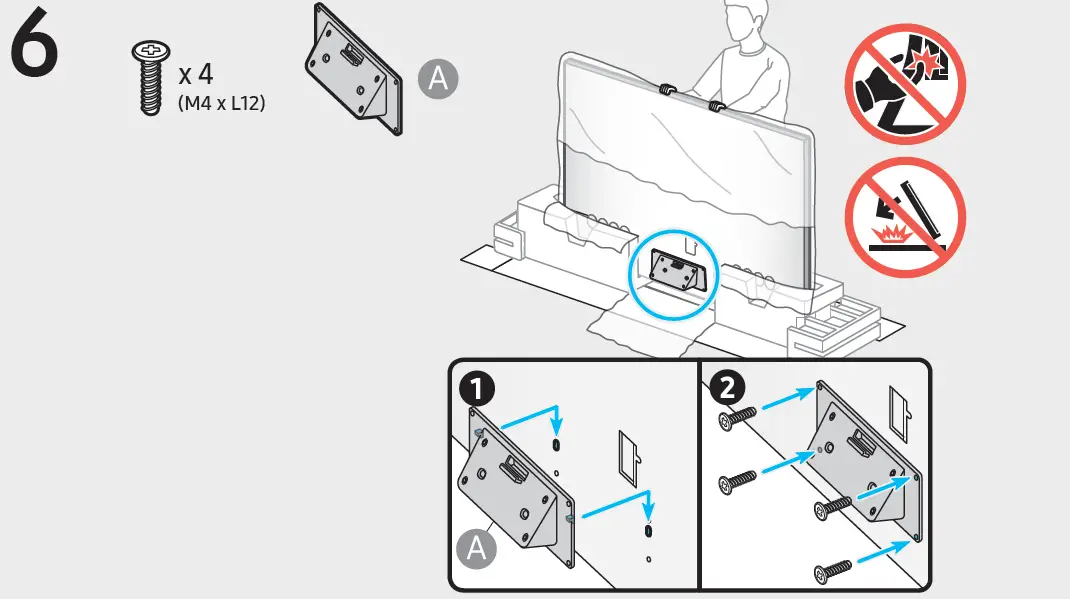

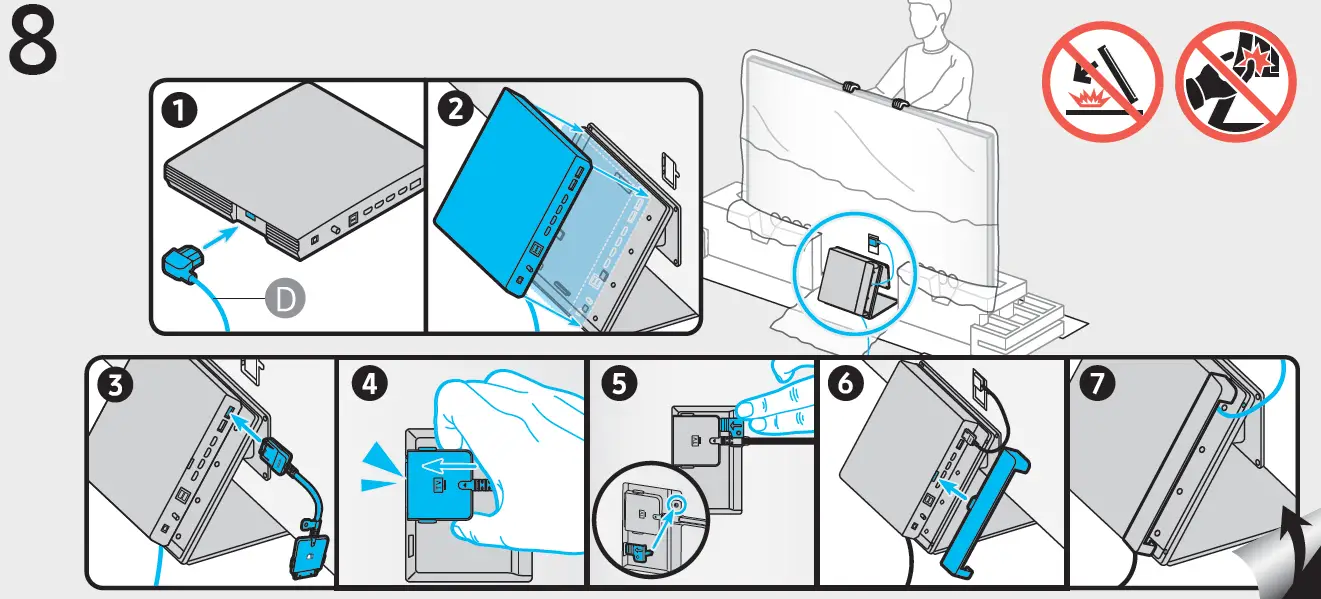

Mounting

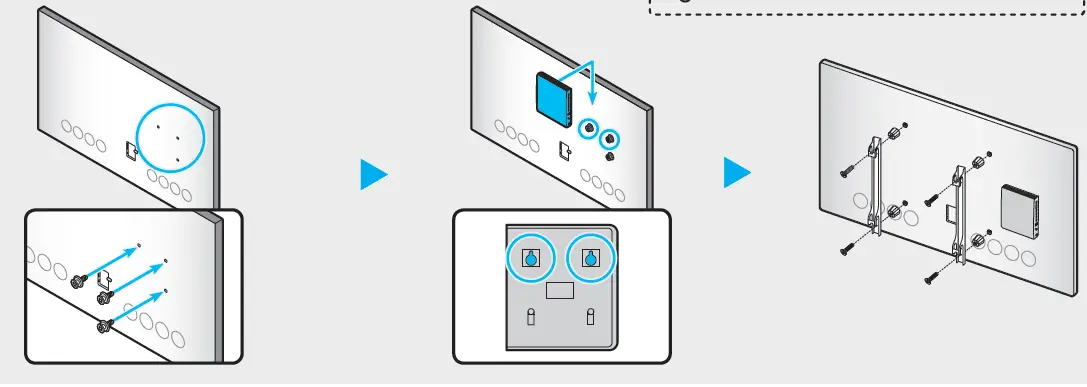

Wall Mounting
- When installing the TV as wall mount, You can place the One Connect Box as shown below.
- To install using a wall mount, be sure to use the supplied HOLDER-WALL RING.

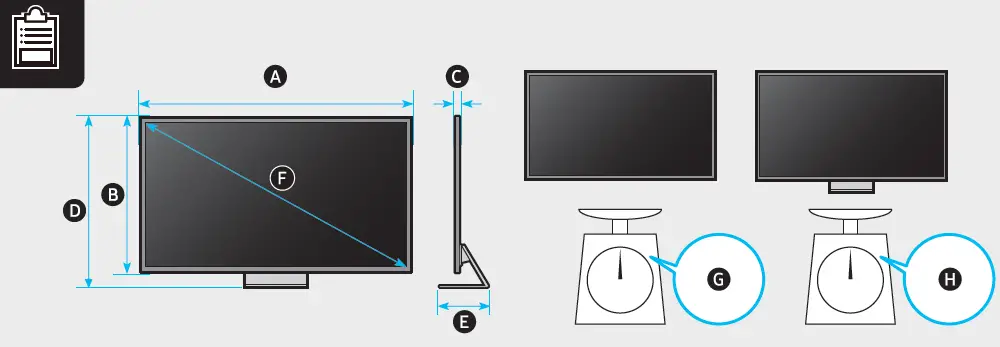

Dimensions
| A | B | C | D | E | F | G | H | |
QN75QN8**B | 65.7 inches (1668.3 mm) | 37.6 inches (955.6 mm) | 0.7 inches (17.2 mm) | 40.3 inches (1023.7 mm) | 12.5 inches (318.3 mm) | 74.5 inches | 71.0 lbs (32.2 kg) | 92.8 lbs (42.1 kg) |
| QN85QN8**B | 74.5 inches (1893.4 mm) | 42.6 inches (1083.0 mm) | 0.7 inches (17.4 mm) | 45.3 inches (1151.5 mm) | 13.4 inches (341.4 mm) | 84.5 inches | 97.7 lbs (44.3 kg) | 121.9 lbs (55.3 kg) |
QN75QN9**B | 65.1 inches (1654.8 mm) | 37.2 inches (945.6 mm) | 0.6 inches (15.4 mm) | 40.0 inches (1017.4 mm) | 12.5 inches (318.3 mm) | 74.5 inches | 69.9 lbs (31.7 kg) | 92.2 lbs (41.8 kg) |
| QN85QN9**B | 73.9 inches (1876.6 mm) | 42.2 inches (1071.5 mm) | 0.6 inches (15.4 mm) | 45.1 inches (1146.1 mm) | 13.4 inches (341.4 mm) | 84.5 inches | 96.6 lbs (43.8 kg) | 120.8 lbs (54.8 kg) |

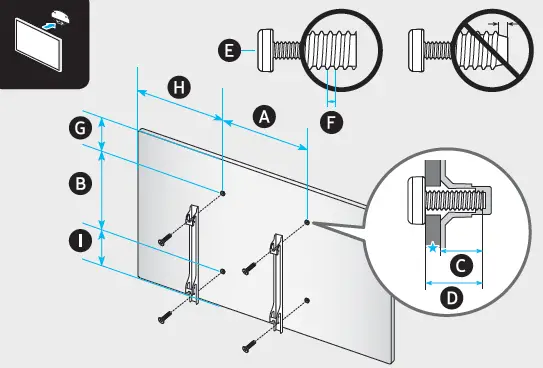

QN75QN8**B | QN85QN8**B | QN75QN9**B | QN85QN9**B | |
| VESA A x B (mm) | 400 x 400 | 600 x 400 | 400 x 400 | 600 x 400 |
C (mm) | 5-6 | |||
D | + | |||
| E x 4 | M8 | |||
| F (mm) | 1.25 | |||
G (inches) | 8.5 | 8.5 | 8.3 | 8.3 |
| H (inches) | 25.0 | 25.5 | 24.7 | 25.1 |
I (inches) | 13.1 | 18.2 | 13.0 | 18.0 |
