QUICK SETUP GUIDE
QE85Q80BATXXH QLED TV
 |
 |

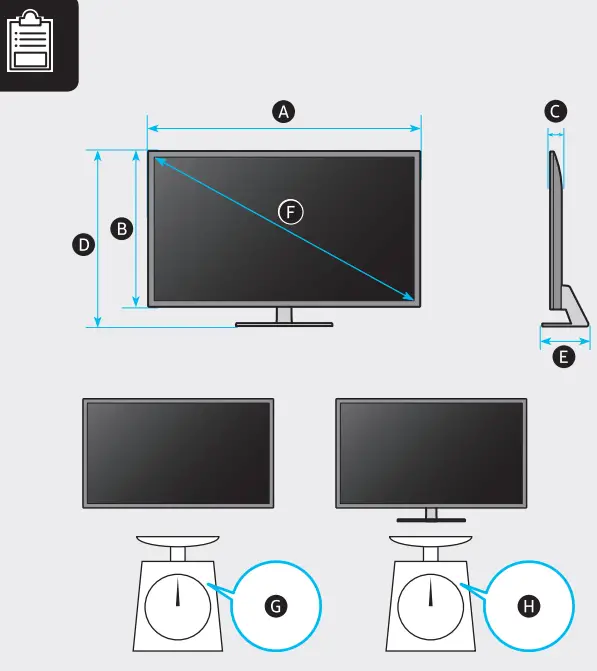

| A | B | C | D | E | F | G | H | |
| 55Q8*B 55QB8* | 48.3 inches (1227.6 mm) (122.76 cm) | 27.8 inches (706.7 mm) (70.67 cm) | 2.2 inches (54.7 mm) (5.47 cm) | 30.8 inches (783.4 mm) (78.34 cm) | 10.1 inches (255.8 mm) (25.58 cm) | 54.6 inches (138 cm) | 39.5 lbs (17.9 kg) | 46.3 lbs (21.0 kg) |
| 65Q8*B 65QB8* | 56.9 inches (1446.5 mm) (144.65 cm) | 32.7 inches (829.8 mm) (82.98 cm) | 2.2 inches (54.7 mm) (5.47 cm) | 35.7 inches (905.7 mm) (90.57 cm) | 11.4 inches (289.1 mm) (28.91 cm) | 64.5 inches (163 cm) | 53.1 lbs (24.1 kg) | 61.3 lbs (27.8 kg) |
| 75Q8*B | 65.8 inches (1670.6 mm) (167.06 cm) | 37.7 inches (958.7 mm) (95.87 cm) | 2.2 inches (54.7 mm) (5.47 cm) | 40.8 inches (1036.2 mm) (103.62 cm) | 12.5 inches (316.8 mm) (31.68 cm) | 74.5 inches (189 cm) | 75.8 lbs (34.4 kg) | 88.8 lbs (40.3 kg) |
| 85Q8*B | 74.5 inches (1892.8 mm) (189.28 cm) | 42.6 inches (1083.2 mm) (108.32 cm) | 2.2 inches (54.9 mm) (5.49 cm) | 45.8 inches (1163.1 mm) (116.31 cm) | 13.3 inches (338.8 mm) (33.88 cm) | 84.5 inches (214 cm) | 95.5 lbs (43.3 kg) | 110.5 lbs (50.1 kg) |
| * : 0~9, A~Z | ||||||||

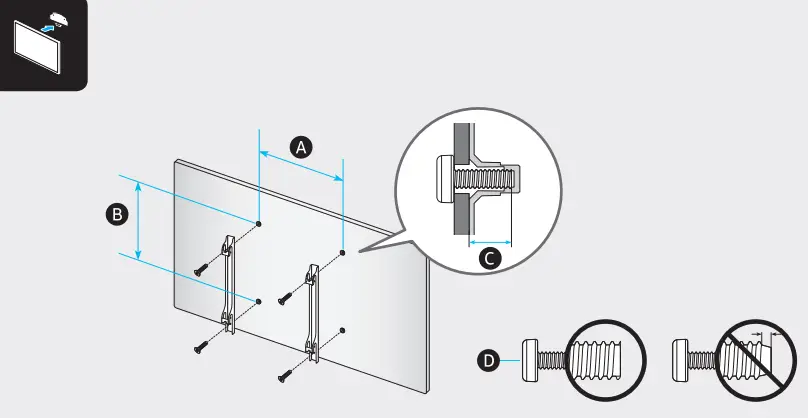

| VES AxB (mm) | (mm) | x 4 | |
| 55Q8*B 55QB8* | 200 x 200 | 26-28 | M8 |
| 65Q8*B 65QB8* | 400 x 300 | ||
| 75Q8*B | 400 x 400 | ||
| 85Q8*B | 600 x 400 | 25-27 | |
| * : 0~9, A~Z | |||
