SAMSUNG Q60A Series Smart TV
INSTALLATION INSTRUCTIONS

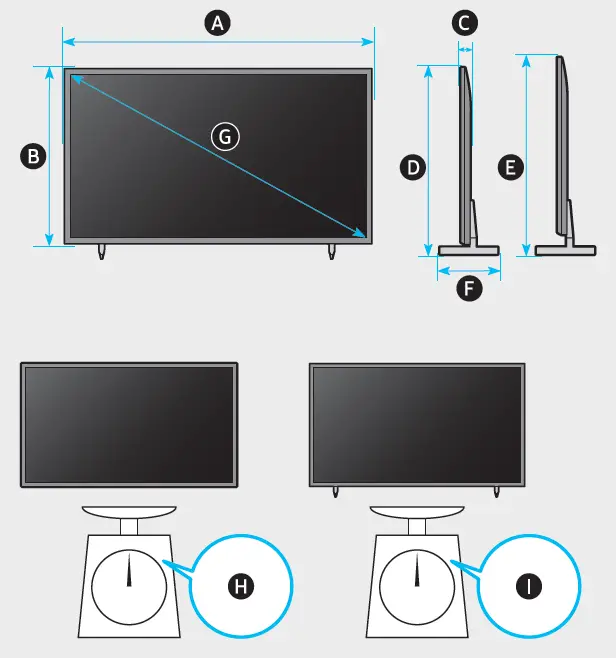

DIMENSIONS
| QN43Q6*A | 38.0 inches (965.5 mm) | 22.0 inches (559.8 mm) | 1.0 inches (25.7 mm) | 23.6 inches (599.8 mm) | 24.6 inches (624.8 mm) | 8.1 inches (205.6 mm) | 42.5 inches | 18.5 lbs (8.4 kg) | 19.6 lbs (8.9 kg) |
| QN50Q6*A | 44.0 inches (1118.3 mm) | 25.4 inches (644.5 mm) | 1.0 inches (25.7 mm) | 26.9 inches (683.6 mm) | 27.9 inches (708.6 mm) | 9.0 inches (228.8 mm) | 49.5 inches | 25.4 lbs (11.5 kg) | 26.9 lbs (12.2 kg) |
| QN55Q6*A | 48.5 inches (1232.1 mm) | 27.9 inches (708.8 mm) | 1.0 inches (25.7 mm) | 29.4 inches (747.8 mm) | 30.4 inches (772.8 mm) | 9.0 inches (228.8 mm) | 54.6 inches | 34.2 lbs (15.5 kg) | 35.7 lbs (16.2 kg) |
| QN60Q6*A | 53.3 inches (1353.0 mm) | 30.6 inches (776.8 mm) | 1.0 inches (25.7 mm) | 32.1 inches (816.1 mm) | 33.1 inches (841.1 mm) | 11.1 inches (281.8 mm) | 60.1 inches | 41.0 lbs (18.6 kg) | 43.0 lbs (19.5 kg) |
| QN65Q6*A | 57.1 inches (1450.9 mm) | 32.7 inches (831.8 mm) | 1.0 inches (25.7 mm) | 34.3 inches (871.0 mm) | 35.3 inches (896.0 mm) | 11.1 inches (281.8 mm) | 64.5 inches | 46.1 lbs (20.9 kg) | 48.1 lbs (21.8 kg) |
| QN70Q6*A | 62.0 inches (1575.9 mm) | 34.6 inches (877.7 mm) | 1.0 inches (26.6 mm) | 36.3 inches (923.0 mm) | 37.3 inches (948.0 mm) | 13.4 inches (340.4 mm) | 69.5 inches | 60.4 lbs (27.4 kg) | 63.1 lbs (28.6 kg) |

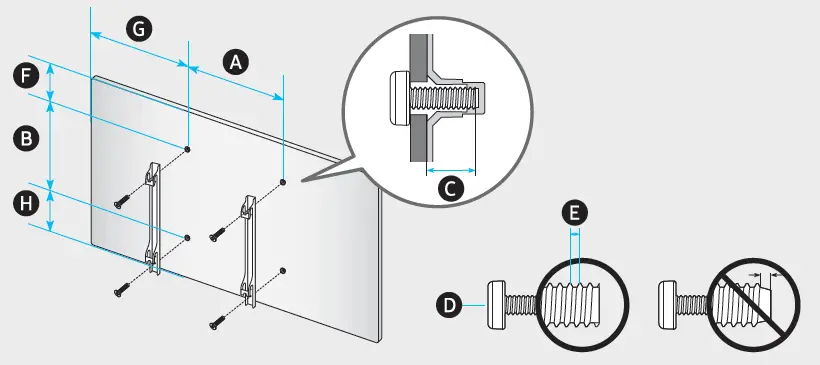

| VESA x (mm) | (mm) | x 4 | (mm) | (inches) | (inches) | (inches) | |
| QN43Q6*A | 200 x 200 |
11-13 |
M8 |
1.25 | 7.4 | 15.0 | 6.6 |
| QN50Q6*A | 8.1 | 18.0 | 9.3 | ||||
| QN55Q6*A | 9.3 | 20.2 | 10.6 | ||||
| QN60Q6*A | 400 x 300 | 8.2 | 18.7 | 10.5 | |||
| QN65Q6*A | 10.3 | 20.6 | 10.5 | ||||
| QN70Q6*A | 8.5 | 23.1 | 14.1 |
