Unpacking and
Installation Guide

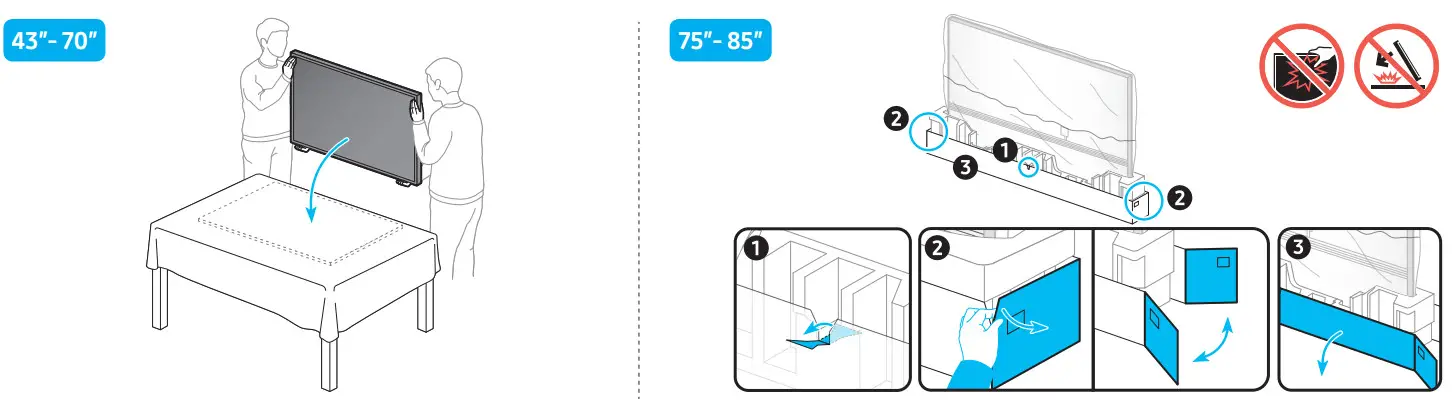

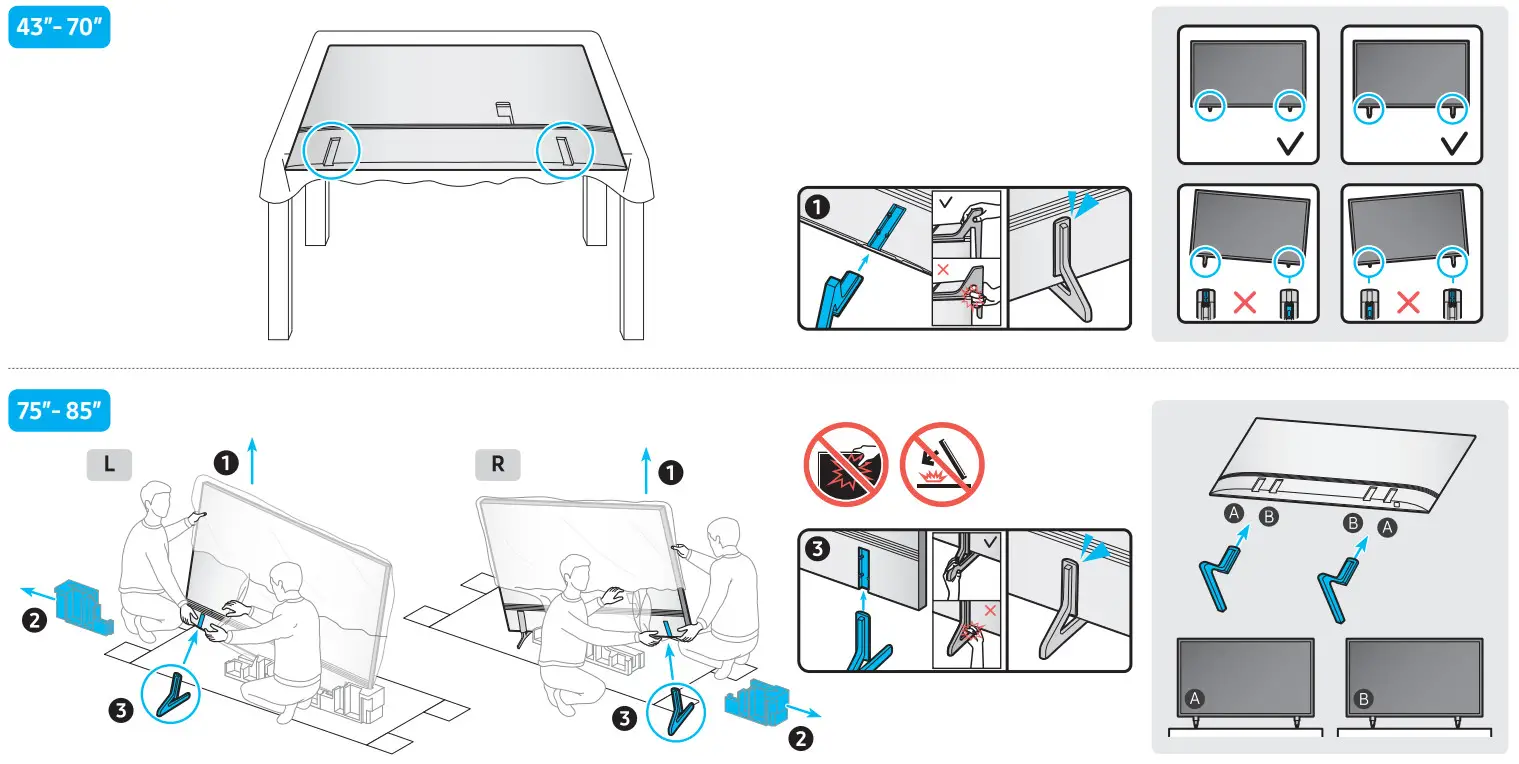

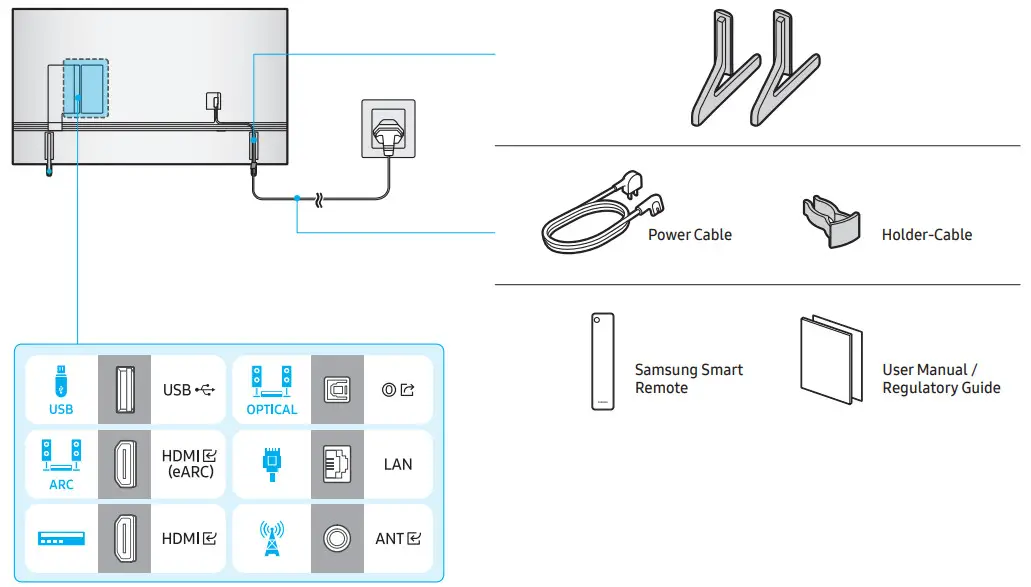

Q60C 55 Inch QLED 4K Smart TV
Scan this QR code with your smart phone to see helpful videos.
http://kaywa.me/9xzgY
BN68-15677A

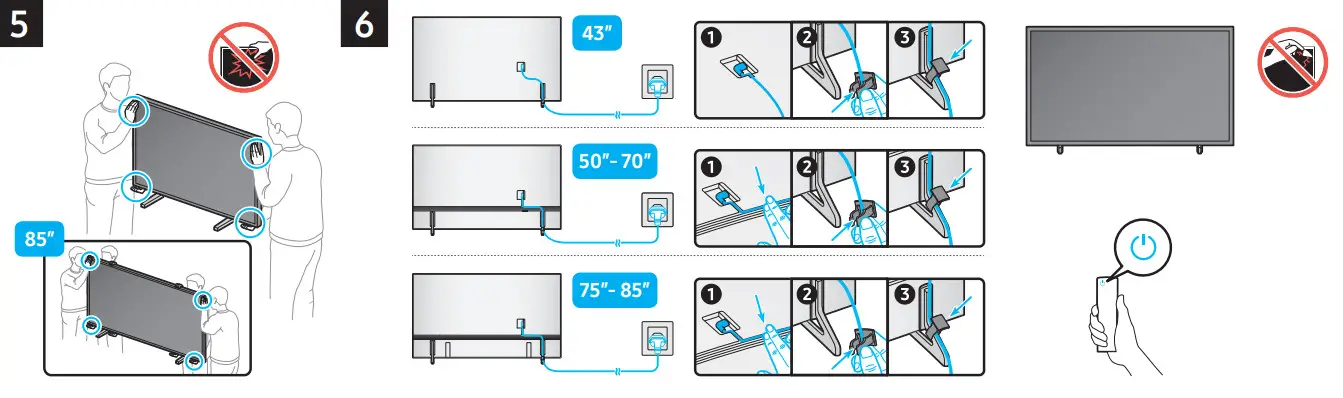

| A | B | C | D | E | F | G | H | I | |

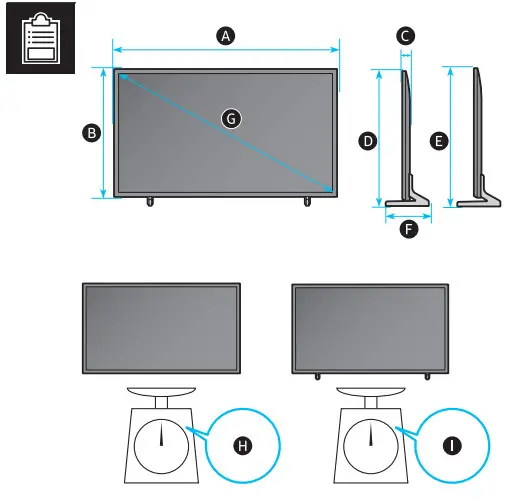

| 43Q6*C | 38.0 Inches (965.5 mm) | 22.0 Inches (559.4 mm) | 1.0 Inches (25.7 mm) | 23.5 Inches (598.1 mm) | 24.5 Inches (6231 mm) | 71 Inches (181.0 mm) | 42 5 Inches | 18.5 lbs (8.4 kg) | 19.0 lbs (8.6 kg) |
| 50Q6*C | 44.0 Inches (1118.3 mm) | 25.4 Inches (644.1 mm) | 1.0 Inches (25.7 mm) | 26.8 Inches (681.7 mm) | 8 Inches 27.8 (706.7 mm) | 8.8 Inches (224.0 mm) | 49.5 Inches | 25.4 lbs (11.5 kg) | 26.0 lbs (11.8 kg) |
| 55Q6*C | 48.5 Inches (1232.1 mm) | 9 Inches 27.9 (708.3 mm) | 1.0 Inches (25.7 mm) | 29.4 Inches (745.9 mm) | 30.4 Inches (770.9 mm) | 8.8 Inches (224.0 mm) | 54.6 Inches | 34.2 lbs (15.5 kg) | 34.8 lbs (15.8 kg) |
| 65Q6*C | 571 Inches (1450.9 mm) | 32.7 Inches (831.4 mm) | 1.0 Inches (25.7 mm) | 34.3 Inches (872.2 mm) | 35.3 Inches (897.2 mm) | 10.8 Inches (274.0 mm) | 64.5 Inches | 461 lbs (20.9 kg) | 47.0 lbs (21.3 kg) |
| 70Q6*C | 61.4 Inches (1559.7 mm) | 35.5 Inches (9021 mm) | 1.0 Inches (26.6 mm) | 0 Inches 37.0 (939.6 mm) | 38.0 Inches (964.6 mm) | 12.6 Inches (320.0 mm) | 69.5 Inches | 62.8 lbs (28.5 kg) | 64.2 tbs (291 kg) |
| 75Q6*C | 66.0 Inches (1676.7 mm) | 37.8 Inches (959.8 mm) | 1.0 Inches (26.6 mm) | 39.3 Inches (997.3 mm) | 40.2 Inches (1022.3 mm) | 12.6 Inches (320.0 mm) | 74.5 Inches | 69.2 lbs (31.4 kg) | 70.5 lbs (32.0 kg) |
| 85Q6*C | 74.8 Inches (1900.9 mm) | 42.7 Inches (1085.7 mm) | 1.1 Inches (26.9 mm) | 44.2 Inches (1123.3 mm) | 45.2Inches (1148.3 mm) | 13.6 Inches (345.1 mm) | 84 5 Inches | 91.5 lbs (41.5 kg) | 93.7 lbs (42.5 kg) |
* : 0~9, A~Z

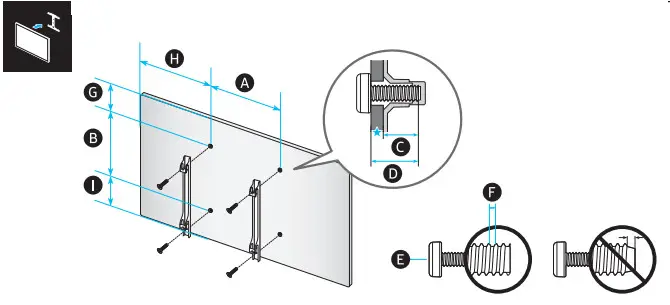

| VESA A x B (mm) | C (mm) | D | E x 4 | F (mm) | G (Inches) | H (Inches) | I (Inches) | |
| 43Q6*C | 200 x 200 | 11-13 | C+ | M8 | 1. | 7. | 15.0 | 7. |
| 50Q6*C | 81 | 18.0 | 9. | |||||
| 55Q6*C | 9. | 20. | 11. | |||||
| 65Q6*C | 400 x 300 | 10. | 21. | 11. | ||||
| 70Q6*C | 10. | 23. | 14.0 | |||||
| 75Q6*C | 400 x 400 | 10. | 25.0 | 12. | ||||
| 85Q6*C | 600 x 400 | 8. | 26. | 19. |
* : 0~9, A~Z : Wall-Mount Bracket
