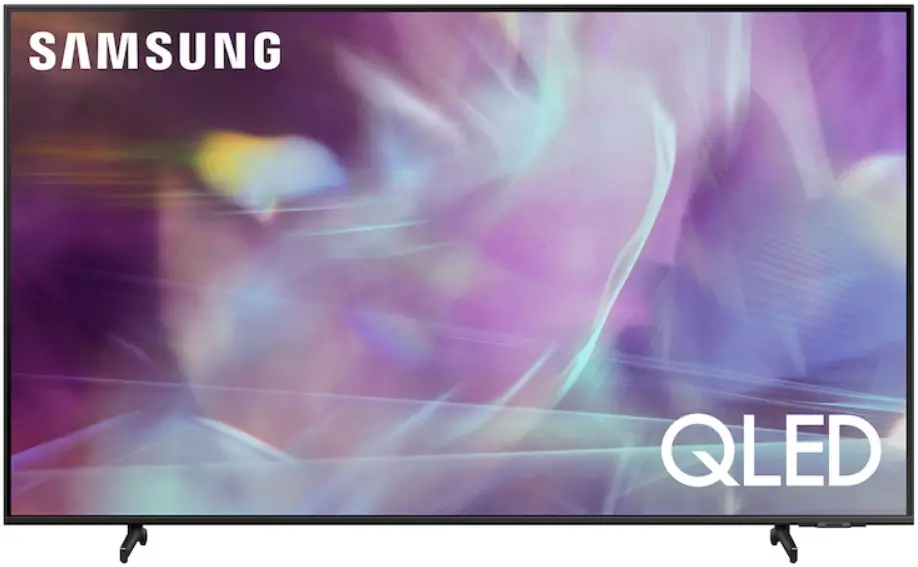

SAMSUNG 50Q6 Series 50 Inch QLED 4K Smart TV User Guide

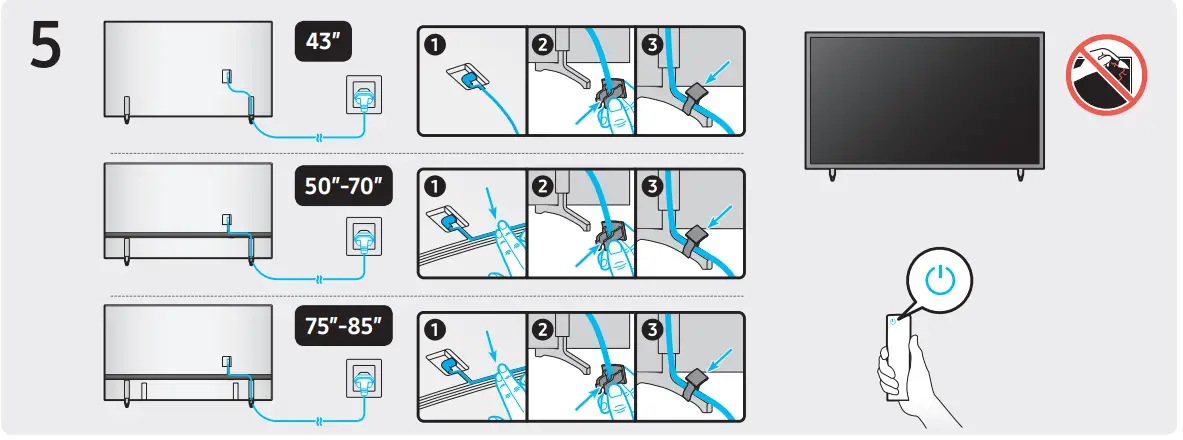

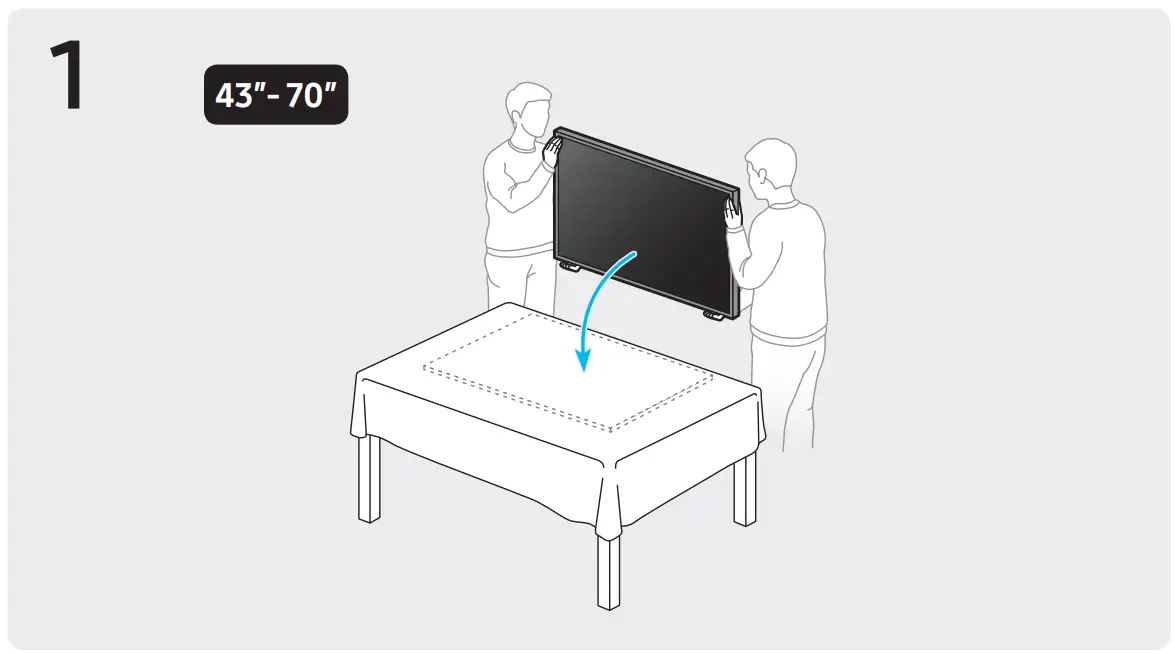

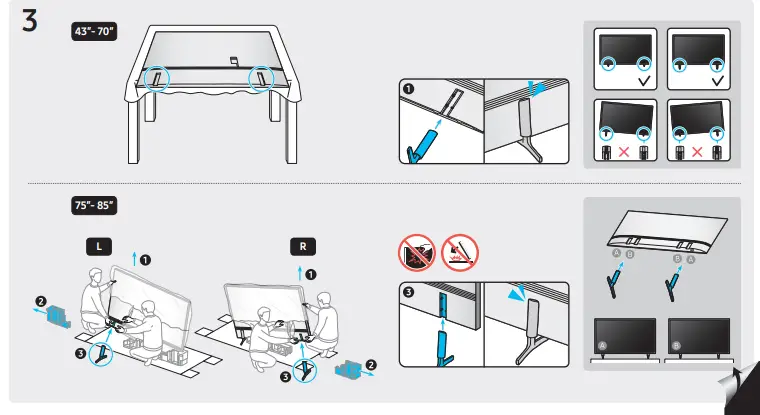

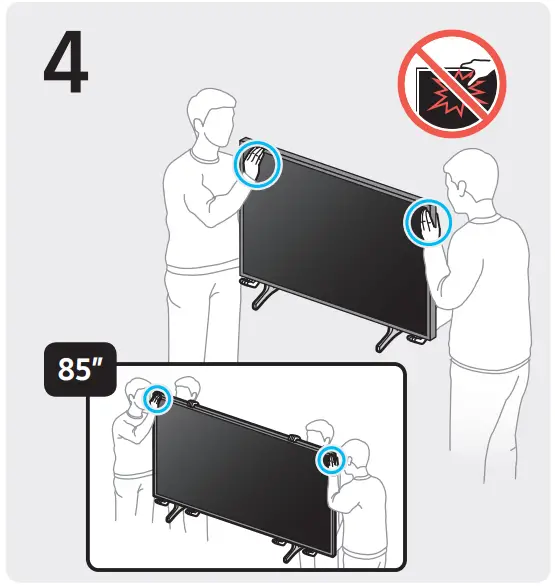

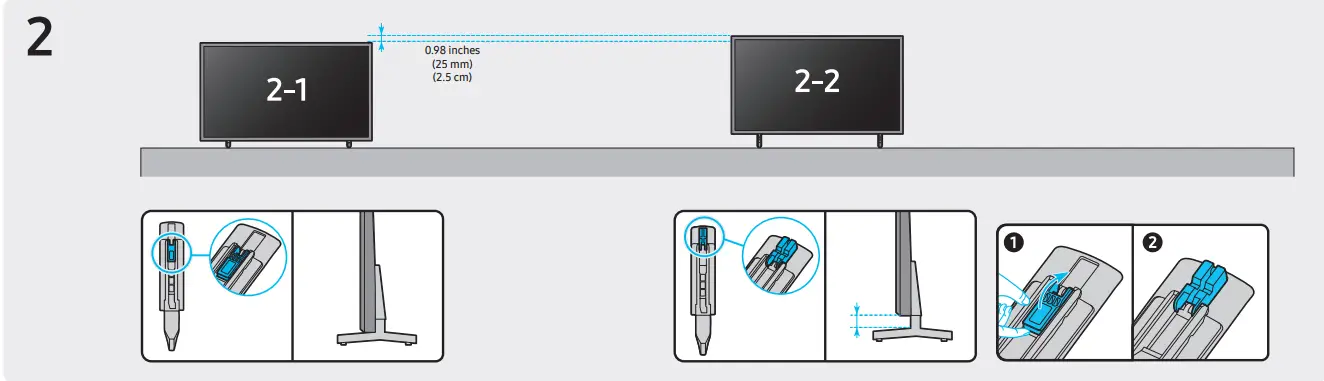

ASSEMBIY INSTRUCTIONS

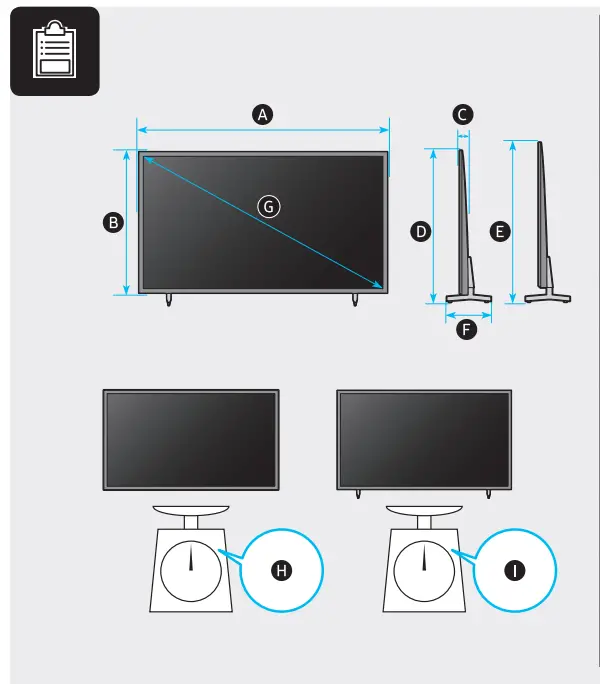

DIMINUTION
| A | B | C | D | E | F | G | H | I | |
| 50Q6*B | 44.0 inches (1118.3 mm) (111.83 cm) | 25.4 inches (644.1 mm) (64.41 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 26.9 inches (683.6 mm) (68.36 cm) | 27.9 inches (708.6 mm) (70.86 cm) | 9.0 inches (228.8 mm) (22.88 cm) | 49.5 inches (125 cm) | 25.4 lbs (11.5 kg) | 26.0 lbs (11.8 kg) |
| 55Q6*B | 48.5 inches (1232.1 mm) (123.21 cm) | 27.9 inches (708.3 mm) (70.83 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 29.4 inches (747.8 mm) (74.78 cm) | 30.4 inches (772.8 mm) (77.28 cm) | 9.0 inches (228.8 mm) (22.88 cm) | 54.6 inches (138 cm) | 34.2 lbs (15.5 kg) | 34.8 lbs (15.8 kg) |
| 65Q6*B | 57.1 inches (1450.9 mm) (145.09 cm) | 32.7 inches (831.4 mm) (83.14 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 34.2 inches (869.6 mm) (86.96 cm) | 35.2 inches (894.6 mm) (89.46 cm) | 11.1 inches (281.8 mm) (28.18 cm) | 64.5 inches (163 cm) | 46.1 lbs (20.9 kg) | 47.0 lbs (21.3 kg) |
| 43BU8***43UB8*** | 38.0 inches (965.5 mm) (96.55 cm) | 22.0 inches (559.9 mm) (55.99 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 23.6 inches (599.0 mm) (59.90 cm) | 24.6 inches (624.0 mm) (62.40 cm) | 8.1 inches (205.6 mm) (20.56 cm) | 42.5 inches (108 cm) | 18.5 lbs (8.4 kg) | 19.2 lbs (8.7 kg) |
| 50BU8***50UB8*** | 44.0 inches (1118.3 mm) (111.83 cm) | 25.4 inches (644.6 mm) (64.46 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 26.9 inches (683.6 mm) (68.36 cm) | 27.9 inches (708.6 mm) (70.86 cm) | 9.0 inches (228.8 mm) (22.88 cm) | 49.5 inches (125 cm) | 25.4 lbs (11.5 kg) | 26.0 lbs (11.8 kg) |
| 55BU8***55UB8*** | 48.5 inches (1232.1 mm) (123.21 cm) | 27.9 inches (708.8 mm) (70.88 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 29.4 inches (747.8 mm) (74.78 cm) | 30.4 inches (772.8 mm) (77.28 cm) | 9.0 inches (228.8 mm) (22.88 cm) | 54.6 inches (138 cm) | 34.2 lbs (15.5 kg) | 34.8 lbs (15.8 kg) |
| 60BU8***60UB8*** | 53.3 inches (1353.0 mm) (135.30 cm) | 30.6 inches (776.8 mm) (77.68 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 32.1 inches (814.7 mm) (81.47 cm) | 33.1 inches (839.7 mm) (83.97 cm) | 11.1 inches (281.8 mm) (28.18 cm) | 60.1 inches (152 cm) | 41.0 lbs (18.6 kg) | 41.9 lbs (19.0 kg) |
| 65BU8***65UB8*** | 57.1 inches (1450.9 mm) (145.09 cm) | 32.8 inches (831.9 mm) (83.19 cm) | 1.0inches(25.7 mm)(2.57 cm) | 34.2 inches (869.6 mm) (86.96 cm) | 35.2 inches(894.6 mm)(89.46cm) | 11.1 inches (281.8 mm) (28.18 cm) | 64.5 inches (163 cm) | 46.1 lbs (20.9 kg) | 47.0 lbs (21.3 kg) |
| 70BU8***70UB8*** | 61.4 inches (1559.7 mm) (155.97 cm) | 35.5 inches (902.1 mm) (90.21 cm) | 1.0 inches (26.6 mm) (2.66 cm) | 37.3 inches (947.8 mm) (94.78 cm) | 38.3 inches (972.8 mm) (97.28 cm) | 13.4 inches (340.4 mm) (34.04 cm) | 69.5 inches (176 cm) | 62.8 lbs (28.5 kg) | 64.2 lbs (29.1 kg) |
| 75BU8*** | 66.0 inches (1676.7 mm) (167.67 cm) | 37.8 inches (960.3 mm) (96.03 cm) | 1.0 inches (26.6 mm) (2.66 cm) | 39.6 inches (1005.5 mm) (100.55 cm) | 40.6 inches (1030.5 mm) (103.05 cm) | 13.4 inches (340.4 mm) (34.04 cm) | 74.5 inches (189 cm) | 69.2 lbs (31.4 kg) | 70.5 lbs (32.0 kg) |
| 85BU8*** | 74.8 inches (1900.9 mm) (190.09 cm) | 42.8 inches (1086.2 mm) (108.62 cm) | 1.1 inches (26.9 mm) (2.69 cm) | 44.5 inches (1129.1 mm) (112.91 cm) | 45.5 inches (1154.1 mm) (115.41 cm) | 15.6 inches (396.6 mm) (39.66 cm) | 84.5 inches (214 cm) | 91.5 lbs (41.5 kg) | 93.7 lbs (42.5 kg) |

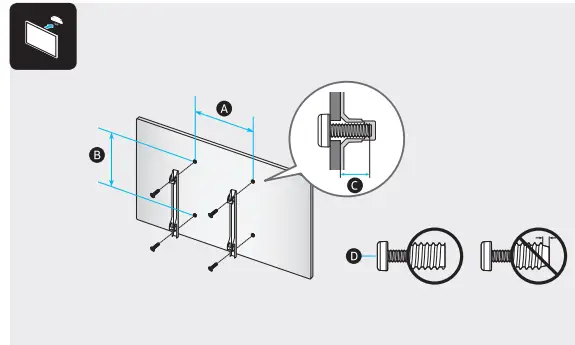

| VESA x (mm) | (mm) | x 4 | |
| 50Q6*B | 200 X 200 | 11-13 | M8 |
| 55Q6*B | |||
| 65Q6*B | 400 x 300 | ||
| 43BU8***43UB8*** | 200 X 200 | ||
| 50BU8***50UB8*** | |||
| 55BU8***55UB8*** | |||
| 60BU8***60UB8*** | 400 x 300 | ||
| 65BU8***65UB8*** | |||
| 70BU8***70UB8*** | |||
| 75BU8*** | 400 x 400 | ||
| 85BU8*** | 600 x 400 | ||
| * : 0~9, A~Z | |||

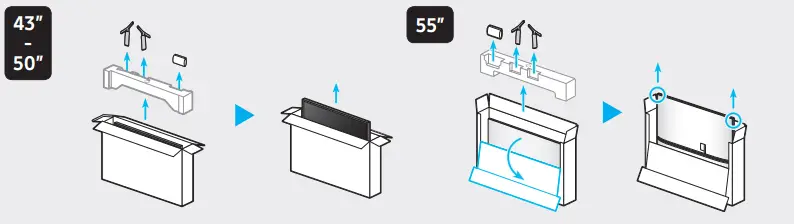

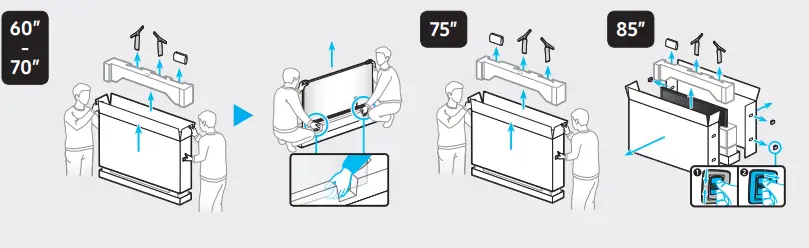

IN PAKING

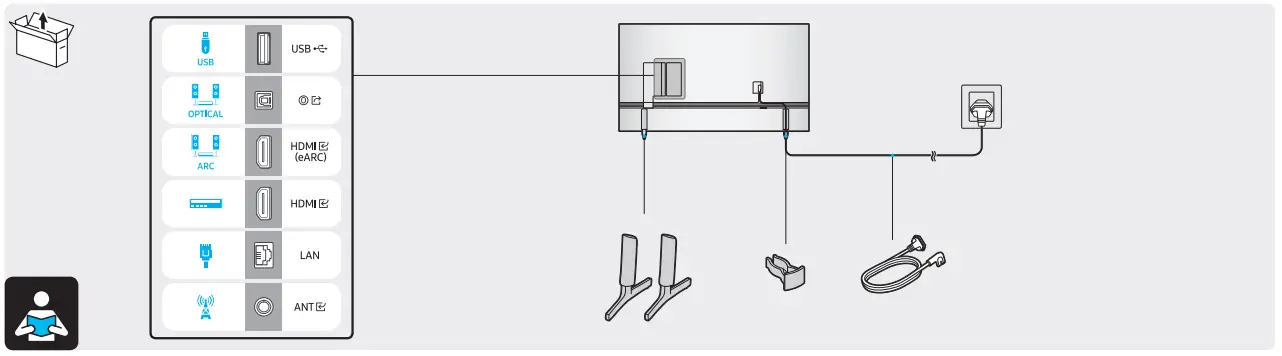

WATH IS THE BOX
SYMBOLS
