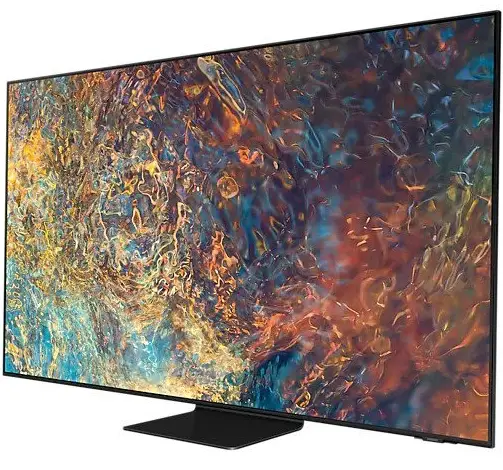

SAMSUNG 98QN90A Neo QLED 4K Smart TV

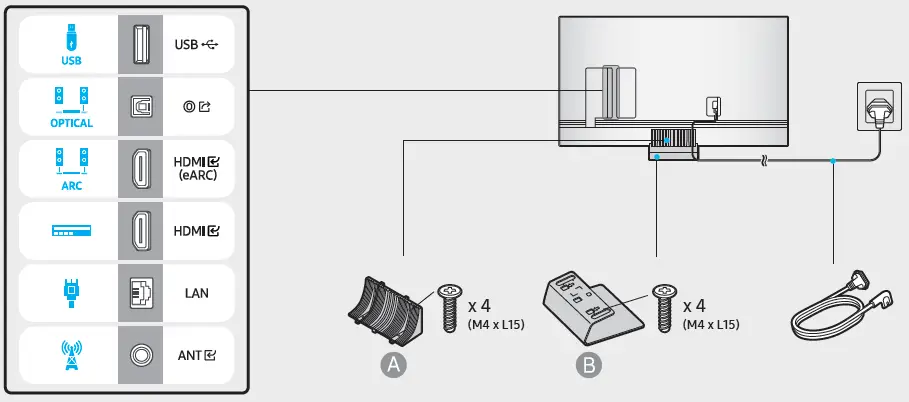

WHAT IN THE BOX

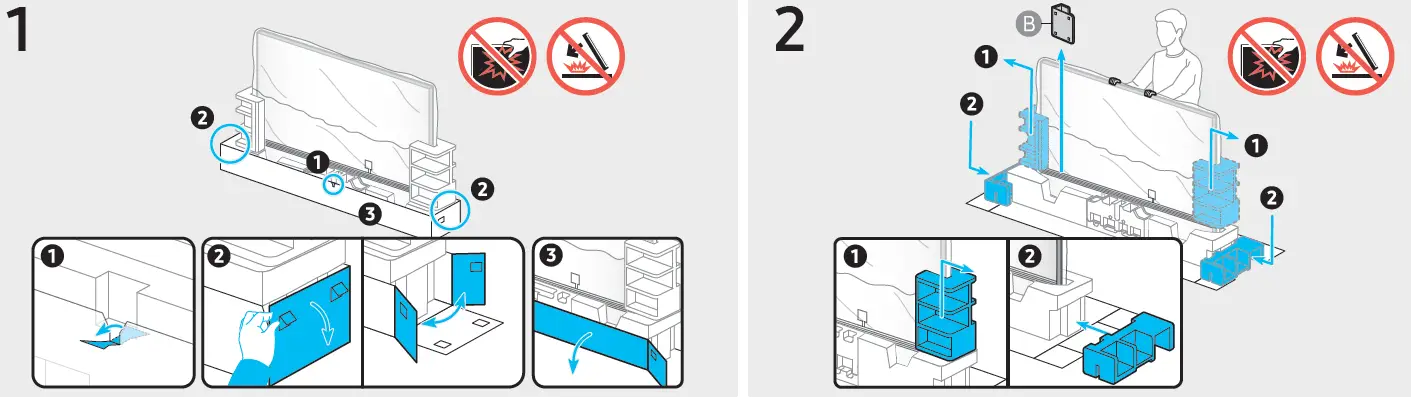

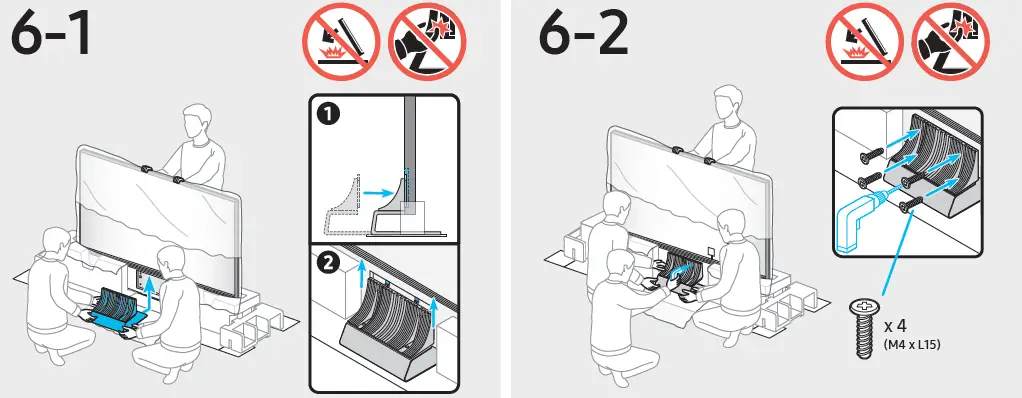

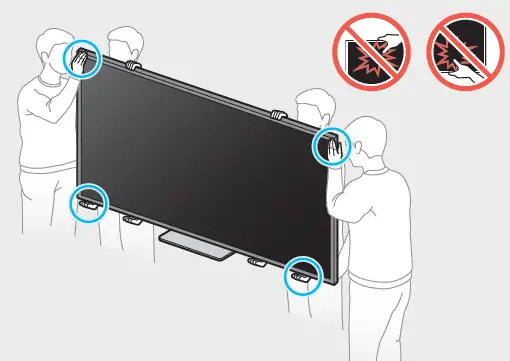

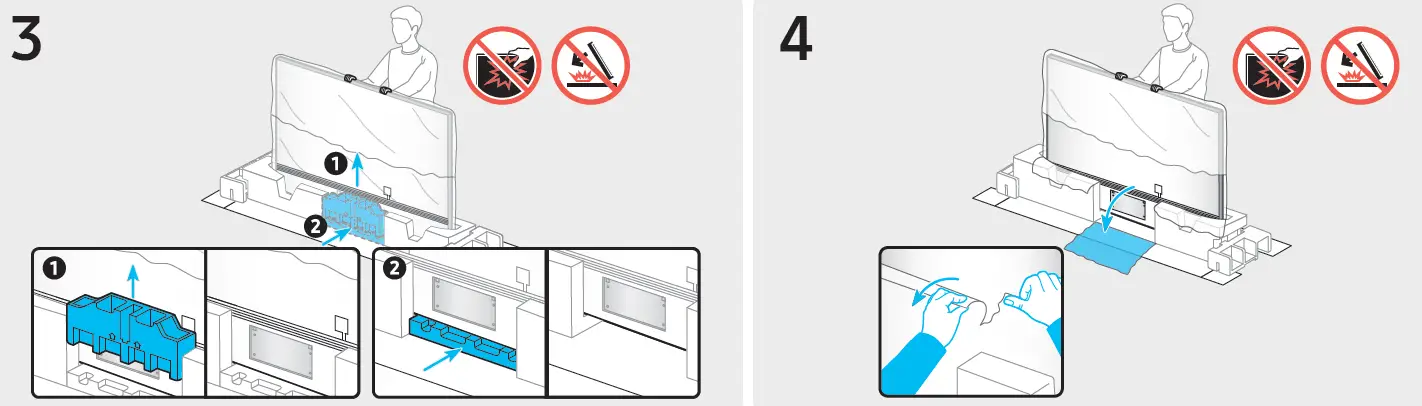

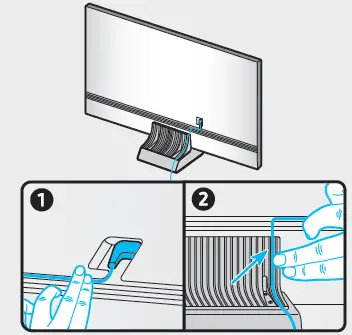

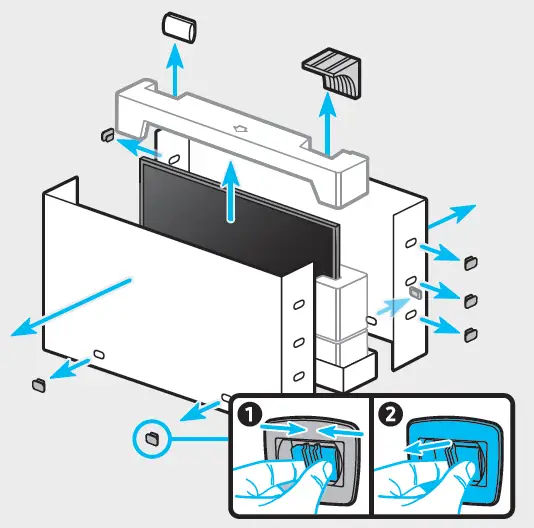

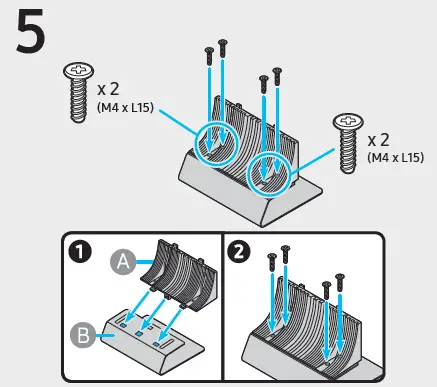

INSTALLATION INSTRUCTIONS

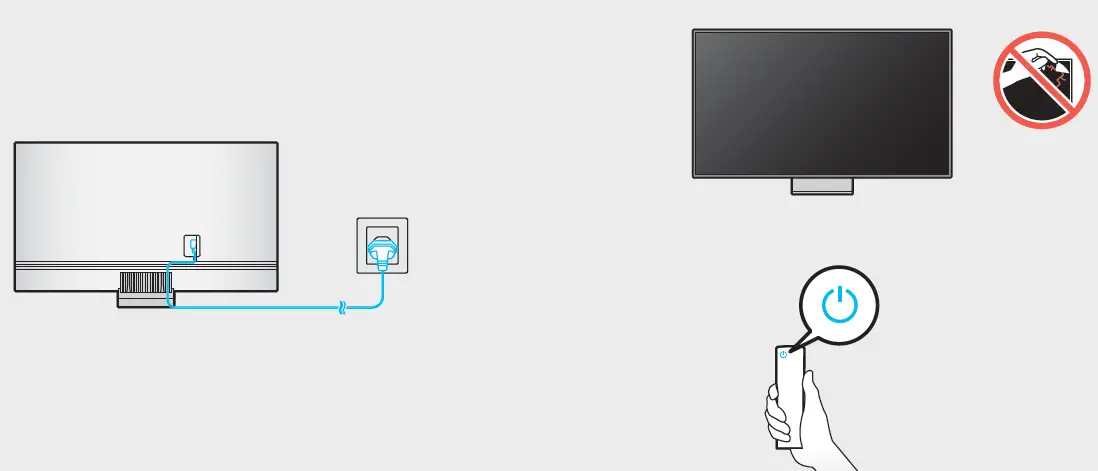

POWER

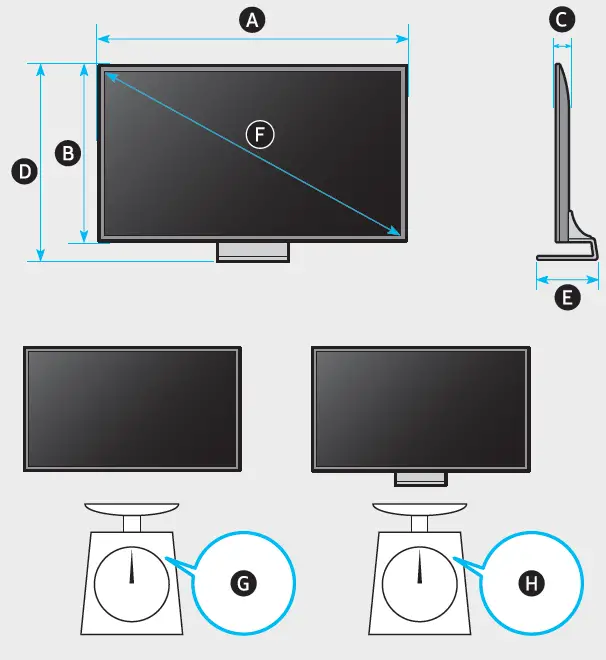

DIMENSION
| A | B | C | D | E | F | G | H | |
| 98QN9*A 98QNA9* | 86.0 inches (2185.1 mm) (218.51 cm) | 49.2 inches (1249.3 mm) (124.93 cm) | 1.2 inches (30.9 mm) (3.09 cm) | 51.9 inches (1319.0 mm) (131.90 cm) | 14.4 inches (366.9 mm) (36.69 cm) | 97.5 inches (247 cm) | 135.4 lbs (61.4 kg) | 166.9 lbs (75.7 kg) |
| * : 0~9, A~Z | ||||||||
MOUNTING
| VESA A xB (mm) | C (mm) | D x 4 | |
| 98QN9*A 98QNA9* | 600 x 400 | 11-13 | M8 |
| * : 0~9, A~Z | |||
SCAN
