M98T-B 98 Inch UHD Standalone Smart Signage Display
User Guide
Inch UHD Standalone Smart Signage Display
* The color and the appearance may differ depending on the product, and the content in the manual is subject to change without prior notice to improve the performance.
* Download the user manual from the following Samsung Website for further details.
http://www.samsung.com/displaysolutions
Checking the Components
- Quick Setup Guide
- Warranty card (Not available in some locations)
- Regulatory guide
- Power cord
- Batteries (AAA x 2) (Not available in some locations)
- Remote Control
- RS232C adapter
Contact the vendor where you purchased the product if any components are missing.
Components may differ in different locations.

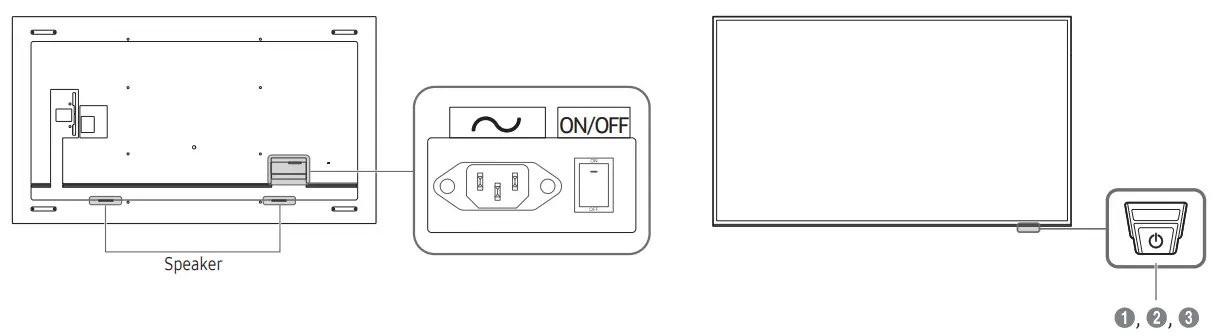

Parts
- Remote sensor
Press a button on the remote control pointing at the bottom of the product face to perform the function. The remote control sensor is located on the bottom of the product.
* Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled. - Power button
- Power indicator
Troubleshooting Guide
| Issues | Solutions |
| The screen keeps switching on and off. | Check that the cable between the product and the PC is connected correctly. |
| No Signal is displayed on the screen. | Check that products (including source devices) are connected correctly with a cable. |
| Check that the source device connected to the product is powered on. |
Specifications
| Model Name | QM98T / QM98T-B | |
| Panel | Size | 98 CLASS (97.5 inches / 247.7 cm) |
| Display area | 2158.848 mm (H) x 1214.352 mm (V) | |
| Power Supply | AC100-240V~ 50/60Hz Refer to the label at the back of the product as the standard voltage can vary in different countries. | |
| Environmental considerations | Operating | Temperature: 0 °C – 40 °C (32 °F – 104 °F) Humidity: 10% – 80%, non-condensing |
| Storage | Temperature: -20 °C – 45 °C (-4 °F – 113 °F) Humidity: 10% – 90%, non-condensing | |
* This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
* For detailed device specifications, visit the Samsung website.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

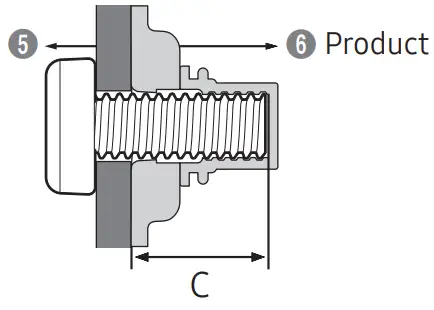

Wall Mount Kit Specifications
| 1 Model Name | 2 C | 3 Standard Screw | 4 Quantity | Wall mount bracket 5 6 Product C |
| QM98T QM98T-B | 47 mm 4.7 cm | M8 | 4 |

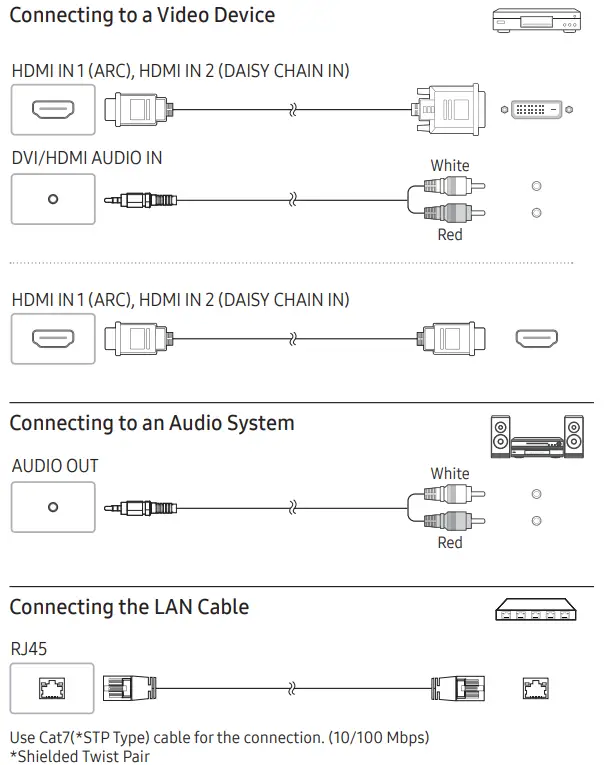

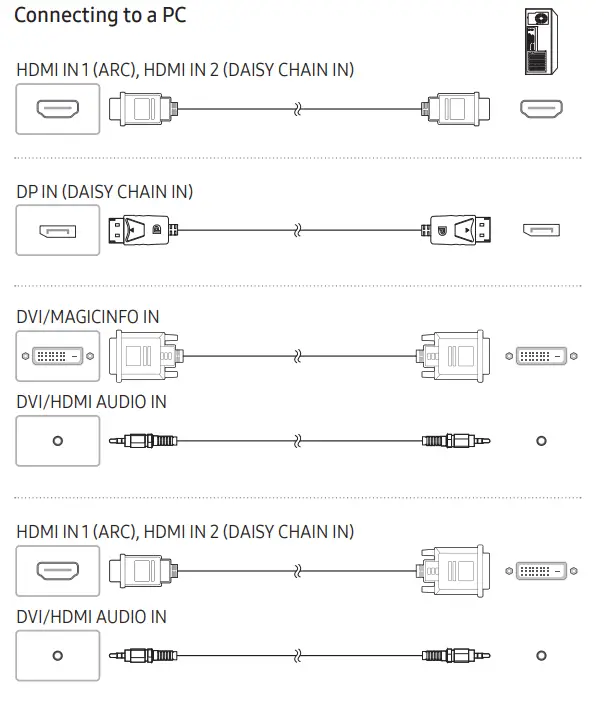

Connecting and Using a Source Device
.

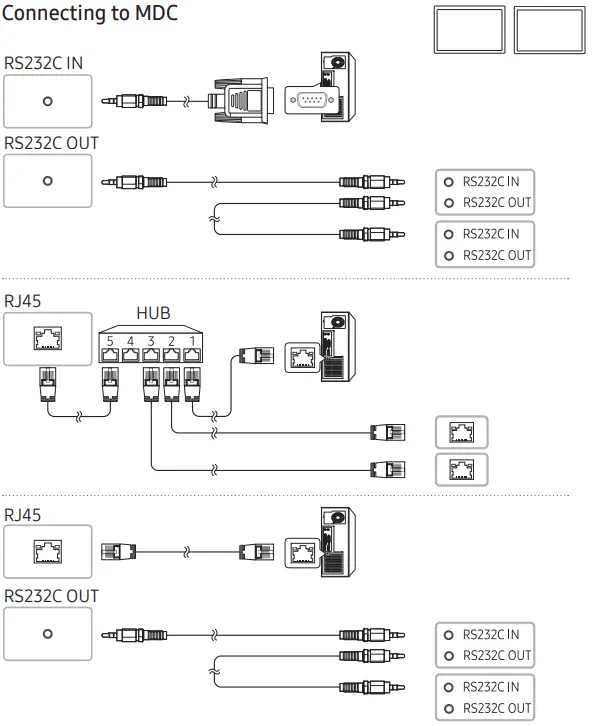

For details on how to use the MDC programme, refer to Help after installing the programme. The MDC programme is available on the website.
http://www.samsung.com/displaysolutions
