hansgrohe AXOR 34410000, 34411000 Bath Filters
Product Information
This user manual provides assembly instructions for various products. The manual includes product codes for Starck 10410XXX, Urquiola 11430000 and 11431000, Terrano 37410XXX, Bouroullec 19415000 and 19416000, Starck X 10426000, Citterio M 34410000 and 34411000, Uno 38410XXX, Arco 11410XXX, Steel 35412800, and Citterio 39410XXX and 39411XXX.
The manual also provides technical specifications for each product such as recommended water pressure and the type of silicone to use during installation. The products have different technical specifications based on their product codes.
Product Usage Instructions
To assemble the product, follow the assembly instructions provided in the user manual. Ensure that you use the recommended silicone during installation. The silicone must be free from acetic acid for EN, IT, NL, DK, PL, SK, HU, FI, HR, EL, SL, LV, SR, and NO. For FR and RO, the silicone must be free from acid acetic. For AR, it is not specified.
Ensure that you follow the recommended water pressure indicated in the technical specifications. The recommended water pressure varies depending on the product code. Refer to the table provided in the user manual to determine the recommended water pressure for your product.
For further information or assistance with product usage, refer to the user manual or contact the manufacturer.

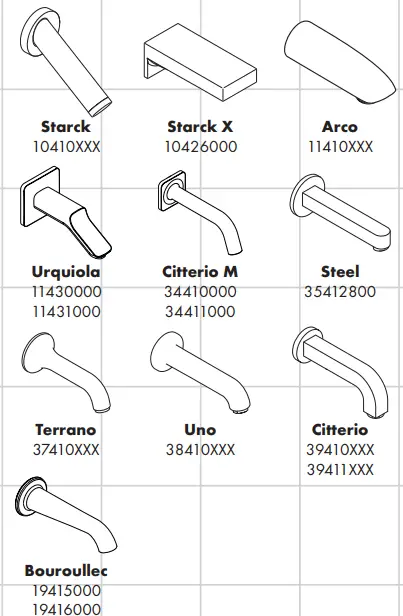

PARTS

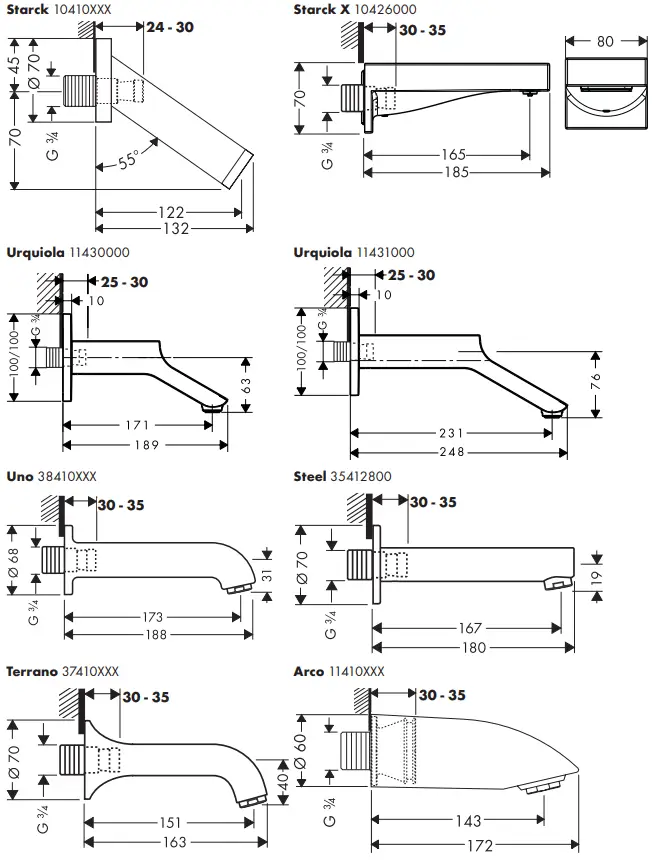

DIMENSIONS
| P-IX | SVGW | ACS | WRAS | |
| 10410000 | X | |||
| 10426000 | 9918/IIO | X | X | |
| 11430000 | 19241/IB | X | X | X |
| 11431000 | 19241/IB | X | X | X |
| 38410000 | 18850/IB | X | X |
| 35412800 | X | ||
| 34410000 | X | X | X |
| 34411000 | X | X | X |
| 37410000 | X | ||
| 11410000 | X | ||
| 39410000 | X | ||
| 39411000 | X | ||
| 19415000 | |||
| 19416000 | |||

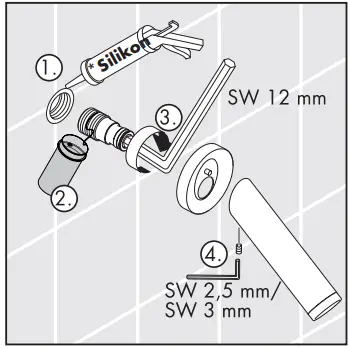

INSTALLATION
