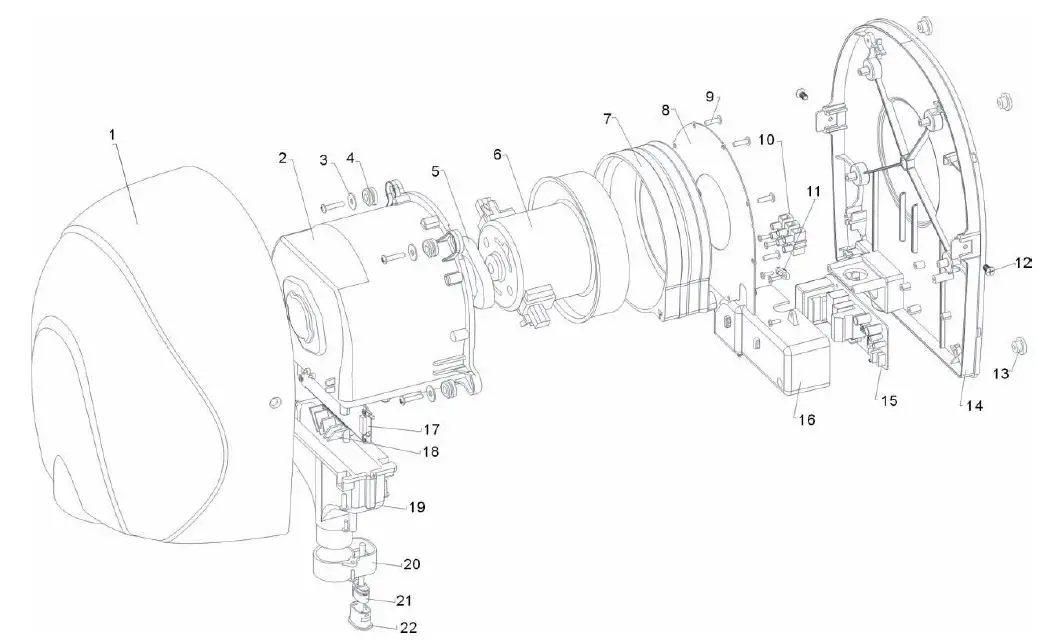

11 Diagram and Parts List

12 Documents / Resources

13 Related Posts

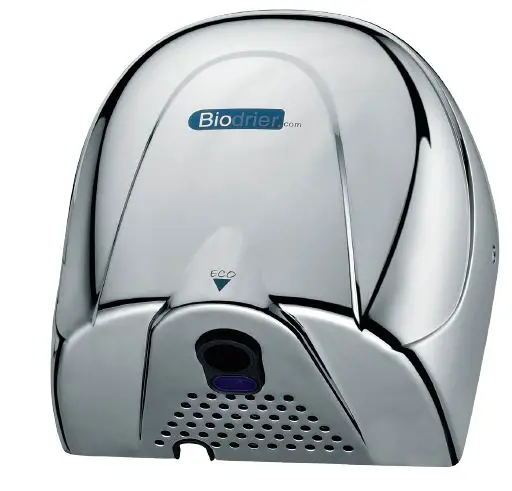

Biodrier Eco Automatic High-Speed Hand Dryer

The Eco Surface Mounted High-Speed Hand Dryer is an automatic hand dryer that is designed for commercial use. It has a high-speed motor that can quickly dry hands and save energy. The dryer has a sleek and durable die-cast aluminum cover with an epoxy-polyester powder coating in white, silver, or bright chrome finish. It is easy to install and maintain.

Technical Specifications

Operating Voltage: 110-120V, 50/60Hz
Air Speed Output: 95m/s
Air Output Temperature: 40°C
Motor Type: Brushless DC Motor
Motor Thermal Protection: Auto Resetting Thermostat turns unit off at 105°C
Heater Element: 900W
Heater Thermal Protection: Auto Resetting Thermostat turns unit off at 85°C
Drying Time: 10-15 seconds
Decibel Rating: 70dB
Circuit Operation: Infrared Sensor
Sensor Range: 5-15cm adjustable
Timing Protection: 60 seconds auto shut off
Drip Proof: IPX1
Isolation: Class I
Net Weight: 4.5kg
Shipping Weight: 5.5kg
Unit Size: 300mm x 175mm x 280mm
Approvals: CE, RoHS
Item Code: BE08W (White), BE08S (Silver), BE08C (Chrome)

Product Usage Instructions

Important: This product is intended for installation by a qualified service person. Use AWAG No.16 solid conductor for wiring.

Installation

Switch off the power supply breaker.
Place the template against the wall at the desired height and mark the locations of the 4 mounting holes and wire service entry at knockout (KO) location.
Remove the cover screws and cover.
Connect the live wire to the terminal block marked L, the neutral wire to the terminal block marked N, and the ground wire to the green screw marked .
Replace the cover and do not over-tighten screws.
Note: For two or more dryers, dryers should be no closer than 24 inches (610 mm) on center.

Recommended Mounting Heights

	Men’s	Ladies	Children, ages 11-17	Children, ages 3-10	Disabled
From floor to bottom of dryer	43″ (109 cm)	41″ (104 cm)	39″ (99 cm)	33″ (84 cm)	35″ (89 cm)

Cleaning and Maintenance

All surfaces of the unit should be cleaned daily with a soft cloth dampened with warm, soapy water. Polish with a soft dry cloth.
Warning: Failure to properly ground the unit could result in electrical shock and/or death. This product is not for household use.

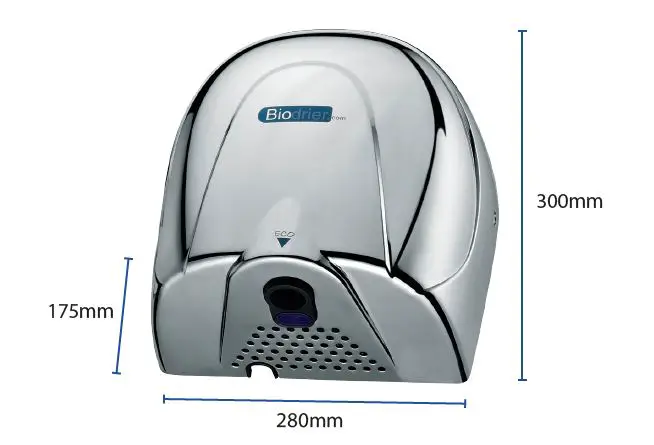

DIMENSION

Technical Specifications

Item Category	Performance Data
Operating Voltage	220 – 240Vac, 50Hz, 900 WATTS
Air Speed Output	64 m/s, 140m³/h
Air Output Temperature	77°F (25°C) – Ambient Temperature 68°F (20°C)
Motor Type	23,000 rpm, 650W, Brush Type, Dual Ball Bearings
Motor Thermal Protection	Auto Resetting Thermostat turns unit off, 240V at 221°F (105°C) – EURO Spec
Heater Element	250W
Heater Thermal Protection	Auto Resetting Thermostat turns unit off at, 149°F (65°C)
Drying Time	Under 10 seconds
Decibel Rating	76 dba @ 1mtr
Circuit Operation	Infared Automatic, self adjusting
Sensor Range	100 mm
Timing Protection	60 seconds auto shut off
Drip Proof	IP22
Isolation	CLASS I
Net Weight	4.5 kg
Shipping Weight	5 kg
Unit Size	280mm W x 300mm H x 175mm D
Approvals	CE, WEEE, Greenspec
Item Code	Cover Type/Finish
BE08W	Die Cast Aluminium; Epoxy Polyester Powder Coating (White)
BE08S	Die Cast Aluminium; Epoxy Polyester Powder Coating (Silver)
BE08C	Die Cast Aluminium; Bright Chrome

General Safety Information

WARNING

Failure to properly ground unit could result in electrical shock and/or death.
This product is intended for installation by a qualified service person. Use AWAG No.16 solid conductor for wiring.
Disconnect power at the service breaker before installing or servicing.
NOT FOR HOUSEHOLD USE – MAY CAUSE BURNS “IMPROPRE A L’USAGE DOMESTIQUE – PUET OCCASIONNER.”
All units must be supplied with a 3-wire service. The ground wire must be connected with the dryers back plate.

NOTE: Do not install dryer over wash basin.

Type Y attachment
If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.
Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

Installation

Installation must be carried out by a qualified electrician

Make sure the power supply breaker is switched off. Installation must be carried out in accordance with the current edition of the local wiring regulations code having jurisdiction. Installation should be performed only by a qualified electrician.
Place the template against the wall at the desired height (see mounting height recommendations) and mark the locations of 4 mounting holes and wire service entry at the knockout (KO) location.
NOTE: For two or more dryers, dryers should be no closer than 24 inches (610 mm) on center.
Remove and retain 2 cover screws and cover.
Connect supply wires to the terminal block where indicated and connect the ground wire to the baseplate with a ground screw.

Connections:

Connect the live wire (coloured red or brown) to the terminal block marked “L”.
Connect the neutral wire (coloured black or blue) to the terminal block marked “N”.
Connect the ground wire (coloured green or green and yellow) to the green screw marked “ ”.
Note that the color of live and neutral wires depends on the voltage of the supply service.
Replace cover. Do not over-tighten screws.

Recommended Mounting Heights

From floor to bottom of the dryer.

Men’s	Ladies	Children, ages 11-17	Children, ages 3-10	Disabled
43”	41”	39”	33”	35”
109 cm	104 cm	99 cm	84 cm	89 cm

Cleaning and Maintenance

All surfaces of the unit should be cleaned daily with a soft cloth dampened with warm, soapy water. Polish with a soft dry cloth.
DO NOT use caustic solutions or abrasive cleaning materials on the drier.
