QUICK START GUIDE
XPG CRUISER SUPER-MID TOWER CHASSIS
PACKAGE CONTENTS
XPG CRUISER Chassis

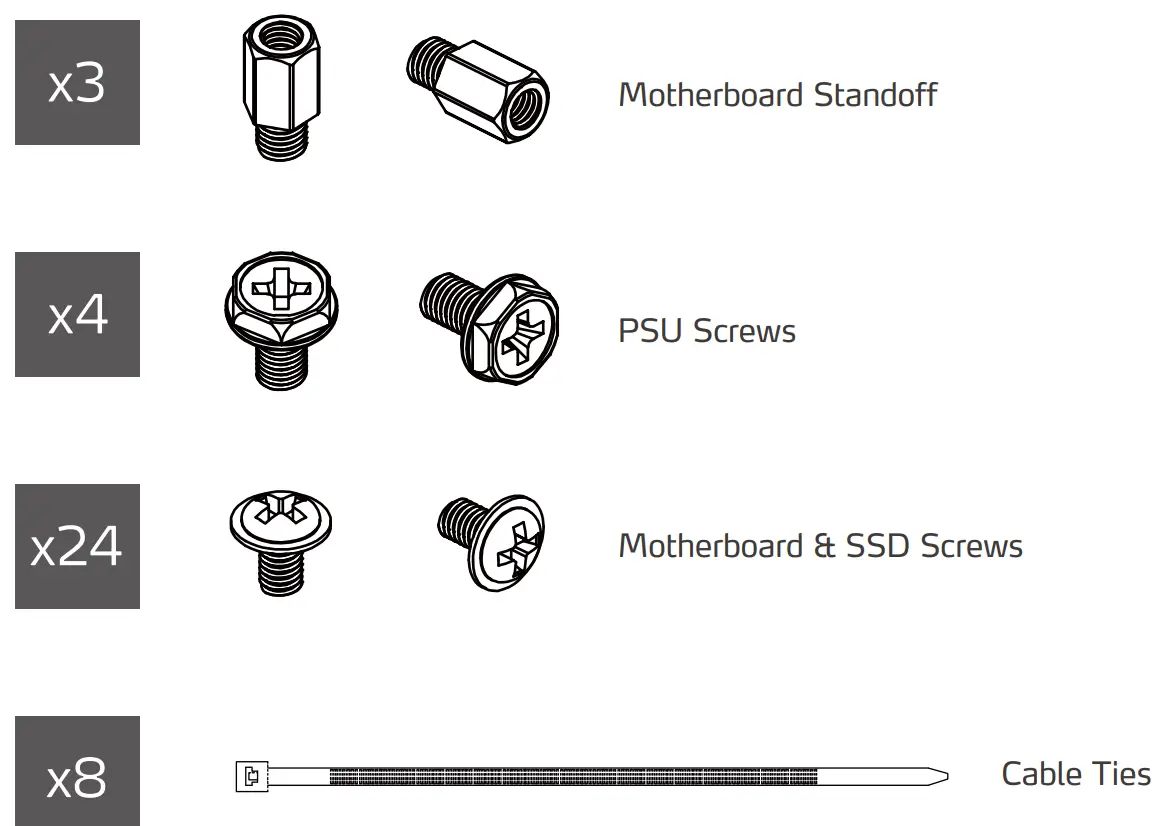

ACCESSORY BOX CONTENTS

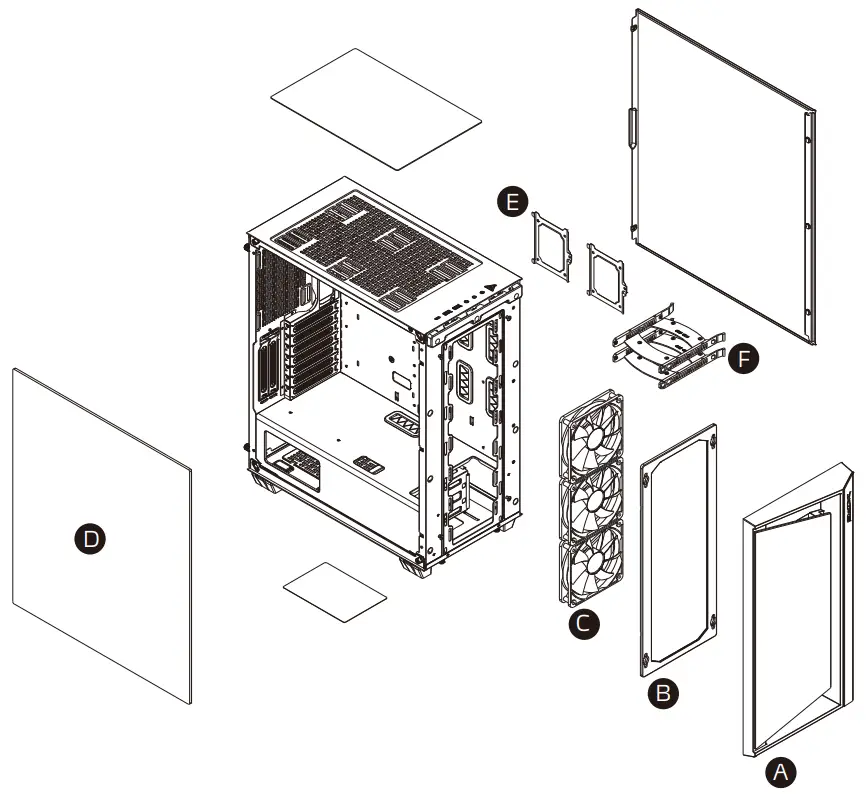

XPG CRUISER MID-TOWER CHASSIS
A.…… Glass Front Panel
B..…….Removable Dust Filter
C.……..3x XPG VENTO 120 ARGB Fans
D..…….Glass Side Panel
E..….2.5” HDD/SSD Brackets
F.……..2.5” / 3.5” HDD/SSD Trays
SPECIFICATIONS
| Color | Black / White |
| Form Factor | Mini-ITX, Micro-ATX, ATX, E-ATX, CEB, EEB |
| Dimensions (W x H x D) | 493 x 234 x 466mm 19.40 x 9.21 x 18.35inch |
| Material | SPCC |
| Side Panel | 4mm Tempered Glass (Left Side) |
| PCI-E Slots | 7 Horizontal / 2 Vertical |
| 3.5″ Drive Bay | 2 |
| 2.5” Drive Bay | 2+2 (Combo 3.5” / 2.5”) |
| Fan Mounts | FRONT 140mm x 3 / 120mm x 3 TOP 140mm x 2 / 120mm x 2 REAR 140mm x 1 / 120mm x 1 |
| Fan Pre-Installed | XPG VENTO 120 ARGB x3 |
| Radiator Support | FRONT 360 / 280 / 240mm x 1 TOP 280 / 240 / 120mm x 1 REAR 140mm x 1 / 120mm x 1 |
| I/O Ports | 1x USB 3.1 Gen 2 Type C, 2 x USB 3.0 1 x Hybrid Audio Port, x1 LED Button 1 x Reset Button, 1 x Power Button |
| Compatibility | VGA Length Limitation：350mm (without front radiator) VGA Vertical Installation Limitation: 27.1mm CPU Cooler Height Limitation：170mm PSU Length Limitation：180mm |
 |  |  |

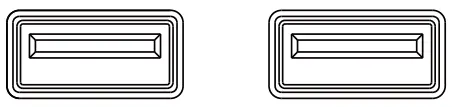

| USB 3.1 Gen2 Type-C | USB 3.0 x 2 | Hybrid Audio Port |
 | |  |
| LED Button | Reset Button | Power Button |
PRE-SET LIGHTING EFFECTS
MODE DESCRIPTIONS
| Mode 1 | Mode 2 | Mode 3 | Mode 4 | Mode 5 |
| Red | Green | Blue | Purple | Yellow |
| Mode 6 | Mode 7 | Mode 8 | Mode 9-12 | Mode 13 |
| White | Orange | Neon Green | Lighting effect No. 1-4 | Off |

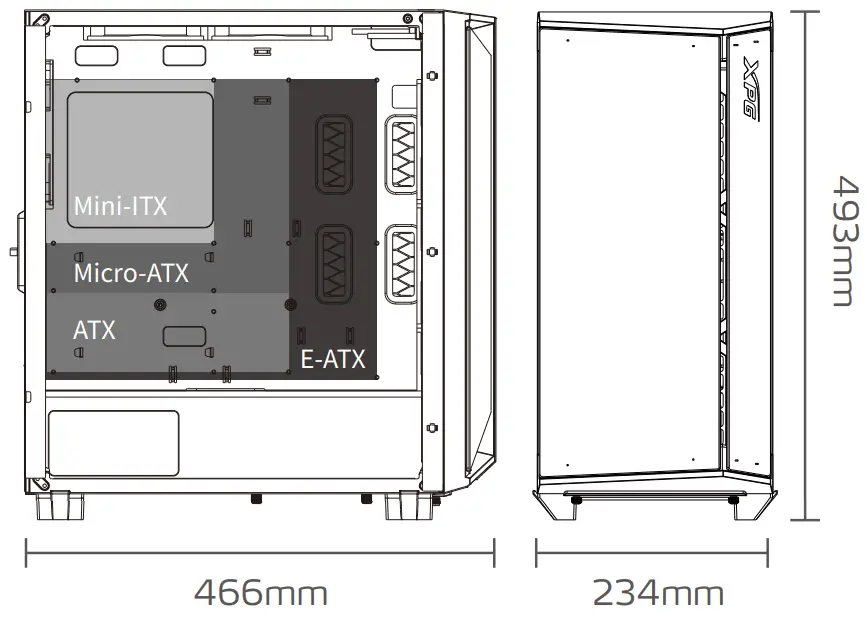

DIMENSIONS and COMPATIBILITY
VGA Length Limitation:…….350mm (without front radiator)
VGA Vertical Installation Limitation:…….27.1mm
CPU Cooler Height Limitation:……..170mm
PSU Length Limitation:…….180mm

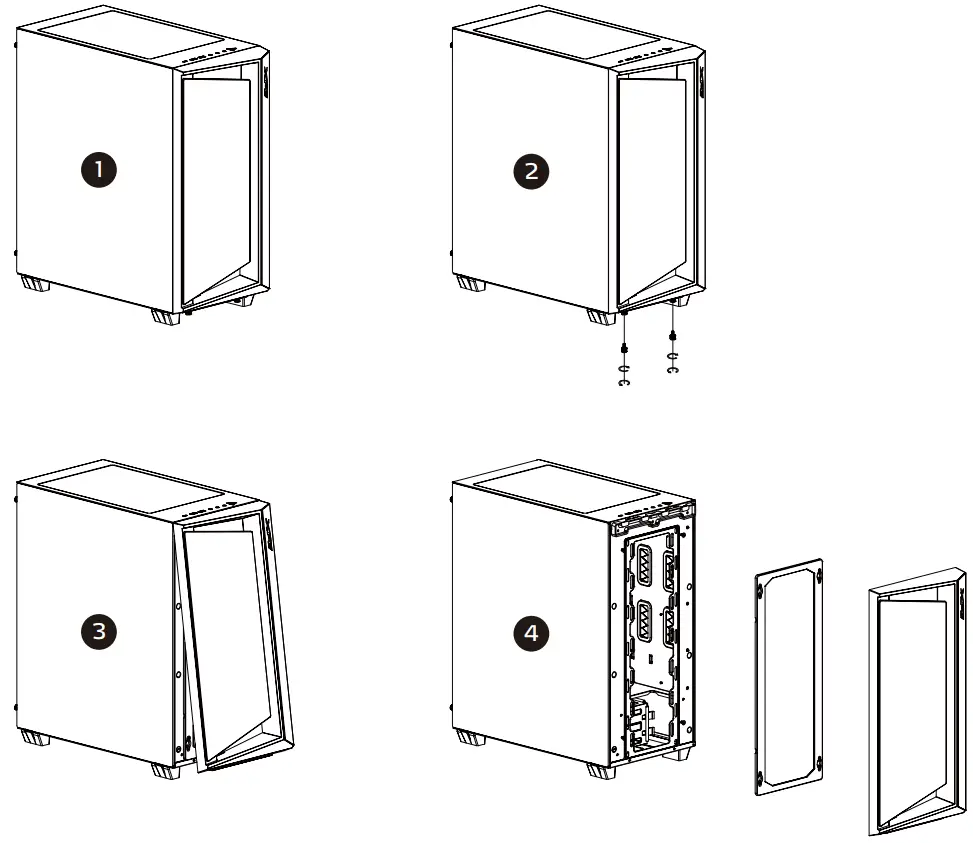

REMOVING THE FRONT PANEL AND THE DUST FILTER

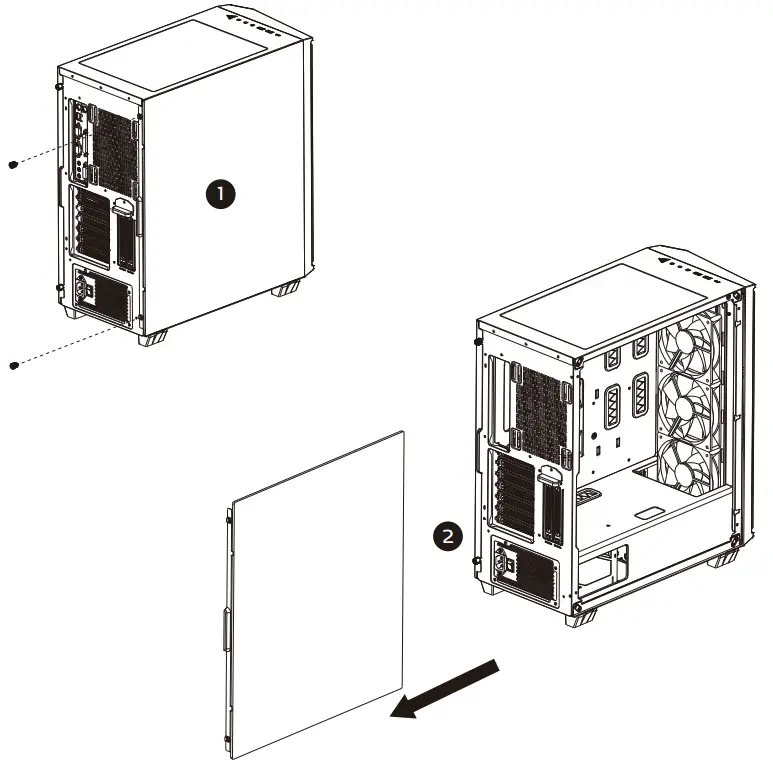

REMOVING THE GLASS SIDE PANEL
POWER SUPPLY INSTALLATION

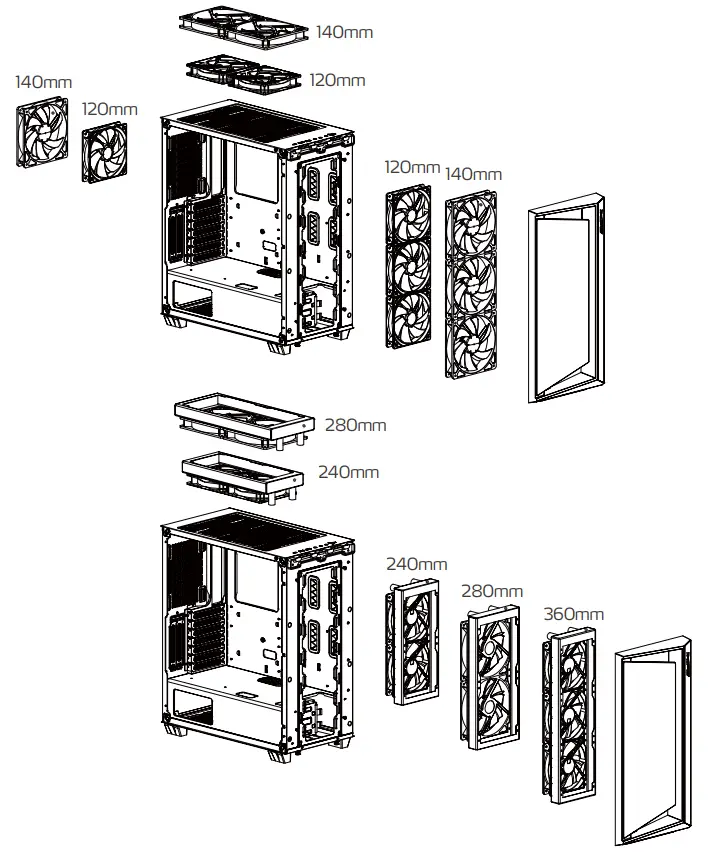

FAN and RADIATOR LOCATIONS and COMPATIBILITY

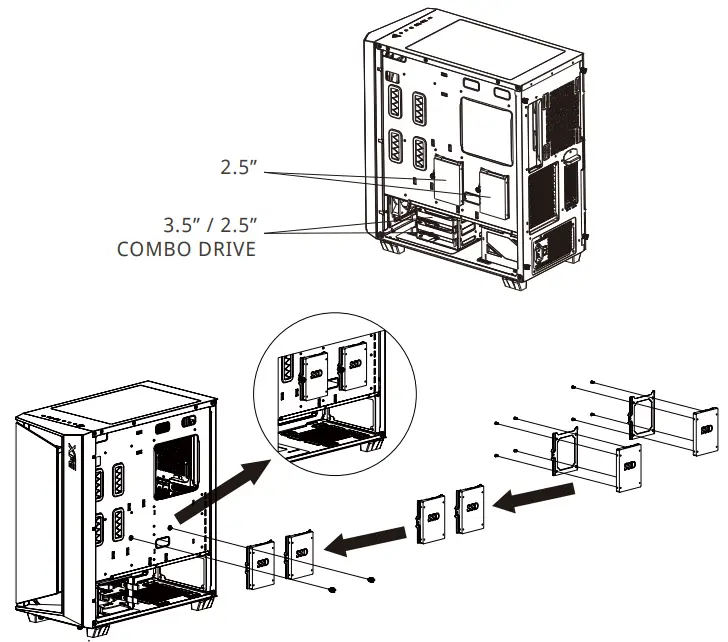

STORAGE LOCATIONS
STORAGE LOCATIONS: COMBO DRIVES

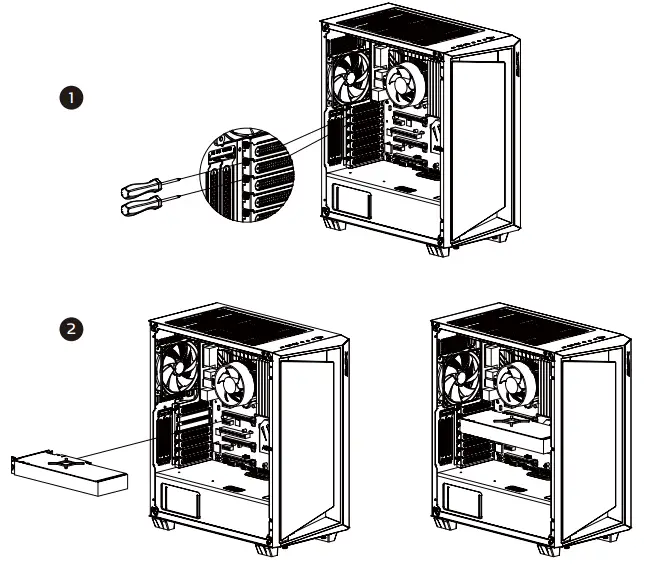

PCI-E CARD: HORIZONTAL INSTALLATION

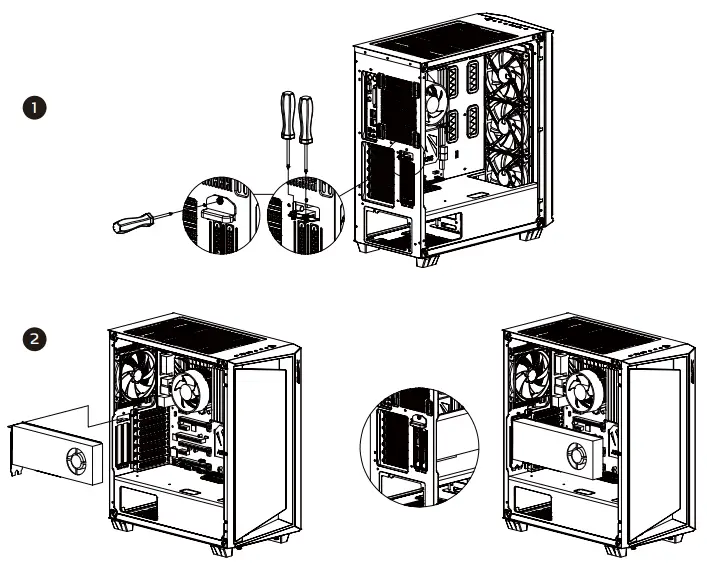

PCI-E CARD: VERTICAL INSTALLATION
CLEANING INSTRUCTIONS
Please use a clean damp cloth to clean the product properly.
Do not apply any soap or solvent agent on the surface to preserve its integrity.
SAFETY INSTRUCTIONS
For proper use of the product, and to ensure your safety, please follow the following instructions:
- Keep the device away from liquids, excess humidity, or moisture to avoid any shock hazards. Should the device come into contact with liquids, please make sure to unplug the device immediately, store it in a dry place, and contact support for assistance.
- Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
- Should you have any other trouble operating the device properly and normal troubleshooting does not work, please unplug the device and contact our service for support.
- Do not attempt to service or fix the device by yourself at any time.
DURATION OF WARRANTY
ADATA Technology Co., Ltd. provides a two-year warranty period for this product unless regional laws and regulations state otherwise.
LIMITATION OF WARRANTY
This limited warranty covers only repairs or replacements of products manufactured by ADATA Technology Co. Ltd. and its authorized partners.
Please note that ADATA is responsible for providing free repairs except for the following reasons:
- The warranty label is altered, damaged, or missing.
- Product serial number does not conform to our original system.
- Products purchased from an unauthorized agent.
- Damage caused by natural calamity
- Any abuse outside the intended product operation.
ONLINE CUSTOMER SERVICE
For frequently asked questions, additional information, and service instruction please visit the product page at www.xpg.com
