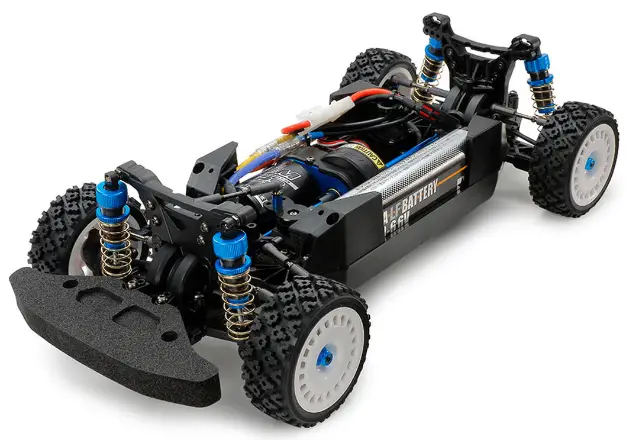

XV-02 Pro Chassis Kit
Instruction Manual
XV-02 Pro Chassis Kit
HOPIP OPTIONS
XV-02 ALUMINUM ADJUSTABLE SUSPENSION MOUNT (NN)
*Different bushings have different offsets for suspension shaft holes.
Changing bushings can alter toe and skid angle settings plus roll center, and will also change wheelbase and tread.
*Use Item 54884 to further broaden setup options.
CAUTION
Keep out of reach of small children. Children must not be allowed to put parts or packaging material in their mouths.
OP.1 884 Item 54884 Aluminum Adjustable Separate Suspension Mounts (A)

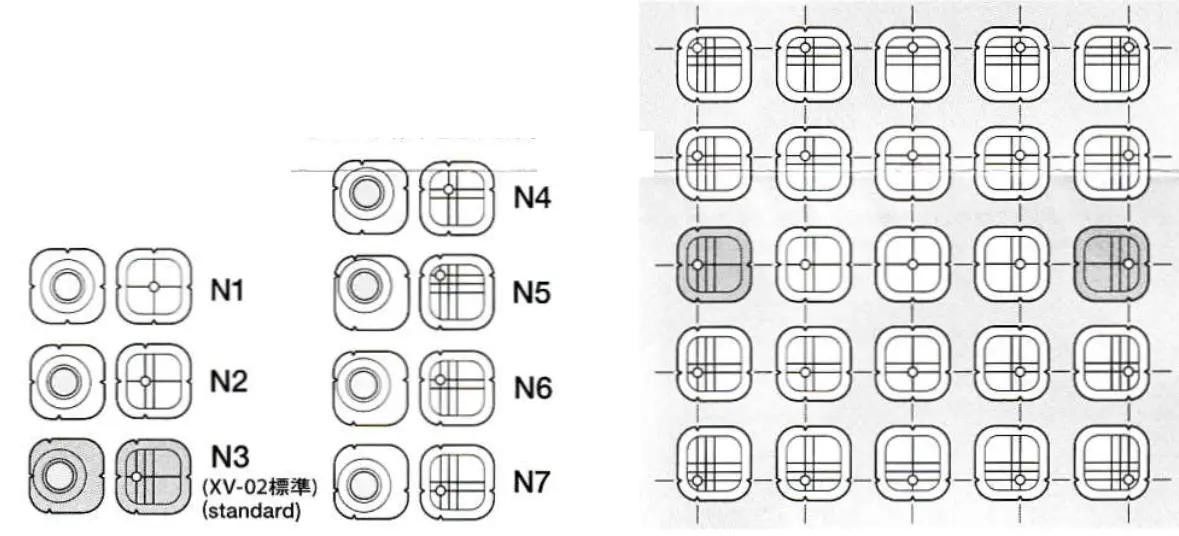

Bushings
*Bushings give different shaft positions to allow precision setup changes.

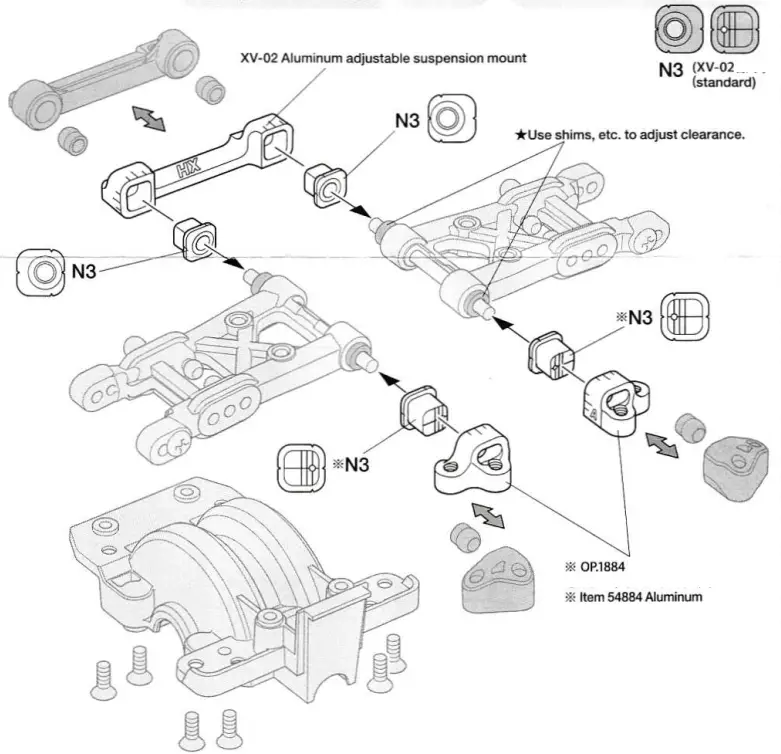

Rear (example)
*Us6 in place of Al and suspension balls.

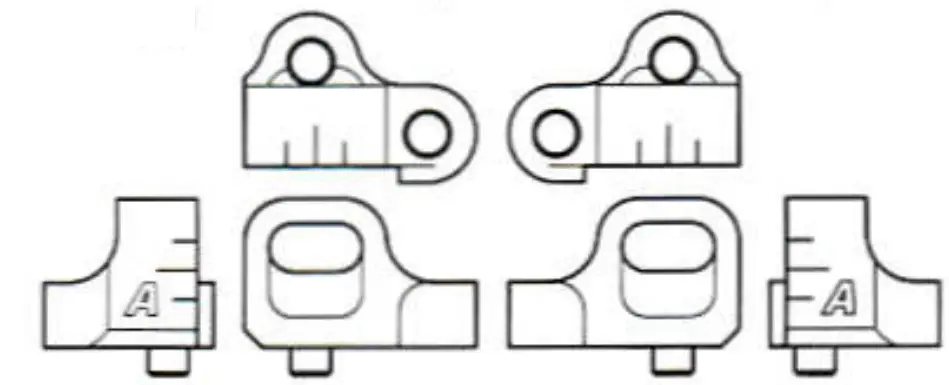

Adjustable Separate Suspension Mounts (A)
*Use in place of T9, T10, and suspension balls.
Marked parts are not included in set.
*Item 54884 Aluminum Adjustable Separate Suspension Mounts (A)
*Different suspension mount and separate suspension mount combinations alter toe angle.
| Separate Suspension | A | |||||||||
| N3 | N2 | N1 | N2 | I N3 | ||||||
| Mounts XV-02 Suspension | XB | |||||||||
| N3 | N2 | N1 | N2 | N3 | ||||||
| Mount | XM | XL | XK | XJ | XI | XH | XG | XF | ||
| SO | N3 | XJ | 1.5` Standerd | 1.0° | 0.5° | 0° | ||||
| N2 | XI | 2.0° | 1.5° | 1.0° | 0.5° | 0° | ||||
| N1 | XH | 2.5° | 2.0° | 1.5° | 1.0° | 0.5° | 0° | |||
| N2 | XG | 3.0° | 2.5° | 2.0° | 1.5° | 1.0° | 0.5° 0° | |||
| N3 | XF | 3.5° | 3.0° | 2.5° | 2.0° | 1.5° | 1.0° 0.5° 1 0° | |||

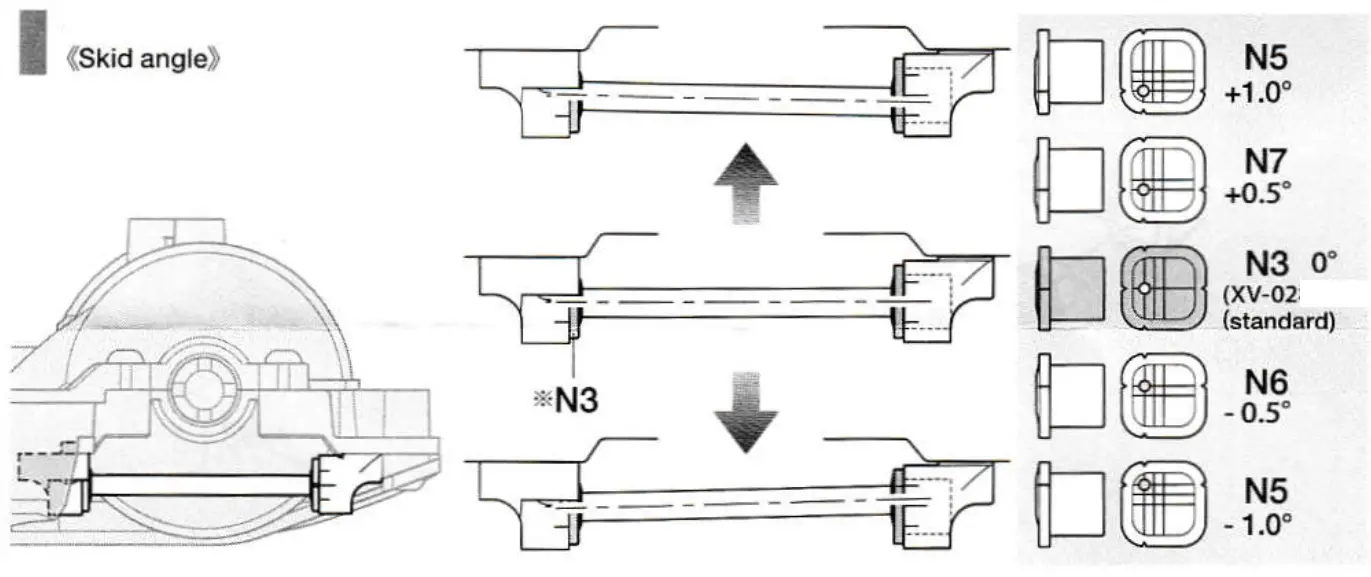

*Paid bushings with different height offsets apply slid angle.

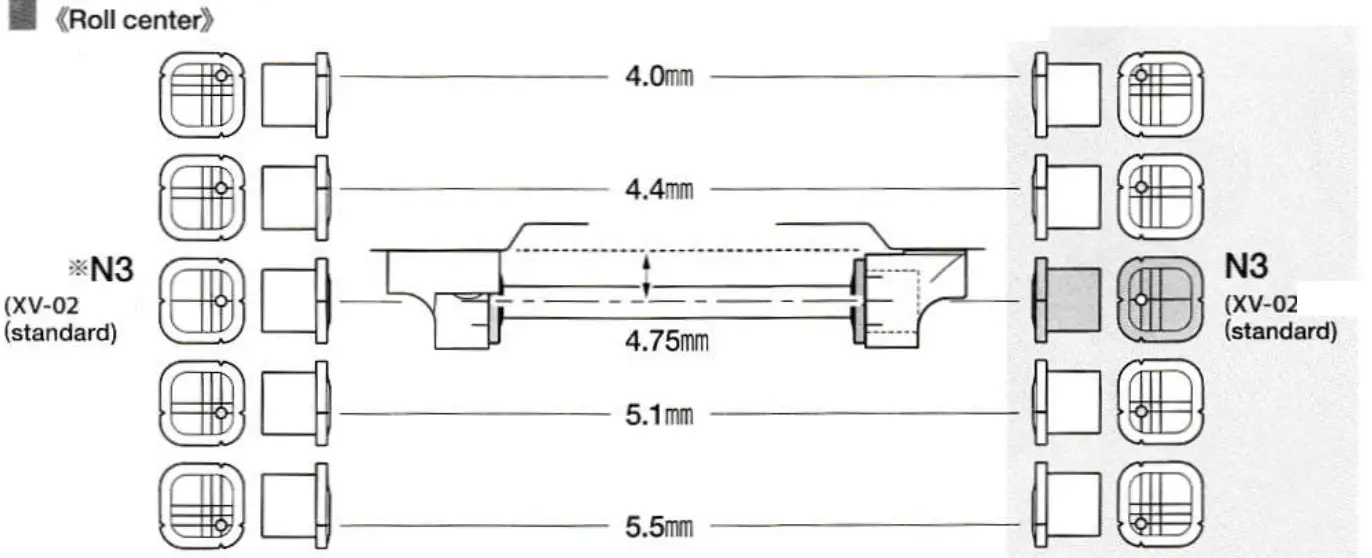

*Different height offsets give ditlerent roll center setups

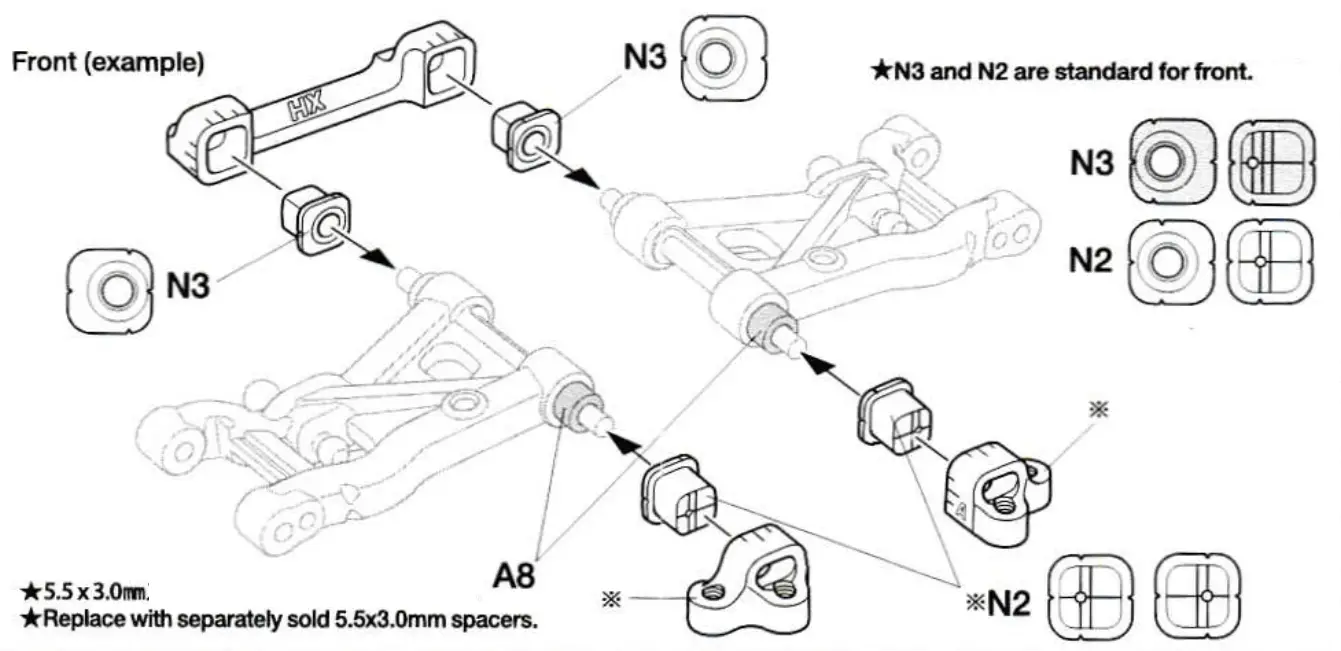

*On both front and rear, replace A8 with 5.5×3.0mm spacers in separately sold Item 53539 cti 5.5mm Aluminum Spacer Set.
*1.5° Is the standard rear toe angle; 0° is the standard front toe angle.
