LEO FLEX IP66 LED Flood
Instruction Manual
LEO FLEX IP66 LED Flood
WARNING
- 1Ensure that any installation and maintenance be performed by a qualified electrician and that luminaire be wired in accordance with the latest IEE electrical regulations or the local equipments.
- Ensure that the power supply is off before perform installation and maintenance and not switched on until the installation or maintenance complete.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Caution: Risk of electric shock - If the external flexible cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
- Only to be installed outside arms reach.
- This product contains a light source of class D.

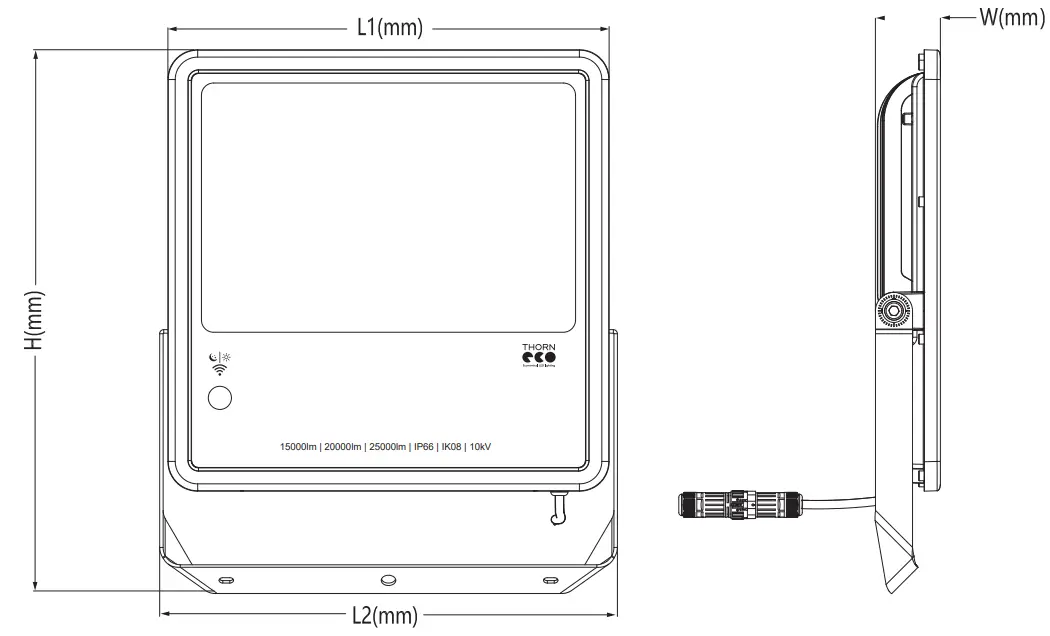

| Product Description | Wattage | SAP Code | 11 | L2 | W | H | Wind speed (m/s) | Windage at 13*(m2) Scx | Load |
| LEO FLEX IP66 80W 830 PC | 80W | 96635301 | 330 | 345 | 56 | 359 | 25m/s(90km/h) | 0.034 | 4.1Kg |
| LEO FLEX IP66 120W 830 PC | 120W | 96635302 | 330 | 345 | 56 | 419 | 0.042 | 4.3Kg | |
| LEO FLEX IP66 190W 830 PC | 190W | 96635303 | 380 | 395 | 56 | 470 | 0.056 | 5.9Kg | |
| LEO FLEX IP66 300W 830 PC | 300W | 96635304 | 465 | 479 | 72 | 635 | 0.062 | 11.3Kg | |
| LEO FLEX IP66 80W 840 PC | 80W | 96635305 | 330 | 345 | 56 | 359 | 0.034 | 4.1Kg | |
| LEO FLEX IP66 120W 840 PC | 120W | 96635306 | 330 | 345 | 56 | 419 | 0.042 | 4.3Kg | |
| LEO FLEX IP66 190W 840 PC | 190W | 96635307 | 380 | 395 | 56 | 470 | 0.056 | 5.9Kg | |
| LEO FLEX IP66 300W 840 PC | 300W | 96635308 | 465 | 479 | 72 | 635 | 0.062 | 11.3Kg |

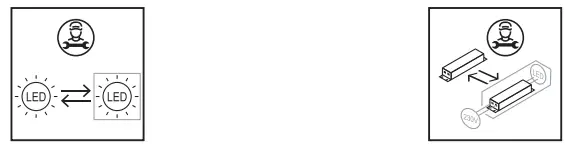

Info on replaceability:
LEO FLEX IP66

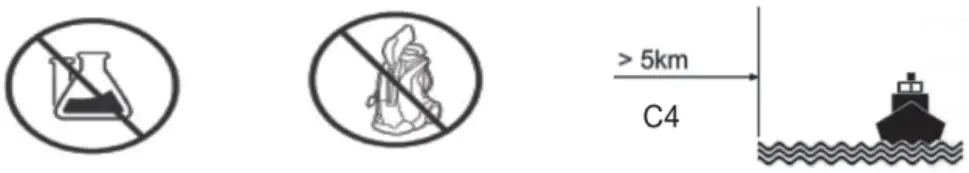

- The fitting should not be exposed to harsh chemicals. (e.g. Acids, fertilisers or lime).
- Never allow visible parts of the luminaire to be covered.
- Luminaire must not be cleaned with high pressure washers.
- The fittings is not suitable for use in high chlorine environments such as spas and swimming pools.
- Do not expose the luminaire to petroleum.
- Operational ambient temperature range -30°C to 50°C.
- Do not use if the luminaire, connectors or cabling are damaged.
- Minimum distance to sea 5 km.
Zumtobel LIGHTING GmbH Schweizer Strasse 30 6850 Dornbirn AUSTRIA
Thorn Lighting Limited Durhamgate Spennymoore Co Durham DL16 6HL UK
