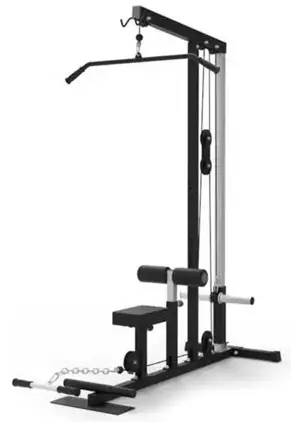

FF-PLLPLR20 P/L Lat Pulldown/Low Row
Instruction Manual
FEATURES
- High quality steel tube Q235 with 50 x 50 x 2mm
- Tungsten Inert Gas (TIG) welding
- Quality PU leather
- Electrostatic powder coating
- Height: 86.6″ (2.2m)
- Max loading: 550 lbs (250kg)
TECH SPECS
- Dimensions (L X WH): 55.7 x 38″ x 86.6″ (142 x 96.5 x 220 cm)
- Weight: 87.30 lb (39.6 kg)
WARRANTY
10 Years Parts, 1 Year Labor (Light Commercial)
PARTS LIST
| PART NO. | DESCRIPTION | QTY |
| 1 | Pad | 1 |
| 2 | l#Rope 3660mm | 1 |
| 3 | l#Rope 2980mm | 1 |
| 4 | Bushing | 10 |
| 5 | OP casing | 2 |
| 6 | Plate | 1 |
| 7 | Pulley Plate | 2 |
| 8 | Pulley 90mm | 7 |
| 9 | Foam | 2 |
| 10 | Plastic pad | 1 |
| 11 | Buckle | 6 |
| 12 | Chain cp5X200 | 2 |
| 13 | M10 Washer | 32 |
| 14 | M10X70 Hex Bolt | 2 |
| 15 | M10X65 Hex Bolt | 6 |
| 16 | M10X75 Hex Bolt | 7 |
| 17 | M10X40 Hex Bolt | 4 |
| 18 | M10X115 Hex Bolt | 1 |
| 19 | M10X16 Hex Bolt | 2 |
| 20 | M10X45 Hex Bolt | 2 |
| 21 | M10 Nylon Nut | 18 |

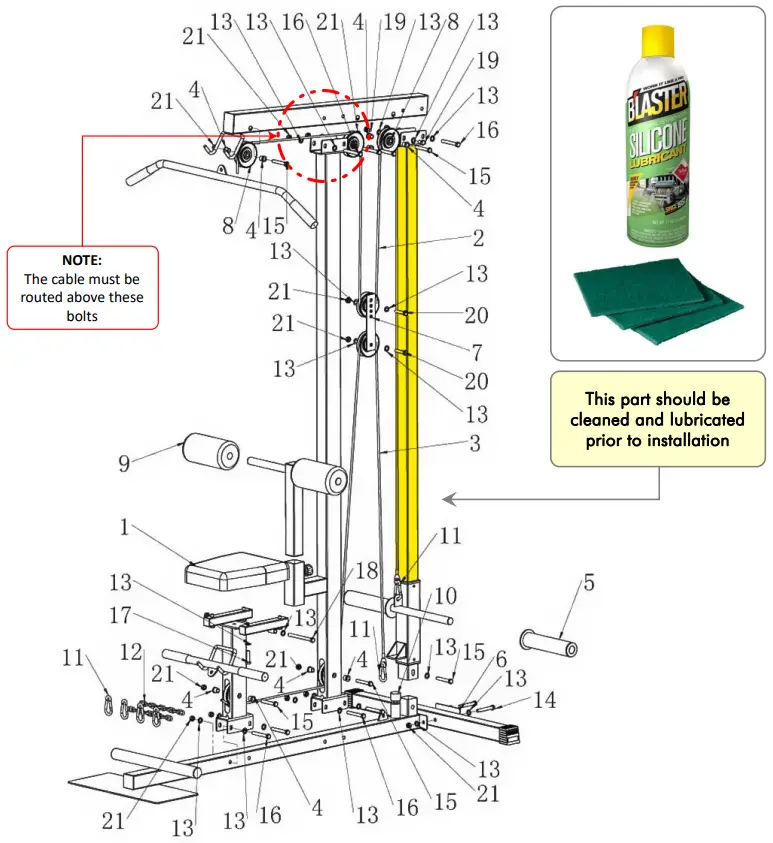

ASSEMBLY DIRECTION
Note:
- Assemble in place according to the drawing, first assemble and then tighten. All screws are installed according to the graphic position. Each screw has two gaskets and one nut.
- The wire rope should be threaded in accordance with the explosion diagram. It should not be crossed or reversed.
- Bushings should be added to the round holes on both sides of the connection between pulley and pipe.
