FRENCH FITNESS FFM-CLPS Monster Compact Leg Press Sled
CAUTION!
Read all precautions and Instructions in this manual before using this equipment.
FEATURES
- Stable and solid frame construction for heavy workouts
- Smooth roller sled for precise top-to-bottom motion
- Four adjustable stop settings
- Easy to use one-handed locking system
- Adjustable foot plate
- Quick and easy to adjust calf block, adjustable to three different positions
- The textured foot plate and calf block
- Backrest with 3 adjustable incline positions
- Seat with high-density foam padding
- Rubberized feet for added stability
TECH SPECS
- Maximum capacity (weight horns): 300 lbs
- Maximum weight capacity (including user weight): 850 lbs
- Dimensions: 77.5″L x 51.3″W x 56.1″H (1970 x 1305 x 1425)
WARRANTY
- 10 Years Parts, 1 Year Labor (Light Commercial)
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions:
- Keep children and pets away from the machine at all times. DO NOT leave children unattended in the same room with the machine.
- Only one person at a time should use the machine.
- If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
- Position the machine on a clear, leveled surface. DO NOT use the machine near water or outdoors.
- Keep hands away from all moving parts.
- Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in the machine. Running or aerobic shoes are also required when using the machine.
- Use the machine only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.
- Do not place any sharp objects around the machine.
- Disabled persons should not use the machine without a qualified person or physician in attendance.
- Before using the machine to exercise, always do stretching exercises to properly warm up.
- Never operate the machine if the machine is not functioning properly.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. WE ASSUME NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS

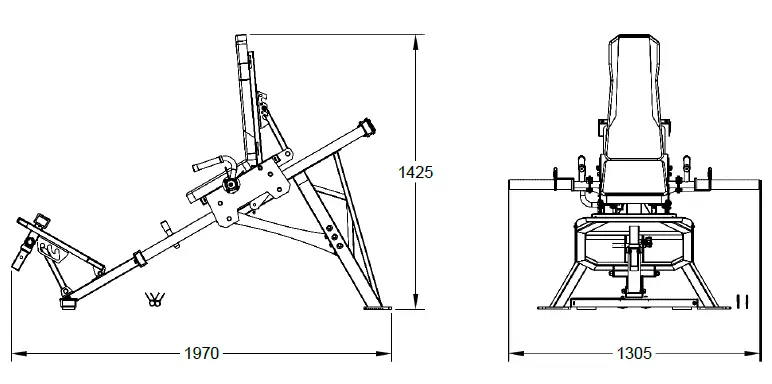

Assembly Dimension:1970x1305x1425

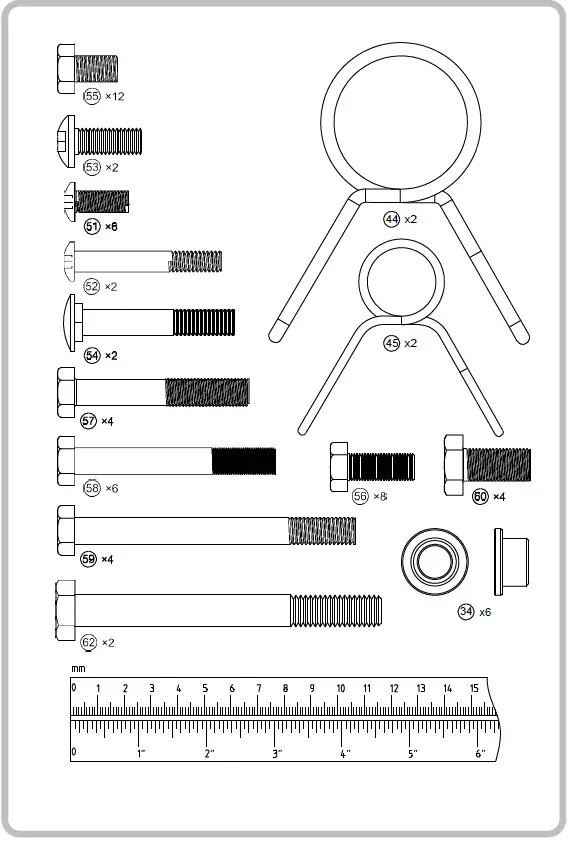

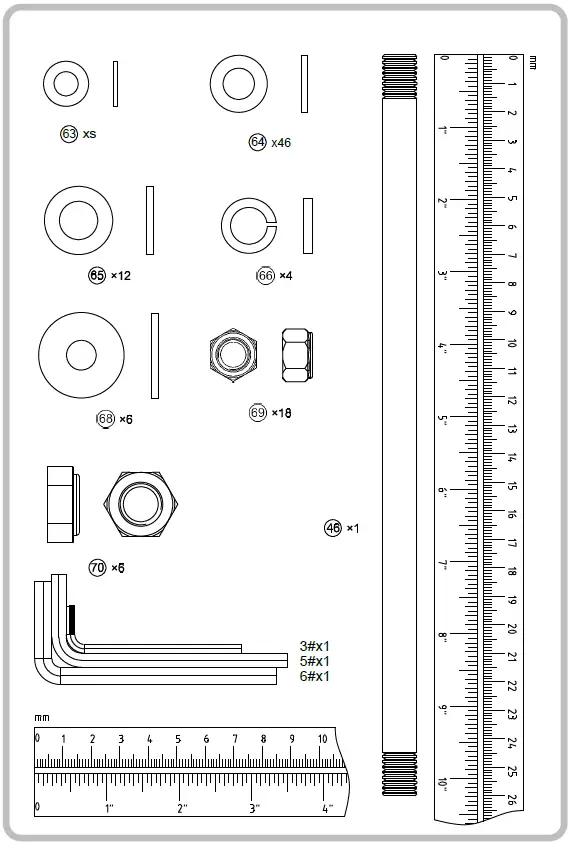

WHAT’S IN THE BOX

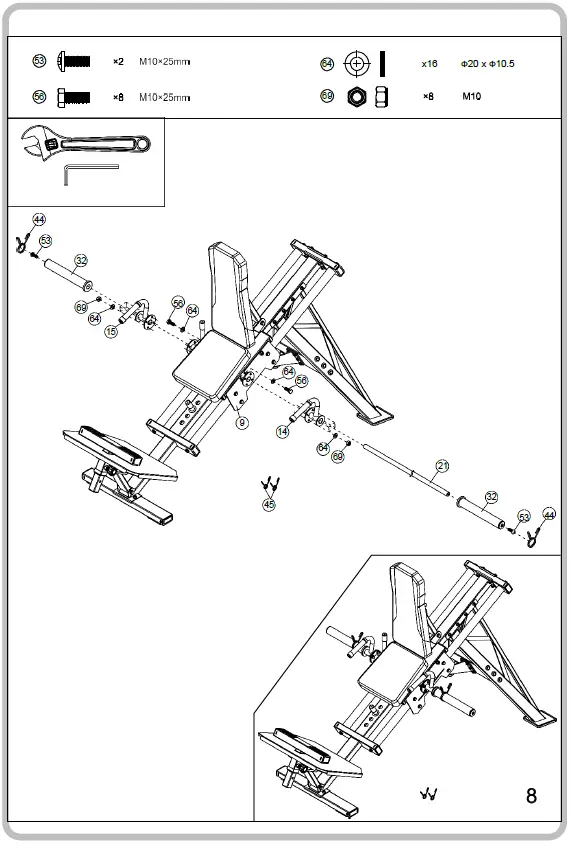

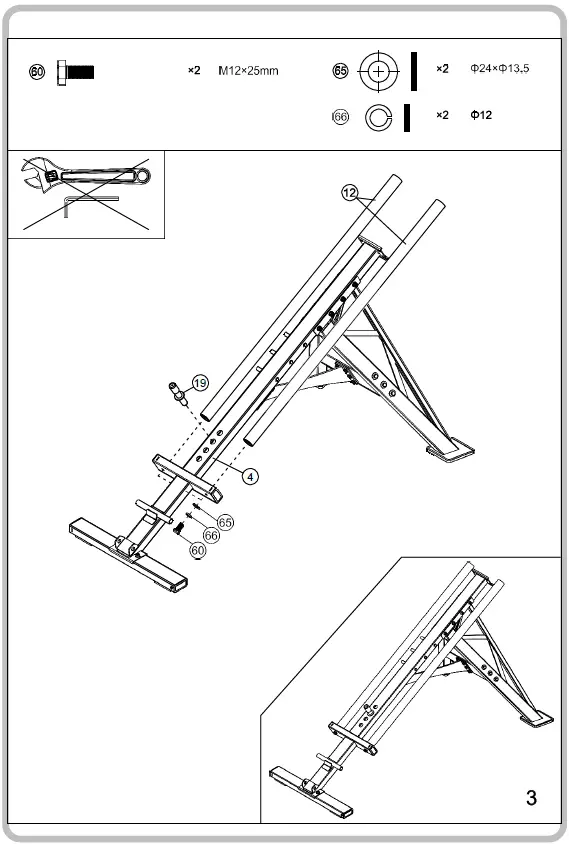

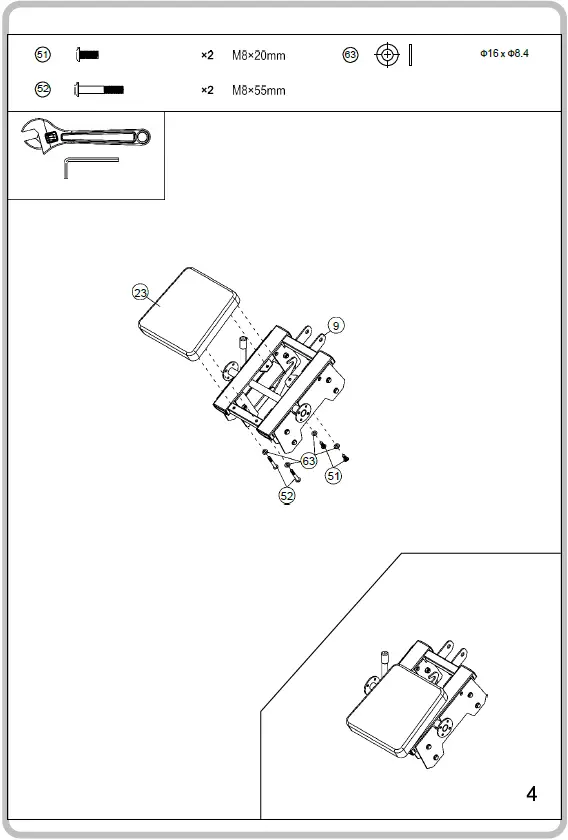

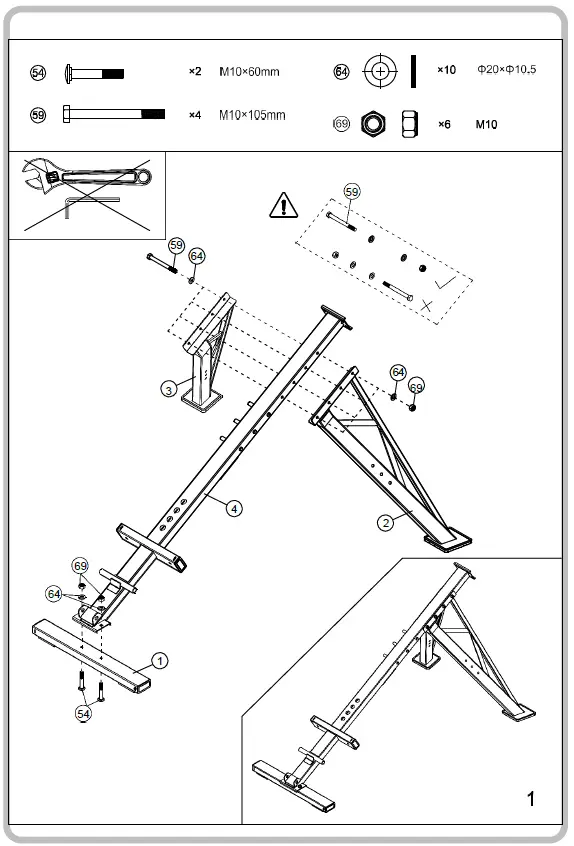

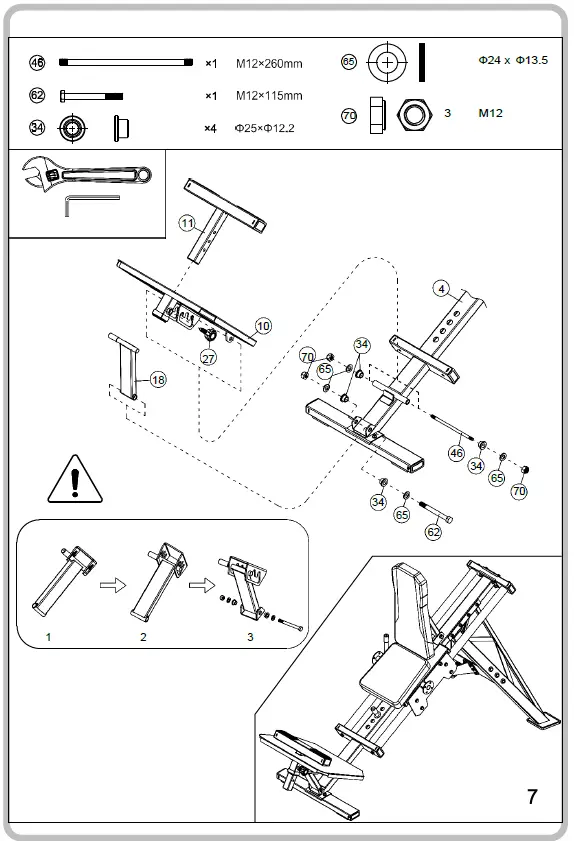

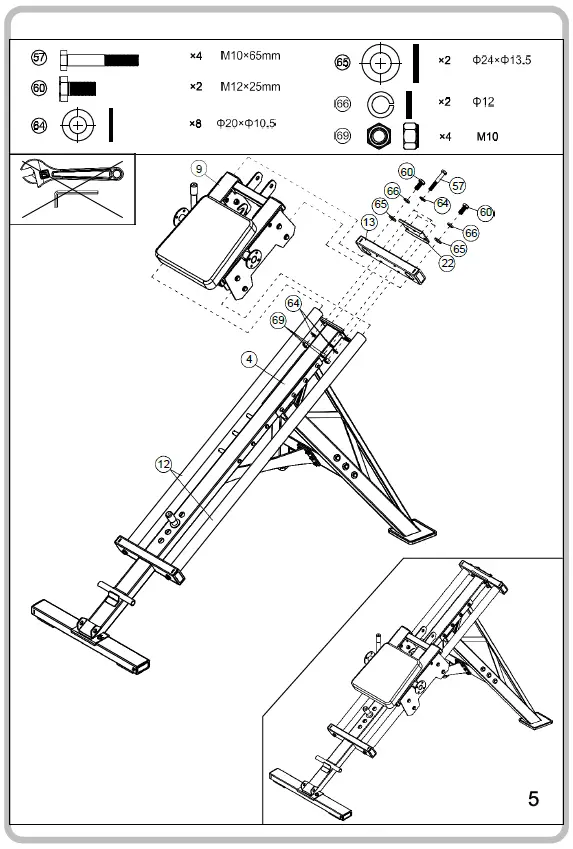

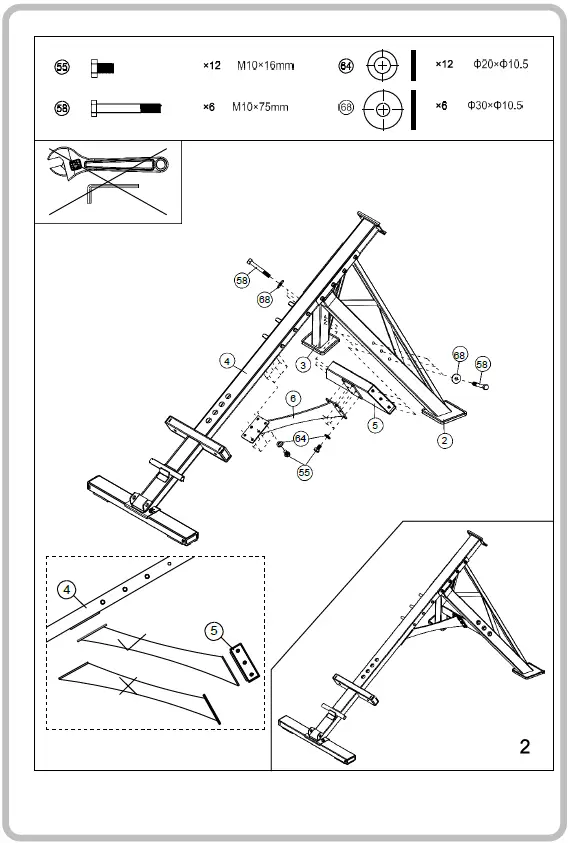

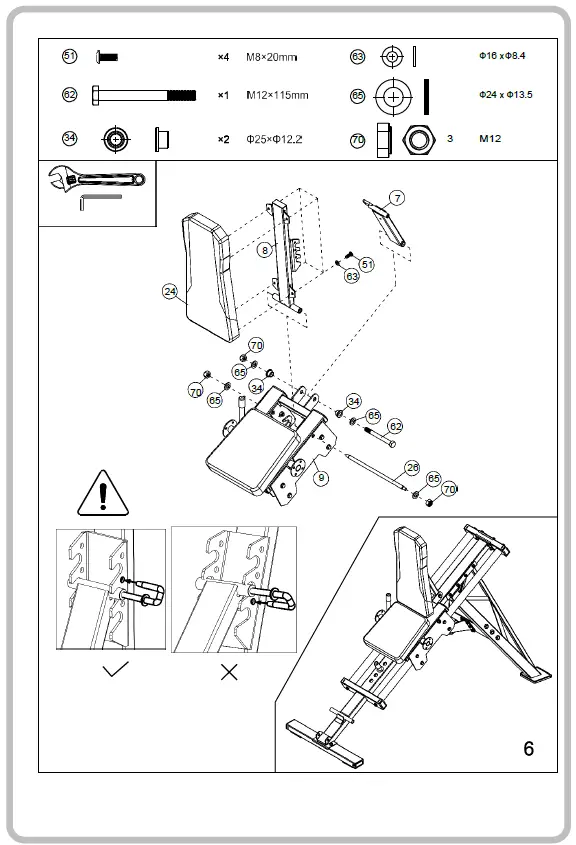

INSTALLATION INSTRUCTIONS

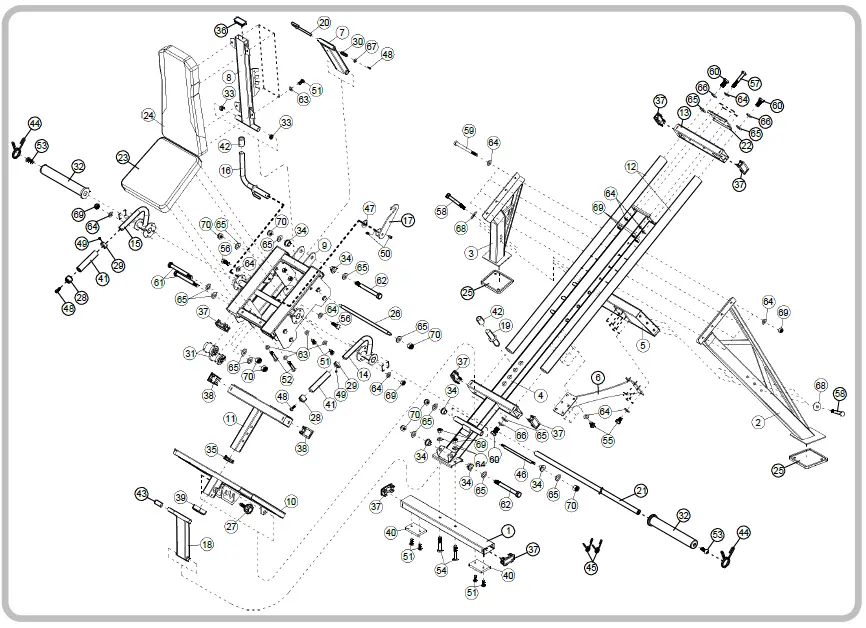

PARTS
PARTS LIST
| KEY NO. | PART DESCRIPTION | SPEC | Q’ty |
| 1 | Front Stabilizer | 1 | |
| 2 | Left Oblique Bracket | 1 | |
| 3 | Right Oblique Bracket | 1 | |
| 4 | Skew Frame | 1 | |
| 5 | Rear Connecting Frame | 1 | |
| 6 | Connector | 1 | |
| 7 | Backrest Pad Adjuster | 1 | |
| 8 | Backrest Pad Mount | 1 | |
| 9 | Sliding Frame | 1 | |
| 10 | Foot Stand | 1 | |
| 11 | Pedal Stand | 1 | |
| 12 | Guide Rod | 2 | |
| 13 | Connector Tube | 1 | |
| 14 | Left-hand stand | 1 | |
| 15 | Right-hand stand | 1 | |
| 16 | Rotating handstand | 1 | |
| 17 | Hook | 1 | |
| 18 | Adjuster | 1 | |
| 19 | Pin axle | 1 | |
| 20 | U-shaped Pin | 1 | |
| 21 | Bearing Rod | φ25×1270×M10 | 1 |
| 22 | Bracket | 140×81×13×4 | 1 |
| 23 | Seat Pad | 360×350×310×55 | 1 |
| 24 | Backrest Pad | 650×310×260×55 | 1 |
| 25 | Diamond Floor Covering | 127×127×12 | 2 |
| 26 | Achse | φ16×M12×394 | 1 |
| 27 | Lock Knob | M18×φ12 | 1 |
| 28 | Decorative Cover | φ33.5×φ6.6×25 | 2 |
| 29 | Retaining Ring | φ34.5×φ26.5×14×M6 | 2 |
| 30 | Spring | φ12.4×φ1.2×38.2 | 1 |
| 31 | Rollers | 8 | |
| 32 | Long Olympic Sleeve | 2 | |
| 33 | Bushing | φ25×φ22×φ16×10 | 2 |
| 34 | Bushing | φ25×φ18×φ12.2×13 | 6 |
| 35 | Square End Cap | φ44 | 1 |
| 36 | Square End Cap | φ70×30 | 1 |
| 37 | Square End Cap | φ40×80 | 10 |
| KEY NO. | PART DESCRIPTION | SPEC | Q’ty |
| 38 | Square End Cap | φ50×70 | 2 |
| 39 | Sleeve | φ50× φ45 | 1 |
| 40 | Rubber Bumper | 65×100×12 | 2 |
| 41 | Grip | φ23×150 | 2 |
| 42 | Limit Set | φ30×φ25×50 | 2 |
| 43 | Cover | φ19×50 | 1 |
| 44 | Spring Clip | φ49 | 2 |
| 45 | Spring Clip | φ24.5 | 2 |
| 46 | Stud Bolt | M12×260 | 1 |
| 47 | Washer | φ44×φ25.5×3 | 1 |
| 48 | Socket Head Allen Bolt | M6×15 | 3 |
| 49 | Set Screw | M6×6 | 2 |
| 50 | Set Screw | M10×16 | 2 |
| 51 | Allen Bolt | M8×20 | 10 |
| 52 | Allen Bolt | M8×55 | 2 |
| 53 | Allen Bolt | M10×25 | 2 |
| 54 | Carriage Bolts | M10×60 | 2 |
| 55 | Hex Bolt | M10×16 | 12 |
| 56 | Hex Bolt | M10×25 | 8 |
| 57 | Hex Bolt | M10×65 | 4 |
| 58 | Hex Bolt | M10×75 | 6 |
| 59 | Hex Bolt | M10×105 | 4 |
| 60 | Hex Bolt | M12×25 | 4 |
| 61 | Hex Bolt | M12×110 | 8 |
| 62 | Hex Bolt | M12×115 | 2 |
| 63 | Washer | 8 | 8 |
| 64 | Washer | 10 | 46 |
| 65 | Washer | 12 | 28 |
| 66 | Spring Washer | 12 | 4 |
| 67 | Washer | φ13×φ6.5×2 | 1 |
| 68 | Washer | φ30×φ10.5×2.5 | 6 |
| 69 | Aircraft Nut | M10 | 18 |
| 70 | Aircraft Nut | M12 | 14 |
| Allen Wrench | 3# | 1 | |
| Allen Wrench | 5# | 1 | |
| Allen Wrench | 6# | 1 |
