Anolis Uvinere Remote Led Light Instruction Manual

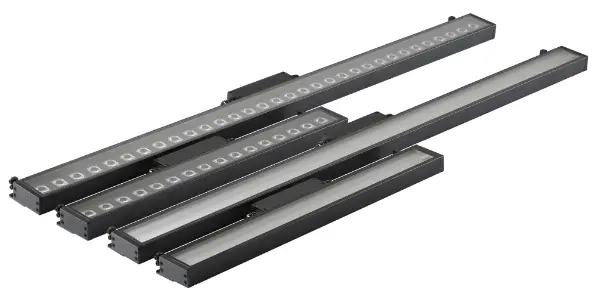

UVinere Remote LED Light
Instruction Manual

UVinere Remote LED Light

The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations.

STEP 1.A

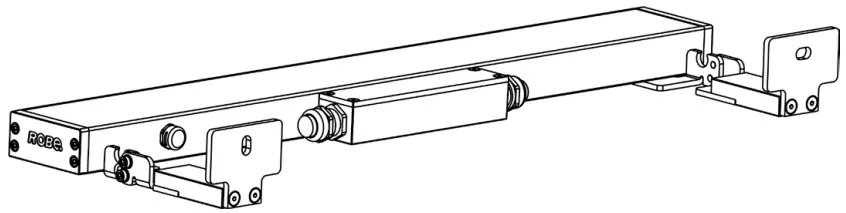

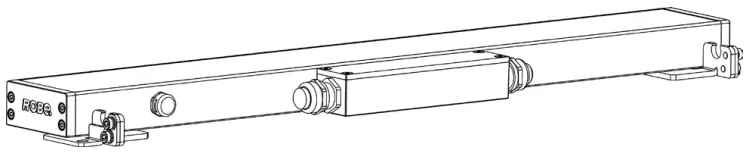

INSTALLATION WITH STANDARD BRACKETS

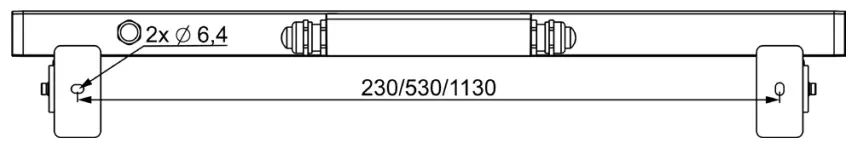

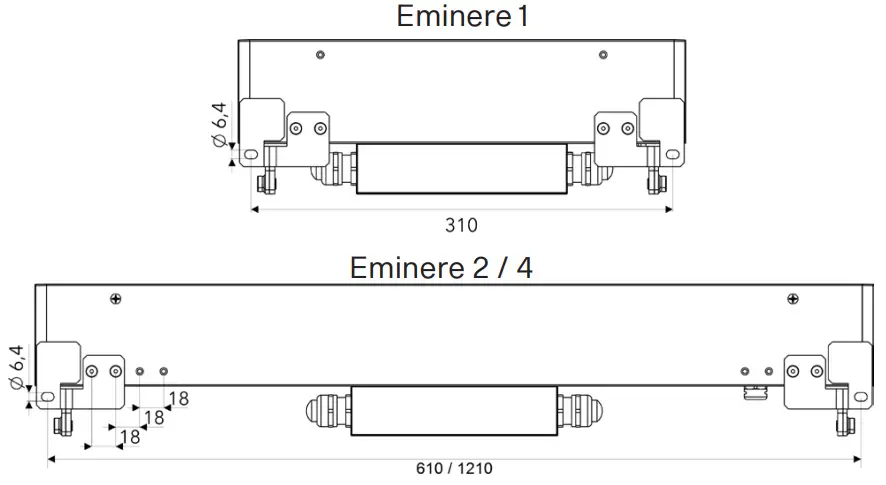

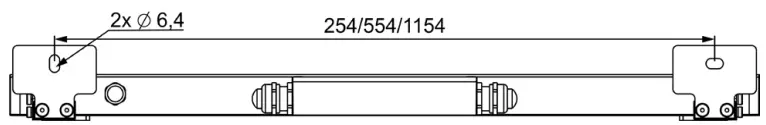

Drill two holes into the surface according the given dimensions(Eminere Remote 1/2/4)
Fasten the Eminere Remote to the surface by two washers, spring washers and screws.

1. Use fasteners that are appropriate for use with your mounting surface

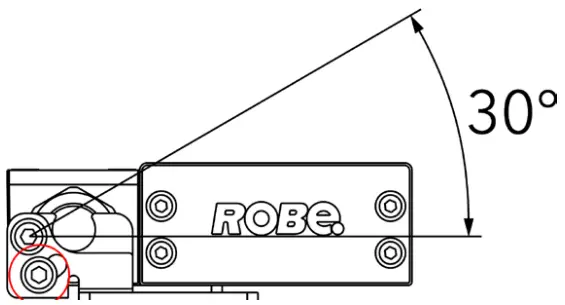

2. Loosen locking screws on both sides, adjust fixture to desired position and tighten locking screws on both sides.

STEP 1.B

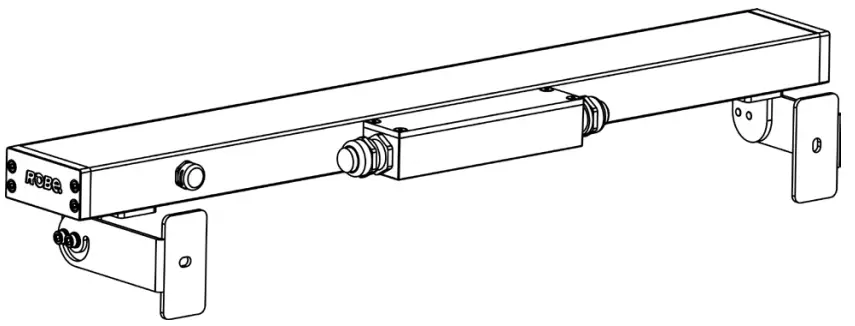

INSTALLATION WITH WALL MOUNT BRACKETS

1. Use fasteners that are appropriate for use with your mounting surface Drill two holes into the surface according the given dimensions(Eminere Remote 1/2/4)
   Fasten the Eminere Remote to the surface by two washers, spring washers and screws.

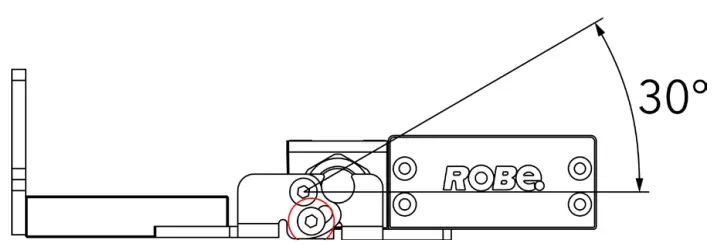

2. Loosen locking screws on both sides, adjust fixture to desired position and tighten locking screws on both sides.

STEP 1.C
INSTALLATION WITH MOUNTING BRACKETS 100/200/300 MM

1. Use fasteners that are appropriate for use with your mounting surfaceDrill two holes into the surface according the given dimensions(Eminere Remote 1/2/4)
   Fasten the Eminere Remote to the surface by two washers, spring washers and screws.
2. Loosen locking screws on both sides, adjust fixture to desired position and tighten locking screws on both sides.

STEP 2 CONNECTION

1. Uncover E-box.
2. Strip these lengths for cable connections.


   	A
   Power Connection	9mm
   Data Connection	9mm

3. Connection – colour coding
   LED Unit Connection – CE Leader

   TERMINAL BLOCK	VCC	D+	D-	0V	GROUND
   Colour of Wire	Red	Orange	White	Black	/

   LED Unit Connection – US leader

   TERMINAL BLOCK	VCC	D+	D-	0V	GROUND
   Colour of Wire	Red	Orange	White	Black	Green/Yellow

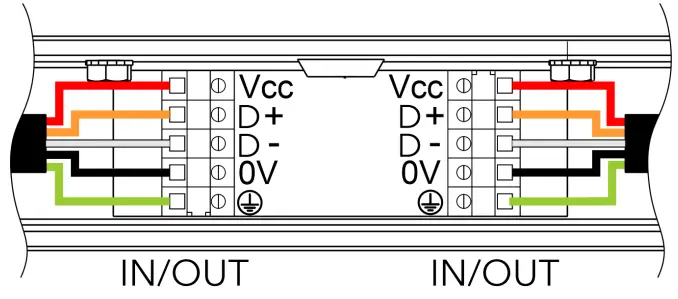

4. Wiring connection
   EU leader cable shownUS leader cable shownNote for E-box Remote Basic.

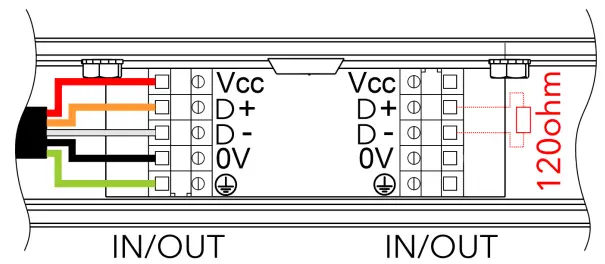

   If the Emineres Remote UV are connected to the LED output of the E-box Remote Basic, the last Eminere Remote has to be terminated by a terminator. The terminator is a 120 Ohm resistor connected between terminals D+ and D- in the last fixture.
   If both LED outputs of the E-box Remote Basic are used, both lines of Emineres Remote have to be terminated by the 120 Ohm resistor.

STEP 3 CABLE GLAND INSTALLATION

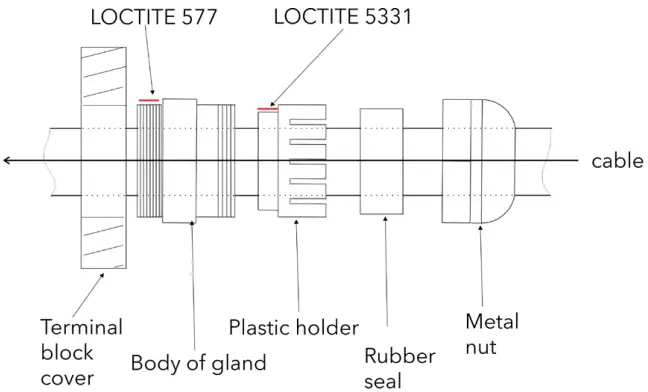

Use wrench size 24 for cable gland M20x1.5

Apply Loctite 5331 thread sealant on the plastic holder and Loctite 577 thread locking compound on the gland body in the indicated locations prior to assembly.
Failure to properly install cable glands will result in failure of the water tight seal!
STEP 4 FILLING CONNECTION BOX WITH SYNTHETIC RESIN
After checking all connections, fill the connection box with synthetic resin. Make sure the end cap is inserted in any unused cable glands, and the earth ground wire is pulled from the junction box before filling it with resin. Read and follow all instructions stated on the resin bag prior to filling the junction box. The connection box has to be fully filled by resin.

STEP 5
CLOSE CONNECTION BOX

Install top cover back.

STEP 7
INSTALLATION OF ACCESSORIES – BLACK GLASS ADAPTOR

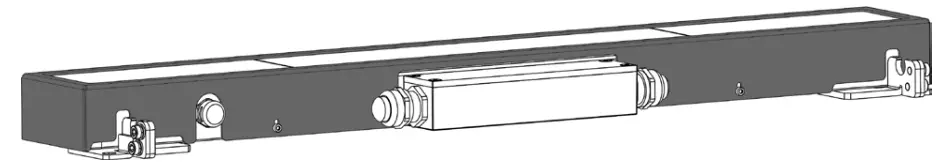

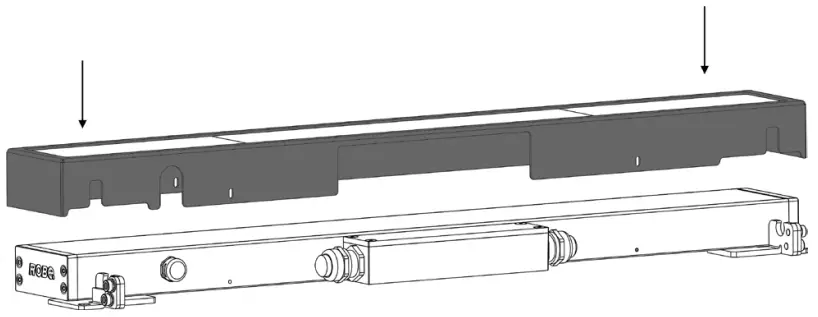

Eminere Remote with black glass adaptor

1. Place the black glass adaptor onto the fixture.

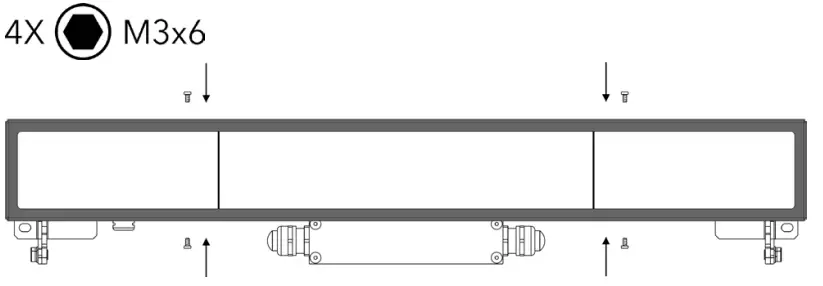

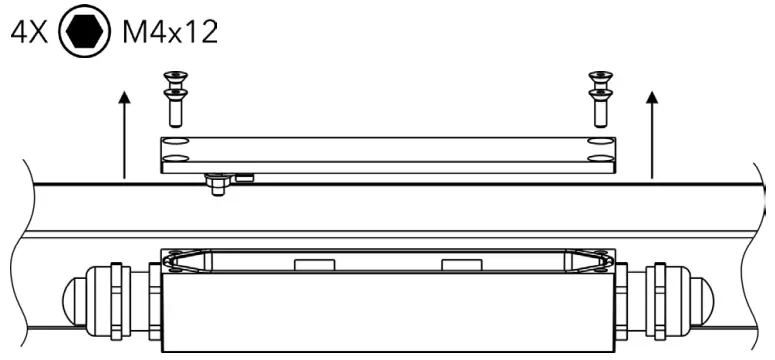

2. Fasten the adaptor to the fixture with 4 screws.

https://www.anolislighting.com/resource/uvinere-remote-installation-instructions

ROBE lighting s. r. o.
Palackeho 416
757 01 Valasske Mezirici
Czech Republic
Tel.: +420 571 751 500
E-mail: [email protected]
www.anolislighting.com
VERSION 4.0 / 3_2023
