Wisi Group Ol 16 1310 Optical Transmitter Kit User Manual

WISI OL 16 1310 Optical Transmitter Kit

The OL 16 1310 is an optical transmitter kit that combines the satellite frequencies of the wideband LNB, FM-/DAB- Radio, and signals from a terrestrial antenna DVB-T/T2. The IP65-specified housing ensures installation at the dish location.

At a glance:

• 3x RF Inputs with F connector (Radio/H/V)
• 1x Optical Output with +7dBm (+-0.5 dB) power

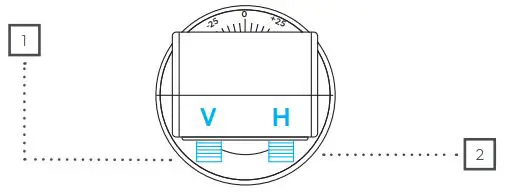

• Wideband Output Vertical / Breitband Ausgang Vertikal
• Wideband Output Horizontal / Breitband Ausgang Horizontal
• Optical Output FC/PC / Optischer Ausgang
• Terrestrial Input F type (+12V remote feed)
• Power in F-Type (+20V) / Eingang Spannungsversorgung F-Anschluss (+20V)
• LED Power On indicator / LED Betriebsanzeige

Assembly Instructions:

Coaxial Connections:

1. Ports labeled V or H should be connected to a suitable wideband LNB (recommended WISI OC07 E ). Please make sure that the correct polarisations are connected to the relevant ports.
2. Voltage is supplied for LNB powering. V = 12V, H = 20V. Maximum current 500mA inclusive terrestrial.
3. The input marked FM/DAB/DTT* should be connected to your terrestrial antennas using an appropriate combiner. Signals should be filtered and leveled for optimum performance.
4. The voltage supplied on the terrestrial input is 12V and is intended for powering a masthead amplifier.
5. If the terrestrial input is connected to a device not designed for a voltage, then a DC block should be installed between the OL17 and the device.

Optical Connection:

1. Clean the optical connector and make a connection to the optical output of the OL17, ensuring the keyway is aligned.
2. The gel must be supplied should be clipped around the FC/PC connector to ensure weather protection. Performance/operational lifetime may be affected if the gel must not fitted.

Power Connections:

1. The OL17 can be directly powered at F connector power input using a 20V PSU with the DC-jack to F adapter.
2. The mains adapter is the disconnect device for the unit. Please ensure it is easily accessible.
3. LED on the OL17 indicates the correct powering of the unit. The LED should be constantly green.
4. Maximum current draw 350mA (excluding current on connected inputs).

Technical Data:
E/O Wandler OL 17 1310

Overview

D Combines the satellite frequencies of the wide-band LNB, FM-/DAB- Radio, and signals from a terrestrial antenna DVB-T/T2. The IP65-specified housing ensures an installation at the dish location.

• D 3x RF Inputs with F connector (Radio/H/V)
• D 1x optical output with +7dBm (+-0.5 dB) power

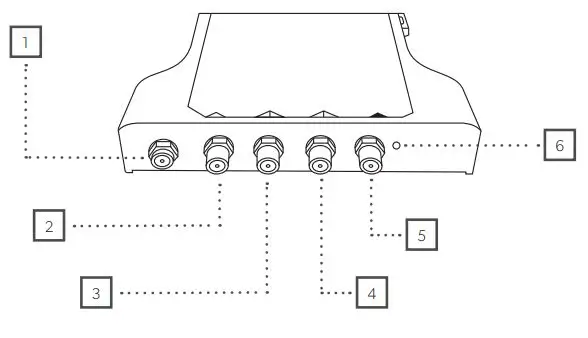

Connections

• Wideband Output Vertical
• Wideband Output Horizontal

1. Optical Output FC/PC
2. Terrestrial Input F type (+12V remote feed)
3. Wideband Input Vertical F type (+12V remote feed)
4. Wideband Input Horizontal F type (+20V remote feed)
5. Power in F-Type (+20V)
6. LED Power On indicator

Coaxial Connections

1. Ports labeled V or H should be connected to a suitable wideband LNB (recommended WISI OC07 E ). Please make sure that the correct polarisations are connected to the relevant ports.
2. Voltage is supplied for LNB powering. V = 12V, H = 20V. Maximum current 500mA inclusive terrestrial.
3. The input marked FM/DAB/DTT* should be connected to your terrestrial antennas using an appropriate combiner. Signals should be filtered and leveled for optimum performance.
4. The voltage supplied on the terrestrial input is 12V and is intended for powering a masthead amplifier.
5. If the terrestrial input is connected to a device not designed for a voltage, then a DC block should be installed between the OL17 and the device.

DTT: Digital Terrestrial Television (DVB-T/T2)

Assembly instruction

Optical Connection

1. Clean the output fiber optical connector and check the optical power using a suitable optical power meter. The optical power at the output of the OL17 is +7dBm ±0.5dB.
2. Clean the optical connecter and make a connection to the optical output of the OL17, ensuring the keyway is aligned.
3. Important – The gel must be supplied and should be clipped around the FC/PC connector to ensure weather protection. Performance / operational lifetime may be affected if the gel must not be fitted.

Power Connections

1. The OL17 can be directly powered at F connector power input using a 20V PSU with the DC-jack to F adapter.
2. The mains adapter is the disconnect device for the unit. Please ensure it is easily accessible.
3. LED on the OL17 indicates the correct powering of the unit. The LED should be constantly green.
4. Maximum current draw 350mA (excluding current on connected inputs).

Technical Data

OL 17 1310 / Optical Converter

Input

• Frequency range-SAT                          290…2340 MHz
• Impedance                                      75 Ù
• Return loss                                      20 dB (optical)
• Frequency range DVB-T                      470…694  MHz
• Frequency range DAB                        174…240 MHz
• Frequency range FM                          88…108 MHz
• Level range                                       70…85 dBµV (Satellite); 70 dBµV (Terrestrial)
• Ripple                                             1 dB
• Gain variation full band                     FM 88…108 MHz <1 dB; -DAB 174…240 MHz<1 dB; Terr. (DVB-T) 479…694 MHz <3…5 dB; SAT <=3 dB; Rejection @4G800 frequencies 791…862 MHz (relative)>30 dB
• Connector DVB-T, DAB, FM                1x F-female
• Connector SAT                                 2x F-female

Output

• Wavelength                                      1310 nm (±20 nm)
• Optical power                                  7dBm +- 0.5dB
• Connector                                       FC/PC

General data

• Input voltage                                    20 V DC (F-Connector)
• Current consumption                        max 350mA (excluding current on the connected inputs)
• Maximum upstream current               500 mA
• Output Voltage Vertical                     12 V
• Output voltage Horizental                  18 V
• Operating temperature                      -20…+60 °C
• Weight                                            0.445 kg
• Dimensions W x H x D                       160 x 25 x 162 mm

Wideband LNB OC07

Electrical data

• Input frequency                                10.70. 12.75 GHz
• Local Oscillator Frequency                 10.41 GHz
• Output frequency                             290.. 2340 MHz
• Gain                                                50.. 62 dB
• Noise figure typ. 0.5 dB
• Gain variation full band                     7 dB (p-p)
• Polarization isolation typ. -30 dB
• Image rejection                                40 dB
• In-band spurious level                       -60 dBm
• L.O. phase noise @ 10 kHz                 -75 dBc/Hz
• L.O. temperature drift @ 25°C             ±0,8 MHz
• Output impedance                           75 Ù

Mechanical Data

• Color                                              Dark Grey, Pantone 432C
• Feed diameter                                  40 mm
• With protective enclosure                  Yes
• Connectors
• RF-Output                                       2x F-female

General data

• Type                                                Wideband
• Subscriber                                       Depending on the multiswitch
• Integrated multi switch                      No
• Terrestrial feed                                  No
• Input voltage                                    8.. 21 V DC
• Current consumption                        max. 125 mA
• Operating Temperature                      -30.. +60  °C
• Weight                                            0,445 kg
• Dimensions (B)                                 60 mm
• Dimensions (H)                                60 mm
• Dimensions (T)                                 100.2 mm

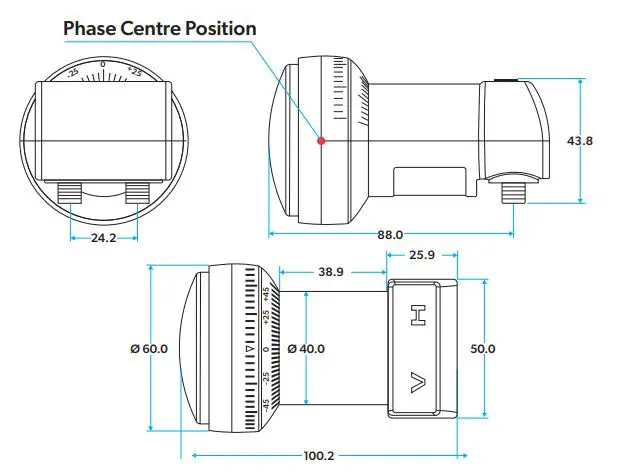

Mounting Dimensions

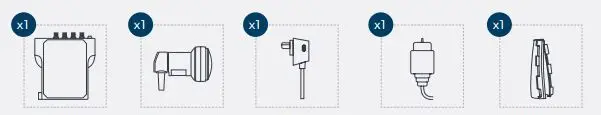

This Package contains:

• E/O Converter
• OC 07 E Wideband LNB
• 20V DC Power Supply Unit (PSU)
• coaxial cable
• Gel muft

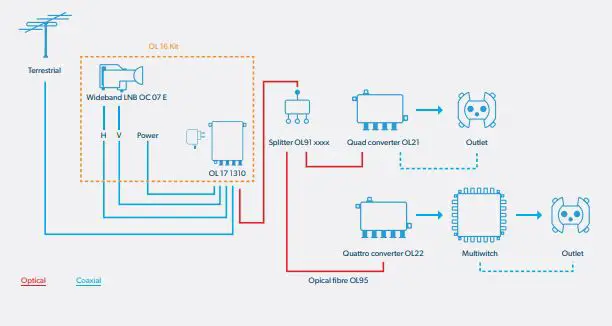

Installation

WISI Communications GmbH & Co. KG Wilhelm-Sihn-Strasse 5-7 · 75223, Germany +49 72 33 / 66 – 0
[email protected]
katalog.wisi.de
