ANOLIS Ambiane AP LED Lighting

INSTALLATION

WARNING: The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations.

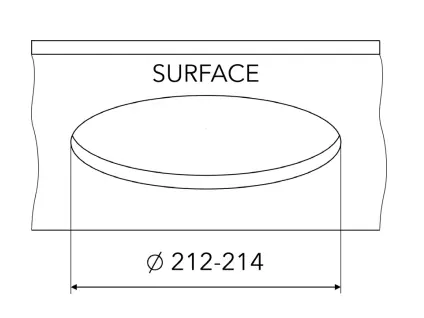

STEP 1.A CEILING OPENING: Prepare a mounting hole with a diameter between 212-214 mm.

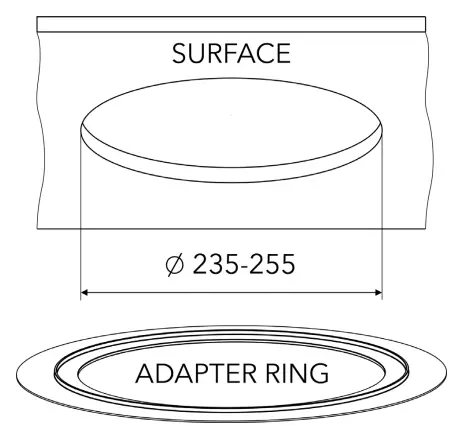

STEP 1.B CEILING OPENING: Use of the Adapter ring is recommended in case of a bigger ceiling opening. See step 6.B before connecting power and data

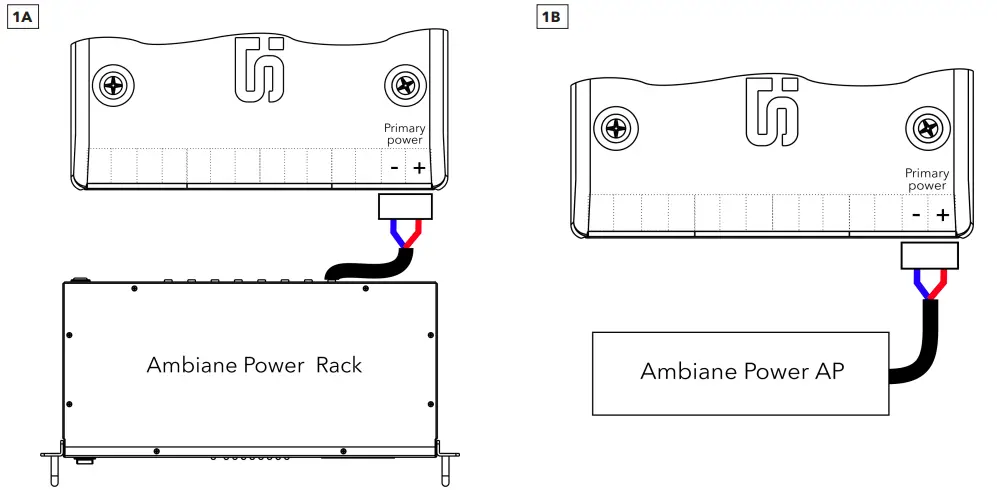

STEP 2 PRIMARY POWER CONNECTION: Install terminal blocks on cable and connect it to the Primary power connection of Ambiane AP‘s control unit.

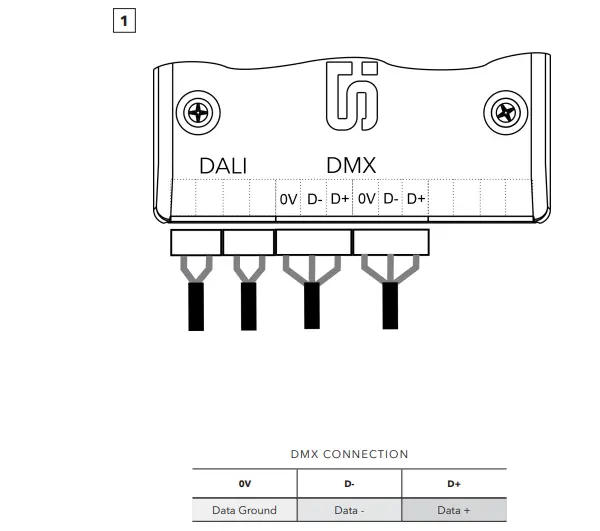

STEP 3 DATA CONNECTION (DMX OR DALI): Install terminal blocks on DMX or DALI cables and connect them to the control unit.

STEP 4 SECONDARY POWER CONNECTION 48V: Install terminal blocks on cable and connect it to the control unit.

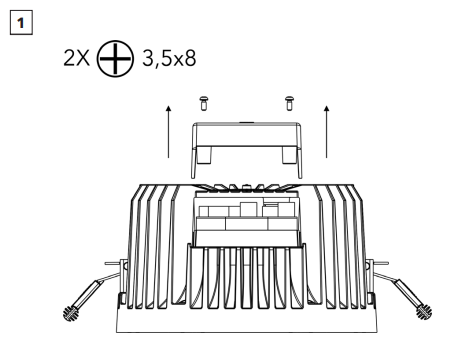

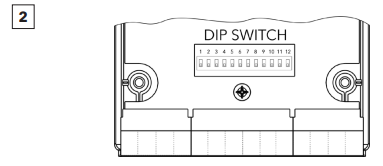

STEP 5 DIP SWITCH: Unscrew 2 screws on the control unit and remove plastic cover. Set the DIP switches to positions according to your operation mode. The fixture can be controlled by DMX or DALI. Set 11=OFF for control by DMX or DALI.

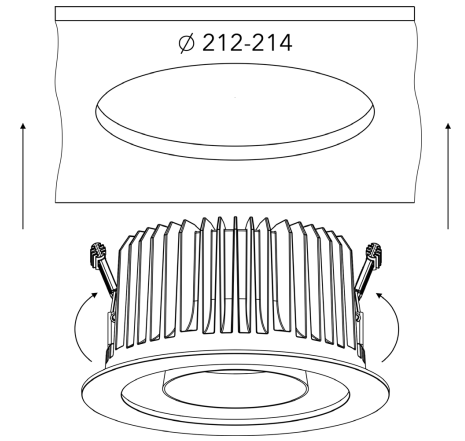

STEP 6.A LUMINAIRE INSTALLATION: Lift up springs on both sides, insert luminaire into ceiling opening and release springs to hold lumaire in place.

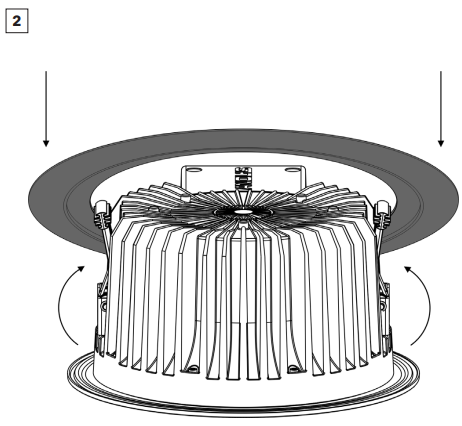

STEP 6.B LUMINAIRE INSTALLATION WITH ADAPTER RING:

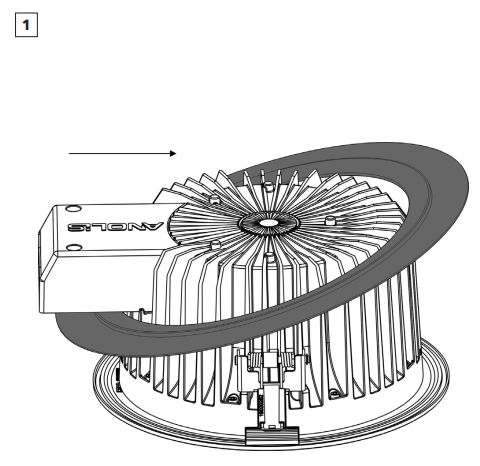

Slide Adapter ring under the control unit and above both spring.

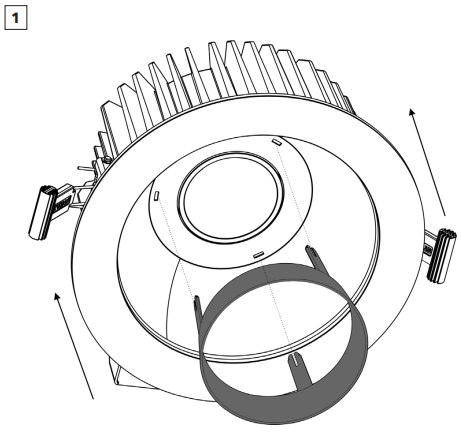

Lift up both springs and slide Adapter ring under them.

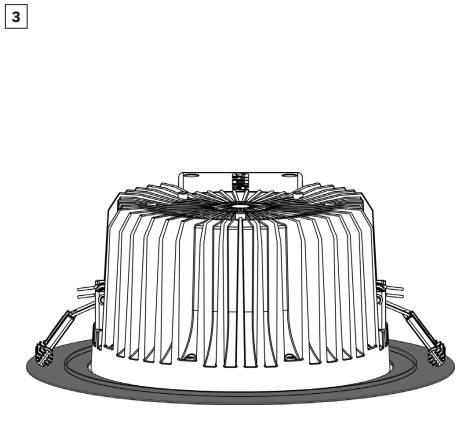

Install Adapter ring to position as above.

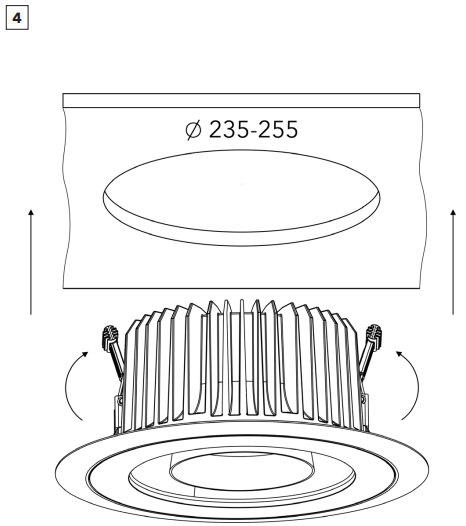

Lift up springs on both sides, insert luminaire into ceiling opening and release springs to hold lumaire in place.
