Saco Zwt 71201 Zanussi Built-in Washer Dryer Instruction Manual

saco ZWT 71201 Zanussi Built-In Washer Dryer Instruction Manual

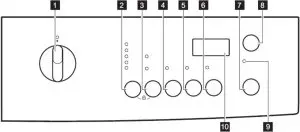

Control Panel

1. Programme selector dial
2. Spin reduction button
3. Option button
4. Extra rinse button
5. Drying time button
6. Easy iron button
7. Start/Pause button
8. Delay start button
9. Door locked pilot light
10. Display

Using the Machine

• Load the laundry
• Add detergent and fabric softener if required.
• Select the required programme using the selector dial. The green pilot light of button 7 will start to flash.
• Select the spin speed by pressing button 2.
• Select the available options by means of buttons 3, 4 & 6.
• Start the programme by pressing button 7.
• At the end of the programme the display will show a blinking ‘0’, the pilot lights of buttons 7 & 9 will go off and the door will be released.
• Turn the programme selector dial to the off position.

Drying only

• Load the laundry (max 3kg for cottons and linens and 2kg for synthetics).
• Set the spin programme at the maximum spin speed allowed for the type of laundry.
• Set the drying programme for cottons or synthetics in the drying sector of the programme selector dial.
• Set the drying time by pressing button 5 until the time you want appears on the display. Every time the button is
  pressed the time increases by 5 minutes.
• Press button 7 to start the programme.
• At the end of the programme the buzzer sounds. The blinking ‘0’ appears on the display. Once pilot light 9 is off the door can be opened.
• Turn the selector dial to the off position to switch off the machine.

Washing programmes

Programme Maximum and Minimum Temperature Cycle Description Maximum Spin Speed Maximum Fabrics Load Type of Laundry		Options	Detergent Compartment
Cottons	1-2-3-4-5 90°- Cold Main wash – Rinses 0 Long spin at maximum speed Max. load 7 kg – Reduced load 3 kg’) For white and coloured cotton (normally soiled items).	SPIN RINSE HOLD ECO-2 SUPER QUICK EXTRA RINSE EASY IRON
Cotton with Prewash	6-7-8 SPIN 90°-40° RINSE HOLD Prewash – Main wash – Rinses ECO Long spin at maximum speed SUPER QUICK Max. load 7 kg – Reduced load 3 kg’) EXTRA RINSE For white or coloured cottons with prewash phase (heavily EASY IRON soiled items).	SPIN RINSE HOLD ECO SUPER QUICK EXTRA RINSE EASY IRON
Synthetics	9-10-11-12 6V- Cold Main wash – Rinses Short spin at 900 rpm Max. load 3 kg – Reduced load 1,5 kg 1) Synthetic or mixed fabrics: underwear, coloured garments, non-shrink shirts. blouses.	SPIN RINSE HOLD ECO2 SUPER QUICK EXTRA RINSE EASY IRON
	13-14-15 40° Cold Main wash – Rinses Short spin at 700 rpm Max. load kg 3 – Reduced. load kg 1,5 1) Delicate fabrics: acrylics, viscose, polyester.	RISE HOLD SUPER QUICK EXTRA RINSE
DELICATIES	16—Jeans 40° Main wash – Rinses Long spin at 3 rpm Max. load 3 kg With this programme it is possible to wash items like pants, shirts or jackets in denim and also jersey realized with hi-tech materials. (The Extra Rinse option will be activated automatically).	SPIN RINSE HOLD EASY IRON

Programme Maximum and Minimum Temperature Cycle Description Maximum Spin Speed Maximum Fabrics Load Type of Laundry		Options	Detergent Compartment
DRY	17-18-19 Handwash 40°- Cold Main wash – Rinses Short spin at 900 rpm Max. load 2 kg Special programme for delicate fabrics with -hand washing-care symbol and machine washable wollens.	SPIN RINSE HOLD
	20—Cottons Drying programme for cotton items a-m
	21—Synthetics Drying programme for synthetic items
	22—Rinses Rinses Long spin at maximum speed long spin at maximum speed Max load 7 kg With this programme it is possible to rinse and spin cotton garments which have been washed by hand. The machine performs 3 rinses, followed by a final long spin. The spin speed can be reduced.	SPIN Rinses RINSE HOLD EXTRA RINSE EASY IRON
Extra	23—Drain Draining of water Max. load 7 kg For emptying out the water of the last rinse in programmes with the Rinse Hold option selected.
	24—Spin Drain and long spin Long spin at maximum speed Max. load 7 kg Separate spin for hand washed garments and after pro-grammes with the Rinse Hold option selected. You can choose the spin speed by pressing the relevant button to adapt it to the fabrics to be spun.	SPIN
For cancelling the programme which is running or to switch the machine off .

Drying programme
