Operating Instructions – Tumble Dryer Zanussi TC7103W

The control panel

1. Programme chart
   To help select the correct time for drying.
2. Mains-on light
   Comes on when the appliance is switched on (ON/OFF button pressed down) and goes out when the ON/OFF button is released.
3. ON/OFF button
   This button is used to switch the dryer on. At the end of the programme, release this button by pressing it again to switch the dryer off.
4. Low temperature button
   Press this button to reduce the temperature when drying particularly delicate cotton or linen items. In this case a longer drying time should be selected.
5. Cool tumble button
   By depressing this button the heat is cut off. This is particularly useful to freshen the laundry or to dry extremely delicate items.
6. Start button
   Press this button to start the dryer after having selected the programme.
   If the door of the appliance is opened while the programme is running, this button must be pressed again after closing the door in order to restart the programme from the point at which it was interrupted.
7. Water full indicator light
   This light illuminates when the reservoir is full or improperly fitted.

8. Time selector dial
   The selector dial incorporates two drying cycles, one of up to 150 minutes at a high temperature for cotton and linen, and one of up to 100 minutes at a low temperature for synthetic fabrics. To set the machine to the selected time, turn the dial clockwise until the time you want coincides exactly with the pointer.

NEVER attempt to turn the dial in an anticlockwise direction.

When selecting the drying time remember that it includes a 10 minute cooling phase. This phase should not be shortened, stopped or avoided, as this could cause skin burns or damages to the laundry.

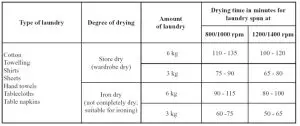

Programme chart

Cottons

Selector dial up to 150 minutes (high temperature section) Synthetics Selector.

Synthetics

Selector dial up to 100 minutes (low temperature section)

NB Please follow the instructions on labels when drying mixed fabrics.
Drying times are given as a guide only and vary according to the size of the load, the type of laundry, the degree of spinning prior to drying.
Start by selecting a short drying time. If necessary, perform an additional drying cycle afterwards.

Size of load

It is not necessary to weigh the laundry, if these instructions are followed:

• Cottons, linen: full drum, but not overloaded
• Synthetics: half drum

For a mixed load (cotton and synthetics, for example) select the drying time suitable for the most delicate fabrics and then increase it by approximately 10 minutes.

Operating sequence
Drying

1. Open the door.
2. Load the items one at a time, shaking them out loosely.
3. Close the door. Please check the laundry does not get caught between the door and filter.
4. Press the ON/OFF button: the mains-ON light comes on.
5. Select the drying time.
6. If required, press the low temperature button or the cool tumble button.
7. Press the start button: the machine starts operating.
   The drum turns alternately in both directions during drying. All drying programmes end with a 10 minute cooling phase. The machine stops automatically at the end of this phase.
8. Release the ON/OFF button (the mains-ON light goes out) and immediately remove the laundry.

After each use

Switch the appliance off by releasing the ON/OFF button. The mains-ON light goes out.

NB If the drying programme has to be stopped before it reached the end, turn the programme selector dial to the cooling position and wait until the end of this phase before removing the laundry. This will avoid a build-up of heat inside the appliance.

Modifying the programme

To change a programme which is running without opening the door, first depress the ON/OFF button and then turn the time selector dial to the required time. Press the ON/OFF button again.

Hints and tips on drying

Before placing articles of laundry in the tumble dryer, check the care labels to ensure they are recommended for tumble drying.

Care labels

May be tumble dried
Normal drying (high temperature)
Delicate drying (low temperature)
Do not tumble dry

NB Do not overload the appliance

• Always load well spun laundry. The higher the spin speed the shorter the drying time.
• DO NOT load dripping wet laundry into the dryer. Roll the article in a towel or spin to remove excess water.
• Close poppers and zips and fasten any buttons.
• Sort the laundry. Separate synthetics from cotton/linens, and dry separately.
• Remove the laundry immediately after the programme has finished.
• Mix the load i.e. large and small articles.

DO NOT use the tumble dryer to dry the following:

• Articles contaminated with inflammable substances.
• Woollen and synthetic/wool mixtures unless the item is labelled as suitable for tumble drying.
• Very delicate articles such as silk.
• Very large and bulky items such as duvets or sleeping bags.
