Operating Instructions Washer Dryer Zanussi ZJD12191

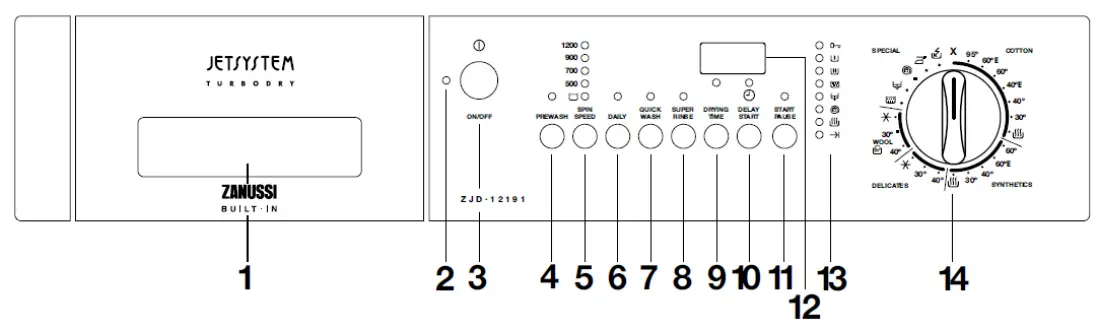

Control Panel
- Detergent dispenser drawer
- Mains-on light
- ON/Off button
- Prewash button
- Spin speed button
- Daily button
- Quick wash button
- Super rinse button
- Drying time button
- Delay start button
- Start/Pause button
- Display
- Programme progress display
- Programme selector dial
Using the Machine
- Load the laundry
- Add detergent and fabric softener if required.
- Switch on the machine using the ON/OFF switch.
- Select the required programme using the selector dial. The lights correspond to the different phases making
up the selected programme light up. - Select the spin speed or rinse hold option.
- Select the required options.
- Start the programme by pressing the START/PAUSE button.
- At the end of the programme, the display will show a blinking `0′.
- Switch off the machine by pressing the ON/OFF button.
Drying only
- Load the laundry (max 2.5kg for cotton and linens and 2kg for synthetics).
- Press the ON/OFF button to switch the machine on.
- Select the drying programme.
- Press the drying time button until the time required appears in the display, the corresponding light comes on
- Press the START/PAUSE button to start the programme.
- At the end of the cycle turn the selector dial to the off position and press the ON/OFF switch to turn off the machine.
Washing programmes
| Section | Temp. | Type of fabric | Proareunine gamine description | Additional functions | Max. load | Consumption” | ||
| Energy kWh | Water It | Time min | ||||||
| COTTON | 95° | Whites | Wash at 95°C 3 rinses Normal spin | SPIN SPEED RINSE HOLDPREWASH DAILY, QUICK SUPER RINSE | 5 kg | 1.9 | 52 | 142 |
| *COTTON | 60°E | Whites Economy | Wash at 60°C 3 rinses Normal spin | SPIN SPEED RINSE HOLDPREWASH SUPER RINSE | 5 kg | 0.85 | 49 | 136 |
| COTTON | 60° | ‘Whites and Fast coloureds | Wash at 60°C 3 rinses Normal spin | SPIN SPEED RINSE HOLDPREWASH DAILY, QUICK SUPER RINSE | 5 kg | 1.2 | 49 | 121 |
| COTTON | 40°E | Coloureds ECONOMY | Wash at 40°C 3 rinses Normal spin | SPIN SPEED RLNSE HOLD PREWASH SUPER RINSE | 5 kg | 0.9 | 49 | 141 |
| COTTON | 300400 | Non-East coloureds | Wash at 30°40° 3 rinses Normal spin | SPIN SPEED RINSE HOLDPREWASH SUPER RINSE DAILY, QUICK | 5 kg | 0.7 | 49 | 118 |
| SYNTHETICS | 60° | Synthetics | Wash at 60°C 3 rinses Delicate spin | SPIN SPEED RINSE HOLDPREWASH SUPER RINSE DAILY, QUICK | 2 kg | 0.85 | 41 | 89 |
| SYNTHETICS | 60°E | Synthetics ECONOMY | Wash at 42°C 3 rinses Delicate spin | SPIN SPEED, PREWASH RINSE HOLD SUPER RINSE | 0.5 | 41 | 89 | |
| SYNTHETICS | 30°-40° | Synthetics | Wash at 30°40°C 3 rinses Delicate spin | SPIN SPEED RINSE HOLDPREWASH SUPER RINSE DAILY QUACK | 2 kg | 0.45 | 38 | 79 |
| DELICATES | 30°40° Cold * | Delicates | Wash at 30°-40°C or cold wash * 3 rinses Delicate spin | SRNSPEED QL1CK PREWASH RDISEHOLD superman | 2 kg | 0.55 | 58 | 58 . |
Wool  | 30°40° Cold * | Wool and Handwash | Wash at 30°40°C or cold wash * 3 rinses Delicate spin | SPIN SPEED RINSE HOLD | 1 kg | 0.4 | 58 | 57 |
Special Programmes
| Selector dial position | Programme | Programme description | functions | load | Consumption- | ||
| Energy kWh | Water It | Time min | |||||
 | Rinses | 3 rinses with liquid additive if required Long spin | SPIN SPED RINSE HOLD SUPER RINSE | 5 kg | 0.1 | 47 | |
 | Drain | 5 kg | _ | _ | 2 | ||
 | Spin | Separate long spin at 1200 /Pm max | SPLN– SPEED | _ | _ | _ | 10 |
 | Fasy Iron | Wash at 40°C 4 rinses Short spin at 900 RP.m. | PREWASH SPIN SPEED RINSE HOLD DAILY, QUICK SUPER RINSE | 1 kg | 0.35 | 39 | 102 |
 | Minigugamme | Wash at 30°C 2 rinses Short spin at 700 r.p.m. | SPIN SPEED RINSE HOLD | 2.5 kg | 0.3 | 40 | 30 |
x | Reset | For cancelling the wash programme which is running | _ | _ | |||
Drying programme
| Degree of drying | Type of fabric | INIax. load | Spin speed | Drying time mins |
| Extra dry Ideal for towelling materials | Cotton and linen (bathrobes, bath towels, etc.) | 2.5 kg | 1200 | 110-120 |
| 1 kg | 1200 | 55-65 | ||
| Store dry (*) Suitable for items to put away without ironing | Cotton and linen (towels, T-shirts, bathrobes) | 2.5 kg | 1200 | 100-110 |
| 1 kg | 1200 | 45-55 | ||
| Synthetics and mixed fabrics (jumpers, blouses, underwear, household linen) | 1.5 kg | 900 | 100-110 | |
| 1 kg | 900 | 55-65 | ||
| Iron dry Suitable for ironing | Cotton and linen (sheets, tablecloths, shirts, etc.) | 2.5 kg | 1200 | 70-80 |
| 1 kg | 1200 | 35-40 |
