ECHO SERIES
Single, Duo and Trio
ECHO SERIES
In Desk Solutions

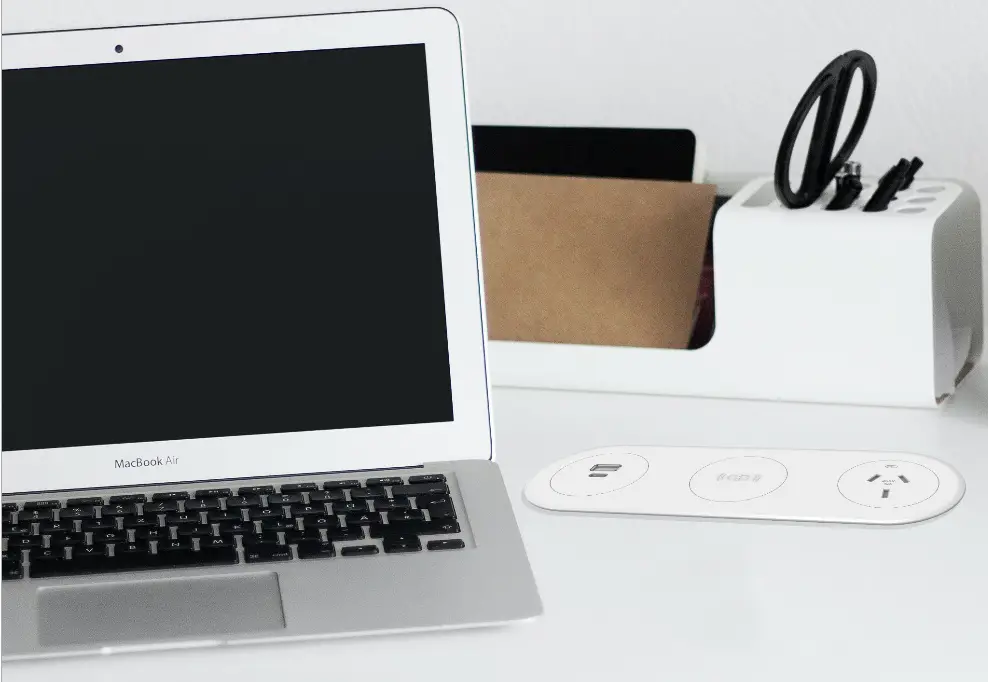

CMS Echo series delivers the latest charging technology to empower engaging and connected spaces within the commercial workplace, integrating into personal workstations, soft-seating, and collaborative spaces.

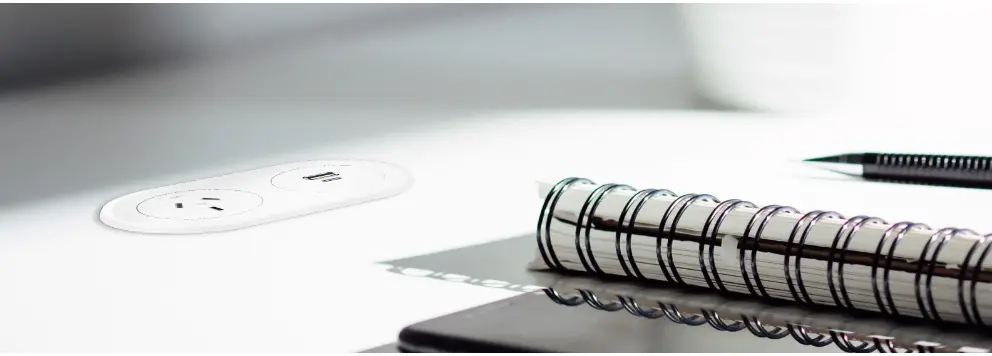

Echo is available in 3 shell sizes, Single, Duo, and Trio, describing the number of modules each shell can accommodate. Echo can be equipped with any combination of; USB C+A Charging, Wireless Charging, and standard Power.
The module has a shallow depth of 46mm, with easy top-side installation without fastening from the bottom.
Features & Benefits
- Minimalistic surface design blends into any surface
- Surface installation suited to soft seating and custom joinery.
- Fast-charge options include 30W USB-C PD fast-charging or 15W Wireless fast-charging
- Available to be configured with soft wiring connector or standard 3-pin plug.
- Standard colors black and white
- Charging services to be used with IT equipment only
Colors Available
White
Black
Product Details
| Echo Single | |
| EC01F** | 1 GPO, 500mm TAG lead with L3F splitter. |
| EC01G15** | 1 GPO, 1500mm lead with 3-pin plug. |
| ECUAC3F** | USB C/A PD fast-charge module (30W shared), 500mm TAG lead with L3F splitter. |
| ECUAC3G15** | USB C/A PD fast-charge module (30W shared), 1500mm lead with 3-pin plug. |
| ECWF** | Wireless fast-charge module (15W), 500mm TAG lead with L3F splitter. |
| ECWG15** | Wireless fast-charge module (15W), 1500mm lead with 3-pin plug. |
| Echo Duo | |
| EDA1A1T10D** | 2 GPO, 1000mm TAG lead with L3D splitter |
| EDA1A1A15** | 2 GPO, 1500mm lead with 3-pin plug |
| EDA1UT10D** | 1 GPO, USB C/A PD fast-charge module (30W shared), 1000mm TAG lead with L3D splitter |
| EDA1UA15** | 1 GPO, USB C/A PD fast-charge module (30W shared), 1500mm lead with 3-pin plug |
| EDA1WT10D** | 1 GPO, Wireless fast-charge module (15W), 1000mm TAG lead with L3D splitter |
| EDA1WTA15** | 1 GPO, Wireless fast-charge module (15W), 1500mm lead with 3-pin plug |
| EDUWT10D** | USB C/A PD fast-charge module (30W shared), Wireless fast-charge module (15W), 1000mm TAG lead with L3D splitter |
| EDUWA15** | USB C/A PD fast-charge module (30W shared), Wireless fast-charge module (15W), 1500mm lead with 3-pin plug |
| Echo Trio | |
| ETA1A1A1T10D** | 3 GPO, 1000mm TAG lead with L3D splitter |
| ETA1A1A1A15** | 3 GPO, 1500mm lead with 3-pin plug |
| ETA1UA1T10D** | 1GPO, USB C/A PD fast-charge module (30W shared), 1 GPO, 1000mm TAG lead with L3D splitter |
| ETA1UA1A15** | 1GPO, USB C/A PD fast-charge module (30W shared), 1 GPO, 1500mm lead with 3-pin plug |
| ETA1UWT10D** | 1 GPO, USB C/A PD fast-charge module (30W shared), Wireless fast-charge module (15W) 1000mm TAG lead with L3D splitter |
| ETA1UWA15** | 1 GPO, USB C/A PD fast-charge module (30W shared), Wireless fast-charge module (15W) 1500mm lead with 3-pin plug |
| Wireless Charger | |
| Input | 100-240V; 50/60Hz; 0.5A |
| Max output total | 5V DC/5W; 9V DC/15W; 12V DC/15W |
| Standby power | 0.3W |
| Operating temperature range | 0-40C |
| Compliance | IEC 60950.1 |
| CISPR32:2015 | |
| USB Charger | |
| Input | 100-240V AC; 50/60Hz, 0.8A |
| USB outlets | 1 x Type-C PD3.0 fast charge |
| 1 x Type-A standard fast charge | |
| Standby power | <0.15W |
| Over voltage protection | 20-24V |
| Overcurrent protection | 4.3-5.5A |
| Short circuit protection | USB will shut down if short circuit detected and will recover once short circuit removed. |
| Operating temperature range | 0-40C |
| Compliance | AS/NZS 60950.1 CISPR32:2015 |
| USB-C PD Specification | |
| Max standard output with no connected devices in Port 1 | 3A@5V; 3A@9V; 2.5A@12V; 2A@15V; 1.5A@20V |
| Max output with Type-C Porengaged | 2A@5V |
| USB-A Specification | |
| Max standard output with no connected devices in Port 2 | 3A@5V; 2A@9V; 1.5A@12V |
| Max output with Type-A Port engaged | 2A@5V |
Disclaimer: CMS has made every attempt to ensure the accuracy and reliability of the information provided in this document are correct. All information contained in this document is to be used for general guidance only. CMS reserves the right to change, delete or modify the information without notice.
