Saco Zdp7203pz Zanussi Dryer Instruction Manual

Operating Instructions
Dryer Zanussi ZDP7203PZ

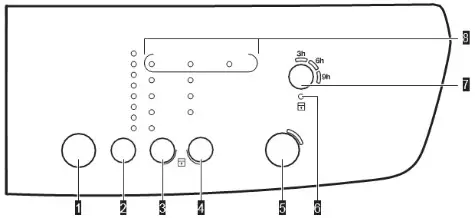

Control panel

1. On / Off button
2. Programme selection touchpad P
3. Dryness selection touchpad
4. Options selection touchpad
5. Start/Pause touchpad
6. Child lock indicator
7. Delay touchpad
8. Indicators: Filter , Condenser →Tank

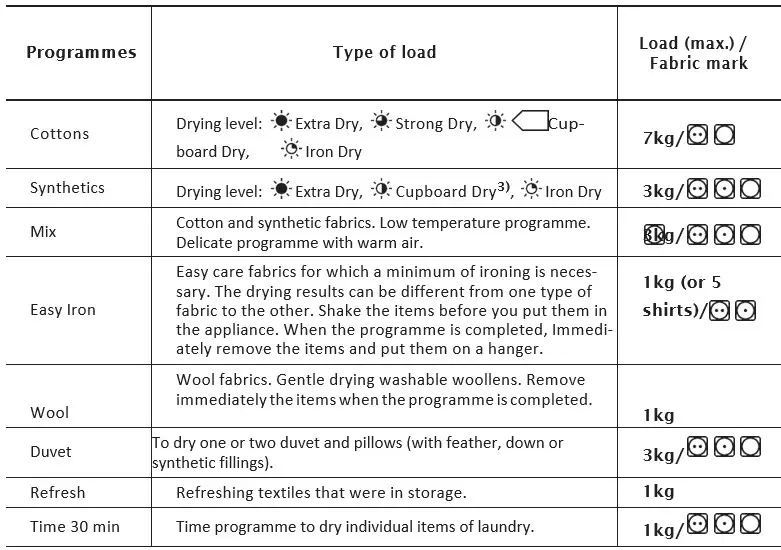

Programme table

Options

Dryness
This function helps to get the laundry more dried. There are 4 possible selections:

• Extra Dry
• Strong Dry (for Cotton only)
•  Cupboard Dry
• Iron Dry

Anticrease 90min
Extends of 60 minutes the standard anticrease phase (30 minutes) at the end of the drying cycle. This function prevents the laundry from creasing.
Time 60min
Extends of 30 minutes the Time 30min program.
Delicates
With this option, you can set a delicate drying program that has a low temperature. Use this option with fabrics that have the symbol on the fabric label (e.g. acrylic, viscose).

Start a program without delay start

1. Prepare the laundry and load the appliance.
2. Press the on/off button to activate the appliance.
3. Set the correct program and options for the type of load.
4. Press the Start/Pause touchpad.
5. The program starts.

Starting a program with delay start

1. Set the correct program and options for the type of load.
2. Press the delay start button again and again as necessary.
3. You can delay the start of a program by 3, 6, or 9 hours.
4. Press the Start/Pause button.

Change a program

1. Press the on/off button to deactivate the appliance
2. Press the on/off button to activate the appliance.
3. Set the program.

At the end of the program

When the program is completed:

• An intermittent acoustic signal operates.
• The indicators Filter and Tank come on.
• The Start/Pause indicator is on.

The appliance continues to operate with the crease guard phase for approximately 30 minutes. This removes creases from your laundry.
