Saco Ewx14450w Electrolux Washer Dryer Instruction Manual

saco EWX14450W Electrolux Washer Dryer Instruction Manual

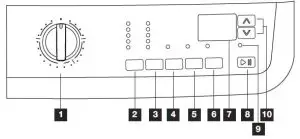

Control Panel

1. Programme selector dial
2. Temperature button
3. Spin reduction button
4. Extra rinse button
5. Drying time button
6. Delay start button
7. Display
8. Start/ Pause button
9. Door locked pilot lights
10. Time manager buttons

Detergent dispenser drawer

Daily Use

1. Load the laundry into the drum of the machine.
2. Measure out the detergent and fabric softener, if required, pour into the correct compartments.
3. Select the required programme by turning the programme selector dial.
4. Depending on the programme different functions can be combined. These must be selected after choosing the programme and before pressing the start button (8).
5. To start the programme press the start button (8).
6. At the end of the programme the machine will stop automatically, and the buzzer will sound.
7. Turn the programme selector dial to to switch off the machine.
8. Open the door and remove the laundry from the drum.

Drying

The recommended load size is 3kg for cottons and linens, and 2kg for synthetics.

1. Load the laundry.
2. Select the drying programme.
3. If you wish to select a timer, press button 5 until the time you want appears on the display. Every time you press this button the drying time increases by 5 mins.
4. Press button 8 to start the programme.
5. At the end of the programme the buzzer sounds, pilot light 9 is on to indicate that the door is locked. The last 10 minutes of the drying cycle corresponds to an anti-crease phase. During this time the door will remain locked and the display shows 0.00.
6. Once the pilot light 9 has turned off the door can be opened. Turn the selector dial to the position to switch off the machine.
7. Open the door and remove the laundry from the drum.

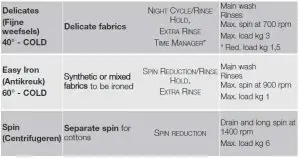

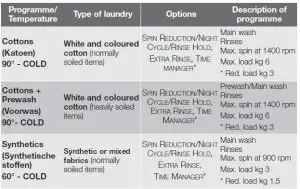

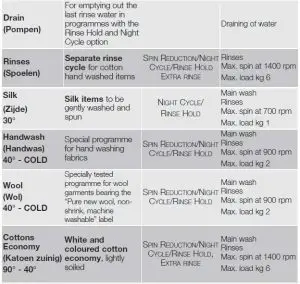

Washing programmes

Programme information

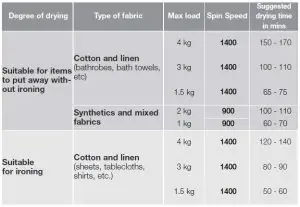

Drying times
