Hinkley 4818dz Eight Light Linear Owner's Manual

HINKLEY 4818DZ Eight Light Linear

Product Information

Product Name:

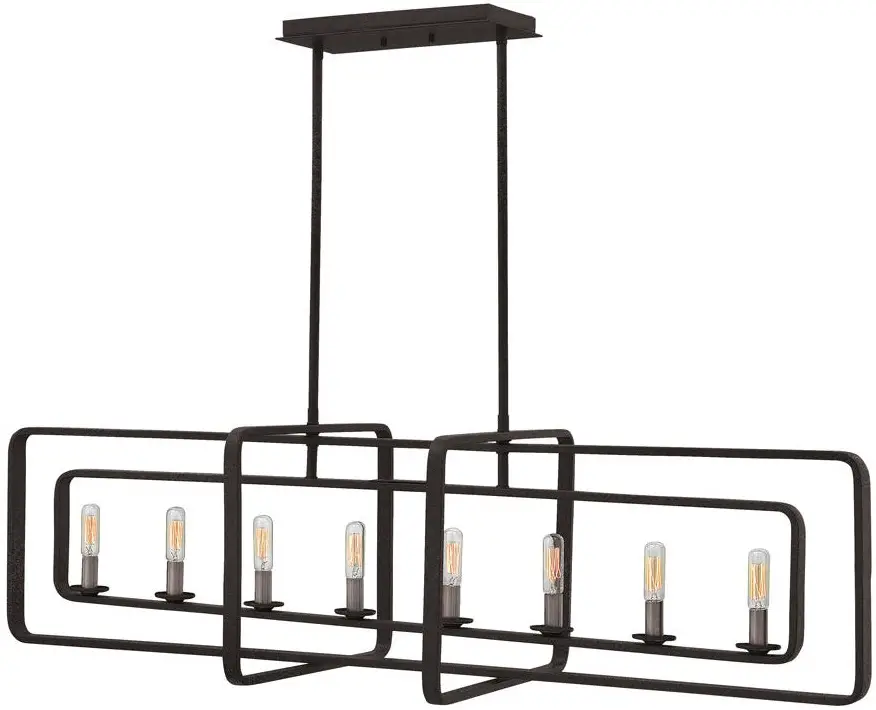

Quentin 4818DZ Eight Light Linear

Description:
Quentin is a stem-hung collection featuring intersecting rectangles in a bold Aged Zinc finish, creating a striking geometric interplay. The modern silhouette is enhanced by candle sleeves in Antique Nickel, adding a distinctively vintage feel.

Details:

• Finish: Aged Zinc
• Material: Steel
• Dimensions:
  • Width: 45″
  • Height: 13″
  • Depth: 16″
  • Weight: 15.2lb
• Light Source:
  • Type: Socket
  • Wattage: 8-60w Cand.
  • Voltage: 120v
• Mounting:
  • Canopy: 5W X 11.75L
  • Lead Wire: 1 X 120
  • Max Height: 46″
• Shipping:
  • Carton Length: 48″
  • Carton Width: 8.3″
  • Carton Height: 18.5″
  • Carton Weight: 20.4lb

Additional Information:

• This fixture includes multiple down stems in various lengths to customize the installation height, including two 6″ stems and four 12″ stems.
• Suitable for use in dry (indoor) locations as defined by NEC and CEC.
• Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
• Ideal for vintage filament bulbs (not included).
• Angular lines, a bold finish, a simple shape, and sturdy details merge for a robust but pared-down industrial design.
• Rich gray tone.

Product Usage Instructions

1. Ensure the power source is turned off before installation.
2. Customize the installation height by selecting the appropriate down stems. The package includes two 6″ stems and four 12″ stems.
3. Attach the chosen down stems to the fixture according to your desired height.
4. Position the fixture at the desired location on the ceiling.
5. Connect the electrical wires from the fixture to the corresponding wires in the electrical box using wire connectors.
6. Securely mount the canopy to the ceiling using screws.
7. Turn on the power source and test the functionality of the light fixture.

Note: Always consult a qualified electrician if you are unsure about any aspect of the installation process.

For more information or support, please contact HINKLEY at:

• PHONE: (440) 653-5500
• Toll-Free: 1 (800) 446-5539
• Website: hinkley.com.

Quentin is constructed of angular forms that create a striking geometric interplay. This stem-hung collection features intersecting rectangles in a bold Aged Zinc finish, forming a modern silhouette. Candle sleeves in Antique Nickel add a distinctively vintage feel that is both hip and historical.

PRODUCT DETAILS

• This fixture includes multiple down stems in various lengths to customize the installation height, including two 6″ stems and four 12″ stems.
• Suitable for use in dry (indoor) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
• Ideal for vintage filament bulbs (not included)
• Angular lines, a bold finish, simple shape and sturdy details merge for a robust but pared down industrial design
• Rich gray tone

Specification

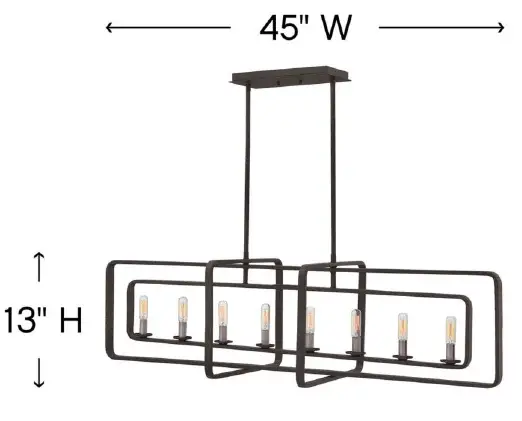

Dimension

Contact Information

HINKLEY

• 33000 Pin Oak Parkway Avon Lake, OH 44012
• PHONE: (440) 653-5500
• Toll-Free: 1 (800) 446-5539
• hinkley.com.
