IKEA kulinarisk hot air oven stainless steel

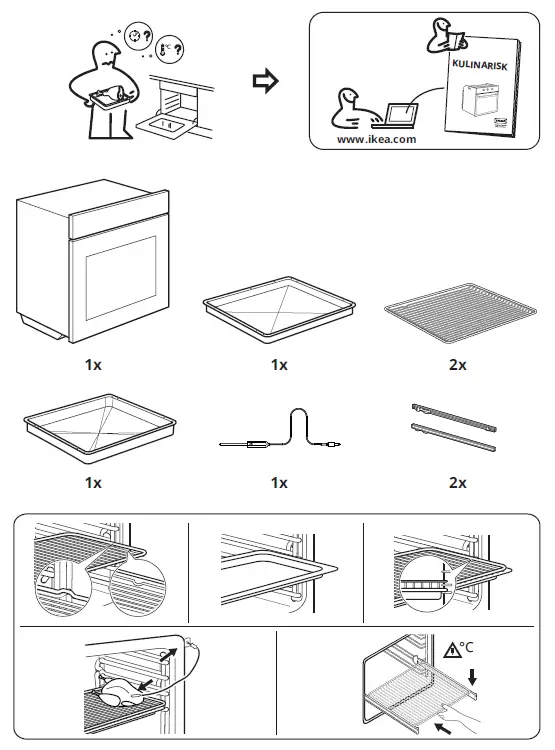

WHAT IS IN BOX

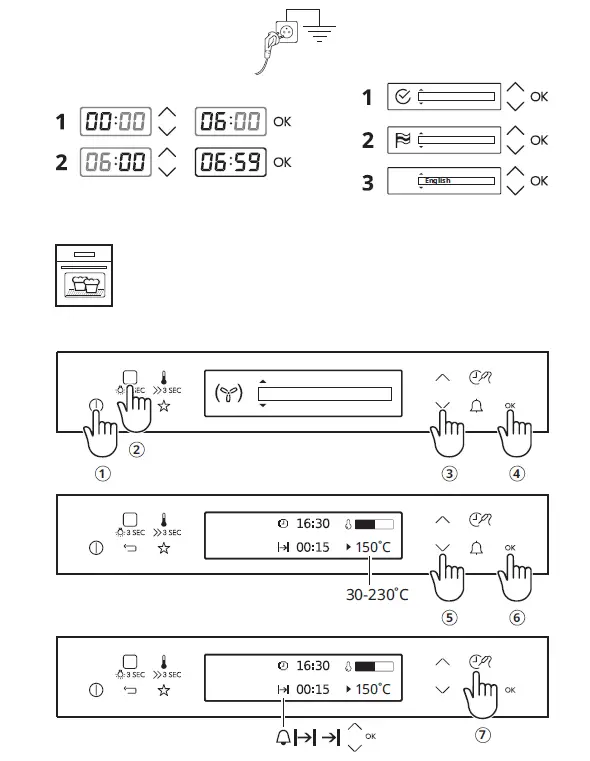

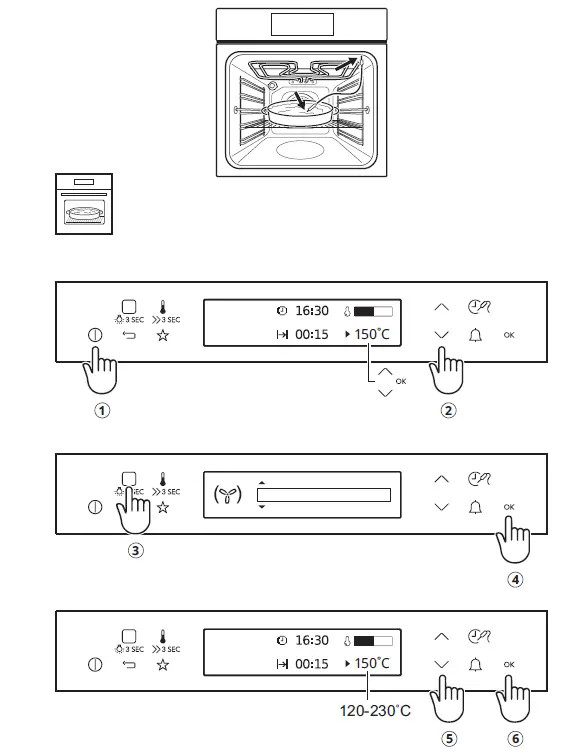

HOW CAN USE

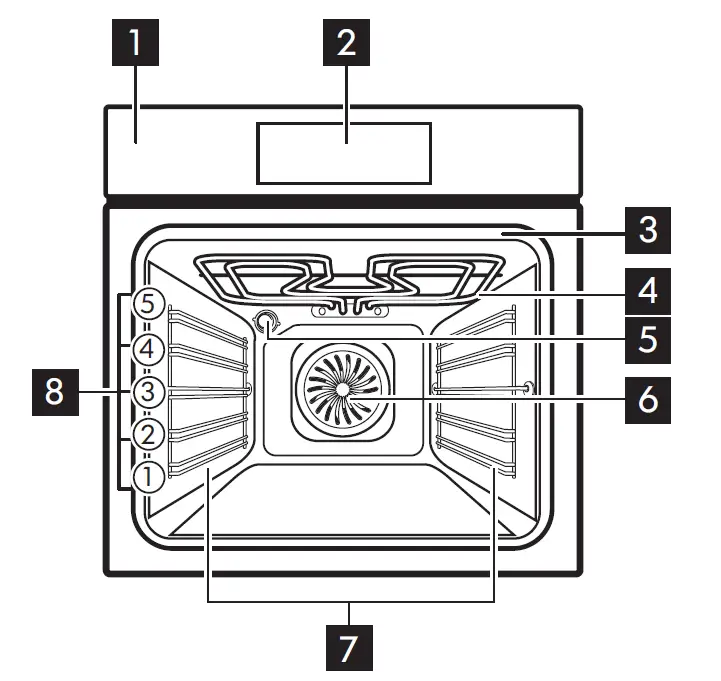

Product Description
- Control panel
- Electronic programmer
- Socket for the food sensor
- Grill
- Lamp
- Fan
- Shelf support, removable
- Shelf positions

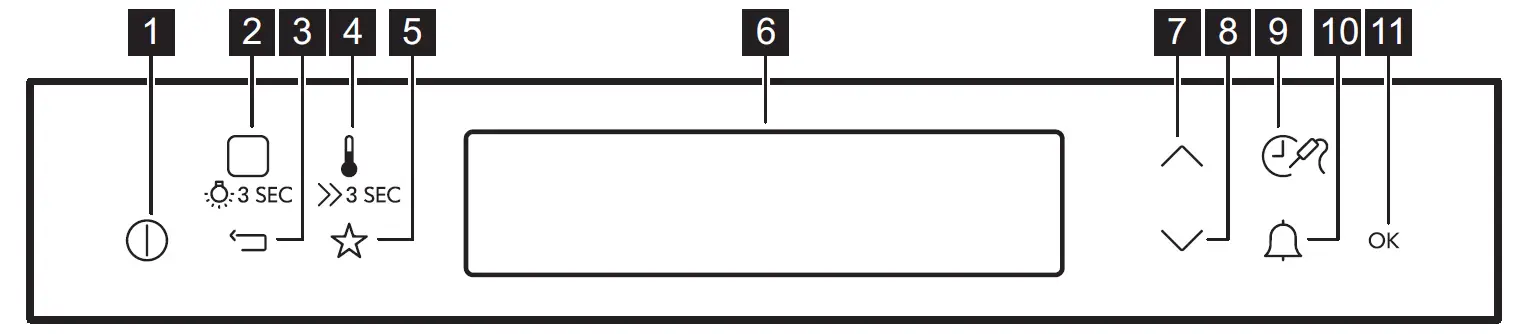

Control Panel
- ON / OFF
- Heating Functions / Assisted Cooking / Lamp
- Back key
- Temperature / Fast Heat Up
- Favourite programmes
- Display
- Up key
- Down key
- Time / More functions
- Minute minder
- Confirm setting

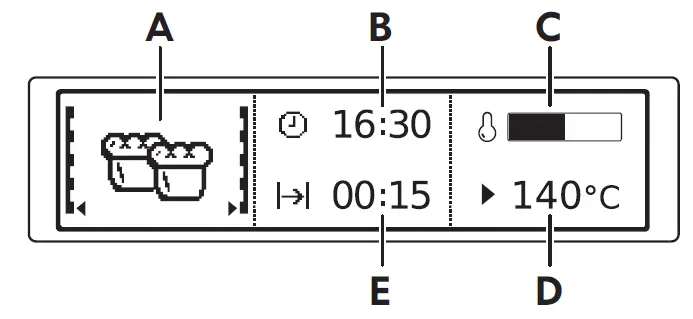

Display
- A. Heating function
- B. Time of day
- C. Heat-up indicator
- D. Temperature
- E. Duration time or end time of a function
Other indicators of the display:
| Symbol | Function |
 | The function is on. |
 | Shows current time. |
 | Shows the necessary time for cooking. |
 | Shows cooking duration. |
 | Shows the temperature. |
 | Shows when the set cooking time ends. Press and at the same time to reset the time. |
 | The oven calculates required cooking time. |
 | Indicates heat level in the oven. |
 | Fast Heat Up is on. |
 | Shows that Weight Automatic function is on, or that you can change the weight setting |
 | Heat + Hold is on. |
Heating Functions

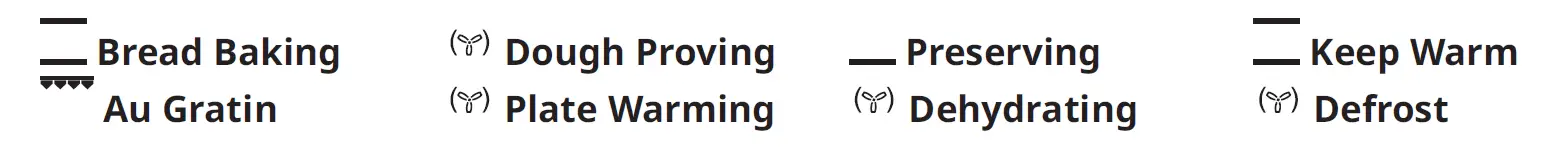

Specials
Notes on: Moist Fan Baking
This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.
The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.
When you use this function the lamp automatically turns off after 30 sec.
This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced.
Troubleshooting
If you encounter an issue with your appliance, check “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.
Product Information and Product Information Sheet*
| Supplier’s name | IKEA |
| Model identification | KULINARISK 304.210.61 |
| Energy Efficiency Index | 81.2 |
| Energy efficiency class | A+ |
| Energy consumption with a standard load, convention‐ al mode | 0.93 kWh/cycle |
| Energy consumption with a standard load, fan-forced mode | 0.69 kWh/cycle |
| Number of cavities | 1 |
| Heat source | Electricity |
| Volume | 72 l |
| Type of oven | Built-In Oven |
| Mass | 35.8 kg |
| * For European Union according to EU Regulations 65/2014 and 66/2014. For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B. For Ukraine according to 568/32020. |
| Energy efficiency class is not applicable for Russia. |
| EN 60350-1 – Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens and grills – Methods for measuring performance. |
To download the full version visit www.ikea.com
