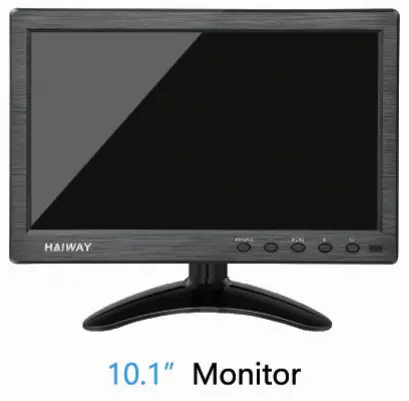

Haiway Sm10.1 10.1 Inch Security Monitor User Manual (+ PDF)

Click ‘VIDEO SELECT’ to enter and use this button to select the signal input mode, click ‘MODE SELECT’ to confirm the mode, wait for 3-5 seconds, the page will be displayed.
Click ‘MENU’ to enter the screen adjustment.
Click the ‘Left / Right button to select the page to be adjusted, including brightness, clarity, language … , ‘MENU’ button confirm to enter the menu, press the ‘Left / Right button to enter the subpage, move the indicator to the corresponding selection box, click ‘VIDEO SELECT’ to confirm and exit.

For example, if you use a USB flash drive, you need to switch to USB input mode.

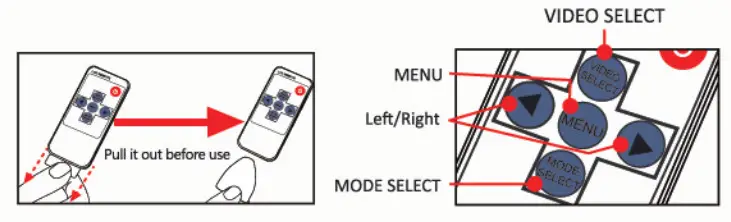

Remote Controller To Use

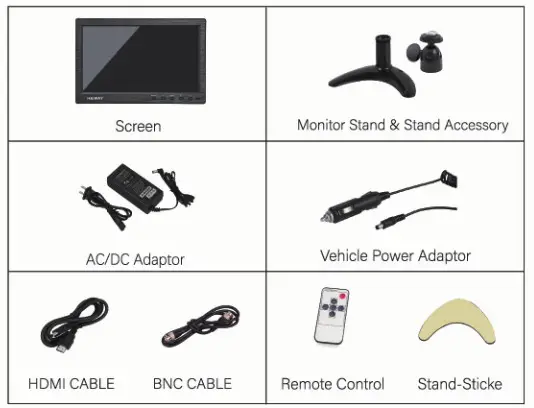

Package Included

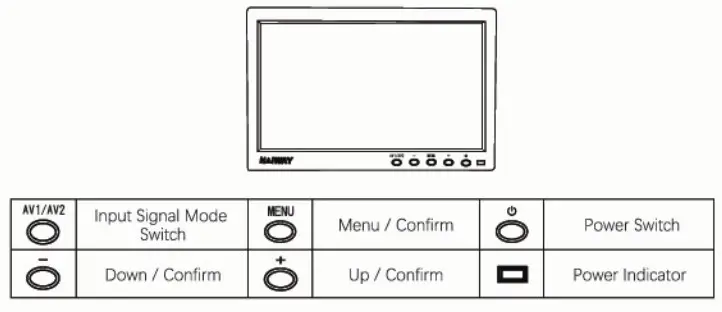

Panel Interface and Button

USB Mode-remote control operation steps:

Click ‘AV1/AV2’ to enter and use this button to select the USB input mode, ‘ + / – ‘ button to confirm the mode; wait for 3-5 seconds, the page will be displayed.
‘ + / -‘ button to select the content you want to play: Pictures, Music or Video (Text files cannot be read).
Long press ‘AV1/V2’ for two seconds to confirm and enter the page, this key can be used as a play and pause button; if you want to exit the play page, move the indicator to Stop, and long-press ‘AV1/V2’ for two seconds to exit; (if you press too long, it may replay audio and video)
If you want to exit to the home page, you need to move the indicator box to Return with ‘+/-‘ button and long-press ‘AV1/V2’ button for two seconds.

USB Mode-monitor panel operation steps:

Click ‘VIDEO SELECT’ to enter and use this button to select the USB input mode, click ‘MODE SELECT’ to confirm the mode, wait for 3-5 seconds, the page will be displayed • ‘Left / Right’ button to select the content you want to play: Pictures, Music or Video (Text files cannot be read).
Click ‘MODE SELECT’ to confirm and enter, ‘Left / Right’ buttons to select the content to be played; ‘MODE SELECT’ button can be used as play and pause button.
Exit the play page: a. In the case of playing, click the ‘VIDEO SELECT button to exit; b. In the case of pause, move the indicator to Stop, click ‘MODE SELECT to exit.
To exit to the menu page, you need to press the ‘Left / Right’ button to move the indicator to the Return box, click ‘MODE SELECT’ to confirm and exit.

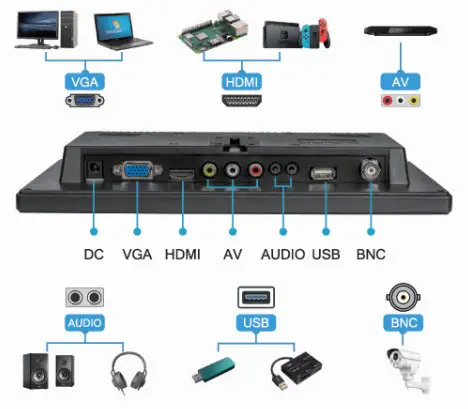

Instruction

VGA	for computers or laptops.
HDMI	for Raspberry Pi, °SLR, PC or other devices that use the HDMI port. (Supports all standard HDMI ports)
AV	for DVD, VCD. TV box.
AUDIO	for speakers and headphones.(Input & Output)
USB	for USB Flash Drive; Can charge your mobile phone.
BNC	for surveillance cameras.

Troubleshooting

The power indicator does not light up.	Please check the power of the monitor.
No image/Blue Screen	•Ensure the monitor is powered and turned on. •Check if the connection between the video input device and monitor is OK. •Make sure that you choose to elect the correct signal input mode. It should match the signal connection type. For example, if you use an HDMI cable to link video input device and monitor, then select ‘HMI as input signal mode. Remember to press + / -button to confirm. •If still no signal and image, please replace cables, a video input device, or another monitor to check
Remote does not work with display	Please remove the battery saver in the remote control, or try with the buttons on the monitor.
Hazy Screen / Scratched Screen	There is a protective film on the monitor, the image looks a bit hazy, you could peel it off if you like.
Stop working after a period of time	Please email us for help or replacement.

Specification

Video-Input Interface	VGA/HAMI/BNC/USB
Aspect Ratio	16:09
Resolution	1024*600/1366•768
Viewing Angle	Wide View Angel 178 Degree
Brightness	400 cd/m2
Contrast Ratio	400:1/600:1
Response Time	10ms
Power Input	DC 12V-1.0A
Power Mode Support	Power Adapter
Speaker	lOw(Max)•2
OSD Menu Language Options	English/French/German/Spanish
VGA Interface	Support 15 PIN VGA Input Connect With PC
New Weight	1350g
Adjustable Stand	Landscape
TV Signal System	PAL,NTSC

Menu Description

Picture Mode
Settings about Brightness, Contrast, Saturation, and Clarity. Press the Menu button to switch, + /- button to adjust & confirm.
Other Option
With this main menu, user can make settings regards OSD (Menu Language), Color, Aspect Ratio (4:3/16:9/Auto/Panorama/Zoom1/Zoom2)

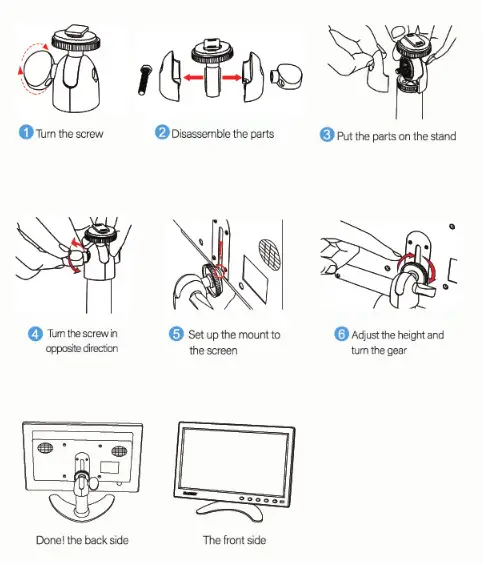

Installation and connection

Steps to install:

Connect video input device and the monitor via BNC/VGA/HDMI/AV cable.
Get the monitor powered. The power indicator will light up if the monitor is powered.
Use the button to select the correct input signal mode according to your connection, and then press the +/- button to confirm. For example, if you use a VGA cable to connect the PC and the monitor, then you should choose the ‘VGA’ as input signal mode. Otherwise, it shows no signal.
