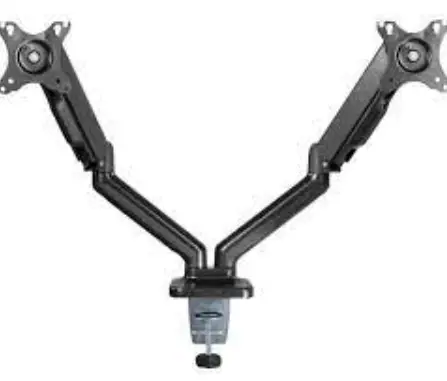

SILVER MONKEY SMA082 Monitor Holder User Manual
UM-800 Manual version 1/20220727
Safety information
- Adjust the mount with the installed device only.
- Make sure that the weight of the device does not exceed the weight defined in the specification.
- Check that the screws are tightly fastened.
- The desk must be able to hold the device on the bracket according to its allowable load.
- Proper tools are required for safe installation.
- Keep the device out of the reach of children. They may swallow some parts.
- Use the device only in accordance with the operating instructions.
- If the device stops working properly – contact us.
Specification
| Monitor desk mount | |
| Maximum screen size | 32” |

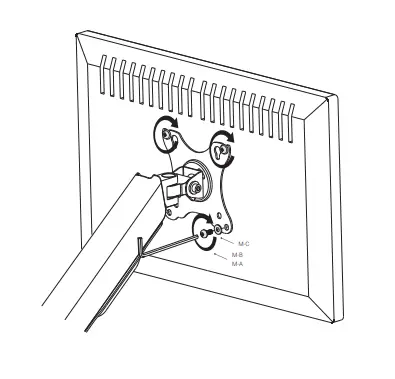

| Vesa compatibility | 75 x 75, 100 x 100 |
| Maximum load | 9 kg |
| Arm rotation | +90°~-90° |
| Screen rotation | +180°~-180° |
Warranty and technical support
Your product is covered by a 24-month manufacturer’s warranty. For more information go to www.silvermonkey.com/support. If you have questions about using the product – contact us at [email protected]. Manufacturer: Silver Monkey sp. z o.o., ul. Twarda 18, 00-105 Warszawa, Poland
