Verbatim LOGOVerbatim Portable Monitors

Portable monitors overview

ModelPortable Display 14″Portable Display 14″ / 15.6″ / 17.3″ Touchscreen
Portable displaysVerbatim 2793394 Portable Monitors - Portable DisplayVerbatim 2793394 Portable Monitors - Touchscreen
Panel Size14″14″ / 15.6″ / 17.3″
PanelIPS LCD panel / LED-Backlight
Resolution1080p Full HD
Touch ScreenCapacitive Touch Panel
Multi-touch10 point touch screen
Touch PanelG+FF technology
Aspect ratio16:9
View anglesH 178°/ V 178°(Min)
Input– 2 x USB-C
– 1 x standard HDMI (1.4)
– 1 x USB-A 2.0
Output1 x Earphone Speaker 1W x 2(8Ω)
Colours16.7M colours
Frame materialPlastic frameAluminium Alloy Frame
Supported technologiesSupports HDR / FreeSync / Low Blue Light
Preset modeStandard, TXT, Movie, Game, FPS, RTS
Cables1x Type-C (1.0M)
1x HDMI-HDMI (1.5M

1x USBA-Type-C (1.2M
Adapter110V-240V 50/60HZ (Input)

Portable Monitor 14″ Full HD 1080P

Portable Monitor 14″ FULL HD 1080P
PM-14
Reorder No: 49590
ETA: March 2023

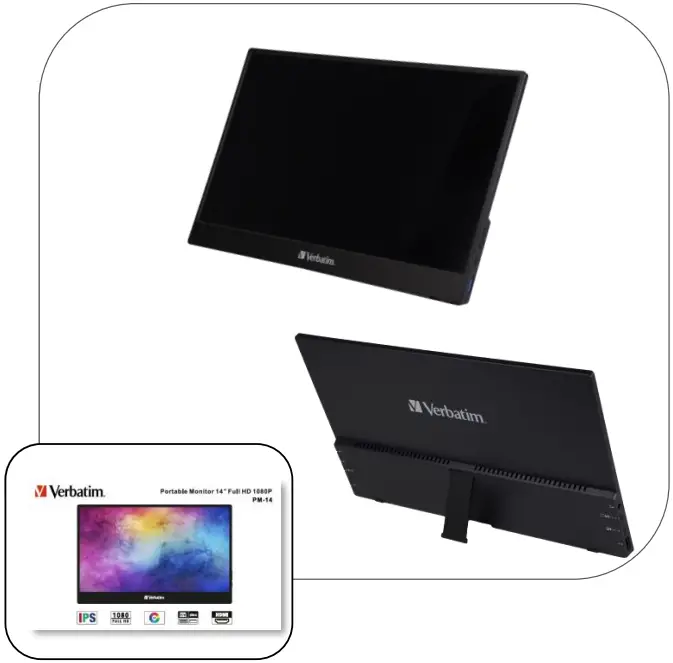

Verbatim 2793394 Portable Monitors

  • Portable 14″ monitor with Full HD resolution of 1920 x 1080 and 16.7M colours
  • IPS Panel incl. full viewing angle of 178°and 16:9 screen ratio
  • HDR technology improves picture quality creating a fantastic viewing experience
  • Great compatibility for work/traveling/gaming: Connect the portable monitor to your PC/Mac/Tablet/Phones/Consoles with USB-C or HDMI
  • One Cable Solution: Plug and play setup of compatible devices via USB-C connection
  • Ultra Slim and Light Weight Design with integrated speaker
  • Audio jack to connect headphones or speaker
  • Multi-lingual user menu: English, French, Spanish, Italian and Russian
  • Neoprene protective sleeve included
  • Cables incl.: 1 x USB-C to USB-C, 1 x USB-A to USB-C, 1 x HDMI to HDMI, 1 x power adapter with EU and UK plug (for optional additional power supply)
Size: 14 inch
Contrast (typical): 1000:1
Resolution (H x V): 1920 x 1080
Aspect ratio: 16:9
View angles LR,UD (CR>10): H / V 178°(Min)
Display colours: 16.7M colours
Supports: HDR, FreeSync
Energy efficiency class: A
Input 1: USB-C x 2 (Full-featured USB-C)
Input 2: Standard HDMI (1.4) x 1
Output: USB-A 2.0 x 1
Dimensions (WxHxD):
328.92mm (W) x 209.05mm (H) x 6/12mm (D)
Net weight: 760g
Frame material: Plastic

Portable Monitor 14″ Full HD 1080P

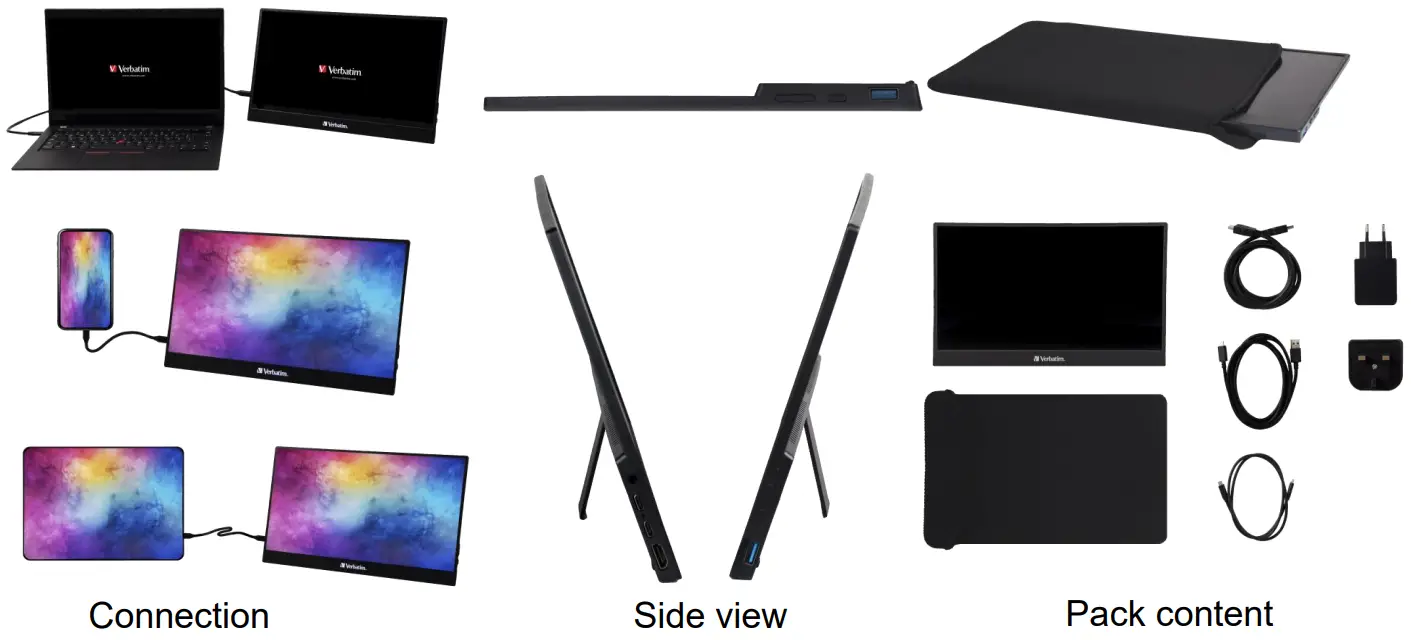

Verbatim 2793394 Portable Monitors - Connection Tools

Portable Touchscreen Monitor Full HD Metal Housing

Portable Touchscreen Monitor Full HD 1080P Metal Housing
PMT-14 14” / PMT-15 15.6” / PMT-17 17.3”
Reorder No: 49591 / 49592 / 49593
ETA: March 2023

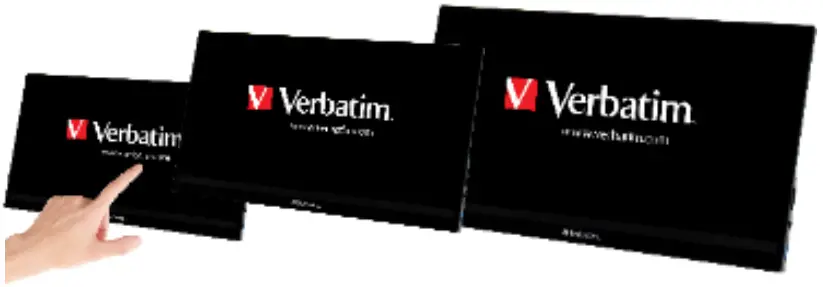

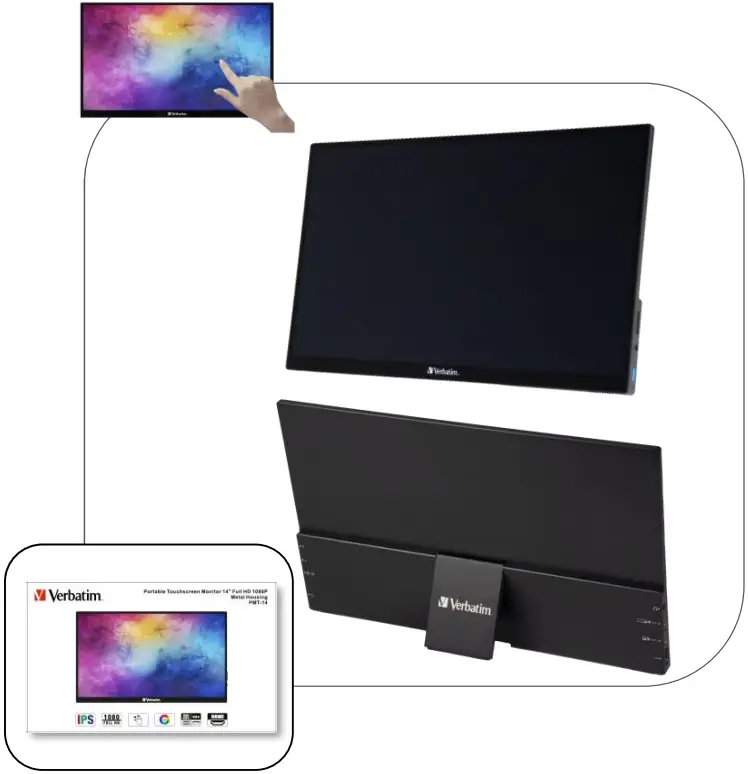

Verbatim 2793394 Portable Monitors - Touchscreen Monitor

  • Portable Touchscreen Monitor with Full HD resolution of 1920 x 1080 and 16.7M colours in sizes: 14”, 15.6” and 17.3”
  • Supports capacitive 10-point multi-touch with G+FF technology; simply connect the monitor to your device using a USB-C cable
  • IPS Panel incl. full viewing angle of 178° and 16:9 screen ratio
  • Solid and durable aluminium housing
  • HDR technology improves picture quality creating a fantastic viewing experience
  • Great compatibility for work/traveling/gaming: Connect the portable monitor to your PC/Mac/Tablet/Phones/Consoles with USB-C or HDMI.
  • One Cable Solution: Plug and play setup of compatible devices via USB-C connection
  • Ultra Slim and Light Weight Design with integrated speaker.
  • Audio jack to connect headphones or speaker
  • Neoprene protective sleeve included
  • Cables incl.: 1 x USB-C to USB-C, 1 x USB-A to USB-C, 1 x HDMI to HDMI, 1 x power adapter with EU and UK plug (for optional additional power supply)
Size: 14 / 15.6 / 17.3 inch
Touchscreen: Capacitive touch panel
Multi-touch: 10 points
Contrast (typical): 1000:1
Resolution (H x V): 1920 x 1080
Aspect ratio: 16:9
View angles LR,UD (CR>10): H / V 178°(Min)
Display colours: 16.7M colours
Supports: HDR, FreeSync
Input 1: USB-C x 2 (Full-featured USB-C)
Input 2: Standard HDMI (1.4) x 1
Output: USB-A 2.0 x 1
Frame material: Aluminium
Energy efficiency class: A

Portable Touchscreen Monitor Full HD Metal Housing

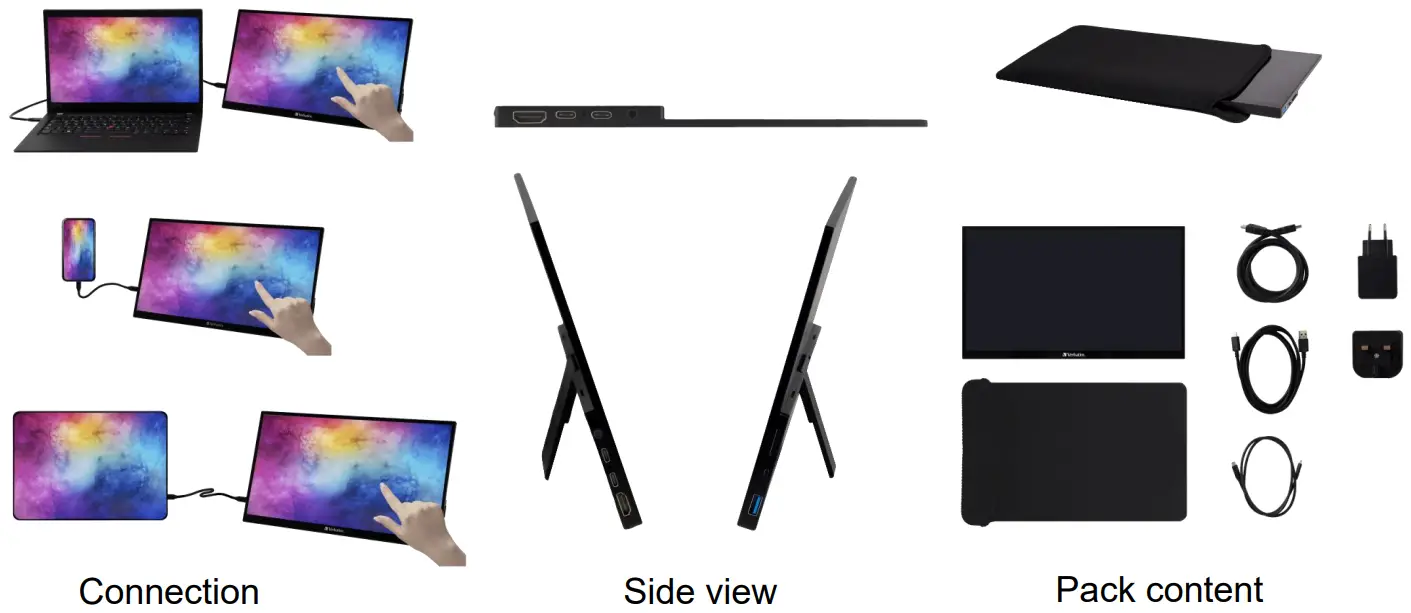

Verbatim 2793394 Portable Monitors - Touchscreen Monitor 2
