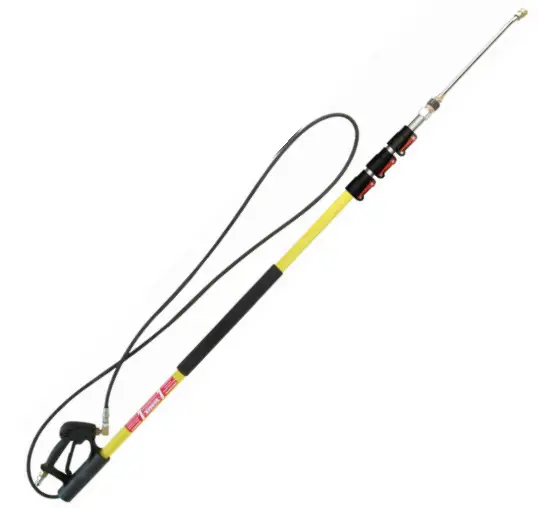

85.206.012L 12ft 3-Stage Fiberglass Telescoping Wand

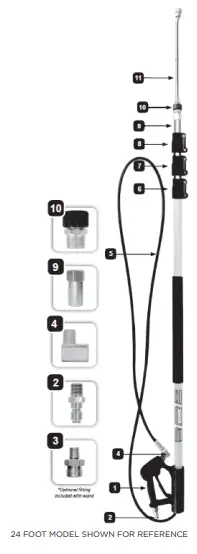

PARTS BREAKDOWN TELESCOPING WANDS
MODELS: MULTIPLE
12 FOOT MODEL: 85.206.012L 18 FOOT MODEL: 85.206.018L 24 FOOT MODEL: 85.206.424L
DESCRIPTION
| REF # | DESCRIPTION | QTY | BE PART # |
| 1 | GUN ASSEMBLY | 1 | 85.202.127 |
| 2 | 3/8” MNPT PLUG | 1 | 85.300.105 |
| 3 | 3/8” M22 (OPTIONAL FITTING) | 1 | 85.300.133 |
| 4 | 1/4” BRASS ELBOW | 1 | 85.704.004 |
| 5 | 12FT HOSE ASSEMBLY (FOR 85.206.012L) | 1 | 85.225.112 |
| 5 | 18FT HOSE ASSEMBLY (FOR 85.206.018L) | 1 | 85.225.118 |
| 5 | 24T HOSE ASSEMBLY (FOR 85.206.424L) | 1 | 85.225.124 |
| 6 | *LEVER LOCK, LARGE | 1 | 85.205.111 |
| 7 | **LEVER LOCK, MEDIUM | 1 | 85.205.110 |
| 8 | ***LEVER LOCK, SMALL | 1 | 85.205.109 |
| 9 | ADAPTER, POLE | 1 | 85.791.026 |
| 10 | 1/4” X 1-1/2” M22 FITTING | 1 | 85.791.025 |
| 11 | LANCE WITH FITTING | 1 | 85.791.024 |
*12 FT MODEL 85.206.012L, USES ONLY THE LARGE LEVER LOCK
**18 FT MODEL 85.206.018L, USES MEDIUM AND LARGE LEVER LOCKS
***24 FT MODEL 85.206.424L, USES ALL THREE LEVER LOCKS
If you need technical assitance call: 1-866-850-6662
(8:00am – 4:30pm PST, Mon – Fri)
