Solo100 4 Section Telescopic Fiberglass Pole Instruction Manual (+ PDF)

Instructions

Solo 100 and Solo 108 Telescopic Poles

Extendable & non-conductive fibreglass pole

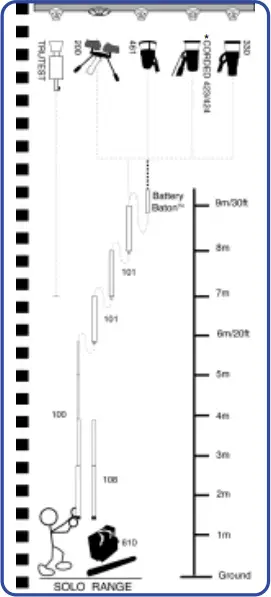

Designed for use at varying heights – see product chart on page 11
Accepts Solo 101 extensions and all Solo tools (including Trutest)

Instructions for use

2 OR 4 SECTIONS EXTEND & TWIST TO LOCK BUTTON

INSERT TOOL INTO POLE

Solo 101 Extension Pole

A 1.1m / 3ft 9″ addition to the Solo 100 telescopic pole*, or may be used by itself with the Solo range of tools.

Maintenance
The Solo poles can be cleaned with mild detergent in warm water and a soft, lint-free cloth. Lubrication is not necessary.

Warning The use of Personal Protection Equipment is recommended when using tools at height.

*maximum of 3 extension poles recommended

Solo 330 Aerosol Dispenser

Instructions for use

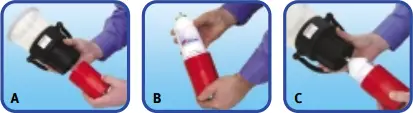

A Unscrew and remove retainer cup
B Place aerosol canister into cup
C Replace retainer cup & screw upwards Adjust cup until aerosol activates and unscrew slightly
D Insert the Solo 330 into Solo pole

Place Solo 330 over detector, ensuring a seal around smoke chamber.

Press upwards slightly to activate aerosol (no more than 1 second burst).

If the detector has not responded in 10 seconds repeat above every 10 seconds. Number of total sprays should not exceed 5.

If the detector fails to activate, check equipment and retest.
If the detector does not activate it will require further investigation.

Maintenance
Excess liquid deposits may be experienced following extended periods of use. To clean, use a lint free cloth. Wash the cup with a mild detergent in warm water and dry thoroughly.

Solo 332 Aerosol Dispenser available for larger detectors

Warning To prevent the possibility of the aerosol discharging while in transit, loosen retainer cup by unscrewing 2 full turns.

Solo A4 Detector Tester

Designed to be used only in conjunction with Solo 330 (332) dispenser
Does not leave residue when used correctly with Solo 330 (332) Dispenser
Activates detectors quickly
Dissipates rapidly, enabling the detector to be quickly reset after successful activation
Dispenser conserves aerosol, controls usage and reduces possibility of misuse
Not using the recommended aerosol can cause problems and detector damage

Warning
Read CAUTION and Instructions before use.
Aerosols are pressurised containers.
Do not pierce, incinerate or expose to temperatures above 120°F/50°C, even when empty.
Keep away from sources of heat (including sunlight).
Wear Personal Protection Equipment appropriate to the task and the environment.
Material Safety Data Sheets available on request or online at www.noclimb.com

Solo CO* Aerosol C3

Suitable for use on CO Fire Detectors
Designed for use in Solo 330(332) Dispenser
See Solo 330(332) Instructions for use

Warning
Solo CO uses CO in a sufficiently low concentration to be of minimal risk when used as directed.
CO is colourless and odourless and may be harmful.
Read CAUTION and instructions before use.

Solo 200 Universal Removal Tool

Suitable for wide range of detector makes and sizes
Adjustable colour coded tri-grips rotate to fit different sized detectors
Universal joint ensures tool remains parallel with ceiling while in use

Adjusting the Tri-grips

PULL AND TWIST

Yellow 64 – 76mm / 2.5 – 3.0in diameter
Blue 86 – 98mm / 3.0 – 3.85in diameter
Red 98 – 112mm / 3.85 – 4.4in diameter
Red & Yellow 74 -93mm / 2.91- 3.66in diameter
Yellow & Blue 75 – 87mm / 2.95 – 3.43in diameter
Blue & Red 92 -105mm / 3.6- 4.13in diameter

Instructions for use

LOCATE LOWER BUTTON FOR DETECTORS AT ANGLES

LOCATE UPPER BUTTON FOR STANDARD FITTED DETECTORS

GRIP DETECTOR

TWIST AND PULL DOWN

Solo 423/4 Heat Detector Tester*

Instructions for use

ATTACH POWER CABLE & IF REQUIRED, ADD OPTIONAL EXTENSION CABLE

OPTIONAL EXTENSION CABLE

SECURE CLIP

INSERT 423/4 INTO POLE

CONNECT TO POWER AND PRESS ON SWITCH

PLACE OVER DETECTOR

If detector does not activate within 1 minute it may be faulty
Available in 110v and 230v versions
Fitted with a thermal cut-out protection system

WARNING

DO NOT TOUCH METAL GRILL

DO NOT BLOCK AIR VENTS

NO USER SERVICABLE PARTS

Solo 461 Cordless Heat Detector Tester

Instructions for use

Insert a charged Battery Baton into tool & pole

Press the red switch to turn on LED illuminates green Flash at slow rate indicates normal STANDBY mode.

Position the latch & place over detector

Tool will automatically start testing when infra-red beam in cup is broken
Green LED will flash faster
Hold in place until the alarm is activated*
When the detector alarms, remove the tool from the detector
It will revert to standby mode (slow flashing green LED) and the internal blower will cool the heating element for a few seconds

(*If the detector fails to activate it may be faulty. Insert a replacement detector and test again)

Notes
LED flashing red=warning battery nearly discharged – Normal testing can continue
LED constantly red=battery fully discharged or error – Testing cannot continue
LED flashing red/green=Tool automatically terminated test – Time exceeded 120 sec

After testing, switch off at red switch to preserve battery life

Useful Tips:

Tool features an automatic power-saving feature, which will turn it off after five minutes if not used
Only use with Solo™ Battery Baton™ and only charge the Battery Baton™ with the Solo™ Charger (see Page 9 for charging instructions)
It is normal for the Battery Baton™ to get slightly warm during use
Never block the ventilation hole in the side of the cup, which ensures correct airflow
