ProTeam 107146 QuietPro BP Xover Telescoping Wand Kit Owner’s Manual
- QUIET
- ERGONOMIC
- SAVES TIME
Standard Configuration
| 14” Xover Floor Tool | 3” Dust Brush |
| Telescoping Wand | 17” Crevice Tool |
| 5” Upholstery Tool |
Related Products
100431 Intercept Micro Filters, 10/pk (open collar) $20.49
106995 Intercept Micro Filters, 10/pk (closed collar) 35.13
$845
The QuietPro BP with QuietPower® Technology delivers high performance and exceptional cleaning strengths for environments where low sound levels are critical. Never worry about disrupting building occupants during regular business hours again.
Specifications
Weight: 11 lbs. / 4.99 kg.
| Low | High | |
| Motor Airflow: | 74 CFM | 106 CFM |
| Static Lift: | 45 in. | 82 in. |
| Motor: | 612 W / 5.1 A | 864 W / 7.2 A |
| Decibel: | 51 dBA | 60 dBA |
**ProLevel Filtration System with HEPA Media Captures 98.87% at 0.3-.5 microns per ASTM F3150
Limited Warranty
- 3 years parts, labor and motor on vacuum
- Limited lifetime on molded body parts
Optional Configurations
105733 w/Carpet Two-Piece Wand Tool K $865
107145 w/Xover® Performance Telescoping Wand Tool Kit C (107099) 845
107609 w/ProBlade® Carpet and Hard Surface Floor Tool Kit (107532) 915

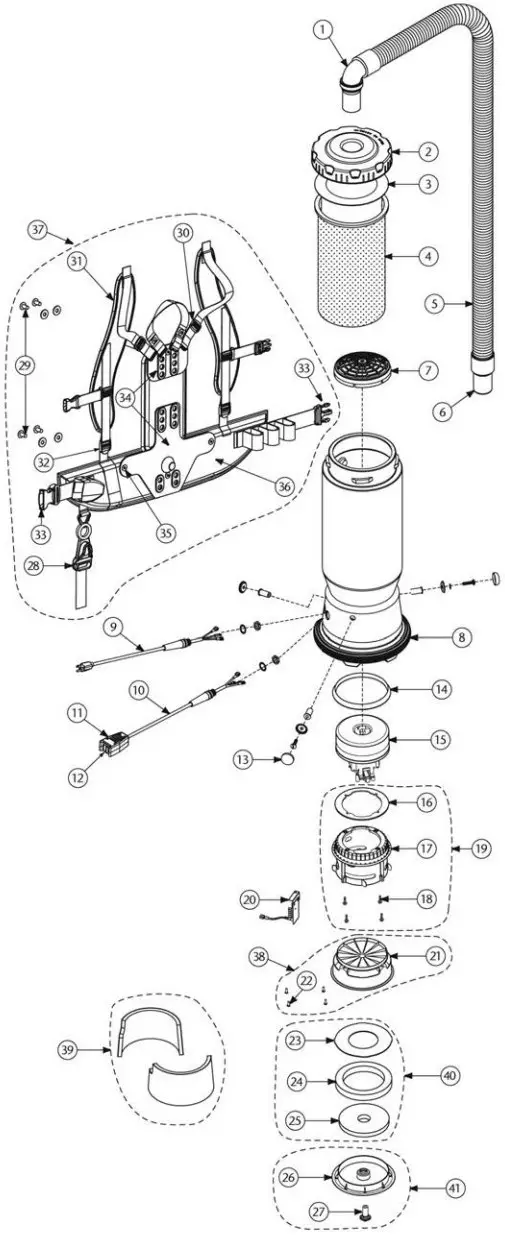

QUIETPRO BP PARTS
| No. 1 101928 | Product Name Replacement Double Swivel Elbow Cuff | Qty 1 ea. | List Price $ 13.13 |
| 2 104273 | Twist Cap (Black) | 1 ea. | 41.79 |
| 3 100431 | Intercept Micro Filter | 10/pk | 20.49 |
| 4 100564 | Micro Cloth Filter | 1 ea. | 35.40 |
| 5 107648 | 48″ Static-Dissipating Hose w/ | 1 ea. | 39.67 |
| Non-Replaceable Elbow and Straight Cuffs | |||
| 6 100694 | Replacement Double Swivel Straight Cuff | 1 ea. | 7.83 |
| 7 106526 | Dome Filter made from HEPA Media | 1 ea. | 19.41 |
| 8 100586 | Bottom Bumper | 1 ea. | 10.47 |
| 9 100641 | Power Cord Assembly Complete | ||
| w/Strain Relief | 1 set | 27.55 | |
| 10 105748 | Switch Cord Assembly Complete for QuietPro | 1 set | 53.43 |
| 11 106287 | Switch Box w/Velcro and Screws | 1 set | 25.51 |
| 12 105973 | On/Off Switch | 1 ea. | 28.17 |
| 13 100368 | Motor Mounting System Set: 3 Well Nuts, | 1 set | 18.99 |
| 3 Bolts, 3 Washers, 3 Covers | |||
| 14 100014 | Motor Gasket | 1 ea. | 17.12 |
| 15 105722 | 2 Stage 120V Motor (includes: 16) | 1 set | 183.45 |
| 105697 | Carbon Brush Set (Domel) | 1 set | 30.37 |
| 100424 | Carbon Brush Set (Ametek) | 1 set | 30.37 |
| 16 105605 | Motor Cap Gasket | 1 ea. | 9.07 |
| 17 105149 | Motor Cap | 1 ea. | 25.51 |
| 18 100378 | Self Tapping Screw, 10-32 x 3/4″ | 4/pk | 4.29 |
| 19 105619 | Motor Mount Assembly (includes: 16-18) | 1 set | 46.86 |
| 20 105653 | Dual Speed Module and Schematic | 1 ea. | 91.91 |
| with Thermal Protector | |||
| 21 105150 | Exhaust Housing, Motor | 1 ea. | 19.73 |
| 22 104419 | Hi/Lo Phillips Screw, #8 x 1/2″ | 1 ea. | 0.48 |
| 23 105337 | Large Motor Housing Ring | 1 ea. | 20.15 |
| 24 105342 | Motor Housing Foam Ring | 1 ea. | 24.66 |
| 25 105343 | Motor Housing Foam Cover | 1 ea. | 17.28 |
| 26 105341 | Motor Housing Cover | 1 ea. | 16.85 |
| 27 105613 | Motor Mount | 1 ea. | 9.87 |
| 28 510738 | Cord Holder | 1 ea. | 3.87 |
| 29 100716 | Backplate (Blk) Connection Set: 4 Screws | 1 set | 18.99 |
| w/Washers | |||
| 30 100358 | Shoulder Strap Plastic Adjustment (Top) | 1 ea. | 1.46 |
| 31 100356 | Shoulder Strap Assembly (includes: 30, 32) | 1 set | 24.69 |
| 100354 | Strap Assembly Complete (includes: 31, 36) | 1 set | 75.96 |
| 32 100357 | Shoulder Strap Plastic Adjustment (Bottom) | 1 ea. | 1.46 |
| 33 106719 | Waist Belt Keeper and Latch | 1 ea. | 17.22 |
| 34 105046 | Backplate (includes: 35) | 1 set | 37.98 |
| 35 100375 | Barrel Nut Connection Set for Backplate | 1 set | 8.57 |
| (Replacement) | |||
| 36 100359 | Waist Belt (includes: 33) | 1 ea. | 56.95 |
| 37 103166 | Backplate System Complete | 1 set | 94.94 |
| (includes: 28-36) | |||
| 38 105620 | Exhaust Motor Housing Kit for QuietPro | 1 set | 46.86 |
| (includes: 21, 22) | |||
| 39 105621 | Acoustical Panels Foam Kit | 1 set | 73.82 |
| 40 105622 | Exhaust Foam and Ring Kit (includes: 23-25) | 1 set | 52.60 |
| 41 105623 | Exhaust Cover Kit for QuietPro (includes: 26, 27) | 1 set | 24.66 |
| 101678 | 50′ Extension Cord (Not Shown) | 1 ea. | 48.66 |
