ProTeam 10769 GoFit Telescoping Wand Kit
ProTeam GoFitTM 6 / GoFit 6 PLUS
The ProTeam GoFitTM series includes the GoFit 6 and the GoFit 6 PLUS commercial vacuum cleaners which offer comfort and productivity through their high-level filtration and quick-adjust harness. The GoFit 6 PLUS features a filter change indicator light that shows when the filter needs to be checked or changed.
Specifications
- Ergonomic design
- Quick-adjust harness
- 14” Xover floor tool
- Telescoping wand
- 5” upholstery tool
- 3” dust brush
- 17” crevice tool
- Filter indicator light (GoFit 6 PLUS only)
- ProLevel Filtration System with HEPA Media
- Captures 99.82% at 0.3-.5 microns per ASTM F3150
- 12 lbs. / 5.44 kg.
- 153 CFM
- 91 in. static lift
- 1330 W / 11.7 A
- 67.9 dBA
- 6 qt. / 6,6 L
- 1054 sq. in. total area
Parts
The following parts are available for the GoFit series vacuum cleaners:
| No. | Product Name | Qty | List Price |
|---|---|---|---|
| 1A | Replacement Double Swivel Elbow Cuff | 1 ea. | $13.13 |
| 1B | Replacement Double Swivel Straight Cuff | 1 ea. | $7.83 |
| 2 | 48 Static-Dissipating Hose (GoFit 6 PLUS) | 1 ea. | $39.67 |
| 31 | Yellow Cord Guide w/ Screws | 1 ea. | $37.92 |
| 32 | Fastener Package | 1 ea. | $7.83 |
| 101678 | 50′ Extension Cord (Not shown) | 1 ea. | $48.66 |
Product Usage Instructions
- Attach the appropriate tool to the telescoping wand.
- Adjust the harness to fit comfortably on your body.
- Plug in the vacuum cleaner and turn it on.
- Begin cleaning the desired area by moving the vacuum cleaner back and forth over the surface.
- If the filter change indicator light on the GoFit 6 PLUS turns on, check the filter and replace it if necessary.
- After use, unplug the vacuum cleaner and store it in a safe place.
- Clean or replace any parts as needed to maintain optimal performance.
Standard Configuration
- 14” Xover Floor Tool
- Telescoping Wand
- 5” Upholstery Tool
- 3” Dust Brush
- 17” Crevice Tool
Related Products
- 107314 Intercept Micro Filters, 10/pk (open collar) $22.58
- 107374 Intercept Micro Filters, 10/pk (closed collar) 28.59
GoFit 6 Optional Configurations
- 107697 w/Xover Two-Piece Wand Tool Kit B (107098) $710
- 107698 w/ProBlade Carpet Floor Tool Kit (107530) 710
- 107699 w/ProBlade Carpet and Hard Surface Floor Tool Kit (107532) 785
- 107700 w/15” Carpet Sidewinder Kit A (106820) 725
- 107701 w/18” Carpet Sidewinder Kit B (106841) 755
- 107702 w/15” Carpet and Hard Surface Sidewinder Kit C (107463) 795
- 107703 w/Remediation Kit (107466) 775
- 107704 w/Pest Management Tool Kit (103439) 935
- 107736 w/Xover Performance Telescoping Wand Tool Kit C (107099) 710
- 107749 w/Two-Piece Wand (101338) and Xover Tool (107016) 685
- 107750 w/Telescoping Wand (107628) and Xover Tool (107016) 690
GoFit 6 PLUS Optional Configurations
- 107706 w/Xover Two-Piece Wand Tool Kit B (107098) $750
- 107707 w/ProBlade Carpet Floor Tool Kit (107530) 750
- 107708 w/ProBlade Carpet and Hard Surface Floor Tool Kit (107532) 825
- 107709 w/15” Carpet Sidewinder Kit A (106820) 770
- 107710 w/18” Carpet Sidewinder Kit B (106841) 795
- 107711 w/15” Carpet and Hard Surface Sidewinder Kit C (107463) 835
- 107712 w/Remediation Kit (107466) 815
- 107737 w/Xover Performance Telescoping Wand Tool Kit C (107099) 750

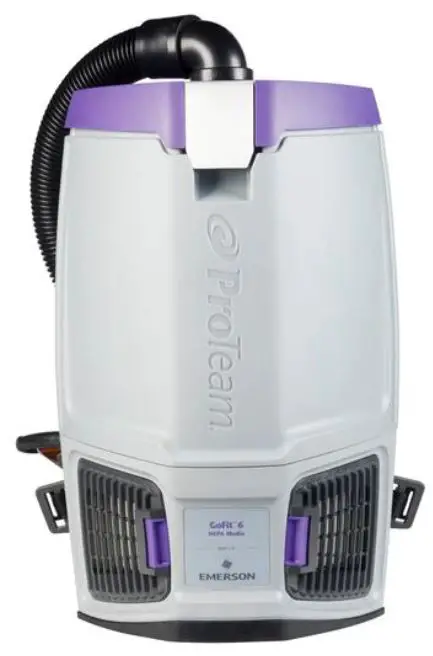

ProTeam GoFit™ 6 / GoFit 6 PLUS
10769 GoFit 6 w/Xover Telescoping Wand Kit D (107100) $710
107705 GoFit 6 PLUS w/Xover Telescoping Wand Kit D (107100) $750
ProTeam’s latest commercial vacuum cleaner series includes the GoFit 6 and the GoFit 6 PLUS. Both offer unparalleled productivity and comfort experienced in the quick-adjust harness and high-level filtration. And, unique to the 6 PLUS is a filter change indicator light that shows when there’s a clog or when the filter needs to be checked/changed.
Product Specifications
- Weight: 12 lbs. / 5.44 kg.
- Motor Airflow: 153 CFM
- Static Lift: 91 in.
- Motor: 1330 W / 11.7 A
- Decibel: 67.9 dBA
- Capacity: 6 qt. / 6,6 L
- ProLevel Filtration® w/Four Levels of Filtration: 1054 sq. in. total area
ProLevel Filtration System with HEPA Media
Captures 99.82% at 0.3-.5 microns per ASTM F3150
Limited Warranty
- 3 years parts, labor and motor on vacuum
- Limited lifetime on molded body parts

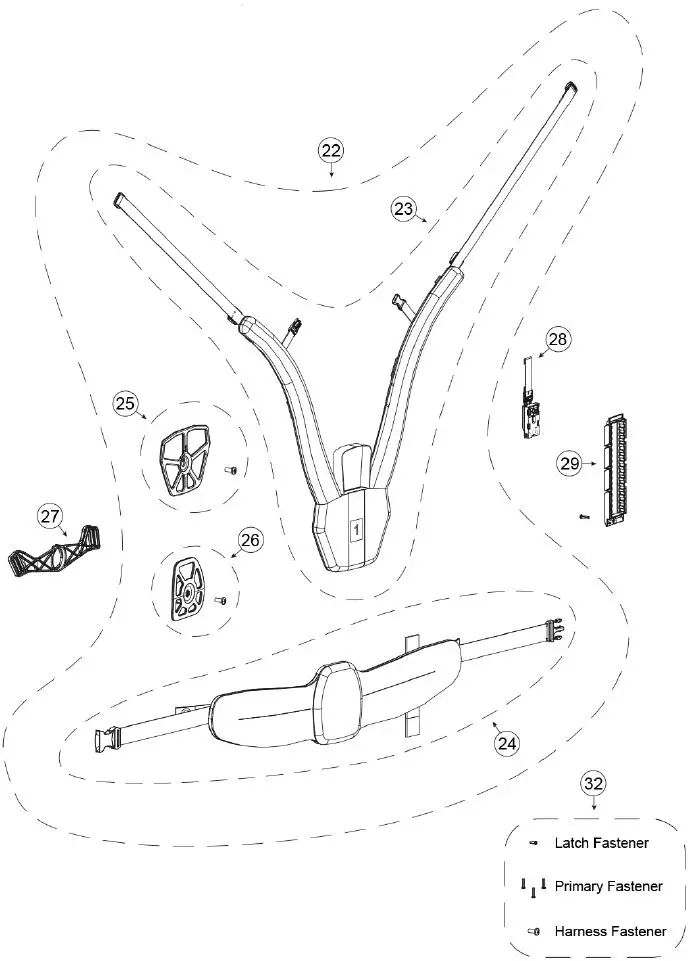

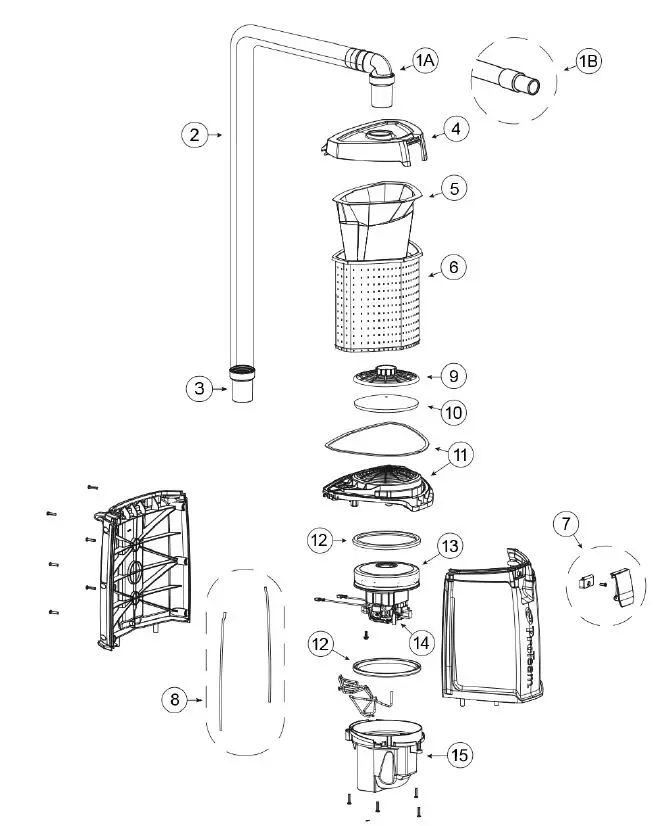

GOFIT 3, 6, 6 PLUS & 10 PARTS
| No. | Product Name | Qty List Price | |
| 1A | 101928 | Replacement Double Swivel Elbow Cuff | 1 ea. 13.13 |
| 1B | 100694 | Replacement Double Swivel Straight Cuff | 1 ea. 7.83 |
| 2 | 107648 | 48″ Static-Dissipating Hose | 1 ea. 39.67 |
| w/Non-Replaceable Elbow and Straight Cuffs | |||
| 100505 | 48″ Static-Dissipating Hose w/ Straight Cuffs | 1 ea. 37.92 | |
| 3 | 100694 | Replacement Double Swivel Straight Cuff | 1 ea. 7.83 |
| 4 | 843694 | Purple Cap | 1 ea. 36.47 |
| 5 | 107313 | Intercept Micro Filter (GoFit 10) | 10/pk 27.32 |
| 107314 | Intercept Micro Filter (GoFit 6) | 10/pk 22.58 | |
| 107666 | Intercept Micro Filter (GoFit 3) | 10/pk 19.67 | |
| 6 | 834000 | Micro Cloth Filter (GoFit 10) | 1 ea. 42.86 |
| 834072 | Micro Cloth Filter (GoFit 6) | 1 ea. 35.40 | |
| 843966 | Micro Cloth Filter (GoFit 3) | 1 ea. 32.25 | |
| 7 | 510779 | Latch Assembly Complete w/ Retainer and Screw | 1 ea. 8.74 |
| 8 | 834035-5 | Gasket Tank 10 QT | 2 ea. 3.68 |
| 834035-3 | Gasket Tank 6 QT | 2 ea. 3.68 | |
| 834035-4 | Gasket Tank 3 QT | 2 ea. 3.68 | |
| 9 | 510183 | Dome Filter w/ Foam Media (includes: 10) | 1 set 11.43 |
| 10 | 510184 | Foam Filter Media for Dome Filter | 1 ea. 3.48 |
| 11 | 510777 | Upper Motor Support w/ Gasket | 1 ea. 16.94 |
| 12 | 510780 | Motor Gaskets Upper and Lower | 1 ea. 4.77 |
| 13 | 844193 | Motor Assembly 1300W | 1 ea. 158.22 |
| 844545 | Motor Assembly with Lead (GoFit 6 PLUS) | 1 ea. 162.96 | |
| 14 | 841933 | Carbon Brush Set | 2 ea. 30.37 |
| 15 | 510781 | Lower Motor Support w/ Screws | 1 set 11.03 |
| 16 | 510776 | Cover Wire w/ Screws | 1 set 5.36 |
| 17 | 843963 | Upper Foam Pad | 1 ea. 3.80 |
| 18 | 843964 | Lower Foam Pad | 1 ea. 3.76 |
| 19 | 510778 | Lower Housing Assembly w/ Screws | 1 set 25.01 |
| 20 | 844488 | Exhaust Filter Made from HEPA Media | 2 ea. 16.73 |
| 21 | 843848 | Exhaust Filter Door | 1 ea. 9.24 |
| 22 | 844073 | Harness Complete Assembly | 1 ea. 101.36 |
| 23 | 844665 | Upper Harness Assembly | 1 ea. 51.03 |
| 24 | 843939 | Lower Harness Assembly | 1 ea. 49.93 |
| 25 | 510771 | Upper Harness Plate w/ Screw | 1 ea. 9.01 |
| 26 | 510772 | Lower Harness Plate w/ Screw | 1 ea. 9.15 |
| 27 | 843842 | Lower Harness Articulating Arm | 1 ea. 7.42 |
| 28 | 843947 | Harness Quick Adjuster Assembly | 1 ea. 8.54 |
| 29 | 510773 | Harness Quick Adjust Holder w/ Screw (GoFit 10) | 1 set 7.54 |
| 510774 | Harness Quick Adjust Holder w/ Screw (GoFit 6) | 1 set 7.54 | |
| 510775 | Harness Quick Adjust Holder w/ Screw (GoFit 3) | 1 set 7.54 | |
| 30 | 844156 | Switch Box Assembly | 1 ea. 47.44 |
| 844156-2 | Switchbox Assembly w/ Internal Electronics | 1 ea. 77.28 | |
| (GoFit 6 PLUS) | |||
| 31 | 510782 | Yellow Cord Guide w/ Screws | 1 ea. 9.98 |
| 32 | 510783 | Fastener Package | 1 ea. 4.59 |
| 101678 | 50′ Extension Cord (Not shown) | 1 ea. 48.66 |
Highlighted SKUs are shared parts with Super Coach Pro 6/10 vacuums
The filtration value of ProTeam’s ProLevel Filtration System in this vacuum is achieved by the use of a multi-stage filtration system, including intercept micro filter, micro cloth filter, plastic cage with foam filter, and post-motor filter made from HEPA media, as tested per ASTM F3150. Specification calculations are based on average motor performance.
