Laserliner ‎090.122a Telepod Plus 330cm Telescopic Fixing Pole Instruction Manual

Laserliner ‎090.122A TelePod Plus 330cm Telescopic Fixing Pole

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

OVERVIEW

Function / application

• High-quality telescopic stand with bracket
• Allows working position to be changed quickly

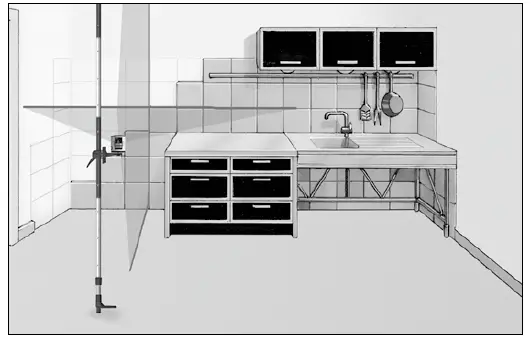

• Ideal for working close to floor/ceiling level
• For all laser measuring devices with 1/4“ thread

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• Avoid moisture and sand, clean thoroughly after use.
• Take care not to pinch your fingers when folding the tripod into the transport position.
• Set up the tripod as perpendicularly as possible on firm ground: risk of toppling.
• Only use suitable instruments with 1/4“ connection up to the maximum load capacity.
• Do not set up the tripod on unsecured roads: risk of an accident.
• Before transporting or storing, instruments must be removed from the tripod and the tripod folded into the transport position.

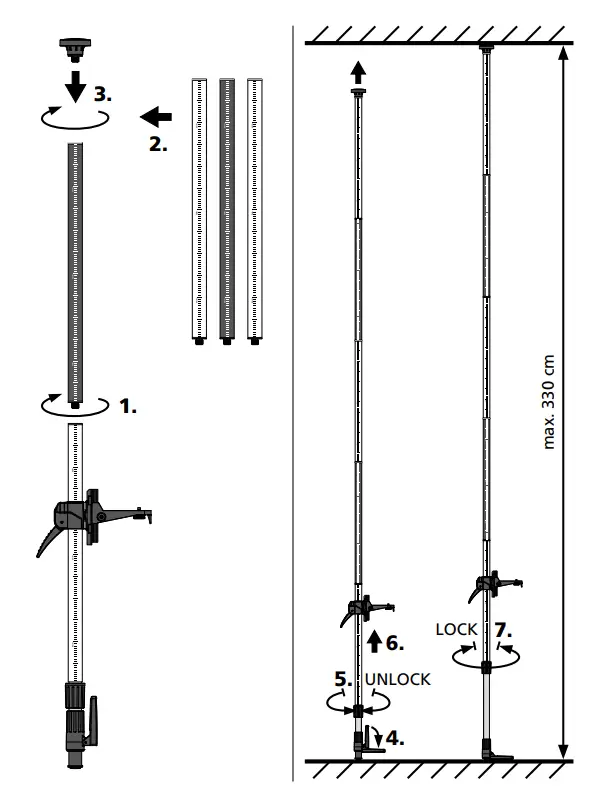

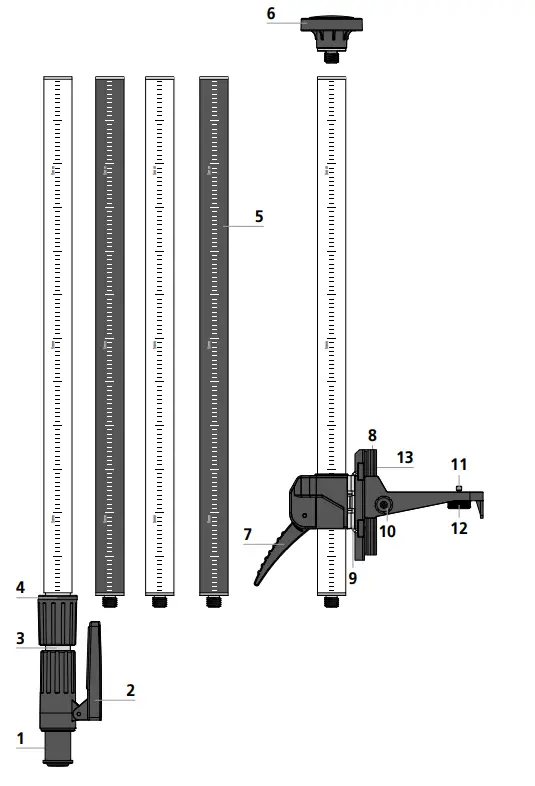

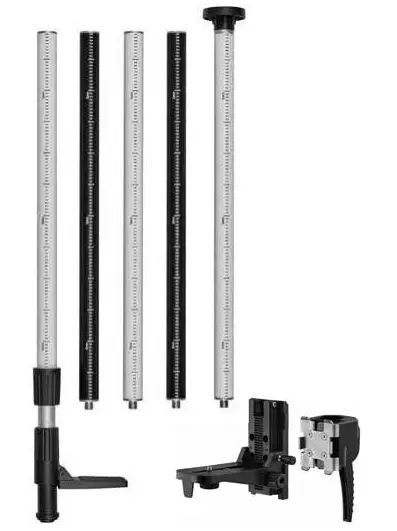

Device description

1. Flexible stand foot
2. Pedal for tensioning the spring
3. Telescopic extension
4. Lock / Unlock
5. Telescopic pole with 5 mm pitch
6. End cap
7. Locking lever
8. Lock screw Fast adjustment (backside)
9. Powerful magnets
10. Fast adjustment
11. 1/4“ thread
12. 1/4“ fastening screw
13. Eyelet for mounting on the wall

Mounting on a wall

• The lugs (13) facilitate direct mounting on walls.

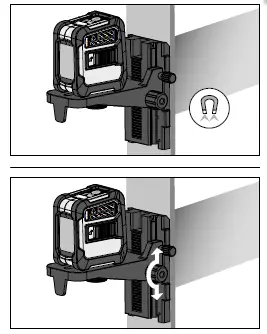

Mounting on magnetic objects

• The powerful magnets (9) at the rear allow the bracket to be fixed to magnetic objects.

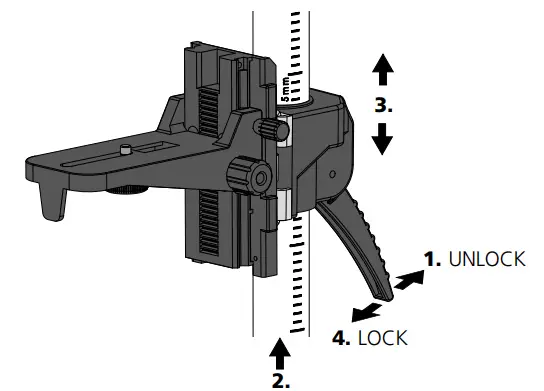

Fast adjustment

• The fast adjustment function allows the device to be positioned in height step by step on the bracket.

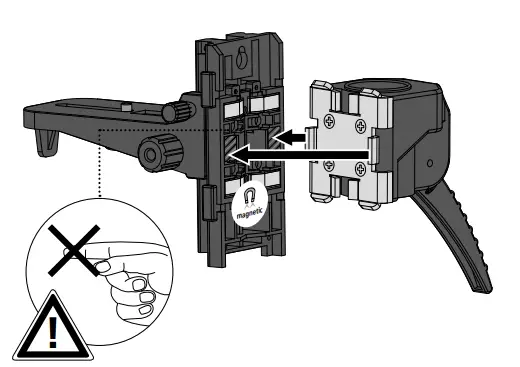

Danger: powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemakers) as well as electromechanical devices (e.g. magnetic, cards, mechanical clocks, precision mechanics, hard disks). With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14] „electromagnetic fields“ (occupational health and safety – electromagnetic fields) in the Federal Republic of Germany.M, To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Information on maintenance and care

• Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU. Mechanical devices, accessories and packaging should be recycled in an environmentally appropriate process to recover valuable raw materials.Please contact your municipal authority for information on corresponding disposal facilities and comply with the disposal and safety information at the collection sites.

Please also observe our updated additional notices on the Internet at: http://laserliner.com/info?an=AJA
