Laserliner 080 24 VarioStand L 300 cm Telescopic Stand
Function / application

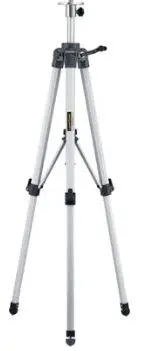

Variable crank tripod with adapter for mounting devices with 1/4 and 5/8 thread. Special rubber steel combination tips the tripod can be easily adapted to different surfaces.
General safety instructions
- The device must only be used in accordance with its intended purpose and within the scope of the specifications.
- Keep out of reach of children.
- The structure of the device must not be modified in any way.
- Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
- Take care not to pinch your fingers when folding the tripod into transport position.
- Do not set up the tripod on unsecured roads: risk of accident.
Instructions for use
- Avoid moisture and sand, clean thoroughly after use.
- Set up the tripod as perpendicular as possible on firm ground: risk of toppling.
- Align to centre of gravity: risk of toppling.
- Under unfavourable wind conditions, an additional weight can be attached to stabilise the tripod not included in scope of delivery.
- Only use suitable instruments with 1/4 or 5/8 connection up to the maximum load capacity.
- Before transporting or storing, instruments must be removed from the tripod and the tripod folded into the transport position.
Device description

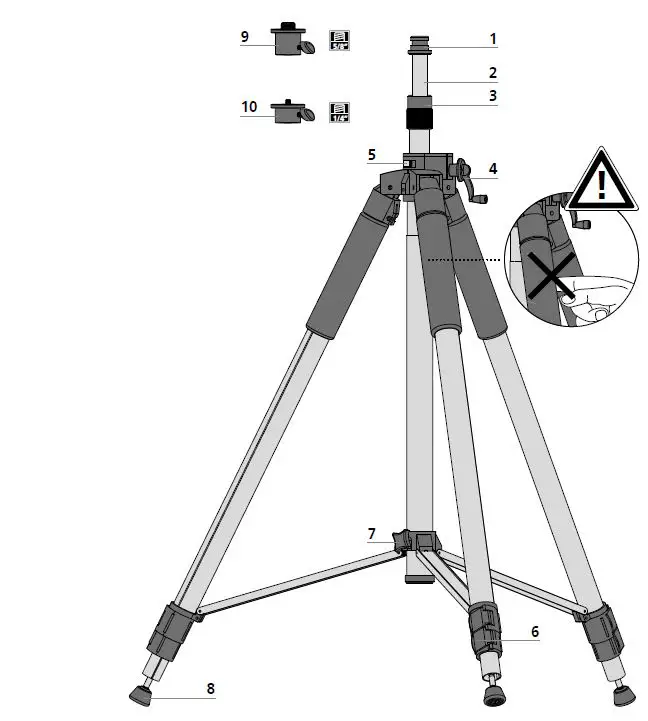

- Mount for thread adapter.
- Centre column.
- Adjustment of the centre tripod column.
- Crank height adjustment.
- Fixing the centre column.
- Quick-release lock for adjusting the tripod legs.
- Locking screw for fixing the tripod legs.
- Rubber steel tips.
- 5/8 thread adapter.
- 1/4 thread adapter.
Information on use

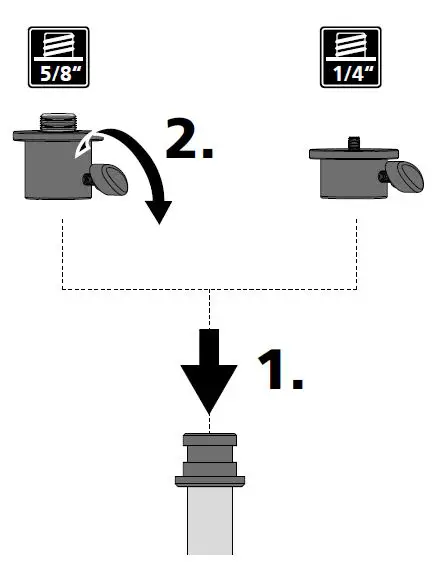

To change the thread adapter

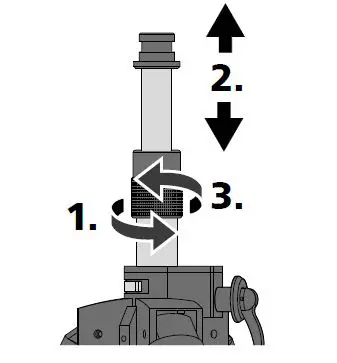

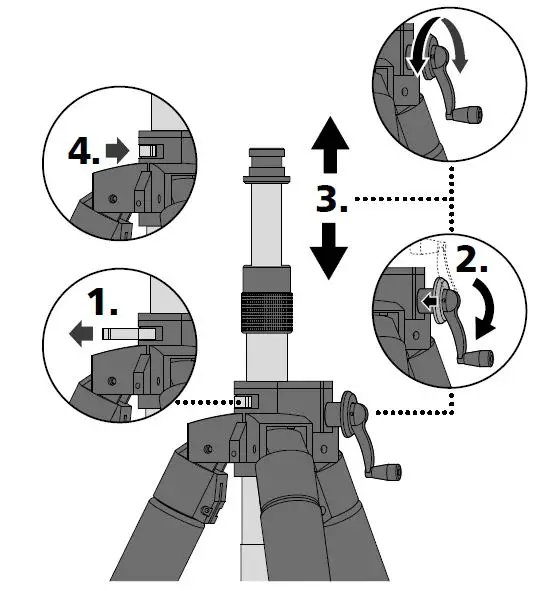

To adjust the centre column

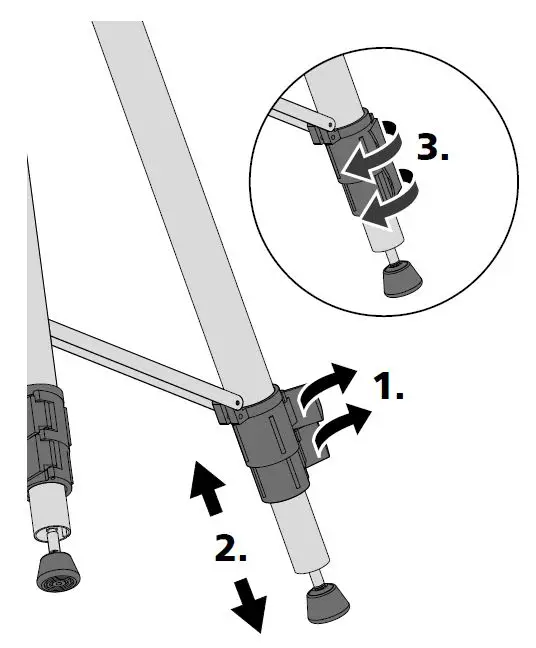

To extend the tripod legs

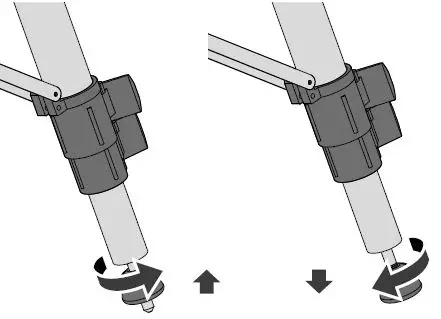

To change the combination tips

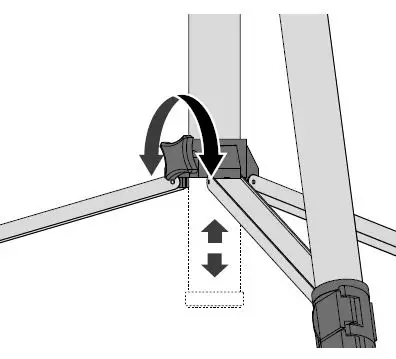

Locking/releasing tripod legs
Information on maintenance and care
Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.
Technical data Subject to technical alterations 19W03
| Technical data Subject to technical alterations. 19W03 | |
| Max. height | 300 cm |
| Min. height | 98 cm |
| Max. load capacity | 6 kg |
| Operating conditions | -20…60°C, max. humidity 80% rH, no condensation |
| Storage conditions | -20 to 70°C, max. humidity 80% rH |
| Weight not including adapter | 4,3 kg |
| Dimensions W x H x D | 140 x 1000 x 140 mm |
EU directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU. Further safety and supplementary notices at: http://laserliner.com/info?an=AHF
