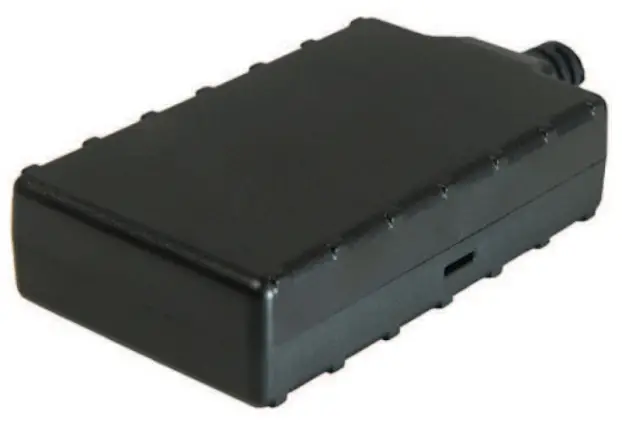

CalAmp LMU-330 GPS Vehicle Tracker

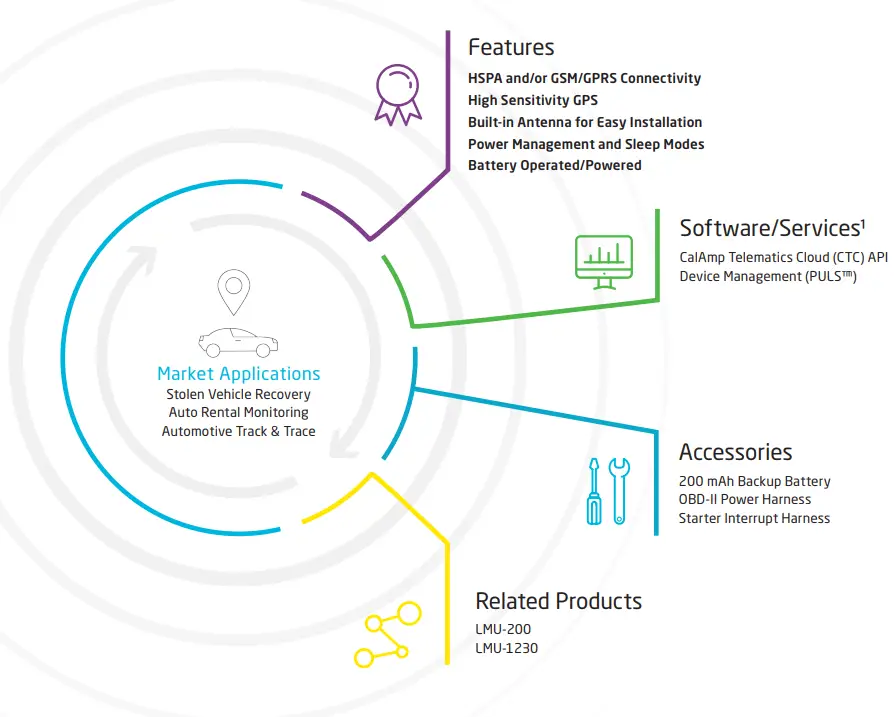

A Robust Vehicle Tracker with A Compact Size, Essential I/O Capability, Built for Simple and Discrete Installation The LMU-330™ is an economical, low powered vehicle tracking device designed for inexpensive and hidden installation. An ideal solution for stolen vehicle recovery, auto rental and other automotive track and trace applications, the LMU-330 utilizes CalAmp’s PEG™ engine coupled with essential I/O capability to deliver accurate data about vehicle location and status.

LMU-330™ Technical Specifications

Cellular/Network

Americas Variant
HSPA/UMTS: 850 (V)/1900 (II) MHz
GSM/GPRS: 850/1900MHz

Global Variant
GSM/GPRS: 850/900/1800/1900 MHz

Data Support

SMS, GPRS, UDP Packet Data

Satellite Location (GNSS)

• Constellation Support: Hybrid GPS, GLONASS, SBAS Engine (WAAS, EGNOS, MSAS)
• Channels: 56 Channel
• Tracking Sensitivity: 162 dBm
• Acquisition Sensitivity: 148 dBm
• Location Accuracy: ~2.0m CEP Open Sky (SBAS 24 hours static)
• Location Update Rate: Up to 4 Hz

Comprehensive I/O

• Digital Inputs: Up to 2 fixed bias
• Digital Outputs: Up to 2 optional open collector (150 mA)
• Accelerometer: Built-in, triple-axis (motion sensing, tilt detection)
• Analog Inputs: 1 internal VCC monitor
• Status LEDs: 2 (GPS, cellular)

Certifications

• Industry Certifications: FCC, CE, IC, PTCRB, RoHS

Cloud/Software Services¹

• PULS™: Monitor, manage, upgrade firmware, configure and troubleshoot devices remotely
• CTC: Device data stream via RESTful APIs

Edge Intelligence¹

• PEG™: Behavioral Scripting (8-bit support)

Electrical

• Operating Voltage: 12/24 VDC Vehicle Systems 9-32 VDC (start-up, operating) 7-32 VDC (momentary)
• Power Consumption: Typical <2mA @ 12V (deep sleep) Typical <10mA @ 12/24V (radio-active sleep) Typical <20mA @ 12V (radio-active) Typical <60mA @ 12V (continuous transmit)

Environmental

• Temperature: – 30° to +70° C (connected to primary power) – 40° to +80° C (storage)
• Humidity: 95% RH @ 50° C non-condensing
• Shock and Vibration: U.S. Military Standards 202G, 801G, SAEJ1455
• ESD: SAE J1113, FCC-Part 15B

Physical/Design

• Dimensions: 1.84 x 3.3 x 0.78” (46.5 x 83.6 x 19.4 mm) (without harness)
• Weight: 3.1 oz. (87 g) (with harness)

Connectors/SIM Access

• Connection Type: Captive wire harness in 2 wire, 4 wire, 6 wire configurations
• GPS Antenna: Internal
• Cellular Antenna: Internal
• Internal: Internal (2FF SIM)

Internal (2FF SIM)

• 200 mAh or 1000 mAh backup battery
• Starter interrupt harness
• ODB-II harness

¹ Subscription service enabled. Contact sales rep for additional details.
