LMU-1230 Standard Single Mode GPS Tracker
User Guide
LMU-1230 Standard Single Mode GPS Tracker
A Cost Effective, Compact Vehicle Tracker with
Essential I/O Capability and Ease of Installation

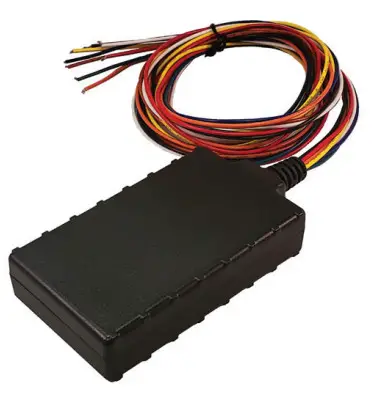

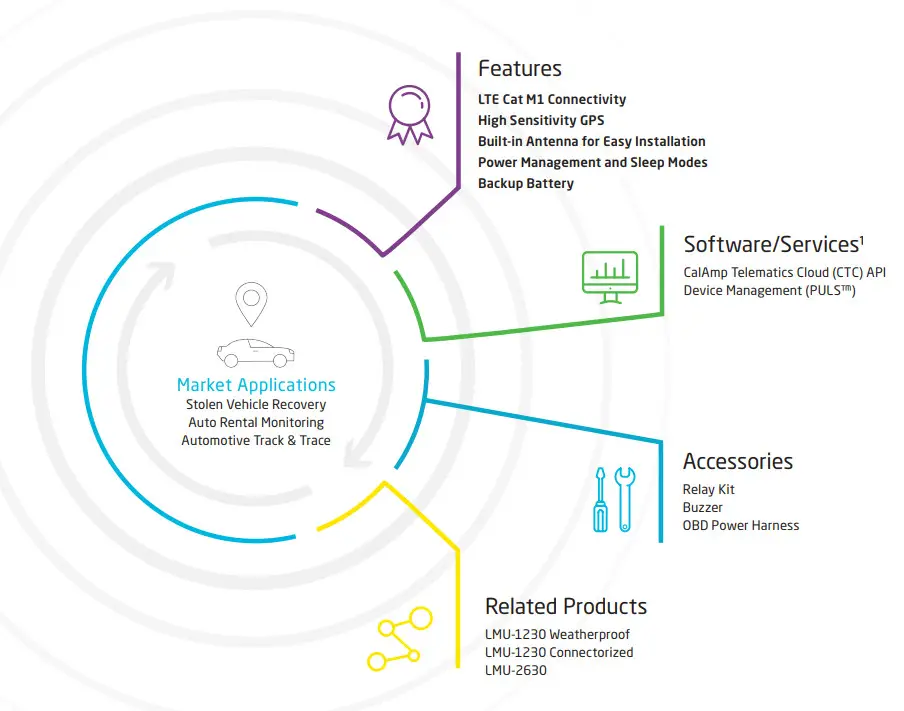

The LMU-1230™ is an economical, low-powered vehicle tracking device designed for hidden installations.
An ideal solution for stolen vehicle recovery, auto rental, and other automotive track and trace applications, the LMU-1230 utilizes CalAmp’s PEG™ engine and GPS for vehicle location and status.
LMU-1230™ Technical Specifications
Cellular/Network
North American Variant I
LTE Cat M1-1900 (B2)/AWS 1700 (B4)/700 (B12)* MHz
North American Variant II
LTE Cat M1-AWS 1700 (B4)/700 (B13) MHz
Data Support
SMS, UDP Packet Data
Satellite Location (GNSS)
| Constellation Support | GPS, GLONASS, SBAS Engine (WAAS, EGNOS, MSAS, GAGAN) |
| Channels | 55 Channel |
| Tracking Sensitivity | -167 dBm |
| Acquisition Sensitivity | -157 dBm (hot start) -148 dBm (cold start) |
| Location Accuracy | ~2.0m CEP Open Sky (GPS SBAS 24 hours static) |
| Location Update Rate | 1 Hz |
| AGPS Location assistance capable | |
Comprehensive I/O
| Ignition Input | 1 fixed bias |
| Digital Inputs | 2 (high/low selectable 0-32 VDC) |
| Digital Outputs | 3 (open collector relay 150mA) |
| Accelerometer | Built-in, triple-axis (motion sensing, tilt detection) |
Certifications
| Industry Certifications | FCC, IC, PTCRB |
Cloud/Software Services¹
| PULS™ | Monitor, manage, upgrade firmware, configure and troubleshoot devices remotely |
| CTC | Device data stream via RESTful APIs |
Edge Intelligence¹
| PEG™ | Behavioral Scripting (8-bit support) |
Electrical
| Operating Voltage | 12/24 VDC Vehicle Systems 9-32 VDC (startup, operating) 7-32 VDC (momentary) |
| Power Consumption | Typical 750 uA @ 12V (deep sleep) Typical 12 mA @ 12V (radio-active sleep/idle) Typical 40 mA @ 12V (active tracking w/GPS and cell enabled) |
Battery Pack
| Battery Capacity | 200 mAh |
| Battery Technology | Lithium-Ion |
| Charging Temperature | 0° to +45° C |
Environmental
| Temperature | -30° to +60° C (connected to primary power) -10° to +60° C (operating on internal battery) -20° to +25° C ≤ 6 months (long-term storage with battery) |
| Humidity | 95% RH @ 50° C non-condensing |
| Shock and Vibration | U.S. Military Standard 202G, 810F SAE J1455 |
| ESD | IEC 61000-4-2 (4KV test) |
Physical/Design
| Dimensions | 2.10 x 3.80 x .77” (53.4 x 96.6 x 19.5 mm) |
| Weight | 3.95 oz. (112 g) |
Connectors/SIM Access
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| SIM Access | Internal (2FF SIM) |
*Note: B17 is a subset of B12
¹ Subscription service enabled. Contact sales rep for additional details.
