citronic UBM-62 Miniature USB Boundary Microphone
Setting up

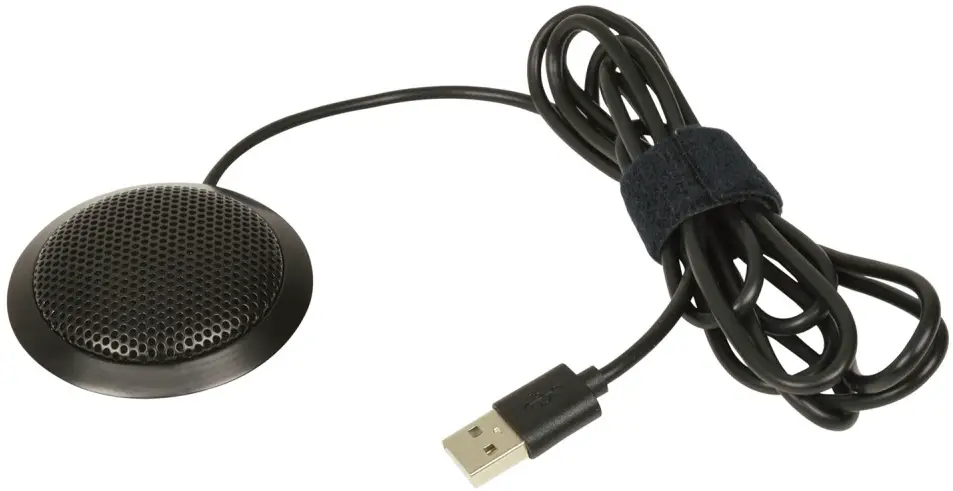

The UBM-62 is a miniature digital boundary microphone with a back-electret capsule, which is designed to be placed on or mounted to a flat surface for multi-directional sound pickup. The disc-shaped housing has a hard-wired USB lead, terminated with a type-A connector for data and power connection, which should be connected to an available USB port on the PC or Mac computer.
The computer will recognize the UBM-62 as a “USB PnP Sound Device” in the sound or audio settings.
Operation
Selecting the UBM-62 (“USB PnP Sound Device”) as the input device within the recording or streaming software will set the microphone as the input source. The UBM-62 can be disconnected and re-connected to USB as a hot-swappable device. Disconnect from USB after use to preserve the computer battery or power supply.
Specifications
| Capsule | Electret condenser |
| Polar pattern | Cardioid |
| Connection | USB A (power and digital audio) |
| Lead length | 1.8m |
| Frequency response | 20Hz – 20kHz |
| Sampling format | 16-bit |
| Sample rate | 44.1 / 48kHz |
| S/N ratio | 78dB |
| Sensitivity | -52dB |
| Dimensions | 19 x 62mmØ (microphone only) |
| Weight | 118g (microphone only) |
Disposal
The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed of with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
