COMICA STA-U1 Cardioid Condenser USB
Microphone User Manual

Foreword

Thanks for purchasing COMICA STA-U1

Main Features

16mm Cardioid Condenser Mic for Professional Studio Quality
48kHz/24bit Audio Recording, Intelligent Denoise
USB-C Digital Output Port, Plug and Play
Internal Pop Filter, Block Plosive Sounds
One-key Mute, Real-time Monitoring and Stepless Gain Control
Radiant RGB Light Design, Real-time Monitoring of Audio Dynamics
360° Rotatable Swing Mount, Detachable Desk Stand
Full Metal Material, Excellent Shielding Performance

Notice

Please purchase the corresponding USB-Lightning adapter cable/adapter by yourself When using with Lightning devices.

Please aim the front of the microphone at the sound source to get an excellent recording

Do not use the equipment in the vicinity of heat source or interference source, such as radiator, oven, refrigerator or air conditioner

The product belongs to high-precision instruments, please avoid falling, collision or pounding

Do not use the equipment in rain or in the damp environment to avoid short-circuit danger

Please keep the product in the dry environment

Tips

When used in computer, please follow the steps below:

Connect STA-U1 to the computer

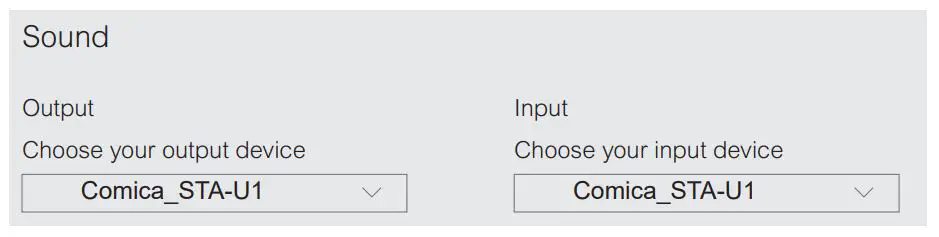

Click sound setting and set the “Comica_STA-U1” as the input and output device

Packing List

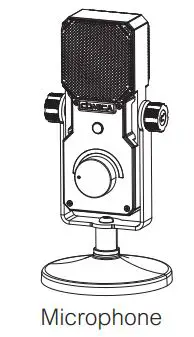

Main Part:

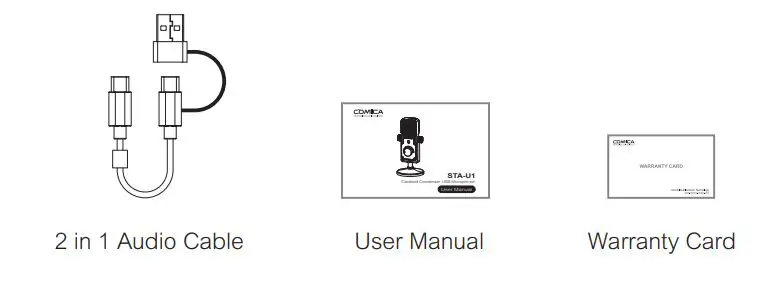

Accessories:

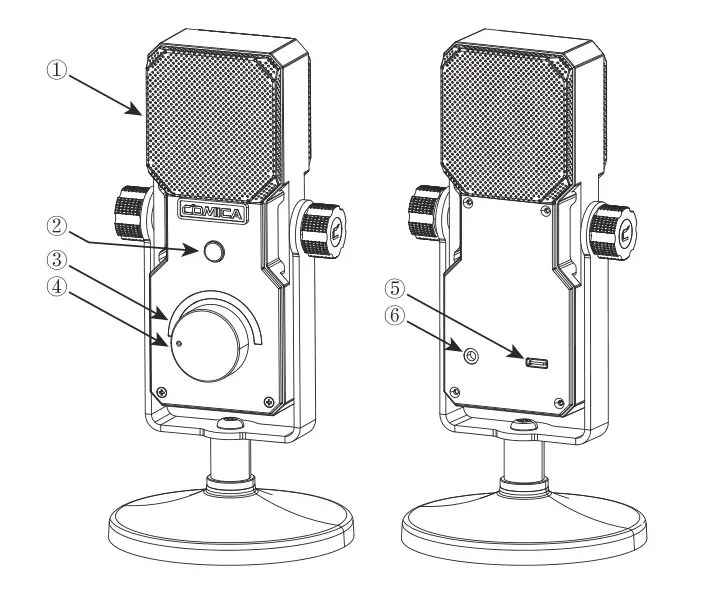

Components and Instruction

Microphone
Mute Button
Short press to switch mute; Blue light is on in normal state; Red light is on in mute state
Gain and Volume/Audio Dynamic Indicator
After rotating the gain and volume control knob, the blue light indicates the current gain and volume, and the RGB light shows the audio dynamics in real time after three seconds
Gain and Volume Control Knob
Adjust the microphone output gain and headphone monitoring volume
USB-C Audio Output Port
3.5mm TRS/TRRS Headphone Monitor Port
Support playback monitoring and real-time monitoring

Installation and Usage

Installation

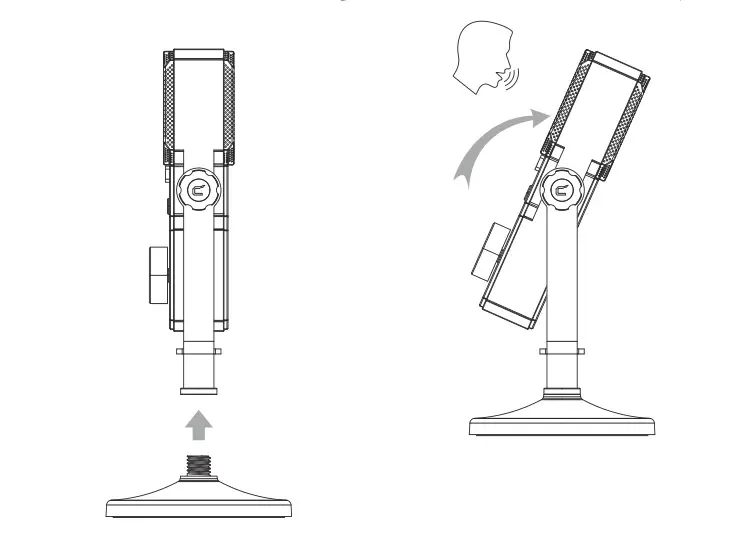

Work with the Round Base
Connect the microphone and the round base through the 3/8 threaded hole of the microphone; Adjust the angle of the microphone according to your needs
Work with the Suspension Boom Stand
Connect the microphone and the suspension boom stand through the 3/8 threaded hole of the microphone; Adjust the angle of the microphone according to your needs

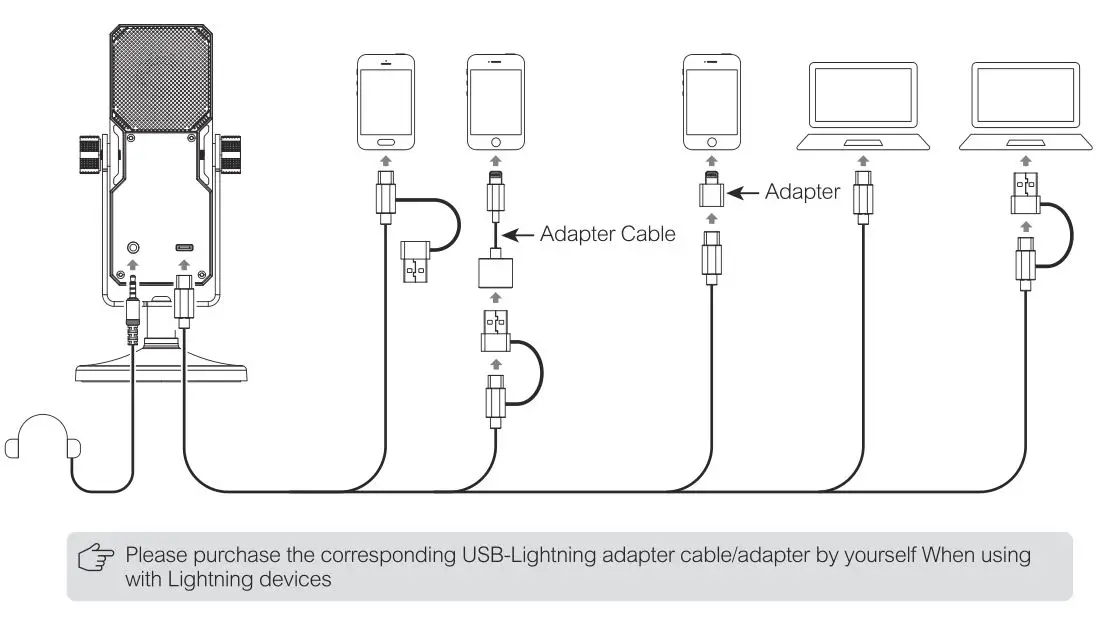

Usage

Connect the microphone with smartphone/computer through 2 in 1 Audio Cable and related audio adapter cable/adapter; Choose whether to monitor according to your needs
