COMICA CVM-V30 LITE Super Cardioid Condenser Lite Microphone

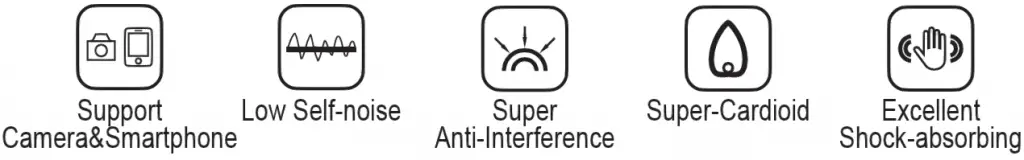

Main Features
- Super-Cardioid Polar Pattern
- Support Smartphone & Camera
- Excellent Shock Mount
- No Battery Drive Design
- Super Low Noise Electronics
- Super Anti-interference
- Cold-shoe Design with 1/4 Thread at the Bottom .Compact and Light, Easy to Carry
Package Content
- Microphone
- User Manual
- Warranty Card

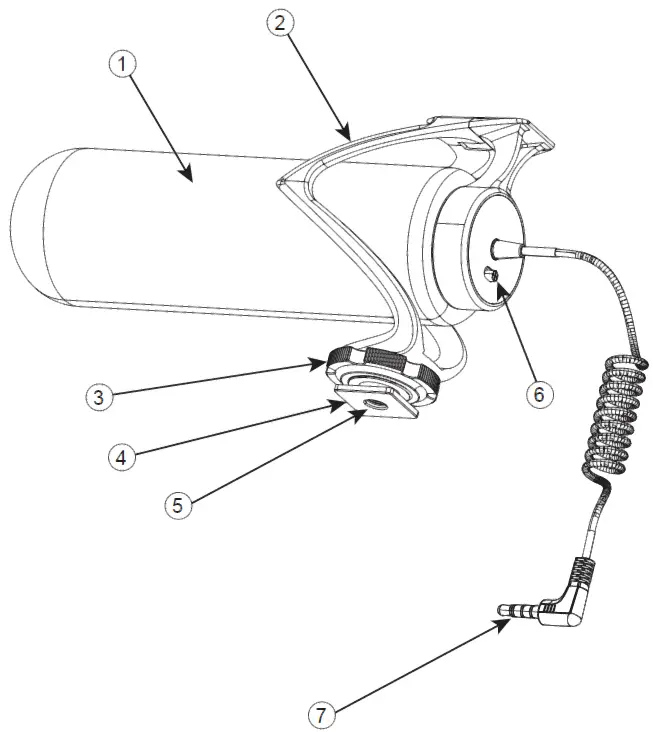

Components Introduction

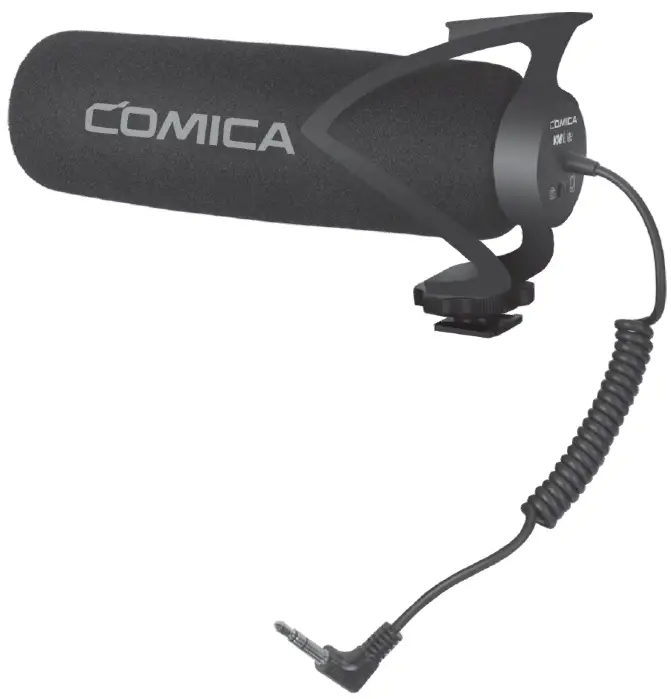

Microphone
- Microphone Interference Tube
- Shock Mount
- Locking Screw
- Cold-shoe Bracket
- 1/4 Screw Hole
- Smartphone/Camera switch
- 3.5mm Audio Output Line
Installation and Operation

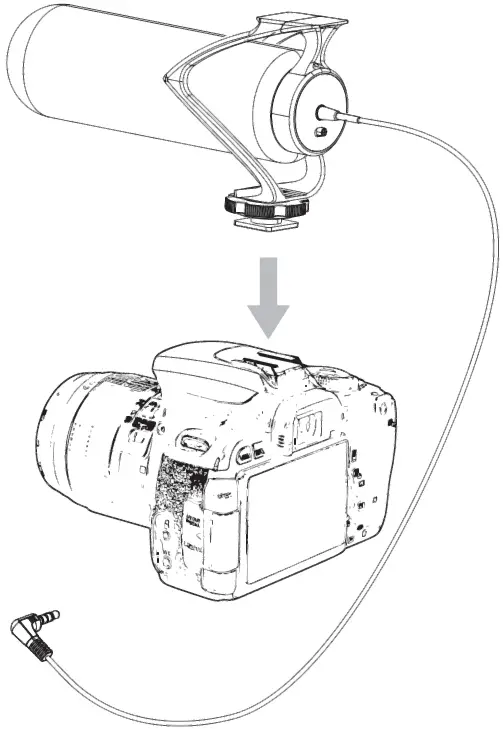

- Use with Camera
- Attach the microphone cold shoe bracket to the camera, fasten the Locking Screw.

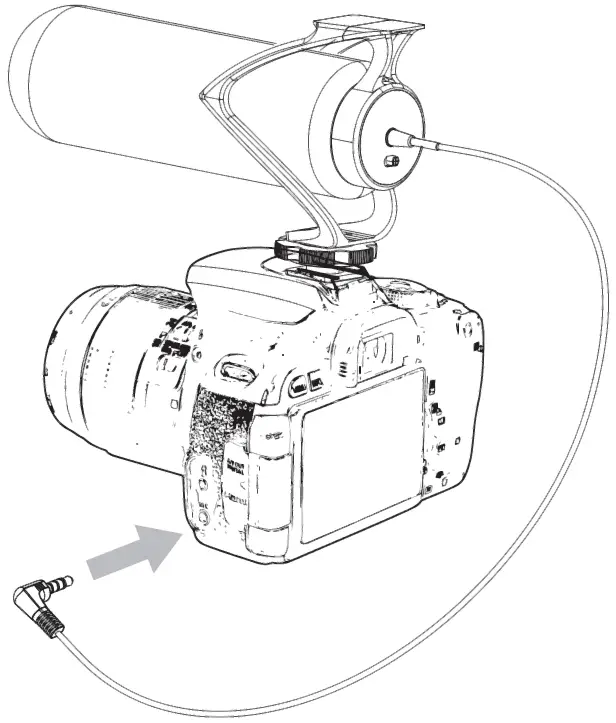

- Connect the microphone’s 3.5mm audio output line and Camera.

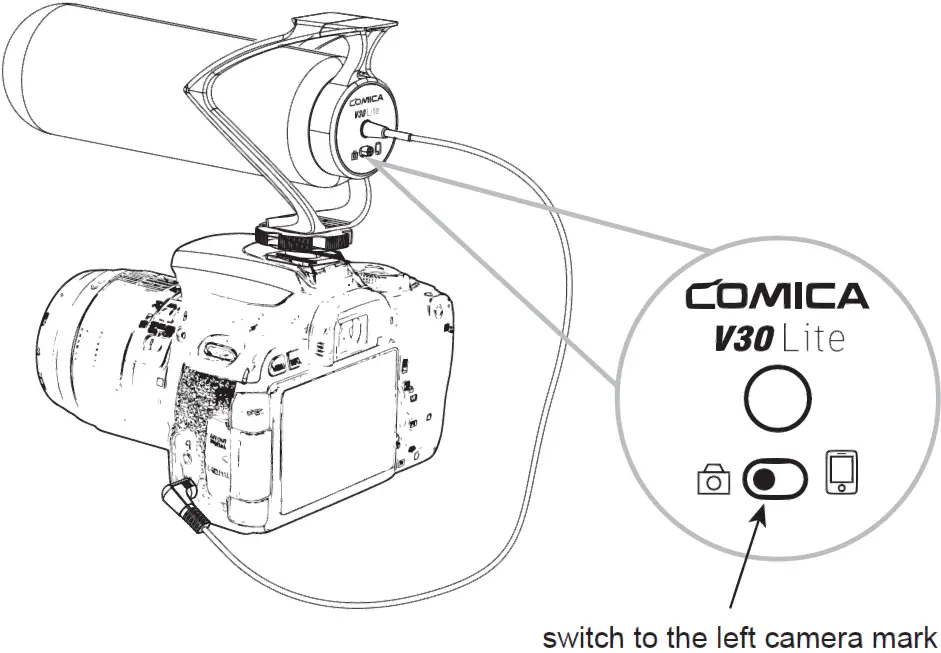

- Set the smartphone/camera switch to the left camera mark.
- Attach the microphone cold shoe bracket to the camera, fasten the Locking Screw.
- Use with Smartphone

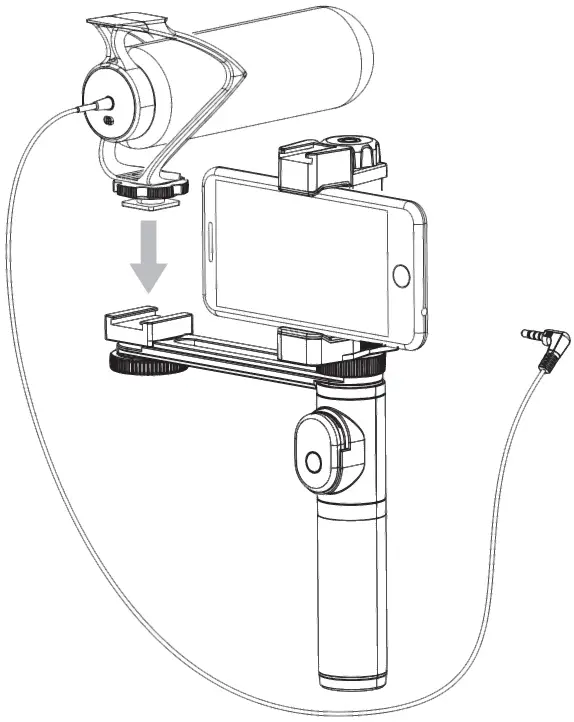

- Mount microphone cold shoe bracket to accessories with cold shoe interface (recommended VF-H1 ), fasten the Locking Screw.

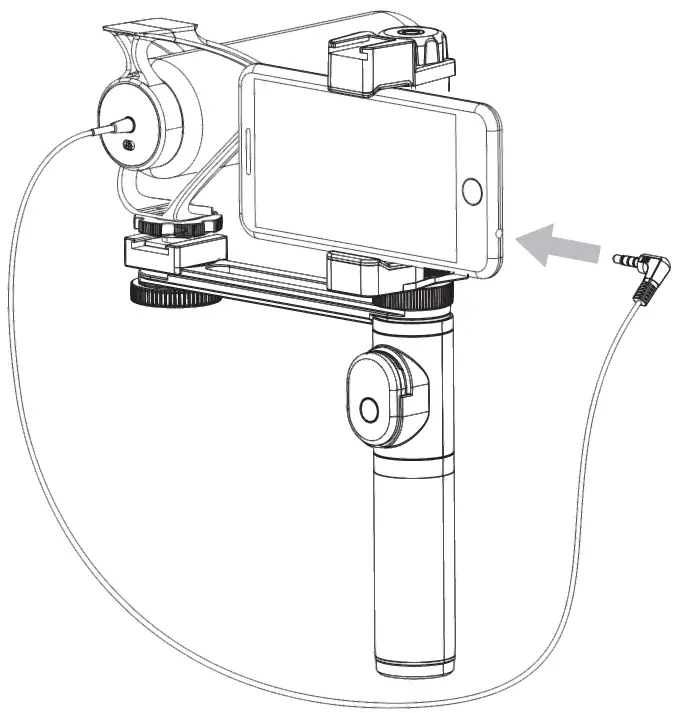

- Connect the microphone’s 3.5mm audio output line and smartphone.

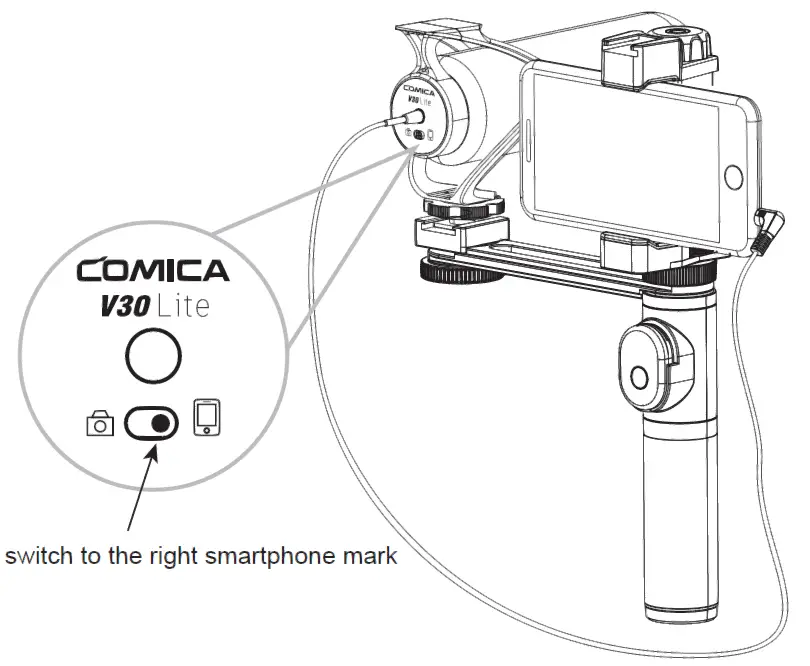

- Set the smartphone/camera switch to the right smartphone mark.
- Mount microphone cold shoe bracket to accessories with cold shoe interface (recommended VF-H1 ), fasten the Locking Screw.
Tech Parameters

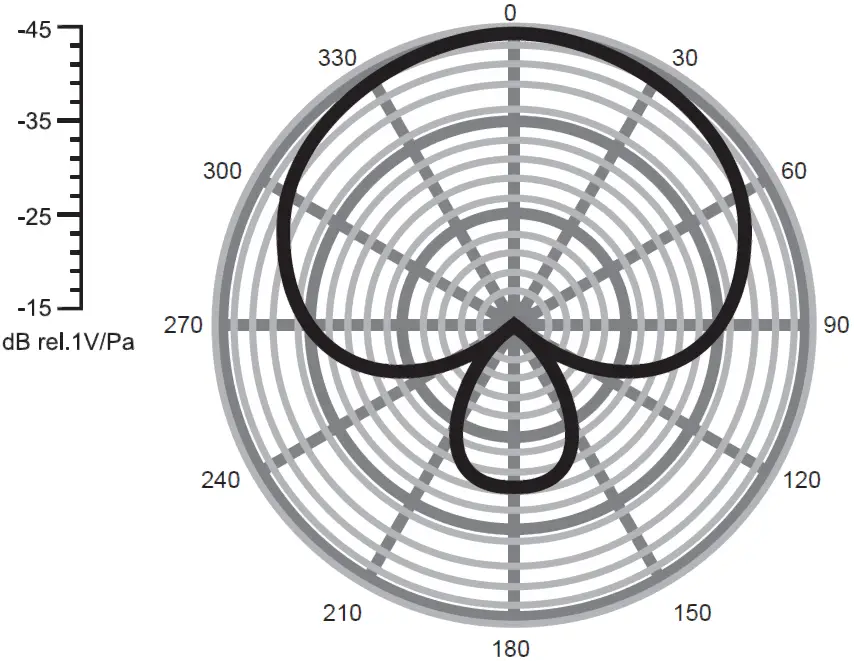

| Polar Pattern | Super Cardioid |
| Frequency Range | 40Hz ~ 20KHz |
| Output Impedance | 2.2kΩ |
| Max.SPL | >100dB |
| Sensitivity | -34dB±3dB |
| Signal to Noise Ratio | >68dB |
| Weight | 52g |
| Dimension | 160*50.8*86mm |
