BZBGEAR BG-MIC-U1 Compact USB Huddle/Conference Room Microphone User Manual

Feature

• The boundary microphone is designed for conference, house of worship, and theater applications.
• Internal shock mount minimizes mechanical noise.
• The features dual color LED indicator, membrane ON / OFF switch and back electric cardioid condenser capsule.

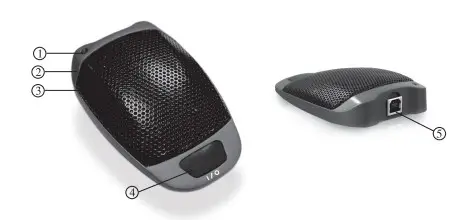

Parts Identification

1. Power On/Off LED Indicator
2. Case
3. Harden Grill & Capsule
4. On I Off Switch
5. USB Connector : B type , Digital audio interface


Instruction

USB connection
Connect to a powered USB port using USB Type B cable

Push On I Push Off

Press the On / Off Switch for sound pickup press again to mute.

LED Indicator

Green : MIC OFF (or when USB connected to a powered computer) Red: MIC ON

Recommendation

1. The microphone should be placed on a flat and unobstructed mounting surface.
2. The sound source should not be below or higher than 60 degree above the level of the mounting surface for efficient miking. (Figure 2)


Specification

Capsule Type: Electret Condenser
USB Connector: B type , Digital audio interface Indicator: USB (Mic OFF) …. Green
Mic ON …………… Red
Switch: Push control: ON/OFF
Sensitivity(at 1 000Hz): -53 ± 3 dB * (2.23mV) 0dB = 1 V / μbar
Max. SPL For 1 % T.H.D. : 125dB
Frequency Response: 30-12,000 Hz
Directional Pattern: Half-Cardioid
Power consumption: 0.4W
Dimension (mm): 72mm(W)* 22.5mm(H)*11 0mm(L}
Weight: 75g Sampling Rate :
DAC: 32 , 44.1 , 48KHz
ADC: 8, 11.025, 16, 22.05, 32, 44.1 , 48KHz
Bit Depth: 16-Bit
USB Type: USB 1.1 / USB 2.0 / USB3.0

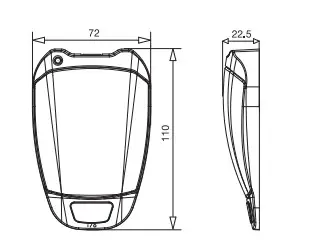

Dimension (m/m)
