Genmax Gm6000ied 6000 Watt Dual Fuel Inverter Generator Instruction Manual

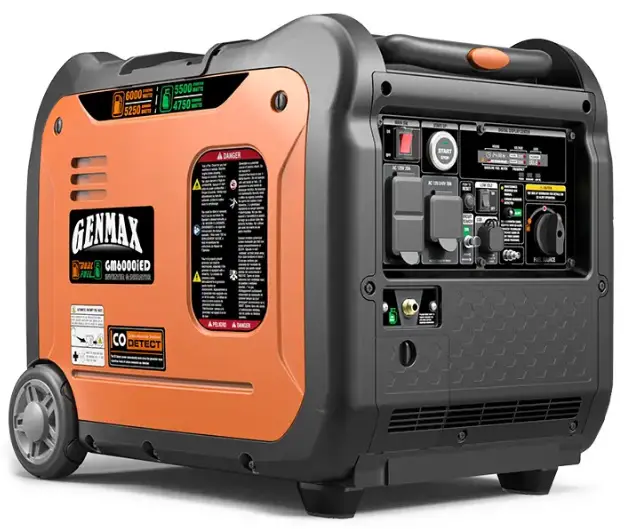

GENMAX GM6000iED 6000 Watt Dual Fuel Inverter Generator

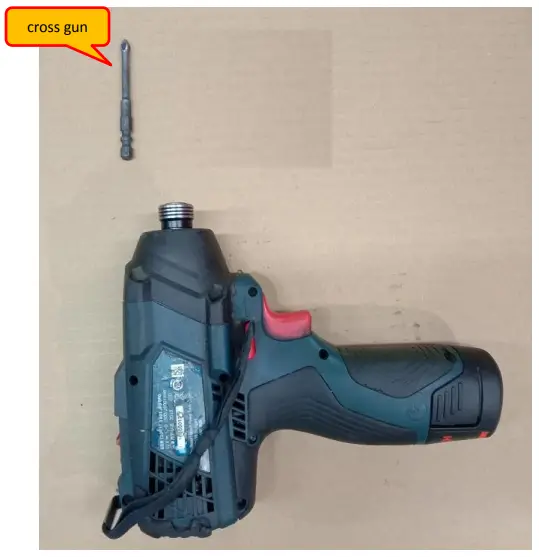

Tool Introduction

Hand tools are also available:

1. Cross screwdriver
2. Tweezers or other sharp tools

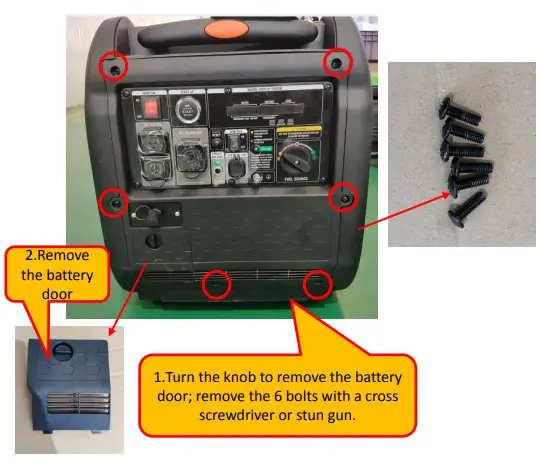

Removing the panel rear cover

Before

After

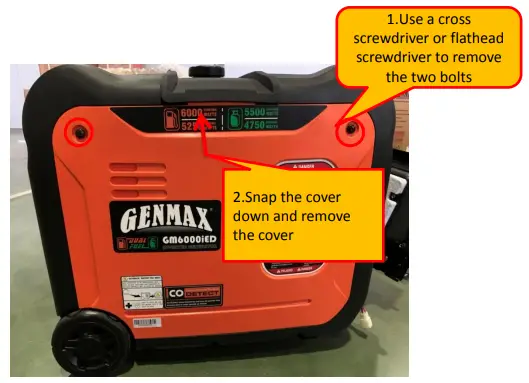

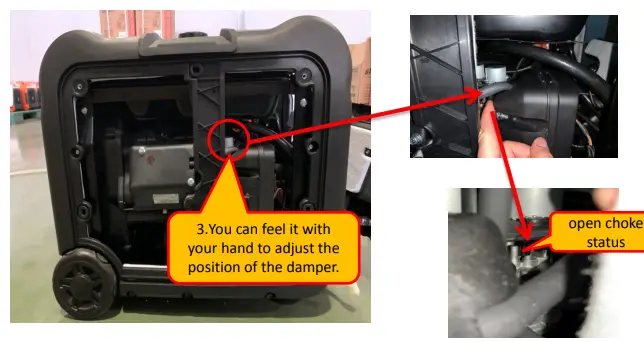

Remove the left exterior cover

Before

After

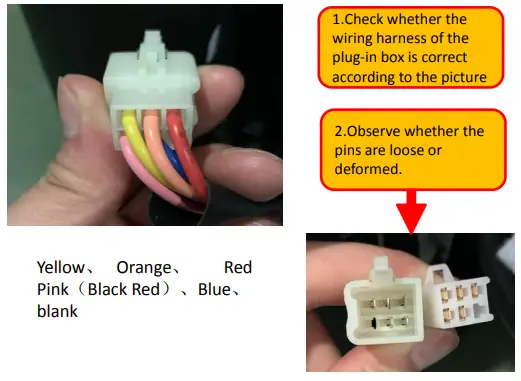

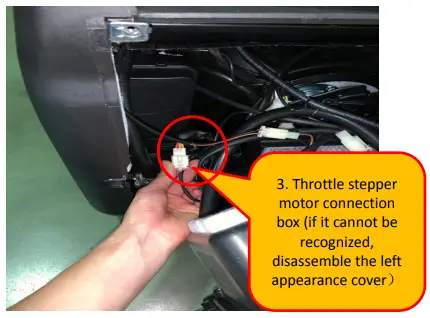

Check wiring

Panel box (male plug)

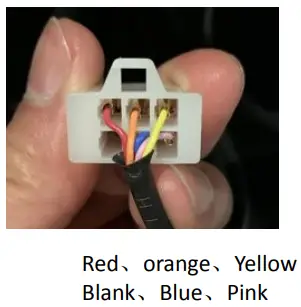

Stepper motor socket (female socket)

repair

Install

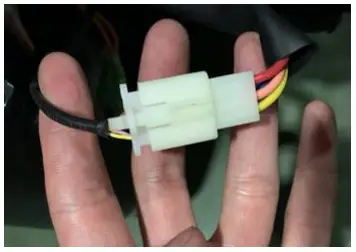

Joint the two sockets

Note: When docking the socket, be careful not to insert the pins crookedly.

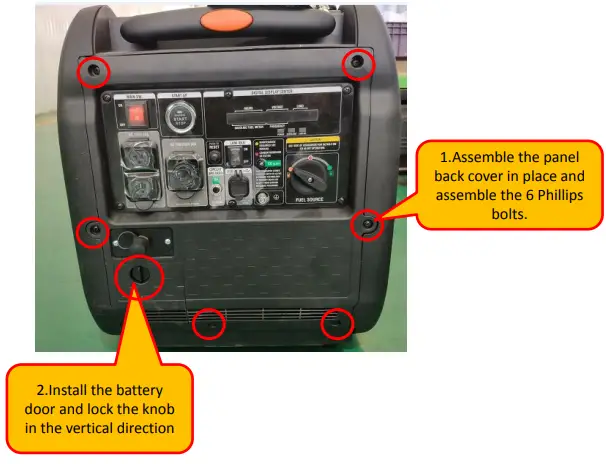

Install the panel rear cover

Install the panel rear cover

Install the left exterior cover

Install the left exterior cover

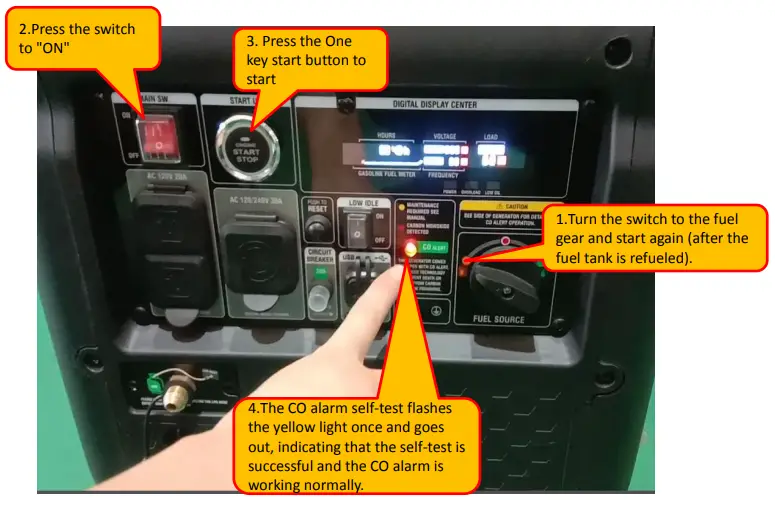

Start-CO Alarm Self-Test
