iBELL IBL 20YO 2000W Induction Cooktop Instruction Manual

Contents hide

1 MANUAL ADJUSTABLE FUNCTION

1.1 PROTECT FUNCTION

2 SAFETY NOTICE

2.1 FRIENDLY AND NON-FRIENDLY COOKWARE

3 CLEANING TIPS

4 MALFUNCTION CHECK WARNINGS AND SOLUTION

5 WORKING PRINCIPLE

6 LIMITATIONS OF WARRANTY

6.1 WARRANTY CARD

7 CUSTOMER CARE CENTER

8 Documents / Resources

9 Related Posts

MANUAL ADJUSTABLE FUNCTION

Introduction cooker adjustable functions include fry vegetable e, hot pot, barbecu e, stewing, stir-fry, timer, preset etc. functions. Users can depend on the requirements of cook then adjust the fire and timer, satisfied personalizes cooking requirements.

It is better to use induction cooker special pot.
Pay attention to cooking process, eat appear accident.
After choose cooking project, timer and preset can be selected.
If need inquires of the power and voltage. Press the key can show the current.

PROTECT FUNCTION

Low power and high power protection
When power low than 88V or high over 280V, the machine never heating.
Auto-inspection function for small object
When some small iron products(diameter is less than 8cm), the machine will not output power and heating.
No pot or the material is not suitable protect
If the pot material is not suitable or the pot’s bottom size is small(less than 8cm), the machine will not output power and heating with a BI voice or please put pot warning.
When the temperature of the plate surface is too high, the machine will stop outputting power automatically with a long Bi Bi voice or fault alarm, until the temperature get cool.

SAFETY NOTICE

Please do not use the electrical Outlet of 10A alone, do not use General sockets, do not use other appliances at the same time.
When using, please make induction cooker in smooth place and keep the distance from the wall over 10cm.
Do not use induction cooker near gas cooker and kerosene cooker.
Do not clean induction Cooker with water directly Prevent any risks.
Do not insert wire etc. do not jam inlet and outlet, Prevent any risks.
Do not Pull iron on the plate. protect high temperature Cause any risks.
Seal food, please heating after open lid.
Do not use induction cooker on iron place, include any places with over 10cm metal mat,
Do not put the empty pot on induction cooker, prevent affect the product’s performance, even any risks.
Often clean clean Cooker avoid the ingress Fan, affect the normal work.
When using, please do not touch the plate with your Hand, avoid scald.
If the power li ne is damage, must use professional line to replace.
Do not let children use Induction cooker alone, Avoid scaId.
use of cardiac pacemaker please confirm with professional doctors, if without influence then can use induction cooker.

FRIENDLY AND NON-FRIENDLY COOKWARE

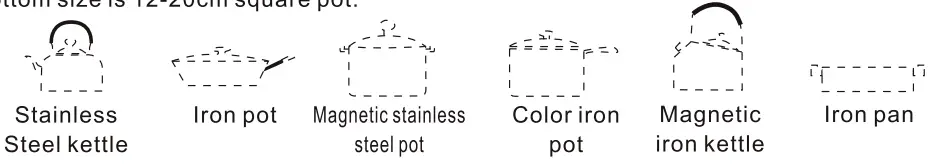

Friendly cookware

Material: Iron or stainless steel. Shape: Bottom diameter about 12-20cm saucepan or bottom size is 12-20cm square pot.

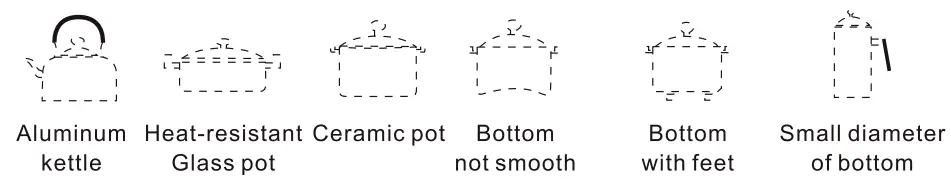

Non-friendly cookware

CLEANING TIPS

Before cleaning the cooker, make sure that the plug is unplugged and the power is off.
To remove dirt, select litmus less detergent.
If the dirt is little, just clean it with a clean wet cloth.
Do not clean with water directly or put it in water. If water gets inside this may cause a malfunctions

PAY ATTENTION

When do not use the machine, please unplug power plug.
Please keep the machine clean, lest cockroaches and small insect enter, cause a short circuit.
Do not clean with water directly or put it in water.
When the plate and bottom are dirty, continue to use will burn and clean very difficultly.
When the power cord dam age, please consult specialized after sale replace cement of the same mode’s power cord

MALFUNCTION CHECK WARNINGS AND SOLUTION

If find the induction cooker have problem as above, before send to repair please check the machine depend on the following matters.

PHENOMENON	CHECK
Get through power supply but no Bi sound and press the on/off key, but no light	Check whether plug is good working circumstance.
	Check whether fuse is in good circumstance or not.
	Check whether the electricity was cut off.
Induction cooker send out Bi sound.	Check the pot using is proper or not.
	Check whether the pot is sitting in the center of the plate or not.
	Check whether the diameter of the pot is bigger than 12cm or not.
Warning with El.	Check if the voltage too low.
	Check whether the socket is loose.
	Check is the line diameter is too small.
Warning with E2	Check if the voltage too high.
Suddenly stop heating during cooking, warning with E5	Check whether the environment temperature is very high or not.
	Check whether there is some block on the air inlet or outlet. Whether the fan is working or not.
	Check whether the keep warm temperature is already reached the temperature set or not.
	Check if the fan still working, it maybe the adjustment of the unit itself, try it again after 10 minutes.
Warning with E4.	Check thermostat was broken.
Warning with E6	Check radiator was broken.
(In keep warm situation) the temperature is out of control	Whether the bottom of the pot is inflate or the middle of the bottom is inflate. Whether the light is on.
Warning with E0	Check-No pot Check-Unusable cooking cookware.
Warning with E3	Check-The pot has no water in.
Warning with E7	Check-Line error.

Note: When using the full indicator mode, a power light flicking and do not heating , check as above.

WORKING PRINCIPLE

When the power connection is ON , the electric current will produce a magnetic field in the induction coil, which is embedded in the machine. As soon as the magnetic force lines in the magnetic field touch the alloy steel pot / boiler, it will produce the heating effect, which would lead to the heating of the food in the pot.

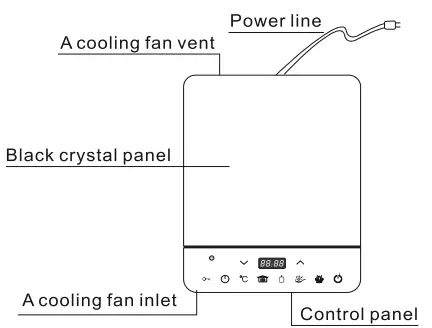

EACH PARTS NAME

USING METHOD

Put the pot with food on the centre of the plate.
Connect the Plug into the 220 V, 10 Amp power socket. The machine is now ready for use.
Press the on/off button, and then choose the function button.
After cooking, press the ON / Off button again to switch off the power supply.
Then pull the plug out of the electric outlet.

AUTOMATIC FUNCTION

The induction cooker automatic function include: soup, porridge, mil k, tea, keep warm, save fire etc. functions, all controlled by CPU of the induction cooker, depend on the vegetables the adjust the fire, the cook process finished automatically

Automatic function must work with pan, if the bottom is thin, automatic function can not used.
When the automatic function are using, fire and timer can not adjust.
The automatic function is better used for cooking more than less.

LIMITATIONS OF WARRANTY

Damage resulting from accidents, misuse, abuse, alteration, tempering or failure of the purchaser to follow the normal operating procedure outlined in user manual.
Defect of damage due to spillage of liquids, due to insect or wrong use of electrical supply and voltage.
Normal wear and tear, corrosion, rusting or stains.
Scratches and damage to outer surface areas and externally exposed units or parts that are due to normal customer use.
Claim for damaged missing parts after seven days from the original date of purchase
If any part or parts of the unit are replaced with a part or parts not supplied or approved by company or unit has been dismantled or repaired by any person other than authorized technician.
Product which has serial number removed or tampered
If the warranty card is being altered, defaced or erased in any manner whatsoever.
To obtain service, the product must be sent through freight prepaid to iBELL Service Center

WARRANTY CARD

Dear customer

Thank you for purchasing product. Your product is under warranty in accordance with terms and condition stated herein.

Your units anal components contained therein are warranted against defective material and workmanship for ii period of 1 year from the date of purchase.
To obtain warranty protection, notice of alleged defect must be given promptly upon discovery and warranty carol must be presented along with proof of date of purchase to our service personnel at the time of service.
The company c4ecision on identification of the defects due to faulty/defective spare parts or faulty workmanship or misuse abuse shall be final and you shall agree to abide by such decision.
The defective parts material shall be replaced with a functionally working equivalent part material and defective part/material will become the property of the company.
