Metalux CGTS NUV LED Backlit Panel

Contents hide

1 Product Certification

2 PRODUCT DIMENSIONS

3 Top Product Features

4 Dimensions

5 CGTS NUV Ordering Information/Performance

6 Accessories

7 Product Specifications

8 Photometric Data

9 CUATOMER SERVICE

10 Documents / Resources

10.1 References

11 Related Posts

Product Certification

For Canadian Market Only

PRODUCT DIMENSIONS

Interactive Menu

Order Information page 2
Photometric Data page 4
Product Warranty

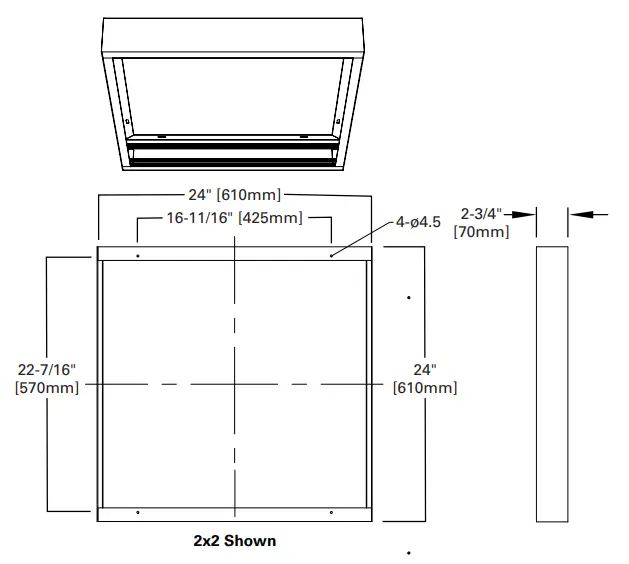

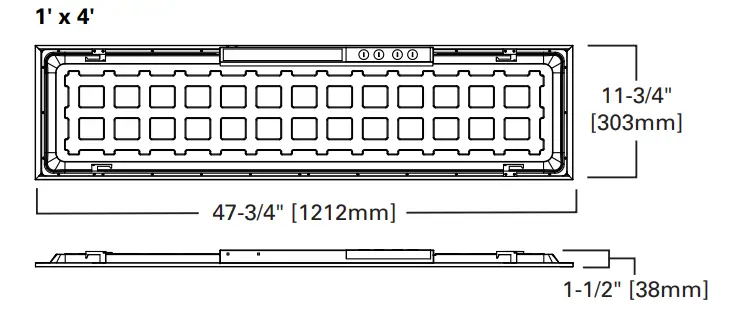

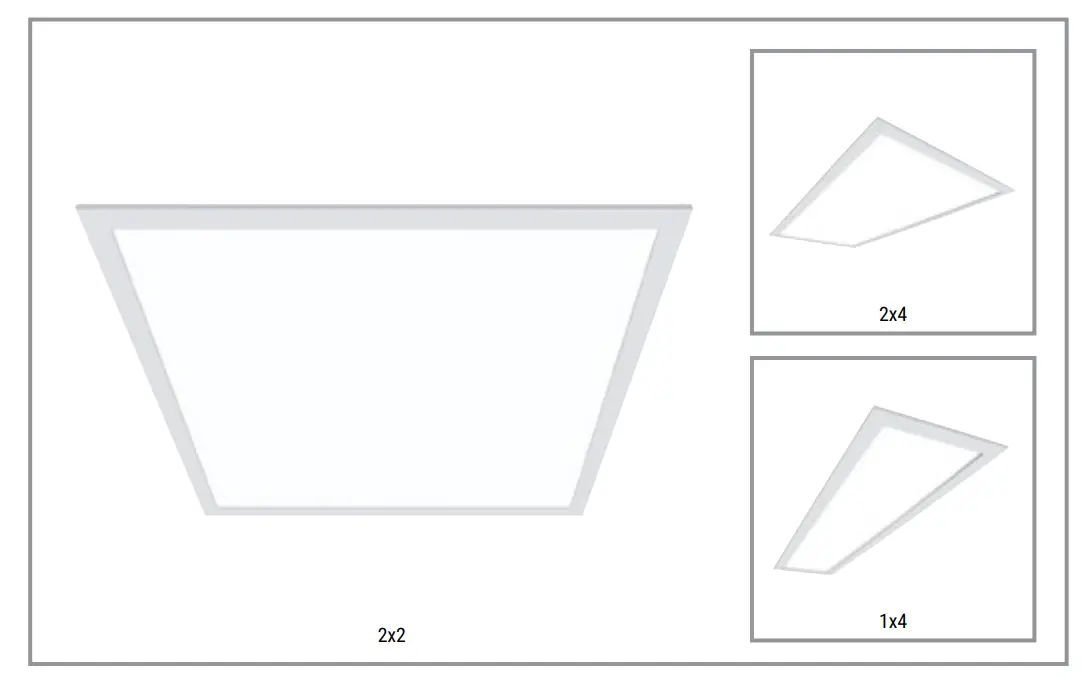

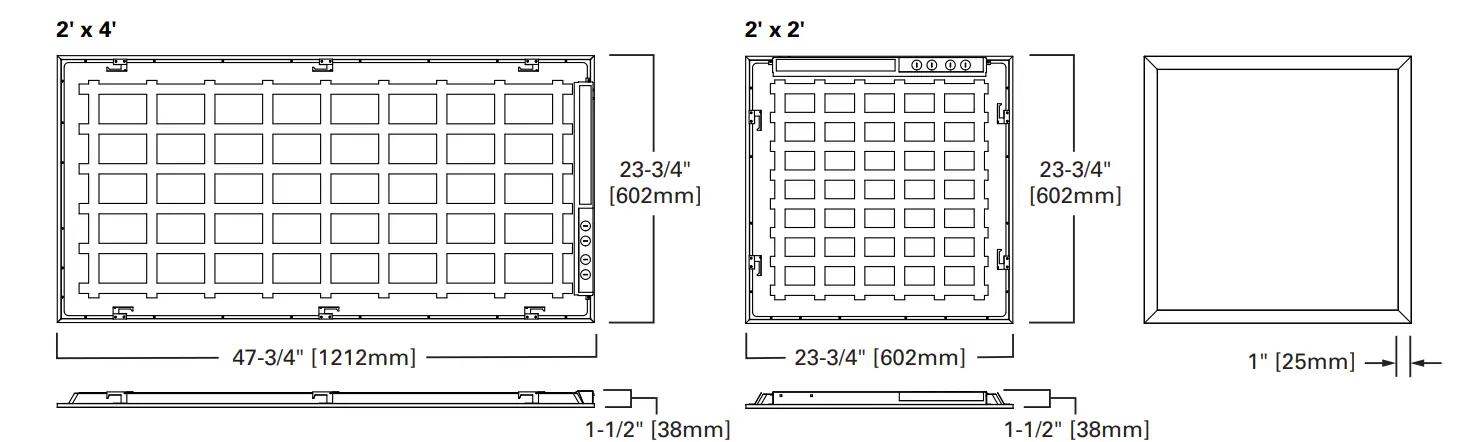

Dimensions

CGTS NUV Ordering Information/Performance

Size	Catalog	UPC	Lumen Setting	CCT	CRI (Min)	Delivered Nominal Lumens	Watts	Efficacy (lm/W)
1×4	14CGTS-NUV	80083247806	Low	3500	85	3513	30.5	115
				4000	86	3735	28.8	130
				5000	85	3617	31.0	117
			Medium	3500	85	3934	35.4	111
				4000	86	4232	33.2	128
				5000	85	4067	35.9	113
			High	3500	85	4342	40.3	108
				4000	86	4712	37.6	125
				5000	85	4486	41.0	109
2×2	22CGTS-NUV	80083247837	Low	3500	85	3515	30.2	117
				4000	86	3732	28.7	130
				5000	85	3625	30.5	119
			Medium	3500	85	3953	34.9	113
				4000	86	4228	33.0	128
				5000	85	4060	35.3	115
			High	3500	85	4361	39.8	110
				4000	86	4676	37.5	125
				5000	85	4462	40.3	111
2×4	24CGTS-NUV	80083247851	Low	3500	85	4182	35.0	120
				4000	86	4352	33.6	130
				5000	85	4333	35.1	124
			Medium	3500	85	4612	39.4	117
				4000	86	4787	37.4	128
				5000	85	4753	39.2	121
			High	3500	85	5633	50.1	113
				4000	86	5962	47.6	125
				5000	85	5898	50.3	117

CGTS NUV Shipping Data

	1×4	2×2	2×4
Weight (lb.)	4.7	4.4	8.8
Pallet Qty	75	50	25
Pallet Size (in.)	49×53	30×53	30×53

CGTS NUV Options

Catalog	Description	Example	Notes
EL7W *	7W EM Pack, Installed	22CGTS-NUV-EL7W	Remote Indicator/Test Switch
EL14W *	14W EM Pack, Installed	24CGTS-NUV-EL14W	Remote Indicator/Test Switch
A3/8-4/18GDIM	6′ Length, 3/8″ Cable, 2 Wire, 2 Dimming Leads, Ground	24CGTS-NUV-A3/8-4/18G DIM
EL7W-A3/8-5/18GDIM *	7W EM Pack, Installed, and 6′ Flex, 3/8″ Cable, 3 Wire, 2 Dimming Leads, Ground	4CGTS-NUV-EL14W-A3/8-5/18GDIM 22CGTS-NUV-EL7W-A3/8-5/18GDIM	EL7W and EL14W can be used with any of the optional flex. EM pack is always specified before (to the left of) the flex, in the catalog number.

Accessories

Surface Mounting Options

Catalog No.	Description	UPC
CGTSNUV-SURF24	2×4 CGTS NUV Surface Mount Kit	080083248346
CGTSNUV-SURF22	2×2 CGTS NUV Surface Mount Kit	080083248322
CGTSNUV-SURF14	1×4 CGTS NUV Surface Mount Kit	080083248308
Note: (1) Cannot be used with EL7W or EL14W options.

Drywall Frame Kit

Catalog No.	Description	UPC
DF-24W-U	2×4 dry wall frame kit	662401232970
DF-22W-U	2×2 dry wall frame kit	662401232963
DF-14W-U	1×4 dry wall frame kit	662401232949

Suspension Kit

Catalog	UPC	Description
FPSUS2 (2)	080083802784	2 point Y-hanger suspension kit includes aircraft cable, carabiner, ceiling connection, SO cord, cord connectors and round 4″ J-box cover plate
Mounting height from ceiling Min.=7-1/4″ [184mm] Max.=27″ [286mm]
Note: (2) FPSUS2 compatibility available early 2022.

Ceiling Retention

Catalog	UPC
CGSTEQ*
Required by some local codes. Order one set for each fixture (Four clips per kit)

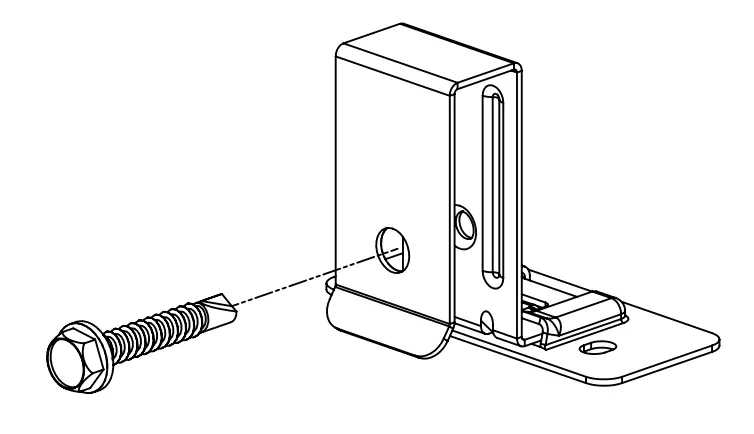

Using CGT EQ requires the removal of four (4) existing fixture grid clips and then replacing them with the above 4″ CGT EQ clips. Once the fixture is mounted in the grid ceiling, the four
(4) tek-screws are driven through the CGT EQ clip, into the T-bar.
* CGTSEQ accessory to be available early 2022

CGTS NUV Driver Enclosure / Junction Box

Top View (2′ x 2′)

Product Specifications

Construction

Die-formed steel back plate is post-painted to ensure durability
Housing is constructed absent of holes
Aluminum door frame miter cut, and mechanically fastened for a precision fit
Frame weld and ground, for a seamless appearance

Mounting

Integral grid clips secure fixture to the ceiling structure
Accessory CGT EQ clips available to mechanically fasten the clips to the fixture, and the fixture to the ceiling system
Junction box constructed of code gauge galvanized steel with access plate• Multiple 7/8” KO’s provided, suitable for up to 12AWG wiring Surface and suspension kits available for use in grid or hard surfaces. Please
note that the Suspension kit will be available in early 2022.
Factory installed flexible cable with dimming leads available

Controls

NUV 120-347V driver with 0-10V dimming, 10% standard
Can be used with tile mounted sensor or other remote mount controls

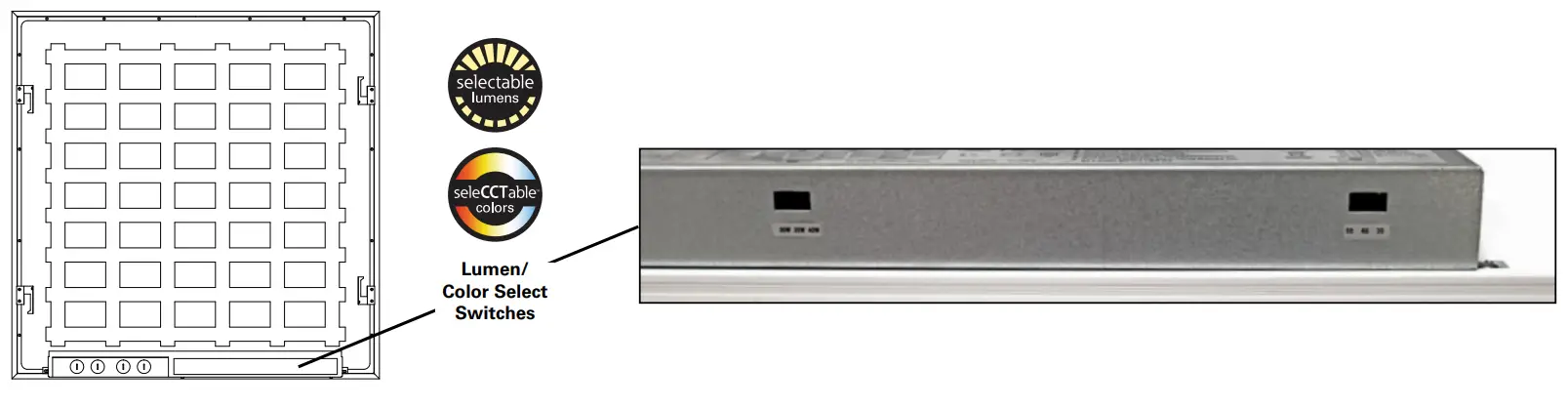

Selectable driver for three color temperature choices and three lumen package choices

Electrical

CGTS NUV projected lumen maintenance based on TM21 testing standards is >L82 @60,000 hours
Driver rated for FCC part 15 Class B for use in residential or commercial applications
LEDs are 85 CRI (minimum) and switch to 3500K, 4000K, and 5000K
Emergency battery pack options available in 7W and 14W (available in early 2022) Optical Shielding
Acrylic micro-optics enable uniform distribution of LEDs for uniform lens illumination
Smooth, frosted lens delivers uniform illumination across the entire lens
Durable lens with surface texture to minimize scratch and impact damage

Certifications

cULus listed for 25C ambient environments, indoor
applications
UL damp location listed
IESNA LM-79 and LM-80 standards compliant
Qualifies as State of California Title 24 high efficiency luminaire
FCC part 15 class B (residential) compliant }
DesignLights Consortium® Qualified and classified for DLC standard. Refer to the DLC Qualified Products list at www.designlights.org/QPL to confirm which versions are qualified

Warranty

Five year standard warranty
Extended ten year warranty available

Photometric Data

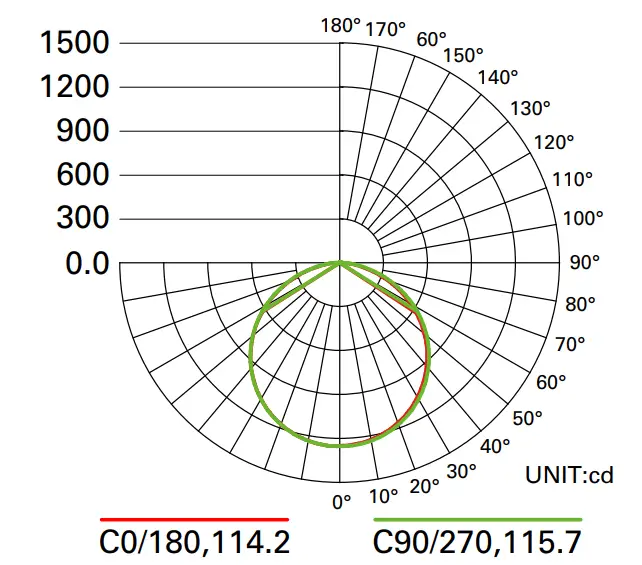

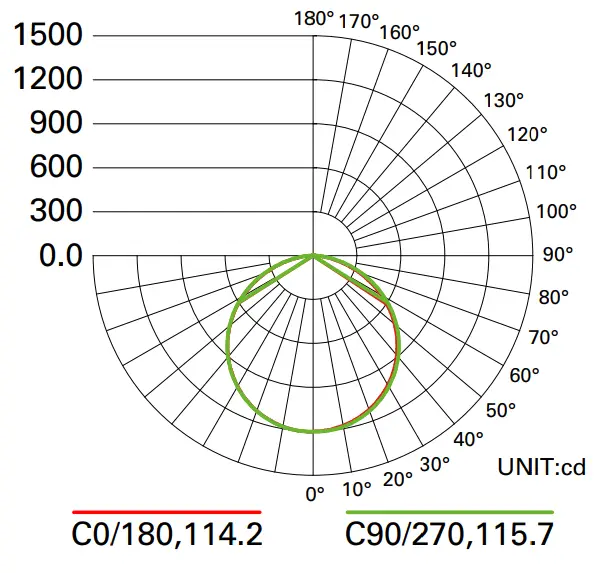

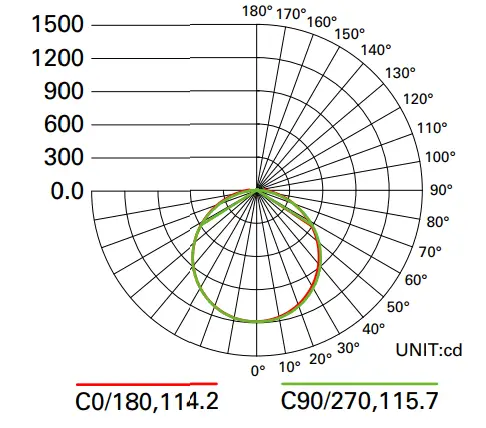

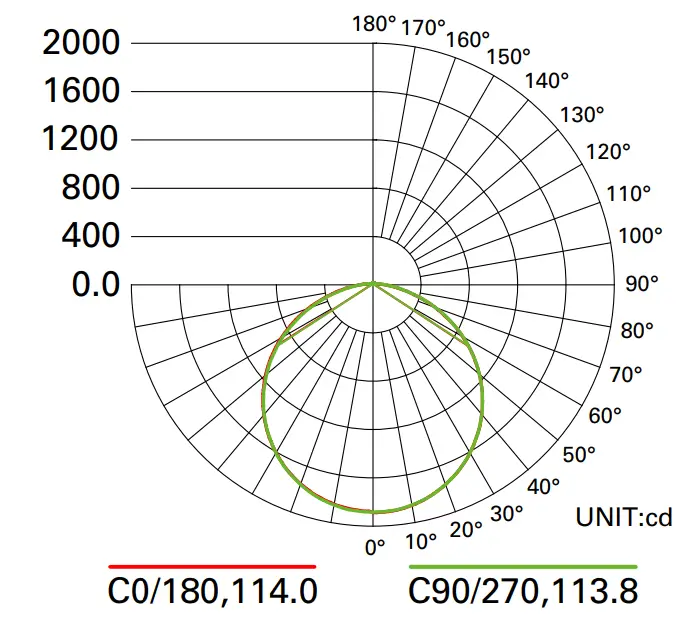

	14CGTS-NUV-3035C Electronic Driver Linear LED 3500K Spacing criterion: (II) 1.28 x mounting height, (⊥) 1.28 x mounting height Lumens: 3529 Input Watts: 30W Efficacy: 119.8 LPW Test Report: 14CGTS-NUV-3035C.IES

	14CGTS-NUV-3040C Electronic Driver Linear LED 4000K Spacing criterion: (II) 1.28 x mounting height, (⊥) 1.28 x mounting height Lumens: 3716 Input Watts: 30W Efficacy: 132.1 LPW Test Report: 14CGTS-NUV 3040C.IES

	14CGTS-NUV-3050C Electronic Driver Linear LED 5000K Spacing criterion: (II) 1.27 x mounting height, (⊥) 1.28 x mounting height Lumens: 3568 Input Watts: 30W Efficacy: 121.8 LPW Test Report: 14CGTS-NUV 3050C.IE

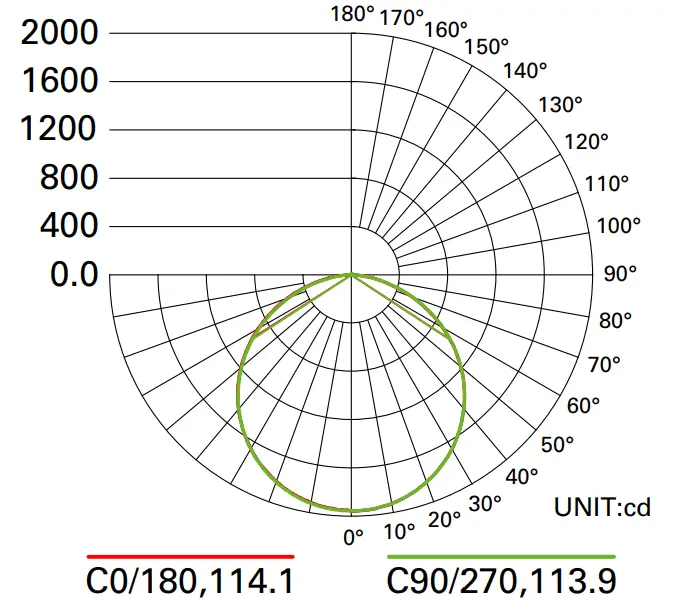

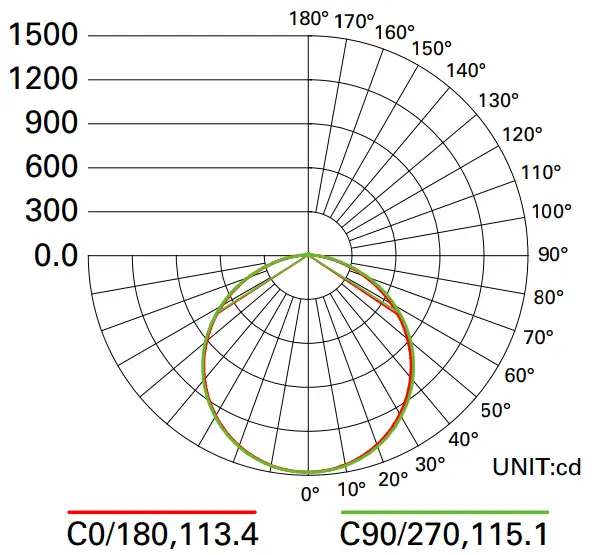

22CGTS-NUV-4035C Electronic Driver Linear LED 3500K Spacing criterion: (II) 1.27 x mounting height, (⊥) 1.28 x mounting height
Lumens: 4320
Input Watts: 40W
Efficacy: 113.3 LPW
Test Report: 22CGTS-NUV 4035C.IES

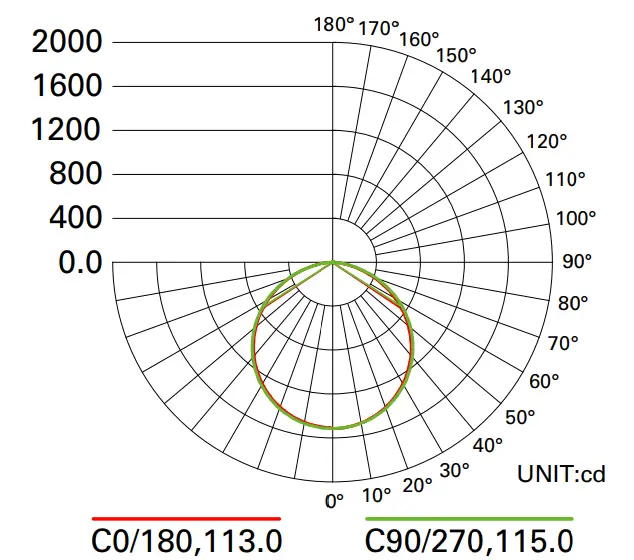

	22CGTS-NUV-4040C Electronic Driver Linear LED 4000K Spacing criterion: (II) 1.27 x mounting height, (⊥) 1.27 x mounting height Lumens: 4615 Input Watts: 40W Efficacy: 126.5 LPW Test Report: 22CGTS-NUV 4040C.IES

	22CGTS-NUV-4050C Electronic Driver Linear LED 5000K Spacing criterion: (II) 1.26 x mounting height, (⊥) 1.27 x mounting height Lumens: 4386 Input Watts: 40W Efficacy: 114.7 LPW Test Report: 22CGTS-NUV-4050C.IES

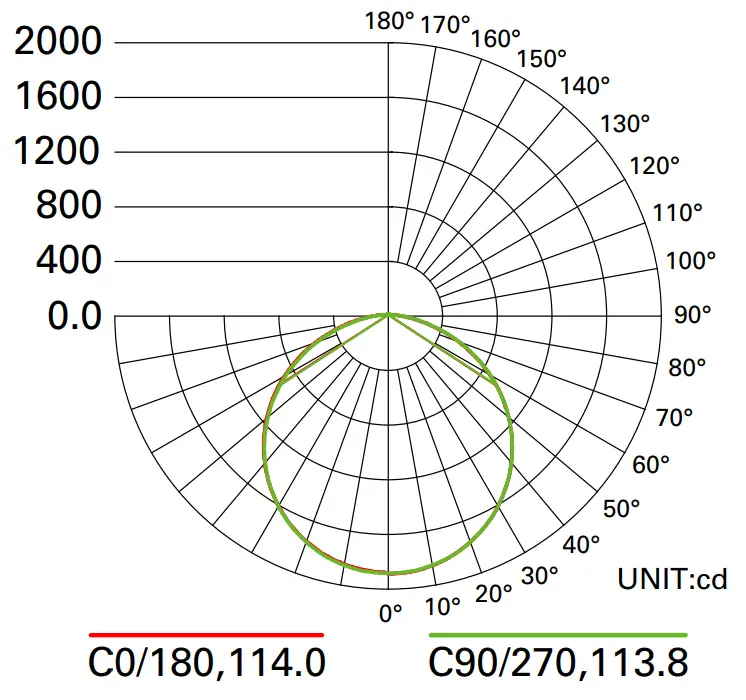

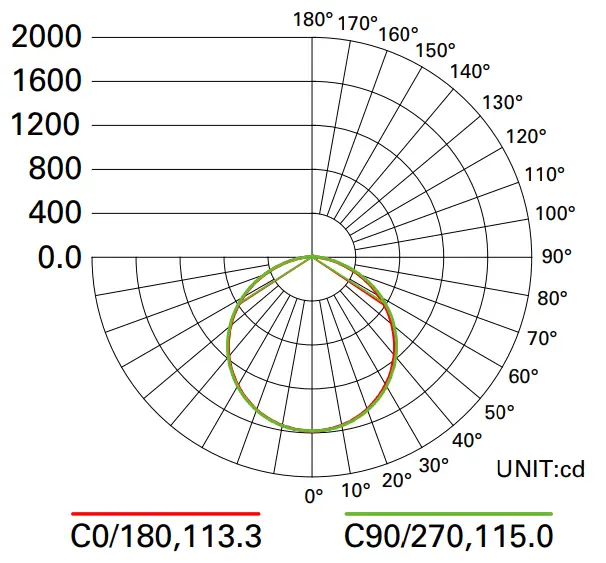

	24CGTS-NUV-5035C Electronic Driver Linear LED 3500K Spacing criterion: (II) 1.27 x mounting height, (⊥) 1.27 x mounting height Lumens: 5483 Input Watts: 50W Efficacy: 110.1 LPW Test Report: 24CGTS-NUV 5035C.IES

	24CGTS-NUV-5040C Electronic Driver Linear LED 4000K Spacing criterion: (II) 1.27 x mounting height, (⊥) 1.27 x mounting height Lumens: 5664 Input Watts: 50W Efficacy: 119.5 LPW Test Report: 24CGTS-NUV 5040C.IES

	24CGTS-NUV-5050C Electronic Driver Linear LED 5000K Spacing criterion: (II) 1.27 x mounting height, (⊥) 1.27 x mounting height Lumens: 5469 Input Watts: 50W Efficacy: 111.3 LPW Test Report: 24CGTS-NUV 5050C.IES

CUATOMER SERVICE

Metalux
CGTS NUV Selectable Lumens and CCT
with 120-347V Driver – 2×4/2×2/1×4
LED Backlit Panel
Canada Market Only
Typical Applications
Offices • Education • Healthcare • Retail

Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com
© 2021 Cooper Lighting Solutions
All Rights Reserved.
Specifications and dimensions
subject to change without notice.
