Govee ‎H61830A1 TV LED Backlight

Govee-‎H61830A1-TV-LED-Backlight-Product

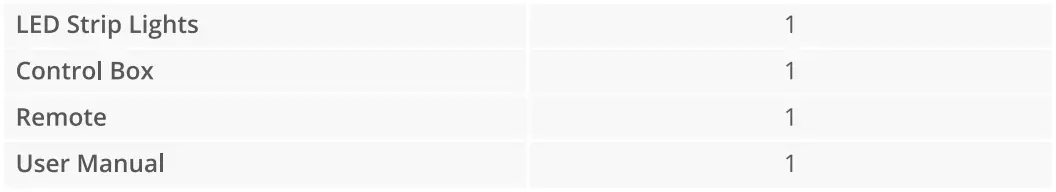

At a Glance

Govee-‎H61830A1-TV-LED-Backlight-fig-1

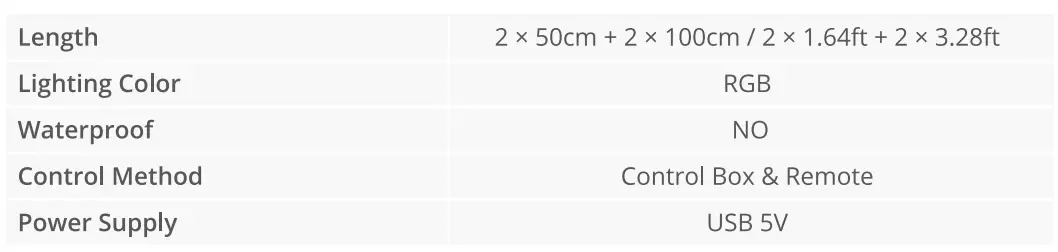

Specifications

Govee-‎H61830A1-TV-LED-Backlight-fig-2

Installing Your Strip Lights

  1. Preparation Before Installing
    a. Unpack the box and check all items listed in the packing list.
    b. Plug the adapter into the power outlet to check whether the lights turn on.
  2. Installing Steps

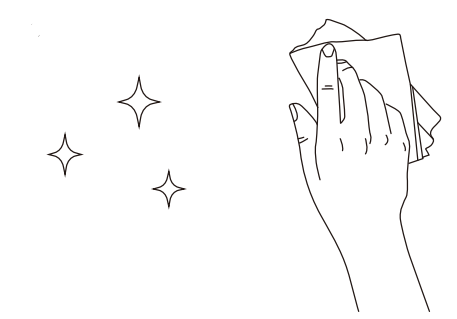

    a. Wipe the surface to make sure it’s clean and dry.



    Govee-‎H61830A1-TV-LED-Backlight-fig-3

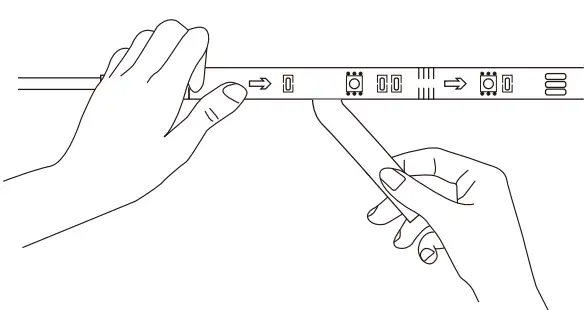

    b. Peel off the protective film on the tape, stick the strip on, and press over it firmly.
    Govee-‎H61830A1-TV-LED-Backlight-fig-4c. Reinforce via clips around corners.

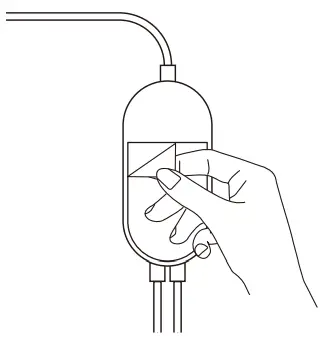

    Govee-‎H61830A1-TV-LED-Backlight-fig-5d. Peel off the protective film on the control box and stick it on.

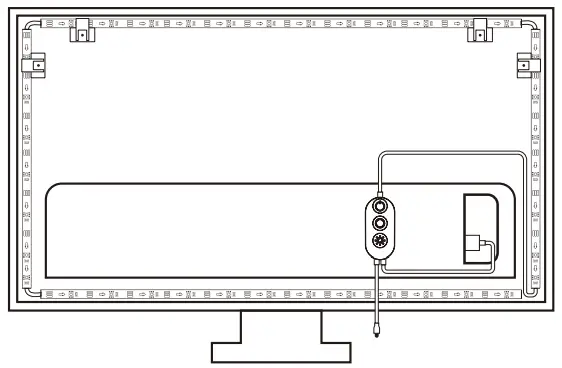

    Govee-‎H61830A1-TV-LED-Backlight-fig-6e. Power on the strip lights and start using them.
    Govee-‎H61830A1-TV-LED-Backlight-fig-7

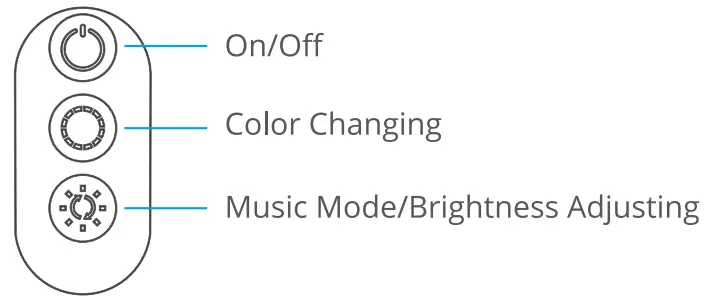

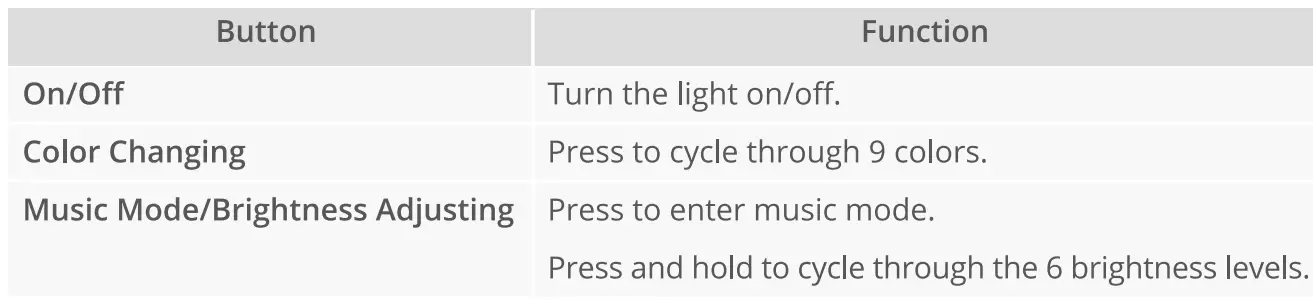

Controlling with the Control Box

Govee-‎H61830A1-TV-LED-Backlight-fig-8

Govee-‎H61830A1-TV-LED-Backlight-fig-9

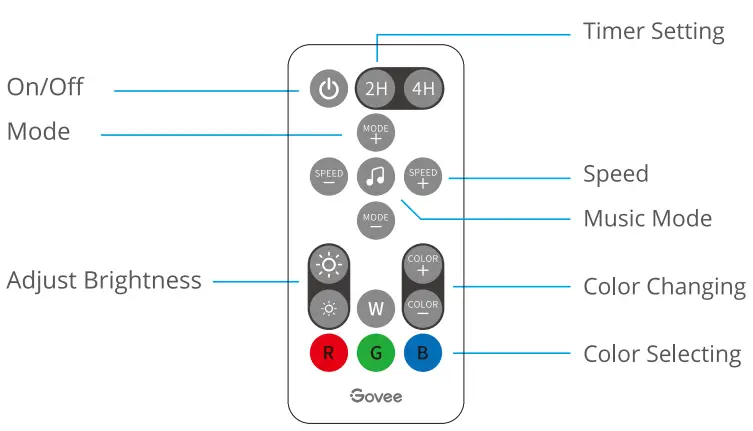

Controlling with the remote control

Govee-‎H61830A1-TV-LED-Backlight-fig-10

Govee-‎H61830A1-TV-LED-Backlight-fig-11

Troubleshooting

  1. The strip light flickers or the light is not bright enough.
    a. Plug out the USB port and re-plug it in.
    b. Power on the strip lights with an SV USB adapter.
    (Notice: The adapter is NOT included).
  2. The adhesive tape is not strong enough.
    a. Make sure the installation surface is clean and dry.
    b. Firmly press over the strip after sticking.
    c. Reinforce the installation via more clips and tape.
  3. The control box doesn’t work.
    Replug in the USB port and try again.
  4. The strip doesn’t match the same color /Some lamp beads don’t light up.
    Please contact the Gove support team in time for a return.

Customer Service

FAQs

Are the lights waterproof?

No. The lights are not waterproof, so don’t use them outdoors.

How long can I use the lights?

You can use them for 8-12 hours per day.

Can I install the strip lights on the wall?

Yes, you can. Just make sure to stick it on a flat and clean surface.

Are there any restrictions for using the strip light?

Yes, please don’t use it in a humid environments or in places with high temperatures.

Can I change the color of the strip light?

Yes, you can change it to any color you want by using a remote control or a smartphone app

Do you have a MOQ requirement for orders of led strip lights?

Low MOQ, 1 piece for sample checking, 500 pieces for order confirmation in each colour, and 1000 pieces per colour and model for routine orders are all available.

How are the goods shipped, and how long does it take for them to arrive?

Typically, DHL, UPS, FedEx, or TNT are used for shipments. The typical delivery time is 3 to 5 days. Additionally optional are shipping by air and sea.

Can I combine various models in a same container?

Yes, several models can coexist in the same container, however the MOQ for each model must be met.

What is your terms of payment?

T/T 30% down payment and 70% upon delivery PayPal and Western Union are also allowed.

What guarantees does your business offer?

We provide a one-year warranty on all of our items to make sure that our customers receive high-quality goods and services. If there is any quality issue resulting from our manufacture and inspection, we will replace new parts with defective components absolutely free of charge during the warranty period.

If it’s too long, can I make it shorter?

You can cut it according to the mark on the light strip, yes.

How easy is it to remove? Can it get rid of paint?

I’m not sure if the M3 tape on the back will cause the paint to peel off because it isn’t very strong, won’t stick to unclean walls very well, and isn’t particularly sticky.

Can I connect three strips together to make the 48 feet I need without buying more pieces? If not, what elements would I require?

Although I purchased the 32.8-foot length and two reals of lights, I still need to purchase connections in order to install them where I want to. It did not come in one continuous piece as I had anticipated.
