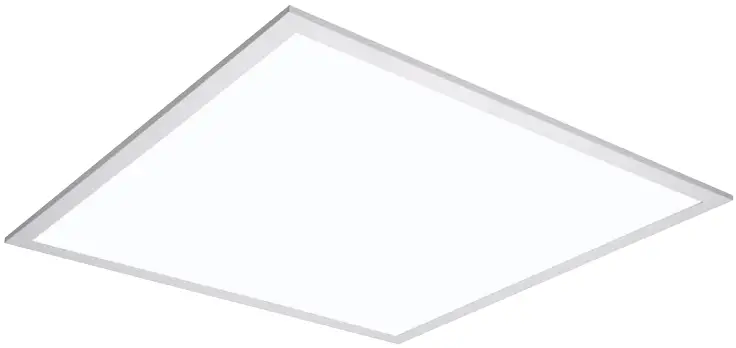

COOPER Lighting Solutions Metalux 22FP LED Recessed Flat Panel

INSTRUCTION

Interactive Menu

Order Information page 2

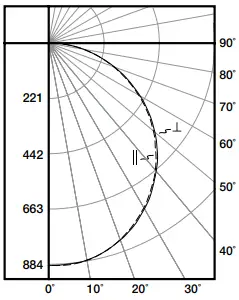

Photometric Data page 3
Control Systems page 3
Product Warranty

Features

2″ height ideal for shallow plenums
Low wattage to high lumen output available
High efficacy to 130 LPW
Multiple stock SKUs
Large j-box with multiple KOs to facilitate installation

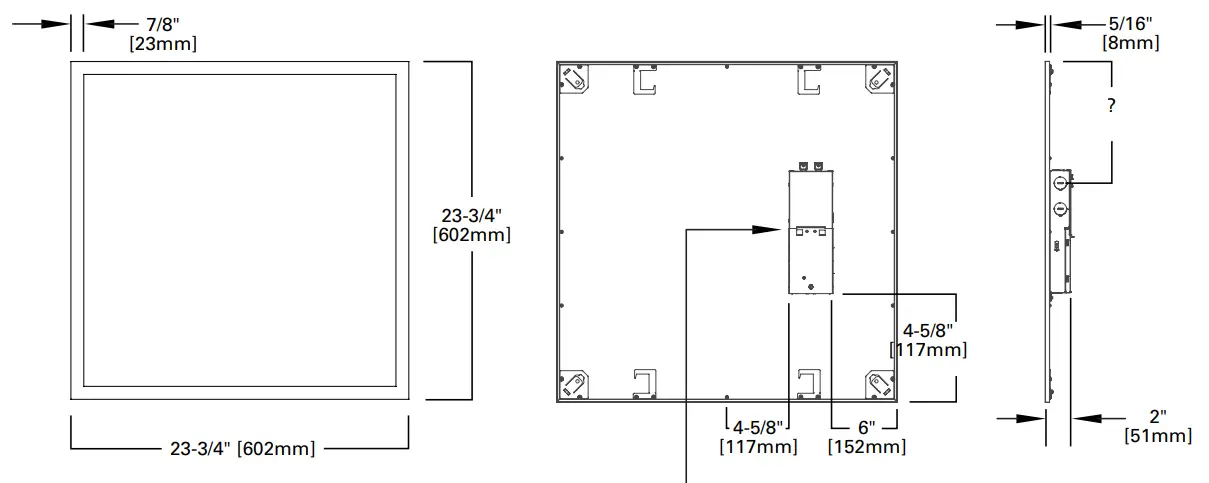

Dimensional and Mounting Details

Access plate with top side KO is available upon request. Please contact factory if needed for use with MWS or otherwise.

Ordering Information/Performance UNV (120-277)

UNV (120-277)							Input Current (A)
Catalog	UPC	CCT	CRI (Min)	Delivered Nominal Lumens	Watts	Efficacy (lm/W)	120V	277V
22FP4235C (1)	080083833580	3500K	80	4330	38.3	112	.32	.14
22FP4240C (1)	080083833603	4000K	80	4465	38.3	117	.32	.14
22FP4250C (1)	080083833627	5000K	80	4572	41.4	120	.35	.15
22FP3235C (1)	080083833528	3500K	80	3307	29.2	115	.24	.11
22FP3240C (1)	080083833542	4000K	80	3333	29.2	114	.24
22FP3250C (1)	080083833566	5000K	80	3331	30.0	111	.25
22FP3830C9 (2)	080083833801	3000K	90	3654	39.1	93	.34	.15
22FP2830C9 (2)	080083833788	3000K	90	2734	29.5	93	.26	.11
22FP2535HE (2)	080083824090	3500K	80	2610	20.1	130	.17	.07
22FP2540HE (2)	080083824113	4000K	80	2551	19.6	130	.17	.07
22FP2130C (2)	080083823994	3000K	80	2318	20.7	112	.18	.08
22FP2135C (2)	080083824014	3500K	80	2205	20.7	107
22FP2140C (2)	080083824038	4000K	80	2494	20.7	121
347V
22FP4235C-347V (3)	80083885480	3500K	80	4330	37.3	116	.111
22FP4240C-347V (3)	80083876723	4000K	80	4465	37.3	120
22FP4250C-347V (3)	80083885565	5000K	80	4572	37.3	123

Notes: (1) Stocked at multiple North American DCs. Best opportunity for availability. (2) Stocked at select DCs. May incur extended lead-times. (3) Stocked at Canada DC.

Options
Catalog	Description	Example	Notes
EL7W	7W EM Pack, Installed	22FP3240C-EL7W	Remote Indicator/Test Switch
EL14W	14W EM Pack, Installed	22FP2140C-EL14W	Remote Indicator/Test Switch
A3/8-4/18GDIM	6′ Length, 3/8″ Cable, 2 Wire, 2 Dimming Leads, Ground	22FP3235C-A3/8-4/18G DIM
A3/8-5/18GDIM	6′ Length, 3/8″ Cable, 3 Wire, 2 Dimming Leads, Ground	22FP4235C-A3/8-5/18G DIM
EL7W-A3/8-5/18GDIM	7W EM Pack, Installed, and 6′ Flex, 3/8″ Cable, 3 Wire, 2 Dimming Leads, Ground	22FP3250C-EL14W-A3/8-5/18GDIM 22FP3250C-EL7W-A3/8-4/18GDIM	EL7W and EL14W can be used with any of the optional flex. EM pack is always specified before (to the left of) the flex, in the catalog number.
ATW-SW4	Chicago Rated	ATW-SW4-22FP2135C	May not be used with EL7W, EL14W, or flex. ATW- SW4 provides IP5X rating from above the fixture also, accomplished with gasket on the j-box.

Product Specifications

Construction

Narrow aluminum bezel is tightly held to code gauge steel back plate
Seamless corners to maximize the light emitting surface with a refined finish

Mounting

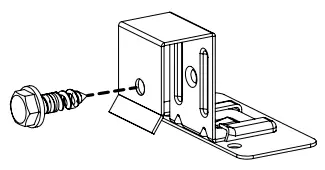

Integral grid locking clips and separate suspension clips provided for installation flexibility when additional retention is required
Junction box constructed of code gauge galvanized steel with and easy access hinged door
Multiple Trade size KO provided and JBox is suitable for up to 12AWG wiring
Stock luminaire is less than 2″ for use in shallow plenum or low ceiling spaces
Surface or suspension mounting kits available
ATW-SW4 option is available for CCEA compliance and provides full IP5X rating
Factory installed flexible cable with dimming leads options available

Controls

Standard UNV 120 – 277V driver with 0-10V dimming to 10% standard
Optional 347V driver with 0-10V dimming driver
Compatible with field installed wireless controls available for either Wavelinx or Enlighted

Electrical

Standard and High Efficacy models available
LED’s available in 3000K, 3500K, 4000K, and 5000K with a minimum of 80 CRI
90 CRI available with 3000K
Projected lumen maintenance based on TM21 testing standards is L73 > 60,000 hours
Emergency battery pack options available in 7w and 14w options
Battery pack options available as factory installed or field installed for remote mounting

Optical Shielding

Light guide with specialized features to optimize light extraction
White frost lens with smooth pattern for uniform illumination
Scratch and impact resistant

Compliance

Indoor luminaires are cULus listed for 25C ambient environments
IC rated for direct insulation contact
RoHS compliant
Damp location listed
IESNA LM-79 and LM-80 standards compliant
DesignLights Consortium® Qualified and classified for both DLC Standard and DLC Premium, refer to www.designlights.org for details.
Can be used for State of California Title 24 high efficacy luminaire
IP5X rated

Warranty

Five year warranty.

Load Data (Stock Product)

Thd	14%
Power Factor	0.96
Weight	9.4 lbs
Low Temp. Start	-20ºC

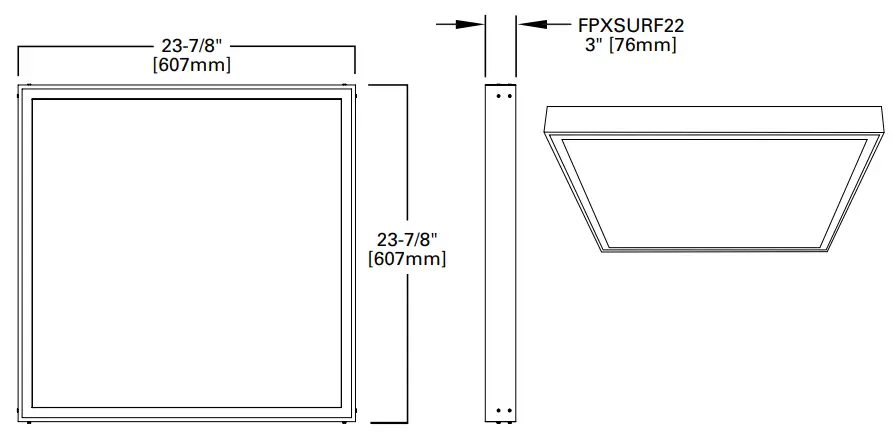

Accessories/Ordering Information Surface Mount Kit

Catalog	UPC
FPXSURF22 (1), (2)	080083867387
FPSURF22 (3)	080083802722
Notes : (1) FPXSURF22 surface mount kit is deep enough to fit all available options. (2) Recommend specifying FPXSURF22 from availability perspective; and it can be used with all FP product options. (3) FPSURF14 surface mount kit may not be used with EL7W or EL14W options.

Drywall Frame Kit

Catalog	UPC
DF-22W-U	662401232963

Suspension Kit

Catalog	UPC	Description
FPSUS2	080083802784	2 point Y-hanger suspension kit includes aircraft cable, carabiner, ceiling connection, SO cord, cord connectors and round 4″ J-box cover plate
Mounting height from ceiling Min.=7-1/4″ [184mm] Max.=27″ [286mm]

Shipping Data
